Attributes
| Group Code | 7970001A |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-79-series-ball-valves |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
Description
The Apollo® 79 Series is built for easy installation and long service life. Its completely hermetic welded assembly includes copper extensions and forged brass refrigerant ball valve with capped, triple sealed stem to prevent leaks.
- Full-Port
- Bi-Directional Flow
- All Sizes UL Listed
- For Use with Group 2 Fluids
- Adjustable Packing Gland
- Blow-Out Proof Stem Design
Variations (5)
7970201A
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | 0.94 lb |
| packaging | Carton (1 pce) |
7970301A
| size | 5/8" |
|---|---|
| dimensions | - |
| weight | 0.94 lb |
| packaging | Carton (1 pce) |
7970501A
| size | 1 1/8" |
|---|---|
| dimensions | 8.00x2.00x3.00 " |
| weight | 2.06 lb |
| packaging | Carton (1 pce) |
7970801A
| size | 2 1/8" |
|---|---|
| dimensions | 9.50x3.50x5.00 " |
| weight | 6 lb |
| packaging | Carton (1 pce) |
7970901A
| size | 2 5/8" |
|---|---|
| dimensions | - |
| weight | 17.5 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo Brass Full Port UL Listed Refrigerant Ball Valve with Standard Configuration (2 x Solder) |
|---|---|
| article number with gtin | 7970001A |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 17.5 lb |
| materials | brass |
| connection type | solder |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 79 Series Ball Valves |
| product type | 7970001A |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Brass","Connection 1":"Soldered sleeve","Connection 2":"Soldered sleeve","With filter":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents

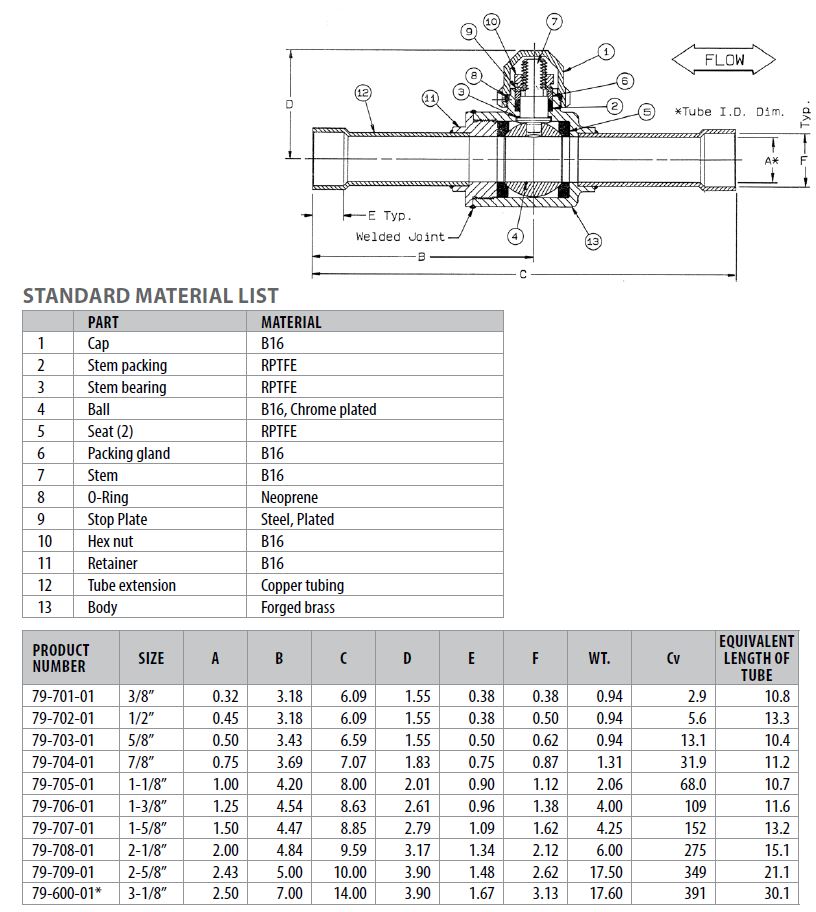

[Datasheet] 79-700 Submittal Sheet
Open PDF
