Attributes
| Group Code | 89FVH4X24 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-89fv-series-powerpress-ball-valves |
| Approvals | CRN |
Variations (6)

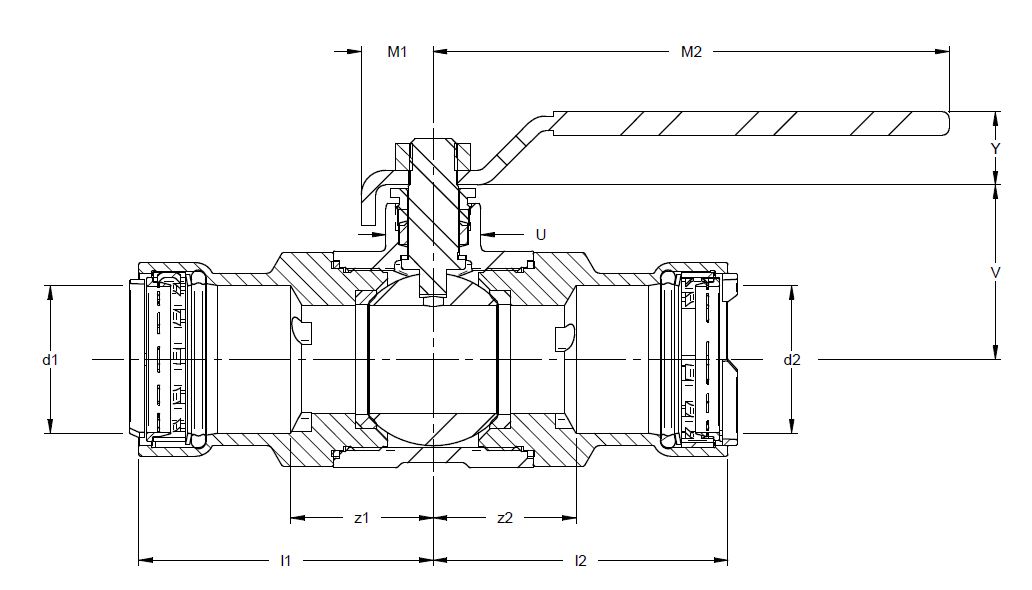

89FVH4324
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | 0.59 lb |
| packaging | Carton (1 pce) |
| d1 | 0.84 |
| DN1 | - |
| es1 | 1.10 |
| l1 | - |
| z1 | - |
| d2 | - |
| DN2 | - |
| l2 | - |
| z2 | - |
| M1 | - |
| M2 | - |
| Y | - |
| V | - |
| U | - |
89FVH4424
| size | 3/4" |
|---|---|
| dimensions | - |
| weight | 0.93 lb |
| packaging | Carton (1 pce) |
| d1 | 1.05 |
| DN1 | - |
| es1 | 1.22 |
| l1 | - |
| z1 | - |
| d2 | - |
| DN2 | - |
| l2 | - |
| z2 | - |
| M1 | - |
| M2 | - |
| Y | - |
| V | - |
| U | - |
89FVH4524
| size | 1" |
|---|---|
| dimensions | - |
| weight | 1.41 lb |
| packaging | Carton (1 pce) |
| d1 | 1.32 |
| DN1 | - |
| es1 | 1.42 |
| l1 | - |
| z1 | - |
| d2 | - |
| DN2 | - |
| l2 | - |
| z2 | - |
| M1 | - |
| M2 | - |
| Y | - |
| V | - |
| U | - |
89FVH4624
| size | 1-1/4" |
|---|---|
| dimensions | - |
| weight | 4.2 lb |
| packaging | Carton (1 pce) |
| d1 | 1.71 |
| DN1 | - |
| es1 | 1.89 |
| l1 | 3.41 |
| z1 | 1.51 |
| d2 | 1.71 |
| DN2 | - |
| l2 | 3.41 |
| z2 | 1.51 |
| M1 | 1.00 |
| M2 | 7.76 |
| Y | 0.87 |
| V | 2.29 |
| U | 1.31 |
89FVH4724
| size | 1-1/2" |
|---|---|
| dimensions | - |
| weight | 4.75 lb |
| packaging | Carton (1 pce) |
| d1 | 1.94 |
| DN1 | - |
| es1 | 1.93 |
| l1 | 3.62 |
| z1 | 1.70 |
| d2 | 1.94 |
| DN2 | - |
| l2 | 3.62 |
| z2 | 1.70 |
| M1 | 1.00 |
| M2 | 7.76 |
| Y | 0.87 |
| V | 2.39 |
| U | 1.31 |
89FVH4824
| size | 2" |
|---|---|
| dimensions | - |
| weight | 7.2 lb |
| packaging | Carton (1 pce) |
| d1 | 2.42 |
| DN1 | - |
| es1 | 2.09 |
| l1 | 3.93 |
| z1 | 1.82 |
| d2 | 2.42 |
| DN2 | - |
| l2 | 3.93 |
| z2 | 1.82 |
| M1 | 1.00 |
| M2 | 7.76 |
| Y | 0.87 |
| V | 2.77 |
| U | 1.31 |
Specifications
| article | Apollo Steel Gas Ball Valves with Graphite Packing (Not Always Firesafe) |
|---|---|
| article number with gtin | 89FVH4X24 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 7.2 lb |
| materials | steel |
| finishing | zinc-nickel plated |
| shape | straight |
| connection type | press (DW) |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 89FV Series PowerPress Ball Valves |
| product type | 89FVH4X24 |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Steel","Connection 1":"Press sleeve","With coupling connection 1":"No","Contour code connection 1":"DW","With coupling connection 2":"No","With drain valve":"No","With drain possibility (connection)":"No","With non-return valve":"No","With filter":"No","With thermometer":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Operation":"Lever handle","Housing construction":"3-part","Angle of the valve":"","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
