Apollo SmartPress straight connector FKM (press x female thread)

Scraped SKU: 503F-Apollo 2026-06-05 04:24:34

Attributes

Group Code503F-Apollo
Brand Seriesapollo-smartpress
Applicationsheating, cooling, compressed air, vacuum
ApprovalsASTM F3226/F3226M, CRN, IAPMO/ANSI/CAN Z1117
Solutionsutility, industry

Description

Apollo SmartPress is an innovative press connection system designed for joining ½”-2” IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The Apollo SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The Apollo SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FKM sealing elements.
  • complete range of AISI 316 fittings and valves
  • 500 psi operating pressure
  • color-coded Visu-control® foil for material/dimensions identification and visual press indication
  • patented sealing element design with Leak Before Press® technology for added safety and optimized installation
    clear identification of sealing element and dimensions
  • quick installation thanks to pre-marked insertion depth

Variations (13)

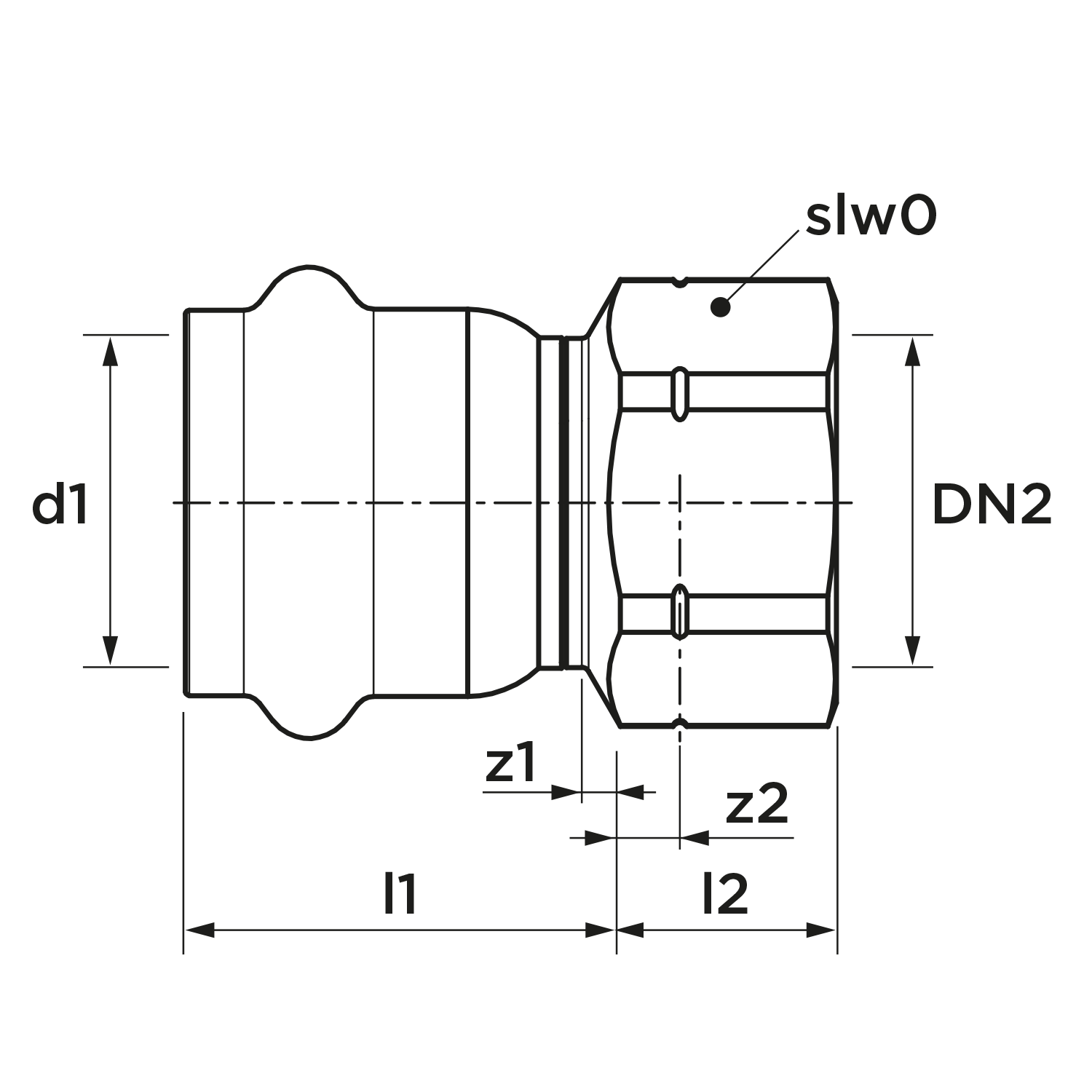

123457056

size1/2"xFPT1/2"
dimensions2.28x1.30x1.30 "
weight0.24 lb
packagingBag (10 pce)
d10.84
DN1-
l11.33
z10.27
d20.84
DN2-
l20.95
z20.63
slw01.102
h0.512
slw2-

123457057

size3/4"xFPT1/2"
dimensions2.28x1.50x1.50 "
weight0.26 lb
packagingBag (10 pce)
d11.06
DN1-
l11.33
z10.27
d20.84
DN2-
l20.95
z20.63
slw01.102
h0.512
slw2-

123457058

size3/4"xFPT3/4"
dimensions2.32x1.50x1.50 "
weight0.28 lb
packagingBag (5 pce)
d11.06
DN1-
l11.33
z10.27
d21.06
DN2-
l20.98
z20.63
slw01.26
h0.787
slw2-

123457059

size1"xFPT1/2"
dimensions2.36x1.89x1.89 "
weight0.48 lb
packagingBag (5 pce)
d11.33
DN1-
l11.50
z10.32
d20.84
DN2-
l20.87
z20.55
slw01.417
h0.591
slw2-

123457060

size1"xFPT3/4"
dimensions2.36x1.89x1.89 "
weight0.43 lb
packagingBag (5 pce)
d11.33
DN1-
l11.50
z10.32
d21.06
DN2-
l20.87
z20.55
slw01.417
h0.591
slw2-

123457061

size1"xFPT1"
dimensions2.60x1.89x1.89 "
weight0.52 lb
packagingBag (5 pce)
d11.33
DN1-
l11.50
z10.32
d21.33
DN2-
l21.10
z20.71
slw01.614
h0.669
slw2-

123460810

size1 1/4"xFTP1 1/4"
dimensions2.83x2.56x2.56 "
weight1 lb
packagingBag (1 pce)
d11.90
DN1-
l11.68
z10.30
d21.90
DN2-
l21.14
z20.75
slw0-
h-
slw22.362

123457062

size1 1/2"xFPT1"
dimensions2.72x2.56x2.56 "
weight0.9 lb
packagingBag (1 pce)
d11.90
DN1-
l11.68
z10.30
d21.33
DN2-
l21.02
z20.63
slw01.969
h0.748
slw2-

123457063

size1 1/2"xFPT1 1/4"
dimensions2.72x2.56x2.56 "
weight0.72 lb
packagingBag (1 pce)
d11.90
DN1-
l11.68
z10.30
d21.66
DN2-
l21.02
z20.59
slw01.969
h0.748
slw2-

123457064

size1 1/2"xFPT1 1/2"
dimensions2.83x2.56x2.56 "
weight1 lb
packagingBag (1 pce)
d11.90
DN1-
l11.68
z10.30
d21.90
DN2-
l21.14
z20.75
slw02.362
h1.024
slw2-

123457065

size2"xFPT1 1/4"
dimensions3.11x3.15x3.15 "
weight1.51 lb
packagingBag (1 pce)
d12.37
DN1-
l11.92
z10.31
d21.66
DN2-
l21.18
z20.75
slw02.559
h0.787
slw2-

123457066

size2"xFPT1 1/2"
dimensions3.11x3.15x3.15 "
weight1.36 lb
packagingBag (1 pce)
d12.37
DN1-
l11.92
z10.31
d21.90
DN2-
l21.18
z20.75
slw02.559
h0.787
slw2-

123457067

size2"xFPT2"
dimensions3.31x3.15x3.15 "
weight1.36 lb
packagingBag (1 pce)
d12.37
DN1-
l11.92
z10.31
d22.37
DN2-
l21.38
z20.95
slw02.756
h1.024
slw2-

Specifications

articleApollo SmartPress straight connector FKM (press x female thread)
article number with gtin503F-Apollo
manufacturerAalberts integrated piping systems B.V. (VSH)
weight1.36 lb
dimensions3.31x3.15x3.15 "
colorsilver
materialsstainless steel (Stainless steel 316L (1.4404))
finishingnone
shapestraight, reducer
connection typepress (V), FPT - female thread conical (NPT)
sealingFKM
max operating pressure liquid500 psi
min. medium temperature-4 °F
max medium temperature392 °F
peak medium temperature446 °F
product groupfittings
ETIM classEC003024 Fitting with 2 connections
intrastat code73072980
country of originNetherlands
brandApollo
seriesSmartPress
product type503F
unsps40172507
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Stainless steel","Material quality connection 1":"Stainless steel 316 L (1.4404)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Stainless steel","Material quality connection 2":"Stainless steel 316 L (1.4404)","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Eccentric":"No","System specific":"Yes","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Internal thread conical (NPT)","Main colour fitting":"Grey","Material sealing":"Fluorelastomer rubber (FPM/FKM)","With buffer stud":"Yes","Medium temperature (continuous)":"-20°C - 200°C","Medium temperature (continuous) (imperial)":"-4°F - 392°F","Max. operating pressure at 20 °C":"34.47bar","Max. operating pressure at 20 °C (imperial)":"500psi","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
