Attributes
| Group Code | 507-2E-Apollo |
|---|---|
| Brand Series | apollo-smartpress |
| Applications | potable water, heating, cooling, steam, compressed air, sprinkler, vacuum |
| Approvals | ASTM F3226/F3226M, CRN, FM, IAPMO/ANSI/CAN Z1117, NSF/ANSI 372, NSF/ANSI 61, UL, ULc |
| Solutions | fire protection, utility, industry |
Description
Apollo SmartPress is an innovative press connection system designed for joining ½”-2” IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The Apollo SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The Apollo SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FKM sealing elements.
- complete range of AISI 316 fittings and valves
- 500 psi operating pressure
- color-coded Visu-control® foil for material/dimensions identification and visual press indication
- patented sealing element design with Leak Before Press® technology for added safety and optimized installation
clear identification of sealing element and dimensions - quick installation thanks to pre-marked insertion depth
Variations (6)

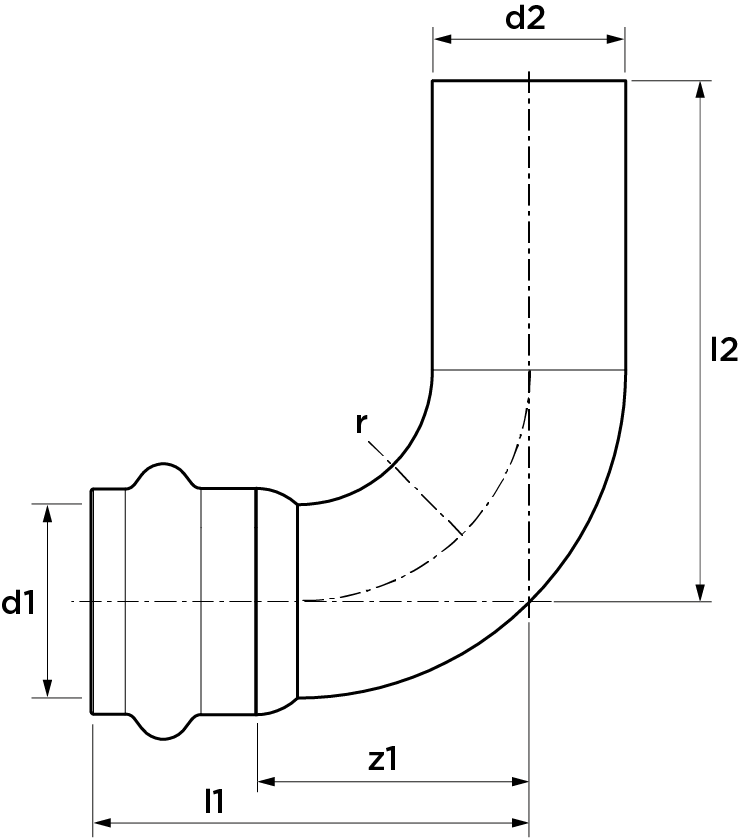

123456960
| size | 1/2" |
|---|---|
| dimensions | 2.68x3.46x1.30 " |
| weight | 0.26 lb |
| packaging | Bag (10 pce) |
| d1 | 0.84 |
| DN1 | - |
| l1 | 2.24 |
| z1 | 1.18 |
| d2 | 0.84 |
| DN2 | - |
| l2 | 2.83 |
| radius | 1.02 |
| angle | - |
123456961
| size | 3/4" |
|---|---|
| dimensions | 2.99x3.78x1.50 " |
| weight | 0.37 lb |
| packaging | Bag (5 pce) |
| d1 | 1.06 |
| DN1 | - |
| l1 | 2.48 |
| z1 | 1.41 |
| d2 | 1.06 |
| DN2 | - |
| l2 | 3.00 |
| radius | 1.26 |
| angle | - |
123456962
| size | 1" |
|---|---|
| dimensions | 3.66x4.49x1.89 " |
| weight | 0.69 lb |
| packaging | Bag (5 pce) |
| d1 | 1.33 |
| DN1 | - |
| l1 | 2.98 |
| z1 | 1.80 |
| d2 | 1.33 |
| DN2 | - |
| l2 | 3.54 |
| radius | 1.58 |
| angle | - |
123460794
| size | 1 1/4" |
|---|---|
| dimensions | 4.80x5.79x2.56 " |
| weight | 1.26 lb |
| packaging | Bag (1 pce) |
| d1 | 1.90 |
| DN1 | - |
| l1 | 3.87 |
| z1 | 2.48 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 4.38 |
| radius | 2.28 |
| angle | - |
123456963
| size | 1 1/2" |
|---|---|
| dimensions | 4.80x5.79x2.56 " |
| weight | 1.26 lb |
| packaging | Bag (1 pce) |
| d1 | 1.90 |
| DN1 | - |
| l1 | 3.87 |
| z1 | 2.09 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 4.38 |
| radius | 2.28 |
| angle | - |
123456964
| size | 2" |
|---|---|
| dimensions | 5.87x7.05x3.15 " |
| weight | 2.03 lb |
| packaging | Bag (1 pce) |
| d1 | 2.37 |
| DN1 | - |
| l1 | 4.66 |
| z1 | 3.05 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 5.24 |
| radius | 2.84 |
| angle | - |
Specifications
| article | Apollo SmartPress bend 90° EPDM (press x male) |
|---|---|
| article number with gtin | 507-2E-Apollo |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| weight | 2.03 lb |
| dimensions | 5.87x7.05x3.15 " |
| color | silver |
| materials | stainless steel (Stainless steel 316L (1.4404)) |
| finishing | none |
| shape | Bend, 90º |
| connection type | press (V), tube end |
| sealing | EPDM |
| max operating pressure liquid | 500 psi |
| min. medium temperature | -31 °F |
| max medium temperature | 275 °F |
| peak medium temperature | 302 °F |
| product group | fittings |
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73072980 |
| country of origin | Netherlands |
| brand | Apollo |
| series | SmartPress |
| product type | 507-2E |
| unsps | 40172100 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Stainless steel","Material quality connection 1":"Stainless steel 316 L (1.4404)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Stainless steel","Material quality connection 2":"Stainless steel 316 L (1.4404)","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Bend","Bend angle":"90°","Reducing":"No","Eccentric":"No","System specific":"Yes","Connection 1":"Press sleeve","Contour code connection 1":"V","Connection 2":"Soldered end","Main colour fitting":"Grey","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","Medium temperature (continuous)":"-35°C - 135°C","Medium temperature (continuous) (imperial)":"-31°F - 275°F","Max. operating pressure at 20 °C":"34.47bar","Max. operating pressure at 20 °C (imperial)":"500psi","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"Yes","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
