Attributes
| Group Code | SM500E-Apollo |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-smartpress |
| Applications | potable water, heating, cooling, compressed air |
| Approvals | NSF/ANSI 372, NSF/ANSI 61 |
| Solutions | utility, industry |
Description
The Apollo SmartPress FullFlow is a stainless steel ball valve with 2 press ends in combination with Schedule 5S/10S stainless steel piping. The Apollo SmartPress Press FullFlow valve is a uniquely designed ball valve with a 100% full port design. By using the Apollo SmartPress FullFlow ball valve you are always ensured that the material of your stainless steel piping installation is a direct match with the Apollo SmartPress fittings.
- compact FullFlow design, produced in one piece minimizing the risk of leaks
- complete range of AISI 316 fittings and valves
- 300 psi operating pressure
- interchangeable application identifier to distinguish hot and cold application
- clear identification of sealing element and dimensions
- more security with the Leak Before Pressed function
- unique laser marked valve identification

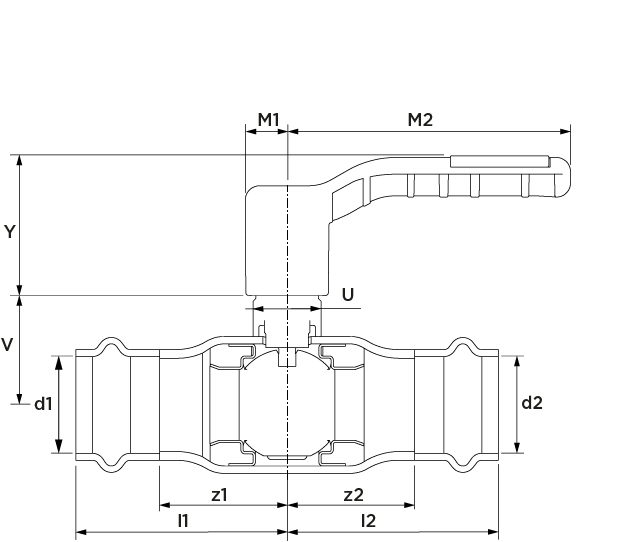

Variations (5)
123457176
| size | 1/2" |
|---|---|
| dimensions | 5.20x1.34x3.46 " |
| weight | 0.66 lb |
| packaging | Bag (1 pce) |
| d1 | 0.84 |
| DN1 | - |
| l1 | 2.24 |
| z1 | 1.20 |
| d2 | 0.84 |
| DN2 | - |
| l2 | 2.24 |
| z2 | 1.20 |
| M1 | 0.47 |
| M2 | 2.95 |
| E | 0.95 |
| H | 2.84 |
| h2 | - |
| Y | 1.71 |
| V | 1.13 |
| U | 0.71 |
| D1 | 1.29 |
| a | - |
123457177
| size | 3/4" |
|---|---|
| dimensions | 5.43x1.57x3.70 " |
| weight | 0.9 lb |
| packaging | Bag (1 pce) |
| d1 | 1.06 |
| DN1 | - |
| l1 | 2.51 |
| z1 | 1.47 |
| d2 | 1.06 |
| DN2 | - |
| l2 | 2.51 |
| z2 | 1.47 |
| M1 | 0.47 |
| M2 | 2.95 |
| E | 0.95 |
| H | 2.95 |
| h2 | - |
| Y | 1.71 |
| V | 1.24 |
| U | 0.71 |
| D1 | 1.49 |
| a | - |
123457178
| size | 1" |
|---|---|
| dimensions | 6.65x1.93x4.45 " |
| weight | 1.69 lb |
| packaging | Bag (1 pce) |
| d1 | 1.33 |
| DN1 | - |
| l1 | 2.93 |
| z1 | 1.77 |
| d2 | 1.33 |
| DN2 | - |
| l2 | 2.93 |
| z2 | 1.77 |
| M1 | 0.58 |
| M2 | 3.94 |
| E | 1.16 |
| H | 3.47 |
| h2 | - |
| Y | 1.95 |
| V | 1.52 |
| U | 0.71 |
| D1 | 1.87 |
| a | - |
123457179
| size | 1 1/2" |
|---|---|
| dimensions | 10.28x2.76x5.28 " |
| weight | 3.77 lb |
| packaging | Bag (1 pce) |
| d1 | 1.90 |
| DN1 | - |
| l1 | 4.06 |
| z1 | 2.72 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 4.06 |
| z2 | 2.72 |
| M1 | 0.68 |
| M2 | 6.50 |
| E | 1.36 |
| H | 3.91 |
| h2 | - |
| Y | 2.00 |
| V | 1.91 |
| U | 1.10 |
| D1 | 2.55 |
| a | - |
123457180
| size | 2" |
|---|---|
| dimensions | 11.26x3.50x5.98 " |
| weight | 5.84 lb |
| packaging | Bag (1 pce) |
| d1 | 2.37 |
| DN1 | - |
| l1 | 4.69 |
| z1 | 3.11 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 4.69 |
| z2 | 3.11 |
| M1 | 0.68 |
| M2 | 6.50 |
| E | 1.36 |
| H | 4.26 |
| h2 | - |
| Y | 2.00 |
| V | 2.26 |
| U | 1.10 |
| D1 | 3.14 |
| a | - |
Specifications
| article | Apollo SmartPress FullFlow ball valve EPDM (2 x press) |
|---|---|
| article number with gtin | SM500E-Apollo |
| manufacturer | BROEN |
| weight | 5.84 lb |
| dimensions | 11.26x3.50x5.98 " |
| color | silver |
| materials | stainless steel (Stainless steel 316L (1.4404)) |
| finishing | none |
| shape | straight |
| connection type | press (V) |
| sealing | EPDM |
| max operating pressure liquid | 300 psi |
| min. medium temperature | -31 °F |
| max medium temperature | 275 °F |
| peak medium temperature | 302 °F |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| intrastat code | 73072980 |
| country of origin | Denmark |
| brand | Apollo |
| series | SmartPress |
| product type | SM500E |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Stainless steel","Material quality":"Stainless steel 316 (1.4401)","Surface protection housing":"None","Material ball":"Stainless steel","Material spindle":"Stainless steel","Material primary spindle seal":"Ethylene-propylene diene monomer rubber (EPDM)","Connection 1":"Press sleeve","With coupling connection 1":"No","Contour code connection 1":"V","Connection 2":"Press sleeve","With coupling connection 2":"No","Contour code connection 2":"V","Sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With drain valve":"No","With drain possibility (connection)":"No","With non-return valve":"No","With filter":"No","With thermometer":"No","Model":"Straight","With insulation shell":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medium temperature (continuous)":"-35°C - 135°C","Medium temperature (continuous) (imperial)":"-31°F - 275°F","Medically clean":"No","Grease-free":"No","Operation":"Lever handle","Housing construction":"1-part","Full bore":"Yes","Angle of the valve":"","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
