Attributes
| Group Code | 54 |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | utility, industry |
Description

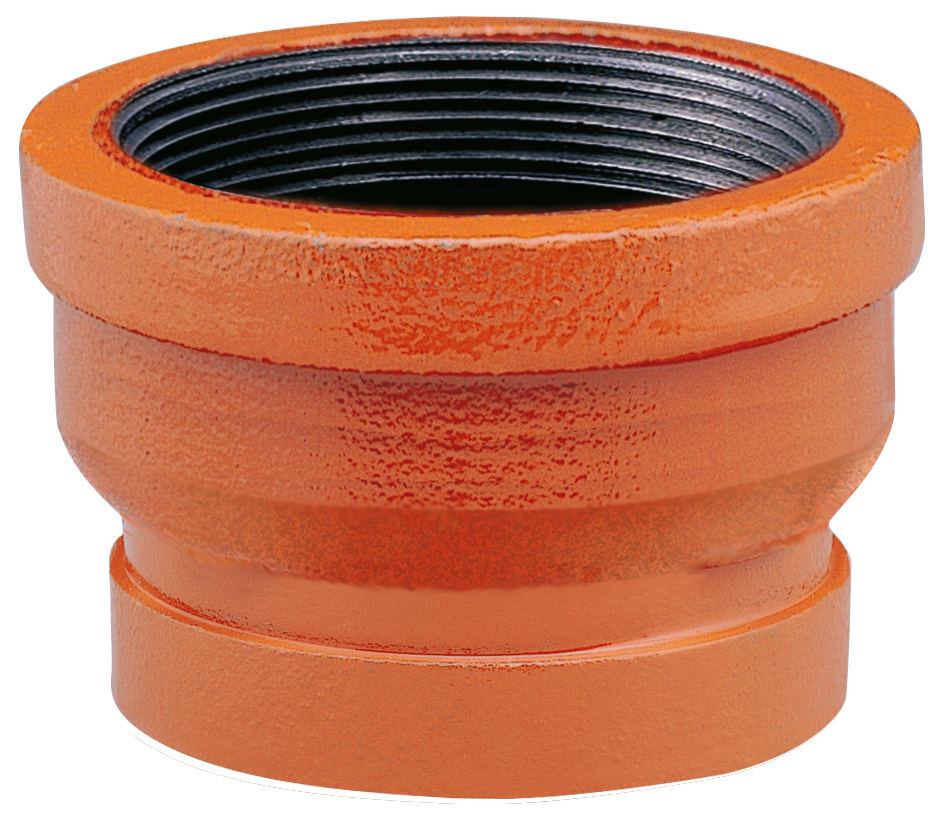

The VSH Shurjoint Model 54 is a cast adapter that allows for a direct transition from grooved system to a female threaded system.
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
- VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
- the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
Variations (7)
SJT5415P
| size | 1 1/2"xFNPT1 1/2" orange |
|---|---|
| dimensions | 1.90x1.90x2.36 " |
| weight | 0.68 lb |
| packaging | - |

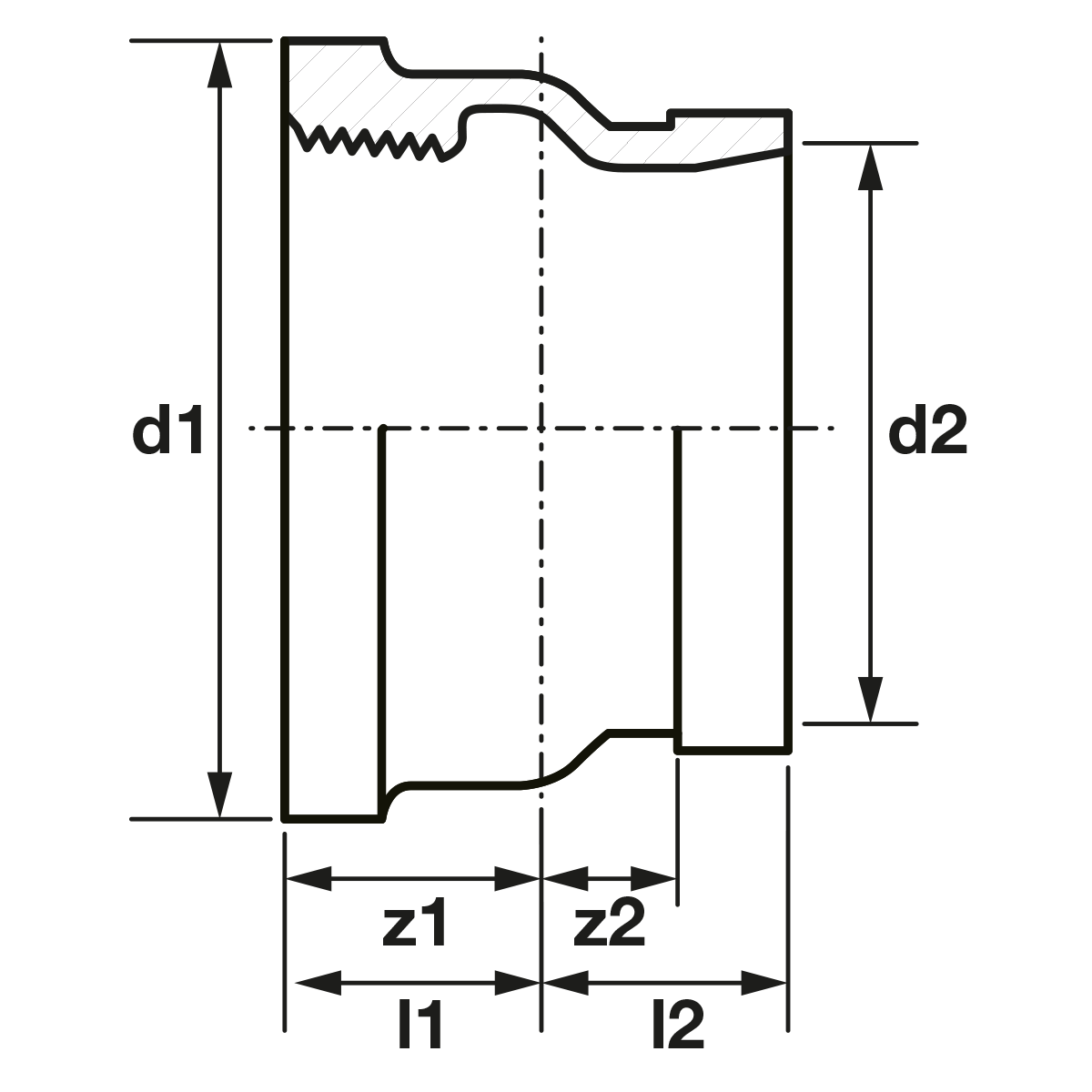

| d1 | 1.90 |
| DN1 | - |
| l1 | 1.18 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 1.18 |
| z2 | 0.46 |
SJT542P
| size | 2"xFNPT2" orange |
|---|---|
| dimensions | 2.37x2.37x2.52 " |
| weight | 0.93 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 1.26 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 1.26 |
| z2 | 0.51 |
SJT542G
| size | 2"xFNPT2" galvanized |
|---|---|
| dimensions | 2.37x2.37x2.52 " |
| weight | 0.93 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 1.26 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 1.26 |
| z2 | 0.51 |
SJT5425P
| size | 2 1/2"xFNPT2 1/2" orange |
|---|---|
| dimensions | 3.00x3.00x2.76 " |
| weight | 1.83 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 1.38 |
| d2 | 2.87 |
| DN2 | - |
| l2 | 1.38 |
| z2 | 0.46 |
SJT543P
| size | 3"xFNPT3" orange |
|---|---|
| dimensions | 3.50x3.50x2.76 " |
| weight | 2.2 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 1.38 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 1.38 |
| z2 | 0.40 |

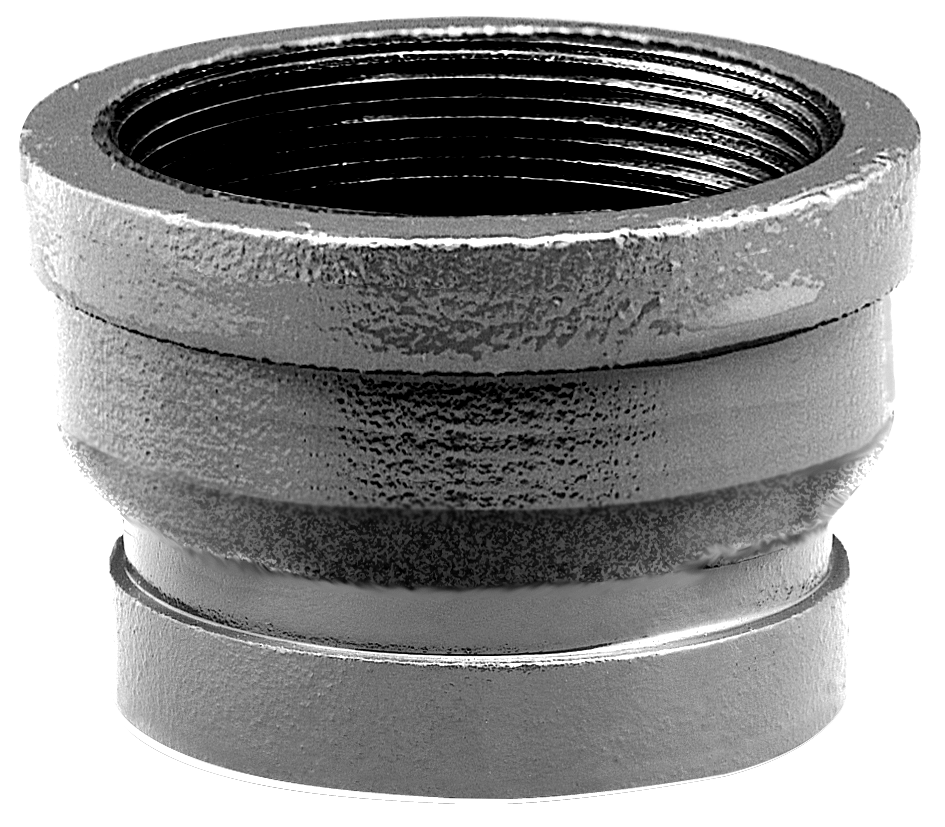

SJT543G
| size | 3"xFNPT3" galvanized |
|---|---|
| dimensions | 3.50x3.50x2.76 " |
| weight | 2.2 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 1.38 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 1.38 |
| z2 | 0.40 |
SJT544P
| size | 4"xFNPT4" orange |
|---|---|
| dimensions | 4.50x4.50x3.31 " |
| weight | 3.64 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 1.63 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 1.63 |
| z2 | 0.56 |
Specifications
| article | VSH Shurjoint grooved adapter (groove x female thread) |
|---|---|
| article number with gtin | 54 |
| manufacturer | Shurjoint |
| weight | 3.64 lb |
| dimensions | 4.50x4.50x3.31 " |
| color | orange, silver |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished, hot dip galvanized |
| connection type | groove (fitting), FPT - female thread conical (NPT) |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 54 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Reducing":"No","Eccentric":"No","System specific":"Yes","Connection 1":"Groove","Connection 2":"Internal thread conical (NPT)","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
