Attributes
| Group Code | 58 |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Approvals | CRN |
| Solutions | utility, industry |
Description
The VSH Shurjoint weld nipple has a beveled welding end for optimal welding performance.The "Cut-groove" on the groove end provides optimal strength at maximum internal diameter and minimum pressure loss.
Variations (11)
SJT58154B
| size | 1 1/2" l=102mm |
|---|---|
| dimensions | 1.90x1.90x4.02 " |
| weight | 0.84 lb |
| packaging | - |

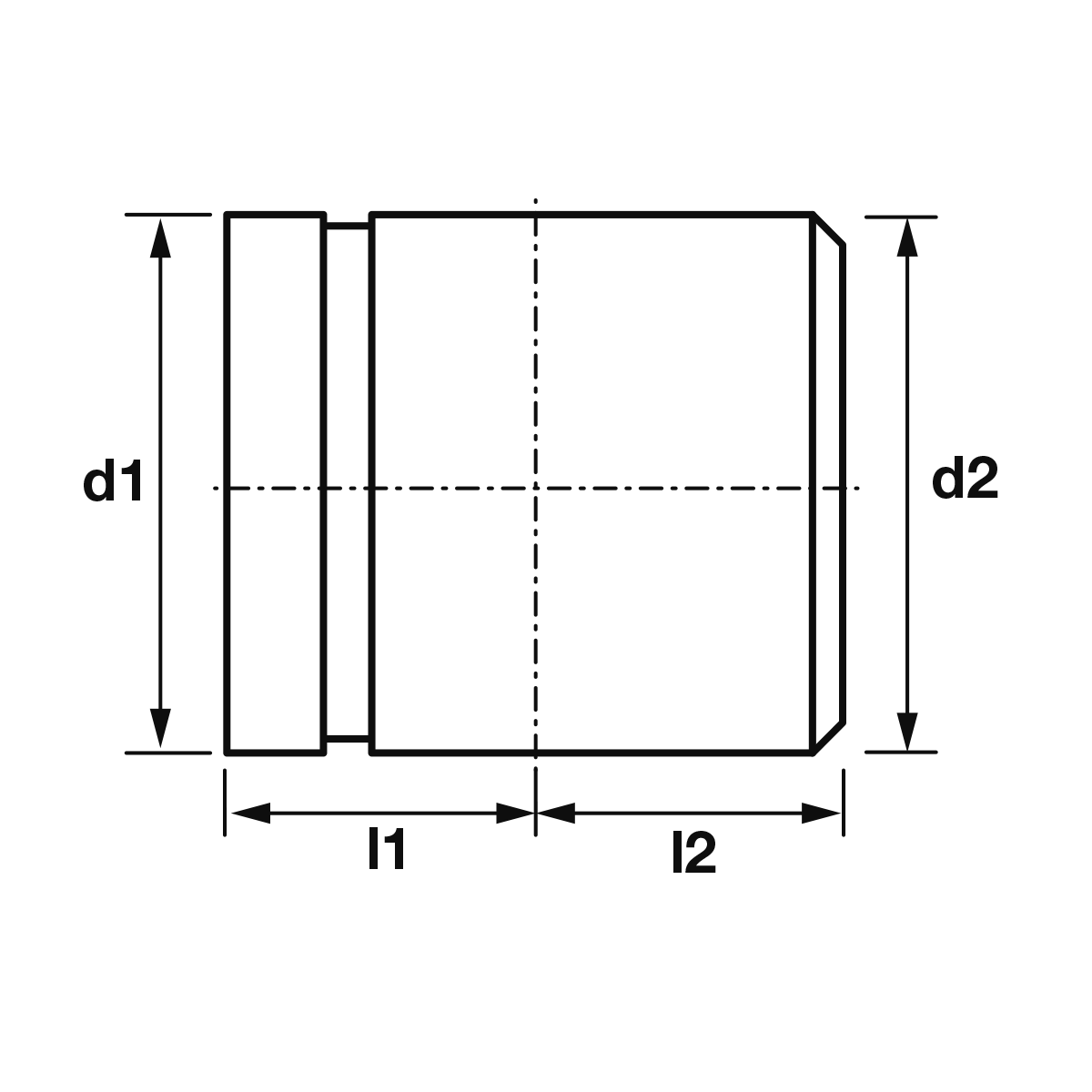

| d1 | 1.90 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 1.90 |
| DN2 | - |
| l2 | 2.05 |
SJT5824B
| size | 2" l=102mm |
|---|---|
| dimensions | 2.40x2.40x4.02 " |
| weight | 1.1 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 2.05 |
SJT5826B
| size | 2" l=152mm |
|---|---|
| dimensions | 2.37x2.37x5.98 " |
| weight | 1.98 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 4.02 |
SJT58254B
| size | 2 1/2" l=102mm |
|---|---|
| dimensions | 2.87x2.87x4.02 " |
| weight | 1.76 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 2.87 |
| DN2 | - |
| l2 | 2.05 |
SJT5834B
| size | 3" l=102mm |
|---|---|
| dimensions | 3.50x3.50x4.02 " |
| weight | 2.43 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 2.05 |
SJT5836B
| size | 3" l=152mm |
|---|---|
| dimensions | 3.50x3.50x5.98 " |
| weight | 3.97 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 4.02 |
SJT5846B
| size | 4" l=152mm |
|---|---|
| dimensions | 4.53x4.53x5.98 " |
| weight | 5.18 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 4.02 |
SJT5856B
| size | 5" l=152mm |
|---|---|
| dimensions | 5.56x5.56x5.98 " |
| weight | 7.28 lb |
| packaging | - |
| d1 | 5.56 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 5.56 |
| DN2 | - |
| l2 | 4.02 |
SJT5866B
| size | 6" l=152mm |
|---|---|
| dimensions | 6.65x6.65x5.98 " |
| weight | 9.92 lb |
| packaging | - |
| d1 | 6.63 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 4.02 |
SJT5886B
| size | 8" l=152mm |
|---|---|
| dimensions | 8.66x8.66x5.98 " |
| weight | 14.33 lb |
| packaging | - |
| d1 | 8.63 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 8.63 |
| DN2 | - |
| l2 | 4.02 |
SJT58106B
| size | 10" l=152mm |
|---|---|
| dimensions | 10.75x10.75x5.98 " |
| weight | 19.62 lb |
| packaging | - |
| d1 | 10.75 |
| DN1 | - |
| l1 | 1.97 |
| d2 | 10.75 |
| DN2 | - |
| l2 | 4.02 |
Specifications
| article | VSH Shurjoint grooved weld nipple (groove x welding end) |
|---|---|
| article number with gtin | 58 |
| manufacturer | Shurjoint |
| weight | 19.62 lb |
| dimensions | 10.75x10.75x5.98 " |
| color | silver |
| materials | steel (ASTM A53 Grade B) |
| finishing | none |
| connection type | groove (fitting), weld |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 58 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"Other","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Steel","Material quality connection 2":"Other","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Model":"1-part","Bend angle":"","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Welding connection","Main colour fitting":"Grey","With buffer stud":"No","High tensile strength":"Yes","Length of connection 1":"50mm","Length of connection 1 (imperial)":"1.97\"","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
