Attributes
| Group Code | 7041AT |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | residential, datacenters, utility, industry |
Description

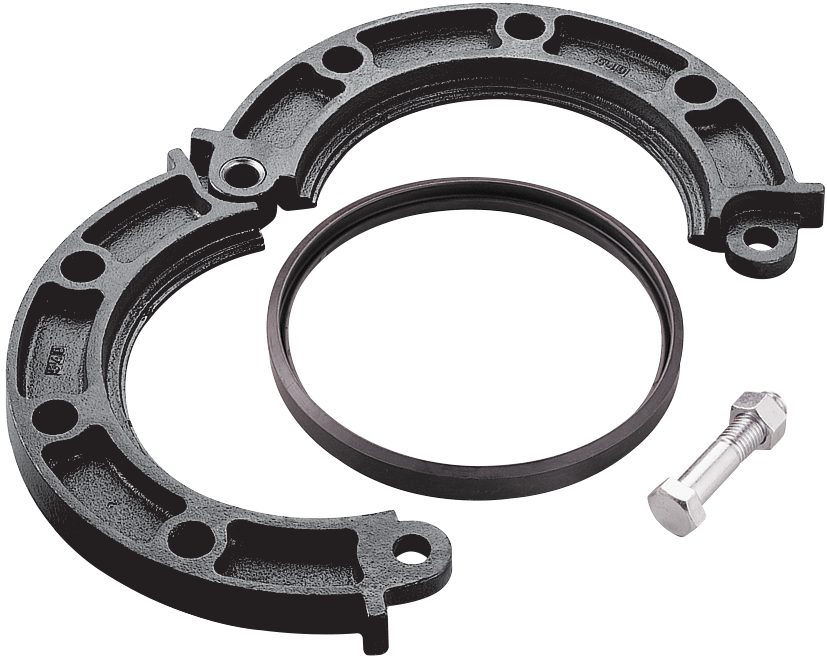

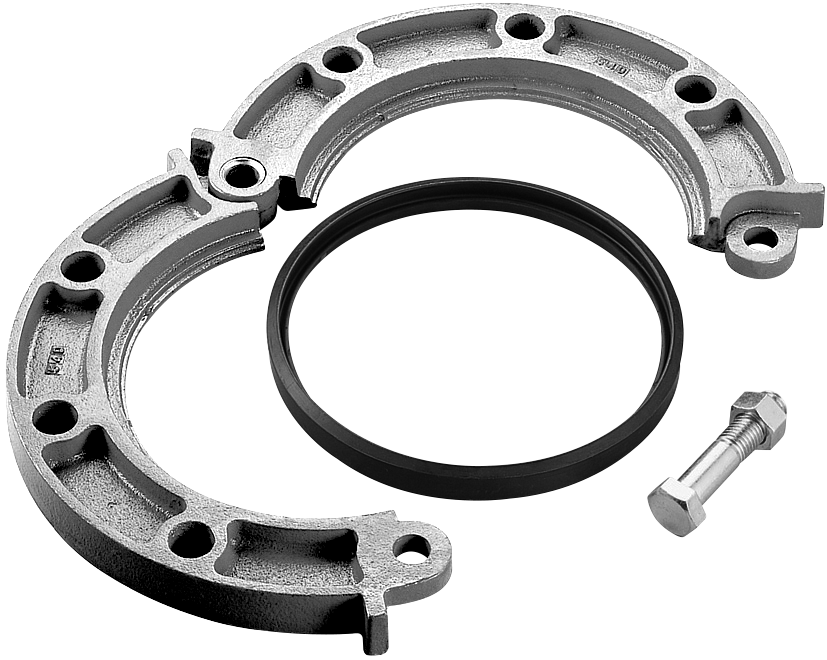

The VSH Shurjoint Model 7041AT Flange Adapter allows for a direct connection of an ASTM Class 150 flange. The specially designed gasket enables the transition from a grooved system to a flanged system or component with this single flange adapter. The two-segment design provides an easy and fast installation. All include a NBR rubber gasket and plated track bolts and nuts.2” - 12” flange adapters are supplied hinged as a single assembly 14” - 24” (Model 7041N) are supplied with two separate segments and a draw kit small triangular teeth inside the key shoulder prevent the pipe from rotating tighten nuts alternately in the sequence of diagonally opposite pairs
Variations (7)
SJT70412PT
| size | 2" A150 orange |
|---|---|
| dimensions | 5.98x5.98x0.75 " |
| weight | 3.99 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 0.75 |
| d2 | 5.98 |
| DN2 | - |
| n2 | - |
| k2 | 4.92 |
| d2-2 | 0.71 |
| D2 | 6.5 |
SJT704125GT
| size | 2 1/2" A150 galvanized |
|---|---|
| dimensions | 7.01x7.01x0.87 " |
| weight | 5.14 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 0.87 |
| d2 | 7.01 |
| DN2 | - |
| n2 | - |
| k2 | 5.71 |
| d2-2 | 0.71 |
| D2 | 7.28 |
SJT70413PT
| size | 3" A150 orange |
|---|---|
| dimensions | 7.52x7.52x0.94 " |
| weight | 6.22 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 0.95 |
| d2 | 7.52 |
| DN2 | - |
| n2 | - |
| k2 | 6.3 |
| d2-2 | 0.71 |
| D2 | 7.87 |
SJT70413GT
| size | 3" A150 galvanized |
|---|---|
| dimensions | 7.52x7.52x0.94 " |
| weight | 6.22 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 0.95 |
| d2 | 7.52 |
| DN2 | - |
| n2 | - |
| k2 | 6.3 |
| d2-2 | 0.71 |
| D2 | 7.87 |
SJT70414PT
| size | 4" A150 orange |
|---|---|
| dimensions | 9.02x9.02x0.94 " |
| weight | 8.29 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 0.95 |
| d2 | 9.02 |
| DN2 | - |
| n2 | - |
| k2 | 7.09 |
| d2-2 | 0.71 |
| D2 | 8.66 |
SJT70416PT
| size | 6" A150 orange |
|---|---|
| dimensions | 10.98x10.98x0.98 " |
| weight | 11.11 lb |
| packaging | - |
| d1 | 6.63 |
| DN1 | - |
| l1 | 0.98 |
| d2 | 10.98 |
| DN2 | - |
| n2 | - |
| k2 | 9.45 |
| d2-2 | 0.87 |
| D2 | 11.22 |
SJT70418PT
| size | 8" A150 orange |
|---|---|
| dimensions | 13.50x13.50x1.14 " |
| weight | 17.24 lb |
| packaging | - |
| d1 | 8.63 |
| DN1 | - |
| l1 | 1.14 |
| d2 | 13.50 |
| DN2 | - |
| n2 | - |
| k2 | 11.61 |
| d2-2 | 0.87 |
| D2 | 13.39 |
Specifications
| article | VSH Shurjoint A150 flange adapter (groove x flange), NBR gasket |
|---|---|
| article number with gtin | 7041AT |
| manufacturer | Shurjoint |
| weight | 17.24 lb |
| dimensions | 13.50x13.50x1.14 " |
| color | orange, silver |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished, hot dip galvanized |
| shape | straight |
| connection type | groove (coupling), flange |
| pressure rating (PN) | PN 16 |
| sealing | NBR (Nitrile) |
| max operating pressure liquid | 290 psi |
| min. medium temperature | -20 °F |
| max medium temperature | 180 °F |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 7041AT |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"2-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Flange","Flange compression class (PN)":"PN 16","Material sealing":"NBR (nitrile rubber)","With buffer stud":"No","High tensile strength":"Yes","Medium temperature (continuous)":"-29°C - 82°C","Medium temperature (continuous) (imperial)":"-20.2°F - 179.6°F","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
