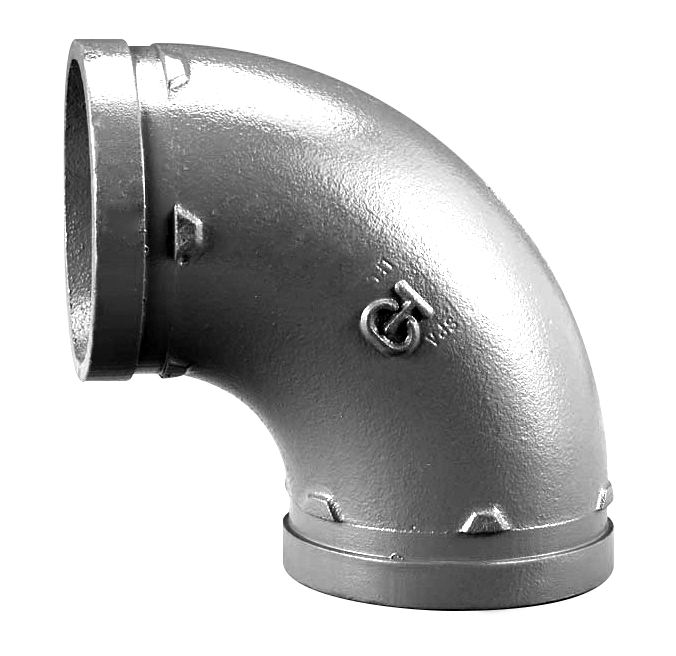

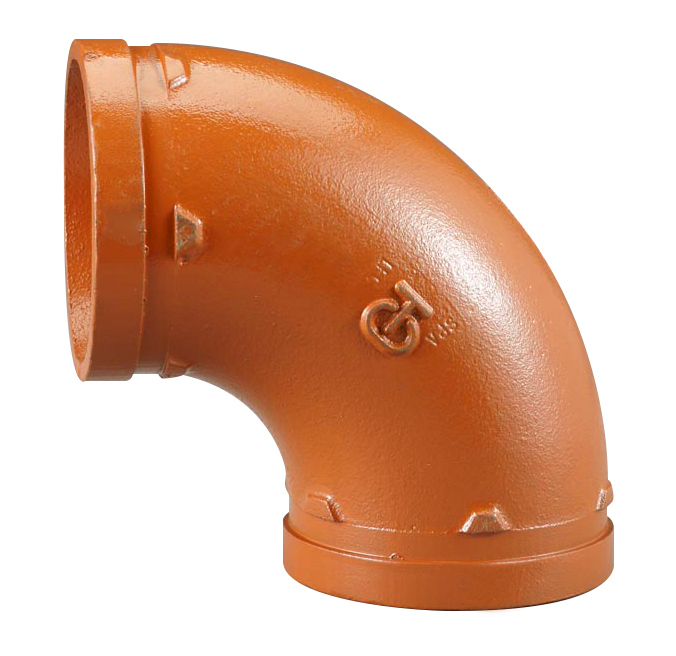

VSH Shurjoint 90° elbow (2 x groove)

Scraped SKU: 7110 2026-06-05 04:24:53

Attributes

Group Code7110
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, LPCB, TSU, UL, ULc, VdS
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (26)

SJT71101P

size1" orange
dimensions2.91x1.31x2.91 "
weight0.66 lb
packaging-
d11.32
DN1-
l12.24
d21.32
DN2-
l22.24
radius1.30
angle-

SJT71101G

size1" galvanized
dimensions2.91x1.31x2.91 "
weight0.66 lb
packaging-
d11.32
DN1-
l12.24
d21.32
DN2-
l22.24
radius1.30
angle-

SJT7110125P

size1 1/4" orange
dimensions3.62x1.66x3.62 "
weight1.1 lb
packaging-
d11.66
DN1-
l12.76
d21.66
DN2-
l22.76
radius1.81
angle-

SJT7110125G

size1 1/4" galvanized
dimensions3.62x1.66x3.62 "
weight1.1 lb
packaging-
d11.66
DN1-
l12.76
d21.66
DN2-
l22.76
radius1.81
angle-

SJT711015P

size1 1/2" orange
dimensions3.74x1.90x3.74 "
weight1.32 lb
packaging-
d11.90
DN1-
l12.76
d21.90
DN2-
l22.76
radius1.81
angle-

SJT711015G

size1 1/2" galvanized
dimensions3.74x1.90x3.74 "
weight1.32 lb
packaging-
d11.90
DN1-
l12.76
d21.90
DN2-
l22.76
radius1.81
angle-

SJT71102P

size2" orange
dimensions4.49x2.37x4.49 "
weight1.98 lb
packaging-
d12.37
DN1-
l13.27
d22.37
DN2-
l23.27
radius2.32
angle-

SJT71102G

size2" galvanized
dimensions4.49x2.37x4.49 "
weight1.98 lb
packaging-
d12.37
DN1-
l13.27
d22.37
DN2-
l23.27
radius2.32
angle-

SJT711025P

size2 1/2" orange
dimensions5.18x2.87x5.18 "
weight2.65 lb
packaging-
d12.87
DN1-
l13.74
d22.87
DN2-
l23.74
radius2.80
angle-

SJT711025G

size2 1/2" galvanized
dimensions5.18x2.87x5.18 "
weight2.65 lb
packaging-
d12.87
DN1-
l13.74
d22.87
DN2-
l23.74
radius2.80
angle-

SJT71103P

size3" orange
dimensions6.02x3.50x6.02 "
weight4.41 lb
packaging-
d13.50
DN1-
l14.25
d23.50
DN2-
l24.25
radius3.31
angle-

SJT71103G

size3" galvanized
dimensions6.02x3.50x6.02 "
weight4.41 lb
packagingCarton (1 pce)
d13.50
DN1-
l14.25
d23.50
DN2-
l24.25
radius3.31
angle-

SJT71104P

size4" orange
dimensions7.28x4.50x7.28 "
weight6.83 lb
packaging-
d14.50
DN1-
l15.00
d24.50
DN2-
l25.00
radius4.02
angle-

SJT71104G

size4" galvanized
dimensions7.28x4.50x7.28 "
weight6.83 lb
packaging-
d14.50
DN1-
l15.00
d24.50
DN2-
l25.00
radius4.02
angle-

SJT71105P

size5" orange
dimensions8.29x5.56x8.29 "
weight11.02 lb
packaging-
d15.56
DN1-
l15.51
d25.56
DN2-
l25.51
radius4.53
angle-

SJT71105G

size5" galvanized
dimensions8.29x5.56x8.29 "
weight11.02 lb
packaging-
d15.56
DN1-
l15.51
d25.56
DN2-
l25.51
radius4.53
angle-

SJT71106P

size6" orange
dimensions9.84x6.63x9.84 "
weight12.79 lb
packaging-
d16.63
DN1-
l16.50
d26.63
DN2-
l26.50
radius5.53
angle-

SJT71106G

size6" galvanized
dimensions9.84x6.63x9.84 "
weight12.79 lb
packaging-
d16.63
DN1-
l16.50
d26.63
DN2-
l26.50
radius5.53
angle-

SJT71108P

size8" orange
dimensions12.09x8.63x12.09 "
weight28.66 lb
packaging-
d18.63
DN1-
l17.76
d28.63
DN2-
l27.76
radius6.61
angle-

SJT71108G

size8" galvanized
dimensions12.09x8.63x12.09 "
weight28.66 lb
packaging-
d18.63
DN1-
l17.76
d28.63
DN2-
l27.76
radius6.61
angle-

SJT711010P

size10" orange
dimensions14.41x10.75x14.41 "
weight53.13 lb
packagingUnpacked or unpackaged (1 pce)
d110.75
DN1-
l19.02
d210.75
DN2-
l29.02
radius7.80
angle-

SJT711010G

size10" galvanized
dimensions14.41x10.75x14.41 "
weight53.13 lb
packagingUnpacked or unpackaged (1 pce)
d110.75
DN1-
l19.02
d210.75
DN2-
l29.02
radius7.80
angle-

SJT711012P

size12" orange
dimensions16.38x12.76x16.38 "
weight80.91 lb
packaging-
d112.76
DN1-
l110.00
d212.76
DN2-
l210.00
radius8.66
angle-

SJT711012G

size12" galvanized
dimensions16.38x12.75x16.38 "
weight80.91 lb
packagingUnpacked or unpackaged (1 pce)
d112.75
DN1-
l110.00
d212.75
DN2-
l210.00
radius8.66
angle-

SJT711014P

size14" orange
dimensions18.03x14.00x18.03 "
weight77.55 lb
packagingBag (1 pce)
d114.00
DN1-
l111.02
d214.00
DN2-
l211.02
radius9.57
angle-

SJT711016P

size16" orange
dimensions20.04x16.00x20.04 "
weight94.8 lb
packaging-
d116.00
DN1-
l112.01
d216.00
DN2-
l212.01
radius10.55
angle-

Specifications

articleVSH Shurjoint 90° elbow (2 x groove)
article number with gtin7110
manufacturerShurjoint
weight94.8 lb
dimensions20.04x16.00x20.04 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeElbow, 90º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7110
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Model":"1-part","Bend angle":"90°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","ULC quality mark":"Yes","UL quality mark":"Yes","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
