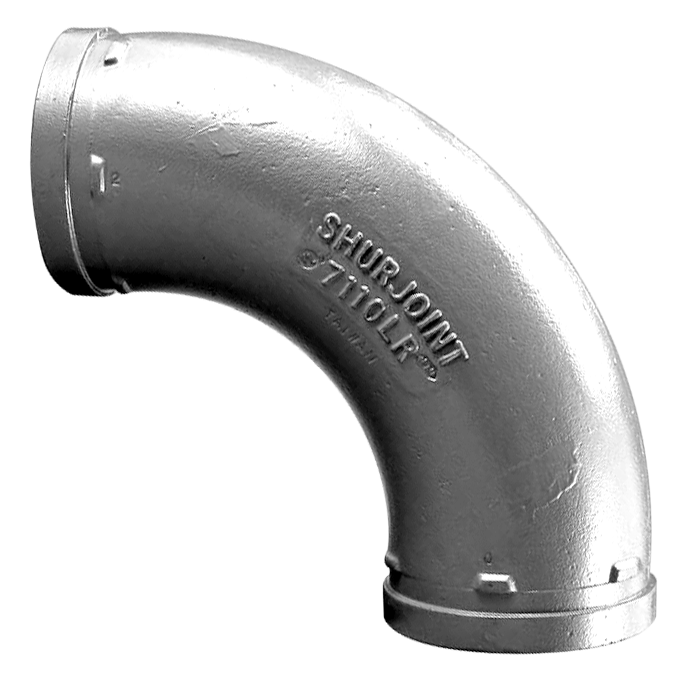

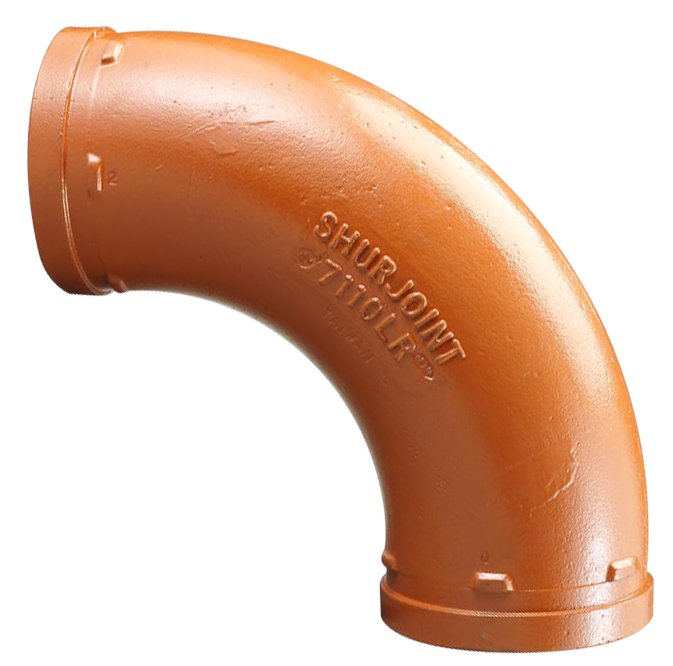

VSH Shurjoint 1.5D 90° elbow (2 x groove)

Scraped SKU: 7110LR 2026-06-05 04:24:53

Attributes

Group Code7110LR
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsFM, UL, ULc
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (14)

SJT7110LR2P

size2" orange
dimensions2.37x5.56x5.56 "
weight2.43 lb
packaging-
d12.37
DN1-
l14.37
z14.37
es10.97
d22.37
DN2-
l24.37
z24.37
es20.97
angle-

SJT7110LR2G

size2" galvanized
dimensions2.37x5.56x5.56 "
weight2.43 lb
packaging-
d12.37
DN1-
l14.37
z14.37
es10.97
d22.37
DN2-
l24.37
z24.37
es20.97
angle-

SJT7110LR25P

size2 1/2" orange
dimensions2.87x6.44x6.44 "
weight3.97 lb
packaging-
d12.87
DN1-
l15.00
z15.00
es10.97
d22.87
DN2-
l25.00
z25.00
es20.97
angle-

SJT7110LR25G

size2 1/2" galvanized
dimensions2.87x6.44x6.44 "
weight3.97 lb
packaging-
d12.87
DN1-
l15.00
z15.00
es10.97
d22.87
DN2-
l25.00
z25.00
es20.97
angle-

SJT7110LR3P

size3" orange
dimensions3.50x7.62x7.62 "
weight5.8 lb
packaging-
d13.50
DN1-
l15.87
z15.87
es10.97
d23.50
DN2-
l25.87
z25.87
es20.97
angle-

SJT7110LR3G

size3" galvanized
dimensions3.50x7.62x7.62 "
weight5.8 lb
packaging-
d13.50
DN1-
l15.87
z15.87
es10.97
d23.50
DN2-
l25.87
z25.87
es20.97
angle-

SJT7110LR4P

size4" orange
dimensions4.50x9.77x9.77 "
weight10.36 lb
packaging-
d14.50
DN1-
l17.52
z17.52
es10.97
d24.50
DN2-
l27.52
z27.52
es20.97
angle-

SJT7110LR4G

size4" galvanized
dimensions4.53x9.80x9.80 "
weight10.36 lb
packaging-
d14.50
DN1-
l17.52
z17.52
es10.97
d24.50
DN2-
l27.52
z27.52
es20.97
angle-

SJT7110LR5P

size5" orange
dimensions5.56x12.27x12.27 "
weight18.1 lb
packaging-
d15.56
DN1-
l19.49
z19.49
es10.97
d25.56
DN2-
l29.49
z29.49
es20.97
angle-

SJT7110LR6P

size6" orange
dimensions6.63x14.06x14.06 "
weight25.35 lb
packaging-
d16.63
DN1-
l110.75
z110.75
es10.97
d26.63
DN2-
l210.75
z210.75
es20.97
angle-

SJT7110LR6G

size6" galvanized
dimensions6.63x14.06x14.06 "
weight25.35 lb
packaging-
d16.63
DN1-
l110.75
z110.75
es10.97
d26.63
DN2-
l210.75
z210.75
es20.97
angle-

SJT7110LR8P

size8" orange
dimensions8.63x18.56x18.56 "
weight50.71 lb
packaging-
d18.63
DN1-
l114.25
z114.25
es11.22
d28.63
DN2-
l214.25
z214.25
es21.22
angle-

SJT7110LR10P

size10" orange
dimensions10.75x22.62x22.62 "
weight93.04 lb
packaging-
d110.75
DN1-
l117.24
z117.24
es11.22
d210.75
DN2-
l217.24
z217.24
es21.22
angle-

SJT7110LR12P

size12" orange
dimensions12.75x26.89x26.89 "
weight138.89 lb
packaging-
d112.75
DN1-
l120.51
z120.51
es11.22
d212.75
DN2-
l220.51
z220.51
es21.22
angle-

Specifications

articleVSH Shurjoint 1.5D 90° elbow (2 x groove)
article number with gtin7110LR
manufacturerShurjoint
weight138.89 lb
dimensions12.75x26.89x26.89 "
colororange, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapeElbow, 90º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7110LR
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Bend angle":"90°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
