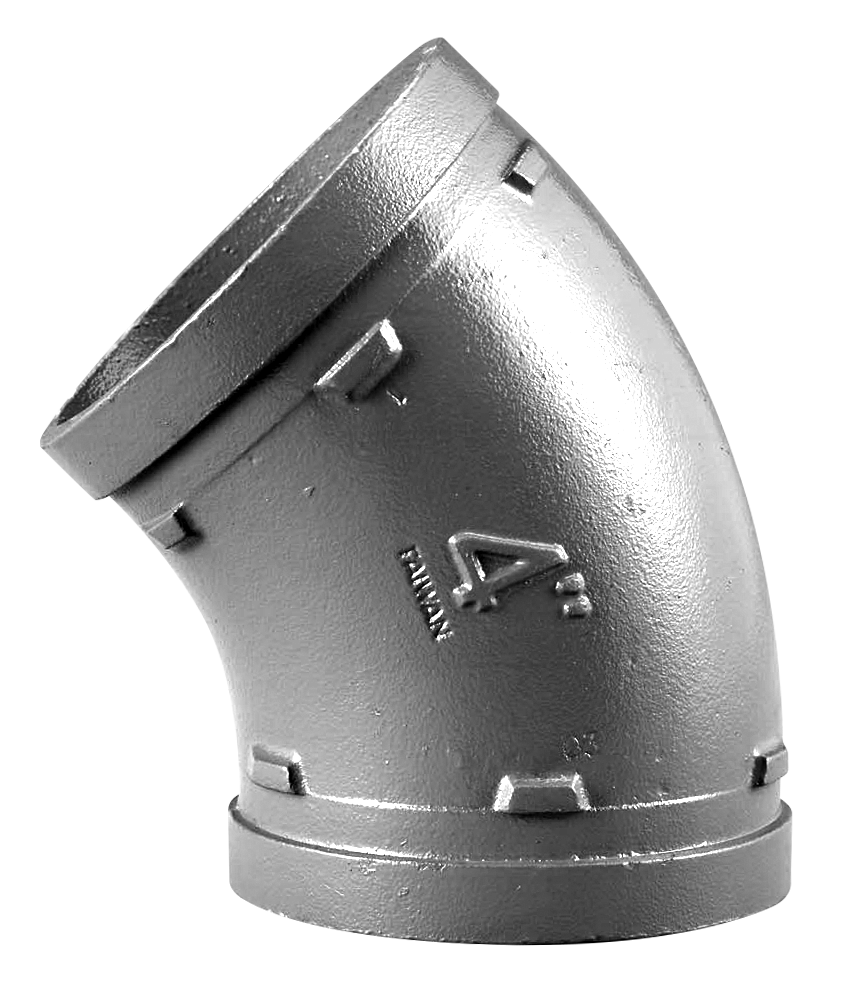

VSH Shurjoint 45° elbow (2 x groove)

Scraped SKU: 7111 2026-06-05 04:24:53

Attributes

Group Code7111
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, LPCB, TSU, UL, ULc, VdS
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (27)

SJT71111P

size1" orange
dimensions3.50x1.31x2.40 "
weight0.49 lb
packaging-
d11.32
DN1-
l11.77
z11.77
es10.91
d21.32
DN2-
l21.77
z21.77
es20.91
radius1.38
angle-

SJT71111G

size1" galvanized
dimensions3.50x1.31x2.40 "
weight0.49 lb
packaging-
d11.32
DN1-
l11.77
z11.77
es10.91
d21.32
DN2-
l21.77
z21.77
es20.91
radius1.38
angle-

SJT7111125P

size1 1/4" orange
dimensions3.62x1.66x2.68 "
weight0.66 lb
packaging-
d11.66
DN1-
l11.77
z11.77
es10.91
d21.66
DN2-
l21.77
z21.77
es20.91
radius1.95
angle-

SJT7111125G

size1 1/4" galvanized
dimensions3.62x1.66x2.68 "
weight0.66 lb
packaging-
d11.66
DN1-
l11.77
z11.77
es10.91
d21.66
DN2-
l21.77
z21.77
es20.91
radius1.95
angle-

SJT711115P

size1 1/2" orange
dimensions3.70x1.90x2.91 "
weight0.88 lb
packaging-
d11.90
DN1-
l11.77
z11.77
es10.91
d21.90
DN2-
l21.77
z21.77
es20.91
radius1.95
angle-

SJT711115G

size1 1/2" galvanized
dimensions3.70x1.90x2.91 "
weight0.88 lb
packaging-
d11.90
DN1-
l11.77
z11.77
es10.91
d21.90
DN2-
l21.77
z21.77
es20.91
radius1.95
angle-

SJT71112P

size2" orange
dimensions4.29x2.37x3.46 "
weight1.26 lb
packaging-
d12.37
DN1-
l12.01
z12.01
es10.97
d22.37
DN2-
l22.01
z22.01
es20.97
radius2.44
angle-

SJT71112G

size2" galvanized
dimensions4.29x2.37x3.46 "
weight1.26 lb
packaging-
d12.37
DN1-
l12.01
z12.01
es10.97
d22.37
DN2-
l22.01
z22.01
es20.97
radius2.44
angle-

SJT711125P

size2 1/2" orange
dimensions4.85x2.87x4.04 "
weight1.85 lb
packaging-
d12.87
DN1-
l12.24
z12.24
es1-
d22.87
DN2-
l22.24
z22.24
es2-
radius2.95
angle-

SJT711125G

size2 1/2" galvanized
dimensions4.85x2.87x4.04 "
weight1.85 lb
packaging-
d12.87
DN1-
l12.24
z12.24
es1-
d22.87
DN2-
l22.24
z22.24
es2-
radius2.95
angle-

SJT71113P

size3" orange
dimensions5.08x3.50x4.61 "
weight2.87 lb
packaging-
d13.50
DN1-
l12.52
z12.52
es10.97
d23.50
DN2-
l22.52
z22.52
es20.97
radius3.54
angle-

SJT71113G

size3" galvanized
dimensions5.08x3.50x4.61 "
weight2.87 lb
packaging-
d13.50
DN1-
l12.52
z12.52
es10.97
d23.50
DN2-
l22.52
z22.52
es20.97
radius3.54
angle-

SJT71114P

size4" orange
dimensions6.73x4.50x5.98 "
weight4.41 lb
packaging-
d14.50
DN1-
l12.99
z12.99
es10.97
d24.50
DN2-
l22.99
z22.99
es20.97
radius4.84
angle-

SJT71114G

size4" galvanized
dimensions6.73x4.50x5.98 "
weight4.41 lb
packaging-
d14.50
DN1-
l12.99
z12.99
es10.97
d24.50
DN2-
l22.99
z22.99
es20.97
radius4.84
angle-

SJT71115P

size5" orange
dimensions7.56x5.56x7.06 "
weight6.61 lb
packaging-
d15.56
DN1-
l13.27
z13.27
es1-
d25.56
DN2-
l23.27
z23.27
es2-
radius5.32
angle-

SJT71115G

size5" galvanized
dimensions7.56x5.56x7.06 "
weight6.61 lb
packaging-
d15.56
DN1-
l13.27
z13.27
es1-
d25.56
DN2-
l23.27
z23.27
es2-
radius5.32
angle-

SJT71116P

size6" orange
dimensions8.35x6.63x8.15 "
weight8.86 lb
packaging-
d16.63
DN1-
l13.50
z13.50
es10.97
d26.63
DN2-
l23.50
z23.50
es20.97
radius6.02
angle-

SJT71116G

size6" galvanized
dimensions8.35x6.63x8.15 "
weight8.86 lb
packagingCarton (1 pce)
d16.63
DN1-
l13.50
z13.50
es10.97
d26.63
DN2-
l23.50
z23.50
es20.97
radius6.02
angle-

SJT71118P

size8" orange
dimensions10.39x8.63x10.31 "
weight17.59 lb
packaging-
d18.63
DN1-
l14.25
z14.25
es11.22
d28.63
DN2-
l24.25
z24.25
es21.22
radius7.48
angle-

SJT71118G

size8" galvanized
dimensions10.39x8.63x10.31 "
weight17.59 lb
packaging-
d18.63
DN1-
l14.25
z14.25
es11.22
d28.63
DN2-
l24.25
z24.25
es21.22
radius7.48
angle-

SJT711110P

size10" orange
dimensions12.56x10.75x11.97 "
weight34.17 lb
packaging-
d110.75
DN1-
l14.76
z14.76
es11.22
d210.75
DN2-
l24.76
z24.76
es21.22
radius8.43
angle-

SJT711110G

size10" galvanized
dimensions12.56x10.75x11.97 "
weight34.17 lb
packaging-
d110.75
DN1-
l14.76
z14.76
es11.22
d210.75
DN2-
l24.76
z24.76
es21.22
radius8.43
angle-

SJT711112P

size12" orange
dimensions14.61x12.75x13.46 "
weight49.6 lb
packaging-
d112.75
DN1-
l15.24
z15.24
es11.22
d212.75
DN2-
l25.24
z25.24
es21.22
radius9.57
angle-

SJT711112G

size12" galvanized
dimensions14.61x12.75x13.46 "
weight49.6 lb
packaging-
d112.75
DN1-
l15.24
z15.24
es11.22
d212.75
DN2-
l25.24
z25.24
es21.22
radius9.57
angle-

SJT711114P

size14" orange
dimensions16.18x14.00x15.20 "
weight48.5 lb
packaging-
d114.00
DN1-
l15.98
z15.98
es1-
d214.00
DN2-
l25.98
z25.98
es2-
radius9.29
angle-

SJT711116P

size16" orange
dimensions18.78x16.00x18.03 "
weight75.68 lb
packaging-
d116.00
DN1-
l17.24
z17.24
es1-
d216.00
DN2-
l27.24
z27.24
es2-
radius10.28
angle-

SJT711124P

size24" orange
dimensions34.09x24.00x31.10 "
weight184.09 lb
packaging-
d124.00
DN1-
l117.05
z117.05
es1-
d224.00
DN2-
l217.05
z217.05
es2-
radius16.93
angle-

Specifications

articleVSH Shurjoint 45° elbow (2 x groove)
article number with gtin7111
manufacturerShurjoint
weight184.09 lb
dimensions34.09x24.00x31.10 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeElbow, 45º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7111
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Bend angle":"45°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
