VSH Shurjoint 1.5D 45° elbow (2 x groove)

Scraped SKU: 7111LR 2026-06-05 04:24:53

Attributes

Group Code7111LR
Product Typedemontabel
Brand Seriesvsh-shurjoint
ApprovalsCRN

Description

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (17)

SJT7111LR2P

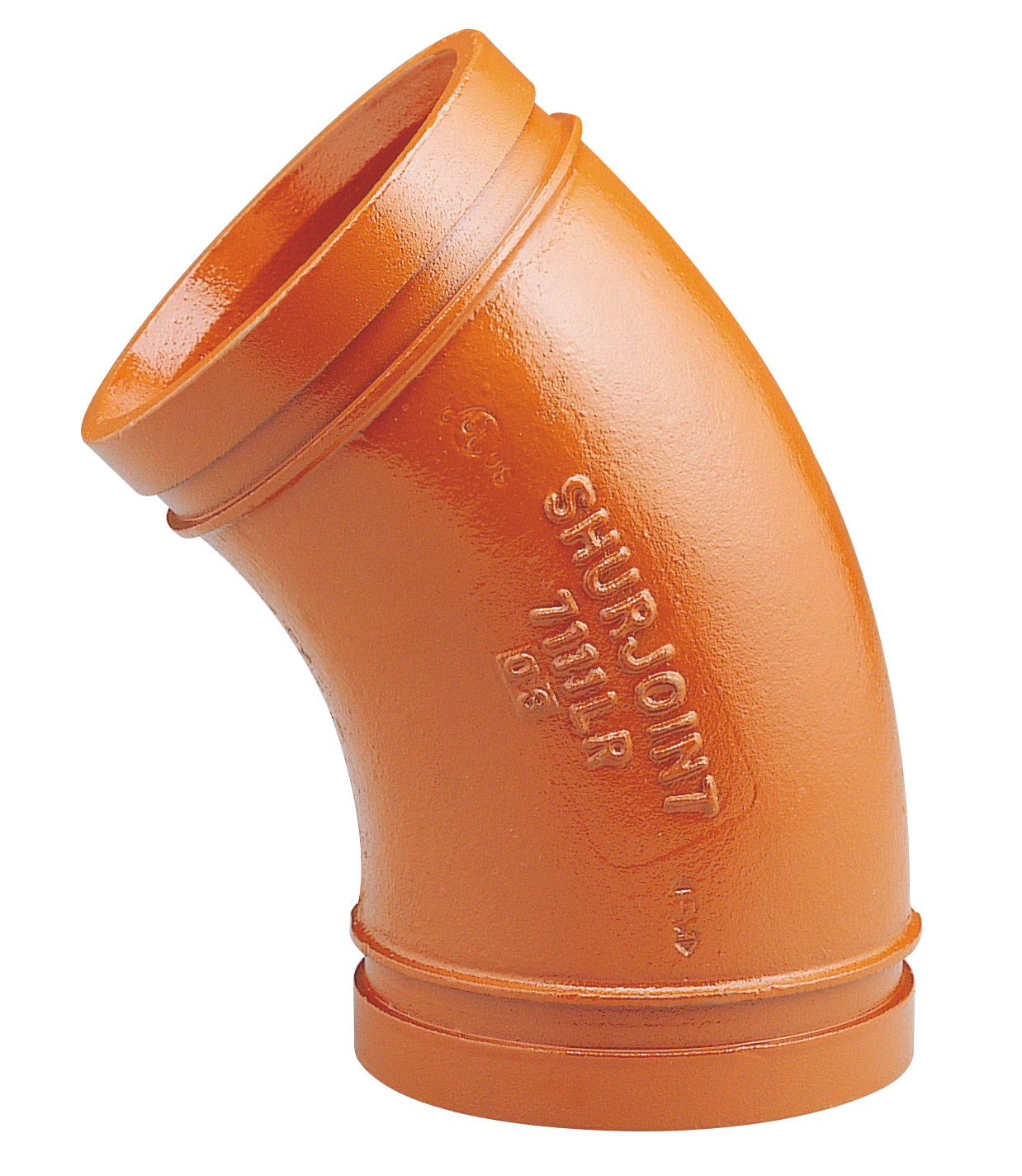

size2" orange
dimensions2.37x5.54x3.98 "
weight1.76 lb
packaging-
d12.37
DN1-
l12.76
d22.37
DN2-
l22.76

SJT7111LR2G

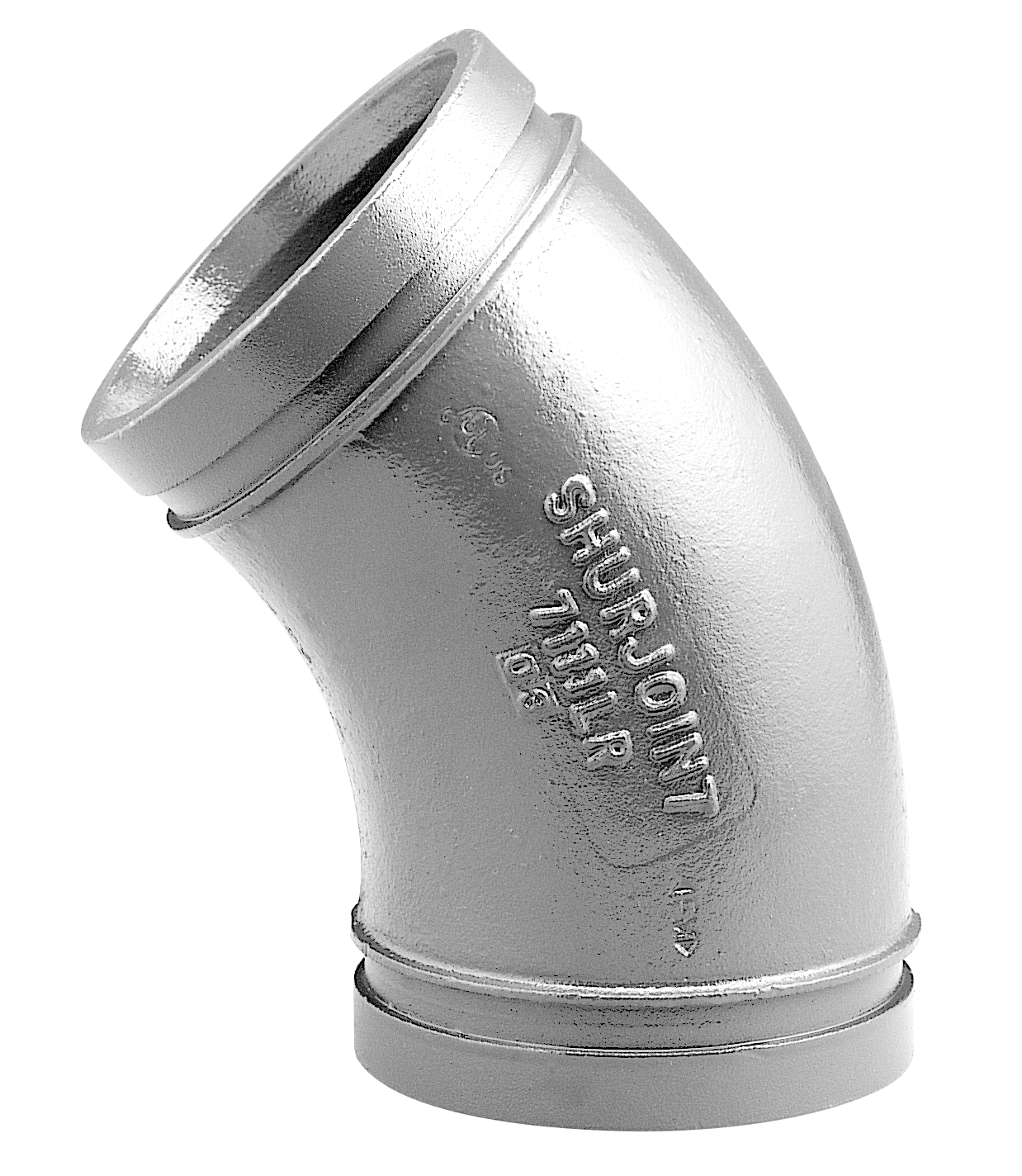

size2" galvanized
dimensions2.37x5.54x3.98 "
weight1.76 lb
packaging-
d12.37
DN1-
l12.76
d22.37
DN2-
l22.76

SJT7111LR25P

size2 1/2" orange
dimensions2.87x6.12x4.57 "
weight3.09 lb
packaging-
d12.87
DN1-
l12.99
d22.87
DN2-
l22.99

SJT7111LR25G

size2 1/2" galvanized
dimensions2.87x6.12x4.57 "
weight3.09 lb
packaging-
d12.87
DN1-
l12.99
d22.87
DN2-
l22.99

SJT7111LR3P

size3" orange
dimensions3.50x7.02x5.38 "
weight3.97 lb
packaging-
d13.50
DN1-
l13.39
d23.50
DN2-
l23.39

SJT7111LR3G

size3" galvanized
dimensions3.50x7.02x5.38 "
weight3.97 lb
packaging-
d13.50
DN1-
l13.39
d23.50
DN2-
l23.39

SJT7111LR4P

size4" orange
dimensions4.50x8.45x6.68 "
weight7.72 lb
packaging-
d14.50
DN1-
l14.02
d24.50
DN2-
l24.02

SJT7111LR4G

size4" galvanized
dimensions4.50x8.45x6.68 "
weight7.72 lb
packaging-
d14.50
DN1-
l14.02
d24.50
DN2-
l24.02

SJT7111LR5P

size5" orange
dimensions5.56x10.50x8.28 "
weight10.14 lb
packaging-
d15.56
DN1-
l15.00
d25.56
DN2-
l25.00

SJT7111LR6P

size6" orange
dimensions6.63x11.75x9.55 "
weight18.08 lb
packaging-
d16.63
DN1-
l15.51
d26.63
DN2-
l25.51

SJT7111LR6G

size6" galvanized
dimensions6.63x11.75x9.55 "
weight18.08 lb
packaging-
d16.63
DN1-
l15.51
d26.63
DN2-
l25.51

SJT7111LR8P

size8" orange
dimensions8.63x15.65x12.49 "
weight30.58 lb
packaging-
d18.63
DN1-
l17.24
d28.63
DN2-
l27.24

SJT7111LR8G

size8" galvanized
dimensions8.63x15.65x12.49 "
weight30.58 lb
packaging-
d18.63
DN1-
l17.24
d28.63
DN2-
l27.24

SJT7111LR10P

size10" orange
dimensions10.75x18.32x15.19 "
weight50.4 lb
packaging-
d110.75
DN1-
l18.50
d210.75
DN2-
l28.50

SJT7111LR10G

size10" galvanized
dimensions10.75x18.32x15.19 "
weight50.4 lb
packaging-
d110.75
DN1-
l18.50
d210.75
DN2-
l28.50

SJT7111LR12P

size12" orange
dimensions12.75x21.58x17.96 "
weight73.85 lb
packaging-
d112.75
DN1-
l110.00
d212.75
DN2-
l210.00

SJT7111LR12G

size12" galvanized
dimensions12.75x21.58x17.96 "
weight73.85 lb
packaging-
d112.75
DN1-
l110.00
d212.75
DN2-
l210.00

Specifications

articleVSH Shurjoint 1.5D 45° elbow (2 x groove)
article number with gtin7111LR
manufacturerShurjoint
weight73.85 lb
dimensions12.75x21.58x17.96 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeElbow
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7111LR
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF
[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF
[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF
