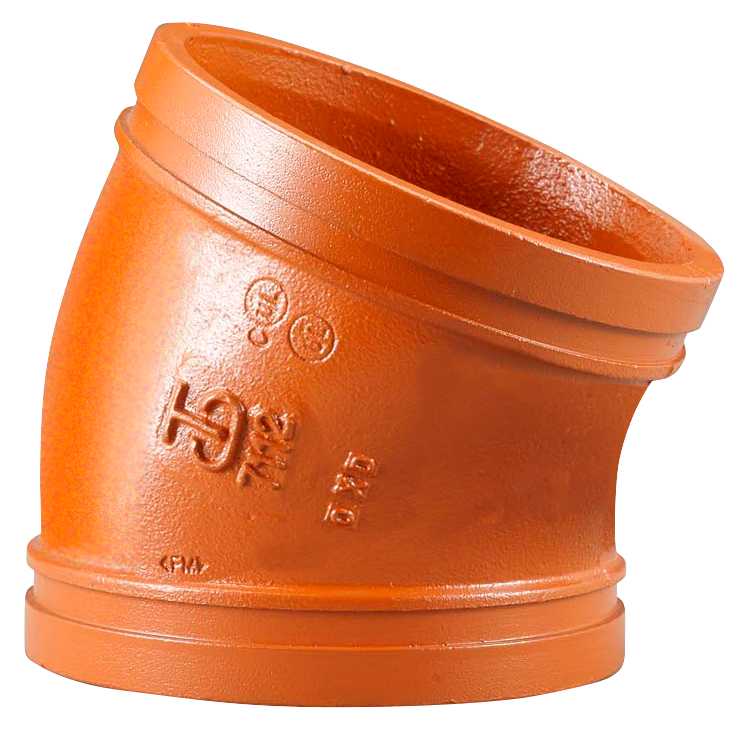

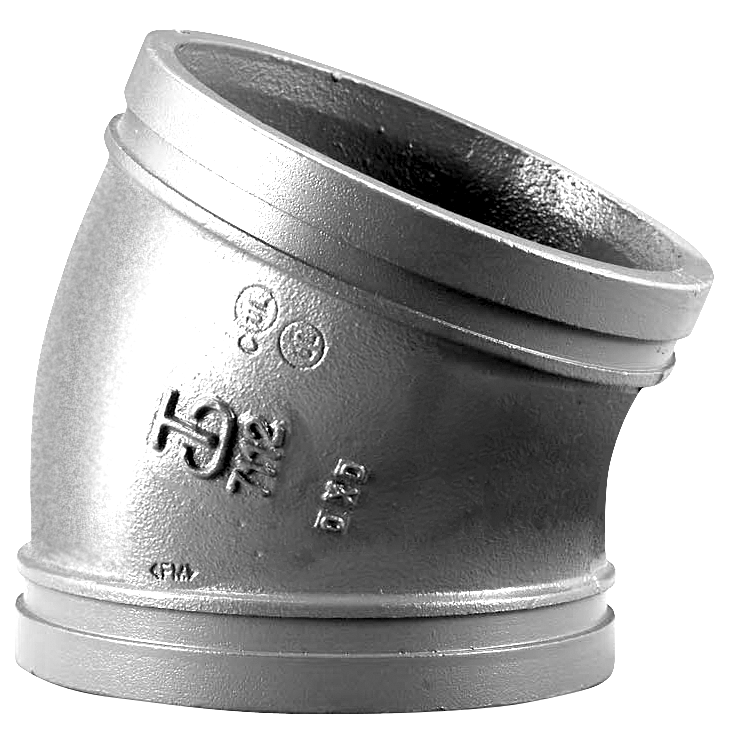

VSH Shurjoint 22.5° elbow (2 x groove)

Scraped SKU: 7112 2026-06-05 04:24:53

Attributes

Group Code7112
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, UL, ULc
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (19)

SJT7112125P

size1 1/4" orange
dimensions3.74x1.66x2.28 "
weight0.68 lb
packaging-
d11.66
DN1-
l11.77
z11.77
es10.91
d21.66
DN2-
l21.77
z21.77
es20.91
radius1.18
angle-

SJT711215P

size1 1/2" orange
dimensions3.78x1.90x2.52 "
weight0.9 lb
packaging-
d11.90
DN1-
l11.77
z11.77
es10.91
d21.90
DN2-
l21.77
z21.77
es20.91
radius1.77
angle-

SJT711215G

size1 1/2" galvanized
dimensions3.78x1.90x2.52 "
weight0.9 lb
packaging-
d11.90
DN1-
l11.77
z11.77
es10.91
d21.90
DN2-
l21.77
z21.77
es20.91
radius1.77
angle-

SJT71122P

size2" orange
dimensions4.09x2.37x3.03 "
weight1.63 lb
packaging-
d12.37
DN1-
l11.89
z11.89
es10.97
d22.37
DN2-
l21.89
z21.89
es20.97
radius1.97
angle-

SJT71122G

size2" galvanized
dimensions4.09x2.37x3.03 "
weight1.63 lb
packaging-
d12.37
DN1-
l11.89
z11.89
es10.97
d22.37
DN2-
l21.89
z21.89
es20.97
radius1.97
angle-

SJT711225P

size2 1/2" orange
dimensions4.41x2.87x3.53 "
weight2.65 lb
packaging-
d12.87
DN1-
l12.01
z12.01
es1-
d22.87
DN2-
l22.01
z22.01
es2-
radius2.56
angle-

SJT711225G

size2 1/2" galvanized
dimensions4.41x2.87x3.53 "
weight2.65 lb
packaging-
d12.87
DN1-
l12.01
z12.01
es1-
d22.87
DN2-
l22.01
z22.01
es2-
radius2.56
angle-

SJT71123P

size3" orange
dimensions5.00x3.50x4.25 "
weight2.98 lb
packaging-
d13.50
DN1-
l12.24
z12.24
es10.97
d23.50
DN2-
l22.24
z22.24
es20.97
radius3.31
angle-

SJT71123G

size3" galvanized
dimensions5.00x3.50x4.25 "
weight2.98 lb
packaging-
d13.50
DN1-
l12.24
z12.24
es10.97
d23.50
DN2-
l22.24
z22.24
es20.97
radius3.31
angle-

SJT71124P

size4" orange
dimensions7.48x4.50x7.24 "
weight4.5 lb
packaging-
d14.50
DN1-
l12.87
z12.87
es10.97
d24.50
DN2-
l22.87
z22.87
es20.97
radius3.74
angle-

SJT71124G

size4" galvanized
dimensions7.48x4.50x7.24 "
weight4.5 lb
packaging-
d14.50
DN1-
l12.87
z12.87
es10.97
d24.50
DN2-
l22.87
z22.87
es20.97
radius3.74
angle-

SJT71126P

size6" orange
dimensions7.60x6.63x7.28 "
weight9.35 lb
packaging-
d16.63
DN1-
l13.11
z13.11
es10.97
d26.63
DN2-
l23.11
z23.11
es20.97
radius4.92
angle-

SJT71126G

size6" galvanized
dimensions7.60x6.63x7.28 "
weight9.35 lb
packaging-
d16.63
DN1-
l13.11
z13.11
es10.97
d26.63
DN2-
l23.11
z23.11
es20.97
radius4.92
angle-

SJT71128P

size8" orange
dimensions9.80x8.63x9.09 "
weight17.77 lb
packaging-
d18.63
DN1-
l13.86
z13.86
es11.22
d28.63
DN2-
l23.86
z23.86
es21.22
radius5.91
angle-

SJT71128G

size8" galvanized
dimensions9.80x8.63x9.09 "
weight17.77 lb
packaging-
d18.63
DN1-
l13.86
z13.86
es11.22
d28.63
DN2-
l23.86
z23.86
es21.22
radius5.91
angle-

SJT711210P

size10" orange
dimensions12.05x10.75x10.47 "
weight39.02 lb
packaging-
d110.75
DN1-
l14.37
z14.37
es11.22
d210.75
DN2-
l24.37
z24.37
es21.22
radius5.35
angle-

SJT711210G

size10" galvanized
dimensions12.05x10.75x10.47 "
weight39.02 lb
packaging-
d110.75
DN1-
l14.37
z14.37
es11.22
d210.75
DN2-
l24.37
z24.37
es21.22
radius5.35
angle-

SJT711212P

size12" orange
dimensions14.17x12.75x11.85 "
weight42.99 lb
packaging-
d112.75
DN1-
l14.88
z14.88
es11.22
d212.75
DN2-
l24.88
z24.88
es21.22
radius7.44
angle-

SJT711212G

size12" galvanized
dimensions14.17x12.75x11.85 "
weight42.99 lb
packaging-
d112.75
DN1-
l14.88
z14.88
es11.22
d212.75
DN2-
l24.88
z24.88
es21.22
radius7.44
angle-

Specifications

articleVSH Shurjoint 22.5° elbow (2 x groove)
article number with gtin7112
manufacturerShurjoint
weight42.99 lb
dimensions14.17x12.75x11.85 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeElbow, 22.5º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7112
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Bend angle":"22.5°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
