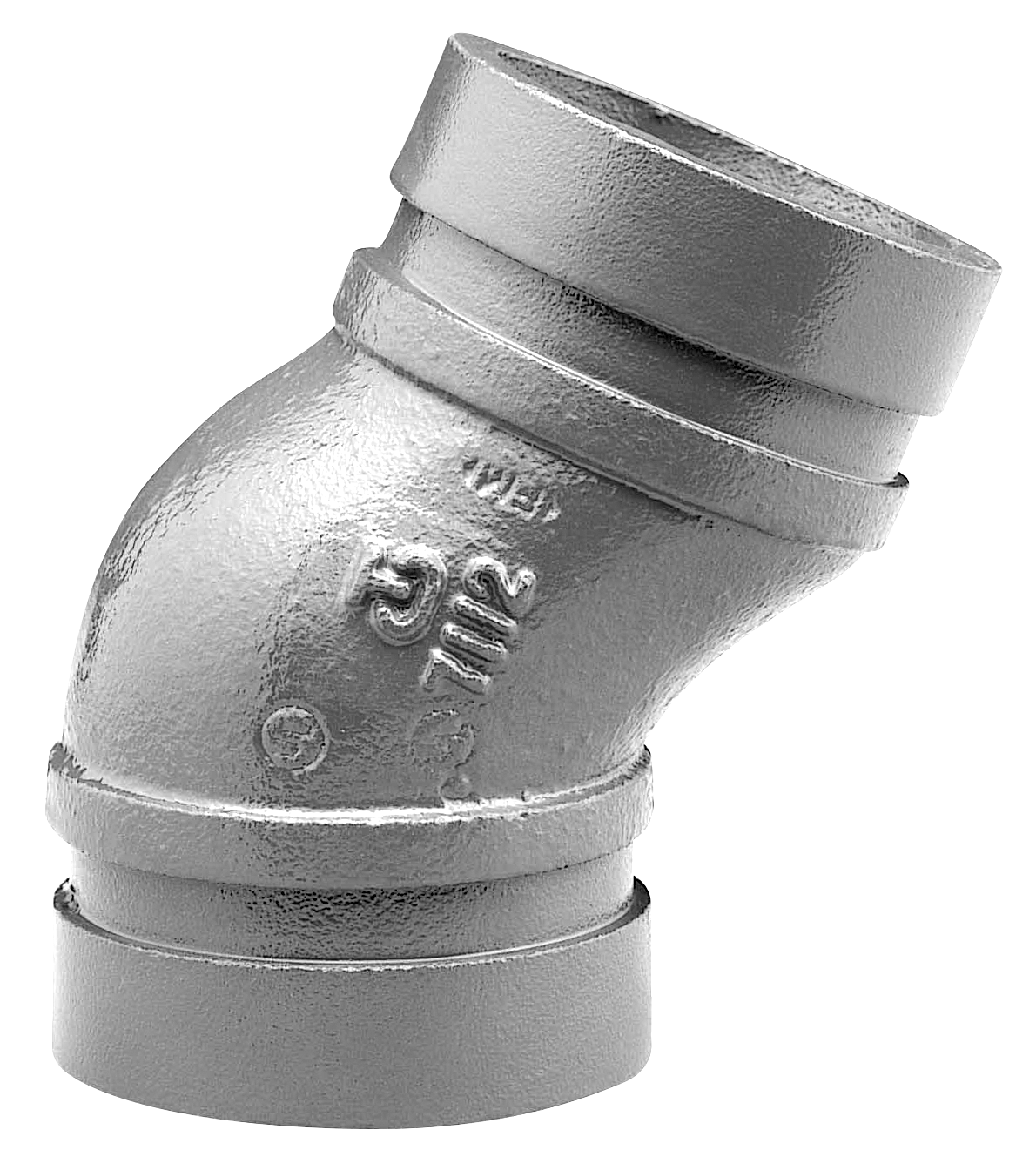

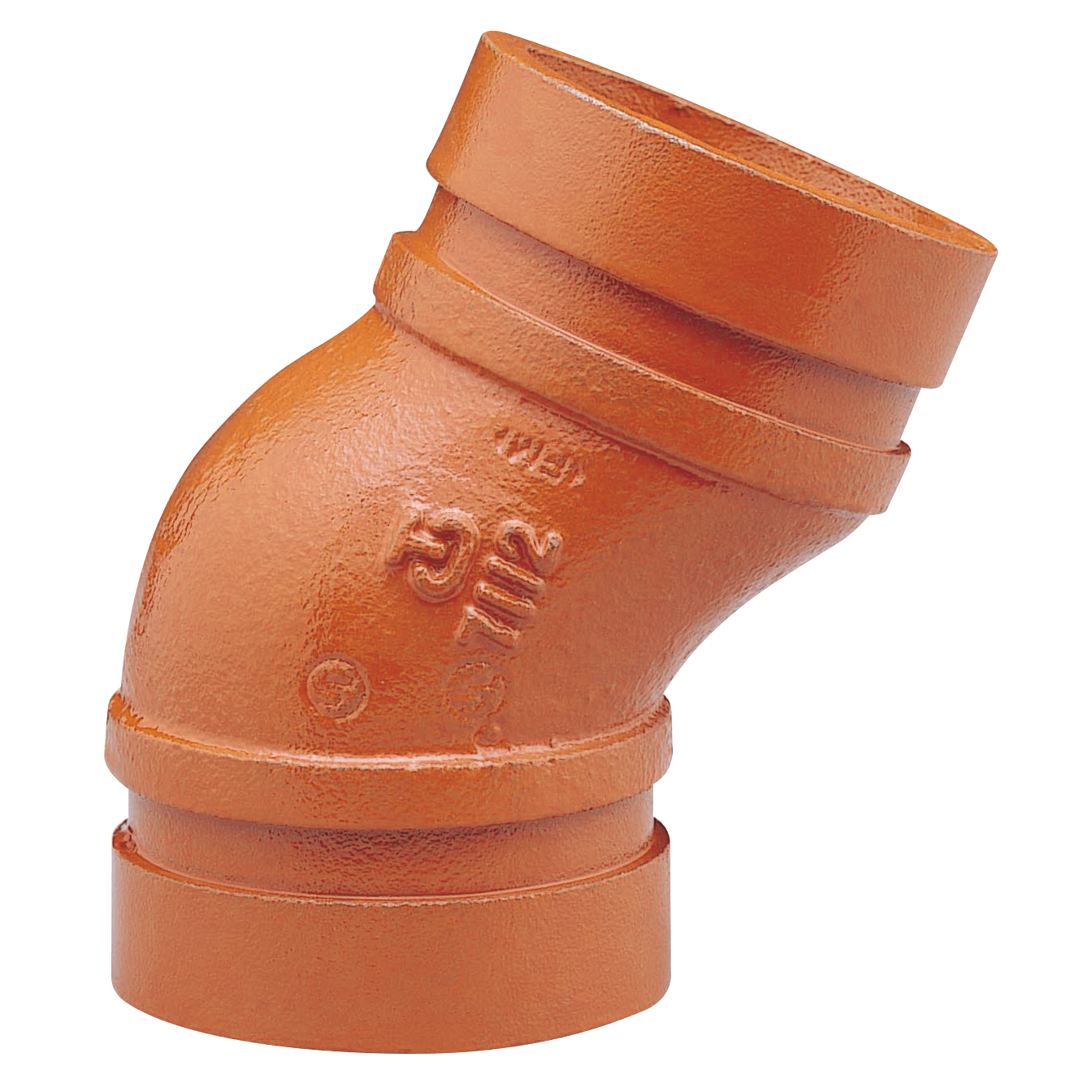

VSH Shurjoint 22.5° gooseneck elbow (2 x groove)

Scraped SKU: 7112G 2026-06-05 04:24:53

Attributes

Group Code7112G
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, UL, ULc
Solutionsfire protection, utility, industry

Description

The model 7112G elbows in combination with a coupling will serve as a universal joint and is ideal for instances where a pipe line is in need of a slight adjustment during make-up.

Variations (10)

SJT711215PGN

size1 1/2" orange
dimensions3.74x1.90x1.90 "
weight1.32 lb
packaging-
d11.90
DN1-
l11.77
z11.77
d21.90
DN2-
l21.77
z21.77
angle-

SJT71122PGN

size2" orange
dimensions3.74x2.37x2.37 "
weight1.46 lb
packaging-
d12.37
DN1-
l11.89
z11.89
d22.37
DN2-
l21.89
z21.89
angle-

SJT711225PGN

size2 1/2" orange
dimensions4.02x2.87x2.87 "
weight2.2 lb
packaging-
d12.87
DN1-
l12.01
z12.01
d22.87
DN2-
l22.01
z22.01
angle-

SJT71123PGN

size3" orange
dimensions4.49x3.50x3.50 "
weight3.09 lb
packaging-
d13.50
DN1-
l12.24
z12.24
d23.50
DN2-
l22.24
z22.24
angle-

SJT71123GGN

size3" galvanized
dimensions4.49x3.50x3.50 "
weight3.09 lb
packaging-
d13.50
DN1-
l12.24
z12.24
d23.50
DN2-
l22.24
z22.24
angle-

SJT71124PGN

size4" orange
dimensions5.00x4.50x4.50 "
weight4.41 lb
packaging-
d14.50
DN1-
l12.50
z12.50
d24.50
DN2-
l22.50
z22.50
angle-

SJT71125PGN

size5" orange
dimensions5.00x5.56x5.56 "
weight6.77 lb
packaging-
d15.56
DN1-
l12.50
z12.50
d25.56
DN2-
l22.50
z22.50
angle-

SJT71125GGN

size5" galvanized
dimensions5.00x5.56x5.56 "
weight6.77 lb
packaging-
d15.56
DN1-
l12.50
z12.50
d25.56
DN2-
l22.50
z22.50
angle-

SJT71126PGN

size6" orange
dimensions6.26x6.63x6.63 "
weight9.7 lb
packaging-
d16.63
DN1-
l13.11
z13.11
d26.63
DN2-
l23.11
z23.11
angle-

SJT71128PGN

size8" orange
dimensions7.76x8.63x8.63 "
weight22.05 lb
packaging-
d18.63
DN1-
l13.86
z13.86
d28.63
DN2-
l23.86
z23.86
angle-

Specifications

articleVSH Shurjoint 22.5° gooseneck elbow (2 x groove)
article number with gtin7112G
manufacturerShurjoint
weight22.05 lb
dimensions7.76x8.63x8.63 "
colororange, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapeElbow, 22.5º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7112G
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Bend angle":"22.5°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
