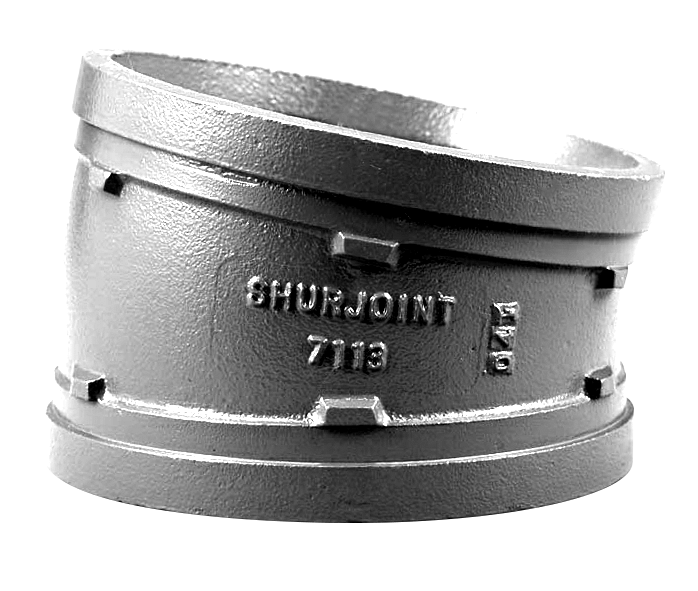

VSH Shurjoint 11.25° elbow (2 x groove)

Scraped SKU: 7113 2026-06-05 04:24:53

Attributes

Group Code7113
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, UL, ULc
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end elbows are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (16)

SJT7113125P

size1 1/4" orange
dimensions2.91x1.67x1.93 "
weight0.55 lb
packaging-
d11.67
DN1-
l11.38
z11.38
es10.91
d21.67
DN2-
l21.38
z21.38
es20.91
radius1.18
angle-

SJT7113125G

size1 1/4" galvanized
dimensions2.91x1.67x1.93 "
weight0.55 lb
packaging-
d11.67
DN1-
l11.38
z11.38
es10.91
d21.67
DN2-
l21.38
z21.38
es20.91
radius1.18
angle-

SJT711315P

size1 1/2" orange
dimensions2.95x1.90x2.17 "
weight0.71 lb
packaging-
d11.90
DN1-
l11.38
z11.38
es10.91
d21.90
DN2-
l21.38
z21.38
es20.91
radius1.18
angle-

SJT71132P

size2" orange
dimensions2.99x2.37x2.64 "
weight0.97 lb
packaging-
d12.37
DN1-
l11.38
z11.38
es10.97
d22.37
DN2-
l21.38
z21.38
es20.97
radius1.97
angle-

SJT71132G

size2" galvanized
dimensions2.99x2.37x2.64 "
weight0.97 lb
packaging-
d12.37
DN1-
l11.38
z11.38
es10.97
d22.37
DN2-
l21.38
z21.38
es20.97
radius1.97
angle-

SJT711325P

size2 1/2" orange
dimensions3.14x2.87x3.24 "
weight1.59 lb
packaging-
d12.87
DN1-
l11.50
z11.50
es1-
d22.87
DN2-
l21.50
z21.50
es2-
radius1.97
angle-

SJT71133P

size3" orange
dimensions3.31x3.50x3.78 "
weight1.81 lb
packaging-
d13.50
DN1-
l11.50
z11.50
es10.97
d23.50
DN2-
l21.50
z21.50
es20.97
radius3.31
angle-

SJT71133G

size3" galvanized
dimensions3.31x3.50x3.78 "
weight1.81 lb
packaging-
d13.50
DN1-
l11.50
z11.50
es10.97
d23.50
DN2-
l21.50
z21.50
es20.97
radius3.31
angle-

SJT71134P

size4" orange
dimensions3.98x4.50x4.80 "
weight2.2 lb
packaging-
d14.50
DN1-
l11.77
z11.77
es10.97
d24.50
DN2-
l21.77
z21.77
es20.97
radius3.74
angle-

SJT71135P

size5" orange
dimensions4.53x5.56x5.91 "
weight4.52 lb
packaging-
d15.56
DN1-
l12.01
z12.01
es1-
d25.56
DN2-
l22.01
z22.01
es2-
radius6.30
angle-

SJT71136P

size6" orange
dimensions4.65x6.63x6.97 "
weight5.51 lb
packaging-
d16.63
DN1-
l12.01
z12.01
es10.97
d26.63
DN2-
l22.01
z22.01
es20.97
radius5.08
angle-

SJT71136G

size6" galvanized
dimensions4.65x6.63x6.97 "
weight5.51 lb
packaging-
d16.63
DN1-
l12.01
z12.01
es10.97
d26.63
DN2-
l22.01
z22.01
es20.97
radius5.08
angle-

SJT71138P

size8" orange
dimensions4.84x8.63x8.94 "
weight10.23 lb
packaging-
d18.63
DN1-
l12.01
z12.01
es11.22
d28.63
DN2-
l22.01
z22.01
es21.22
radius5.79
angle-

SJT71138G

size8" galvanized
dimensions4.84x8.63x8.94 "
weight10.23 lb
packaging-
d18.63
DN1-
l12.01
z12.01
es11.22
d28.63
DN2-
l22.01
z22.01
es21.22
radius5.79
angle-

SJT711310P

size10" orange
dimensions5.28x10.75x11.06 "
weight22.05 lb
packagingBag (1 pce)
d110.75
DN1-
l12.13
z12.13
es11.22
d210.75
DN2-
l22.13
z22.13
es21.22
radius5.35
angle-

SJT711312P

size12" orange
dimensions5.71x12.75x13.07 "
weight27.34 lb
packagingBag (1 pce)
d112.75
DN1-
l12.24
z12.24
es11.22
d212.75
DN2-
l22.24
z22.24
es21.22
radius6.34
angle-

Specifications

articleVSH Shurjoint 11.25° elbow (2 x groove)
article number with gtin7113
manufacturerShurjoint
weight27.34 lb
dimensions5.71x12.75x13.07 "
colororange, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapeElbow, 11.25º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7113
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Bend angle":"11.25°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
