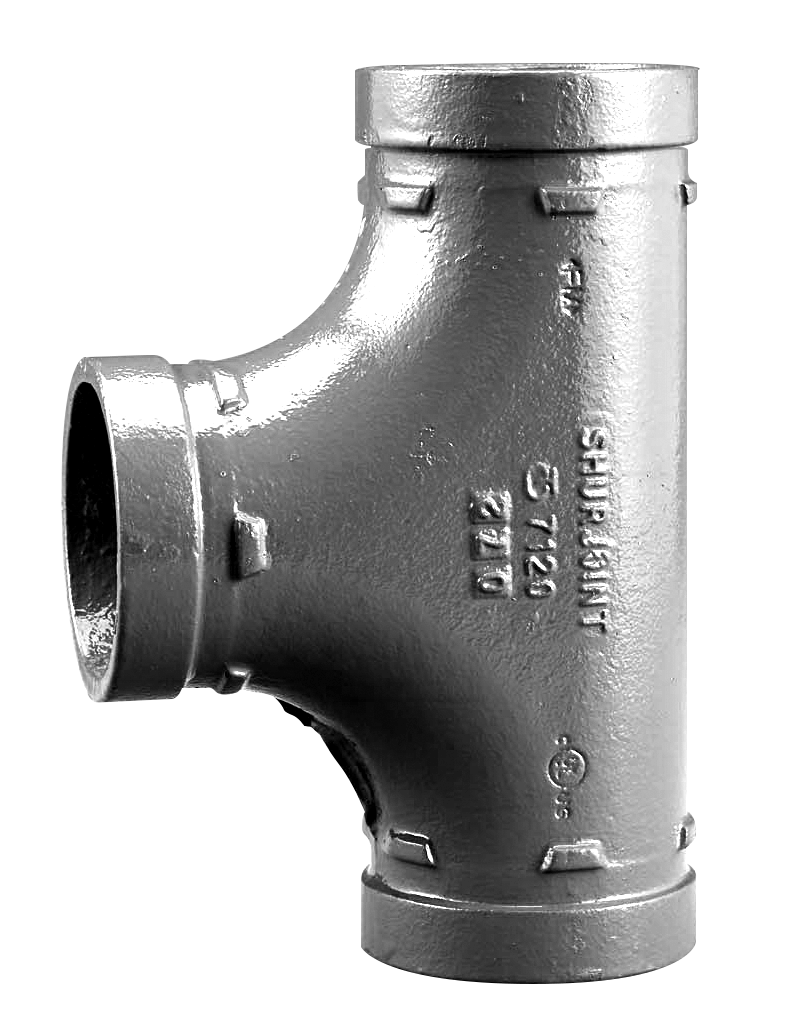

VSH Shurjoint tee (3 x groove)

Scraped SKU: 7120 2026-06-05 04:24:53

Attributes

Group Code7120
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, LPCB, TSU, UL, ULc, VdS
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (24)

SJT71201P

size1" orange
dimensions4.49x1.34x2.91 "
weight0.77 lb
packaging-
d11.33
DN1-
l12.24
d21.33
DN2-
l22.24
d31.33
DN3-
l32.24

SJT71201G

size1" galvanized
dimensions4.49x1.34x2.91 "
weight0.77 lb
packaging-
d11.33
DN1-
l12.24
d21.33
DN2-
l22.24
d31.33
DN3-
l32.24

SJT7120125P

size1 1/4" orange
dimensions5.51x1.69x3.62 "
weight1.54 lb
packaging-
d11.67
DN1-
l12.76
d21.67
DN2-
l22.76
d31.67
DN3-
l32.76

SJT7120125G

size1 1/4" galvanized
dimensions5.51x1.69x3.62 "
weight1.54 lb
packaging-
d11.67
DN1-
l12.76
d21.67
DN2-
l22.76
d31.67
DN3-
l32.76

SJT712015P

size1 1/2" orange
dimensions5.51x1.93x3.74 "
weight1.98 lb
packaging-
d11.90
DN1-
l12.76
d21.90
DN2-
l22.76
d31.90
DN3-
l32.76

SJT712015G

size1 1/2" galvanized
dimensions5.51x1.93x3.74 "
weight1.98 lb
packaging-
d11.90
DN1-
l12.76
d21.90
DN2-
l22.76
d31.90
DN3-
l32.76

SJT71202P

size2" orange
dimensions6.54x2.40x4.49 "
weight2.87 lb
packaging-
d12.37
DN1-
l13.27
d22.37
DN2-
l23.27
d32.37
DN3-
l33.27

SJT71202G

size2" galvanized
dimensions6.54x2.40x4.49 "
weight2.87 lb
packaging-
d12.37
DN1-
l13.27
d22.37
DN2-
l23.27
d32.37
DN3-
l33.27

SJT712025P

size2 1/2" orange
dimensions7.48x2.87x5.18 "
weight4.21 lb
packaging-
d12.87
DN1-
l13.74
d22.87
DN2-
l23.74
d32.87
DN3-
l33.74

SJT712025G

size2 1/2" galvanized
dimensions7.48x2.87x5.18 "
weight4.21 lb
packaging-
d12.87
DN1-
l13.74
d22.87
DN2-
l23.74
d32.87
DN3-
l33.74

SJT71203P

size3" orange
dimensions8.50x3.50x6.02 "
weight6.83 lb
packaging-
d13.50
DN1-
l14.25
d23.50
DN2-
l24.25
d33.50
DN3-
l34.25

SJT71203G

size3" galvanized
dimensions8.50x3.50x6.02 "
weight6.83 lb
packaging-
d13.50
DN1-
l14.25
d23.50
DN2-
l24.25
d33.50
DN3-
l34.25

SJT71204P

size4" orange
dimensions10.00x4.53x7.28 "
weight8.4 lb
packaging-
d14.50
DN1-
l15.00
d24.50
DN2-
l25.00
d34.50
DN3-
l35.00

SJT71204G

size4" galvanized
dimensions10.00x4.53x7.28 "
weight8.4 lb
packaging-
d14.50
DN1-
l15.00
d24.50
DN2-
l25.00
d34.50
DN3-
l35.00

SJT71205P

size5" orange
dimensions11.02x5.56x8.29 "
weight14.33 lb
packaging-
d15.56
DN1-
l15.51
d25.56
DN2-
l25.51
d35.56
DN3-
l35.51

SJT71205G

size5" galvanized
dimensions11.02x5.56x8.29 "
weight14.33 lb
packaging-
d15.56
DN1-
l15.51
d25.56
DN2-
l25.51
d35.56
DN3-
l35.51

SJT71206P

size6" orange
dimensions12.99x6.65x9.84 "
weight22.05 lb
packaging-
d16.63
DN1-
l16.50
d26.63
DN2-
l26.50
d36.63
DN3-
l36.50

SJT71206G

size6" galvanized
dimensions12.99x6.65x9.84 "
weight22.05 lb
packaging-
d16.63
DN1-
l16.50
d26.63
DN2-
l26.50
d36.63
DN3-
l36.50

SJT71208P

size8" orange
dimensions15.51x8.66x12.09 "
weight36.66 lb
packaging-
d18.63
DN1-
l17.76
d28.63
DN2-
l27.76
d38.63
DN3-
l37.76

SJT71208G

size8" galvanized
dimensions15.51x8.66x12.09 "
weight36.66 lb
packaging-
d18.63
DN1-
l17.76
d28.63
DN2-
l27.76
d38.63
DN3-
l37.76

SJT712010P

size10" orange
dimensions18.03x10.75x14.41 "
weight68.34 lb
packaging-
d110.75
DN1-
l19.02
d210.75
DN2-
l29.02
d310.75
DN3-
l39.02

SJT712010G

size10" galvanized
dimensions18.03x10.75x14.41 "
weight68.34 lb
packaging-
d110.75
DN1-
l19.02
d210.75
DN2-
l29.02
d310.75
DN3-
l39.02

SJT712012P

size12" orange
dimensions20.00x12.76x16.38 "
weight96.67 lb
packaging-
d112.75
DN1-
l110.00
d212.75
DN2-
l210.00
d312.75
DN3-
l310.00

SJT712012G

size12" galvanized
dimensions20.00x12.76x16.38 "
weight96.67 lb
packaging-
d112.75
DN1-
l110.00
d212.75
DN2-
l210.00
d312.75
DN3-
l310.00

Specifications

articleVSH Shurjoint tee (3 x groove)
article number with gtin7120
manufacturerShurjoint
weight96.67 lb
dimensions20.00x12.76x16.38 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeT-piece, 90º
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003025 Fitting with 3 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7120
ETIM
{"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Material connection 3":"Cast iron","Material quality connection 3":"ASTM A536 Grade 65-45-12","Model":"T-piece","Angle":"90°","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With thermal insulation":"No","With buffer stud":"No","Capped":"No","With connection indicator":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF
[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF
[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF
[Certificate] CRN Pipe Fittings Open PDF
[Certificate] EPD VSH Shurjoint Grooved Fittings Open PDF
[Certificate] FM Pipe Fittings Open PDF
[Certificate] LPCB Open PDF
[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF
[Certificate] TSU Grooved end fittings Open PDF
[Certificate] UL Fittings, Grooved and Plain End Open PDF
[Certificate] ULc Fittings, Grooved and Plain End Open PDF
[Certificate] VdS 7110/7111/7120/7160 Open PDF
