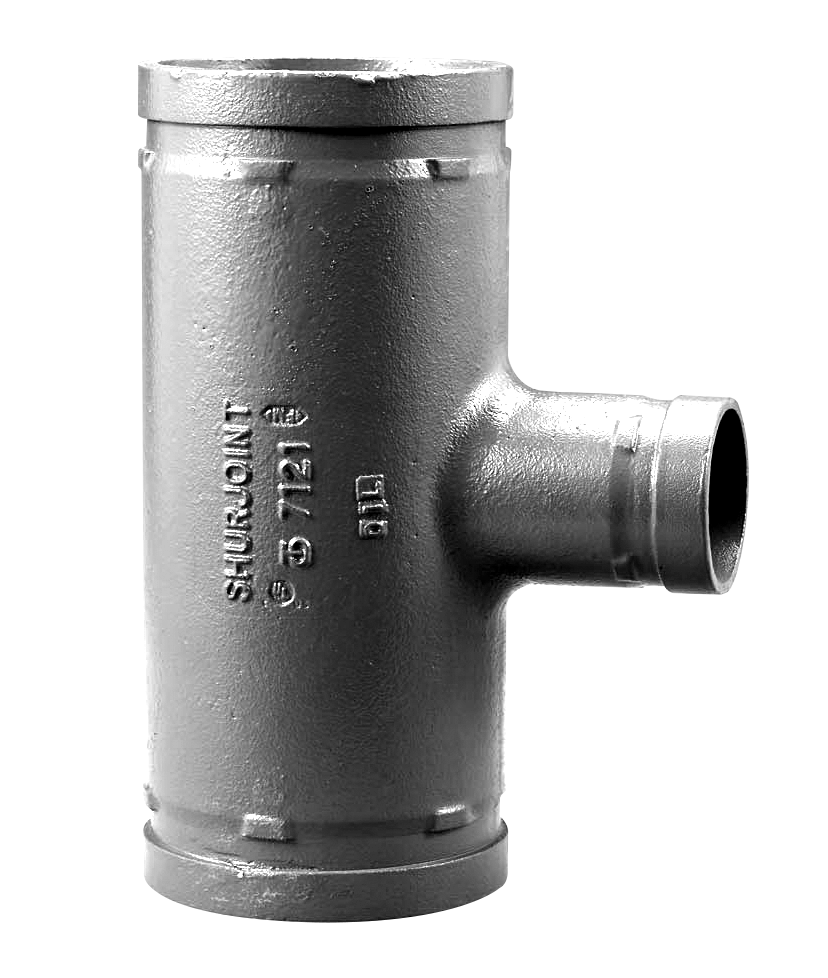

VSH Shurjoint reducing tee (3 x groove)

Scraped SKU: 7121 2026-06-05 04:24:53

Attributes

Group Code	7121
Product Type	demontabel
Brand Series	vsh-shurjoint
Applications	heating, cooling, compressed air, sprinkler, dry fire main
Approvals	CRN, FM, LPCB, UL, ULc
Solutions	fire protection, utility, industry

Description

Shurjoint grooved-end reducing tees are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (67)

SJT712121P

size	2"x1"x2" orange
dimensions	6.54x2.37x4.49 "
weight	2.65 lb
packaging	-
d1	2.37
DN1	-
l1	3.27
z1	3.27
es1	0.97
d2	1.33
DN2	-
l2	3.27
z2	3.27
es2	0.91
d3	2.37
DN3	-
l3	3.27
z3	3.27
es3	0.97

SJT712121G

size	2"x1"x2" galvanized
dimensions	6.54x2.37x4.49 "
weight	2.65 lb
packaging	-
d1	2.37
DN1	-
l1	3.27
z1	3.27
es1	0.97
d2	1.33
DN2	-
l2	3.27
z2	3.27
es2	0.91
d3	2.37
DN3	-
l3	3.27
z3	3.27
es3	0.97

SJT71212125P

size	2"x1 1/4"x2" orange
dimensions	6.54x2.37x4.49 "
weight	2.71 lb
packaging	-
d1	2.37
DN1	-
l1	3.27
z1	3.27
es1	0.97
d2	1.66
DN2	-
l2	3.27
z2	3.27
es2	0.97
d3	2.37
DN3	-
l3	3.27
z3	3.27
es3	0.97

SJT7121215P

size	2"x1 1/2"x2" orange
dimensions	6.54x2.37x4.49 "
weight	2.65 lb
packaging	-
d1	2.37
DN1	-
l1	3.27
z1	3.27
es1	0.97
d2	1.90
DN2	-
l2	3.27
z2	3.27
es2	0.91
d3	2.37
DN3	-
l3	3.27
z3	3.27
es3	0.97

SJT7121215G

size	2"x1 1/2"x2" galvanized
dimensions	6.54x2.37x4.49 "
weight	2.65 lb
packaging	-
d1	2.37
DN1	-
l1	3.27
z1	3.27
es1	0.97
d2	1.90
DN2	-
l2	3.27
z2	3.27
es2	0.91
d3	2.37
DN3	-
l3	3.27
z3	3.27
es3	0.97

SJT7121251P

size	2 1/2"x1"x2 1/2" orange
dimensions	7.48x2.87x5.18 "
weight	3.77 lb
packaging	-
d1	2.87
DN1	-
l1	3.74
z1	3.74
es1	0.97
d2	1.32
DN2	-
l2	3.74
z2	3.74
es2	0.91
d3	2.87
DN3	-
l3	3.74
z3	3.74
es3	0.97

SJT7121251G

size	2 1/2"x1"x2 1/2" galvanized
dimensions	7.48x2.87x5.18 "
weight	3.77 lb
packaging	-
d1	2.87
DN1	-
l1	3.74
z1	3.74
es1	0.97
d2	1.32
DN2	-
l2	3.74
z2	3.74
es2	0.97
d3	2.87
DN3	-
l3	3.74
z3	3.74
es3	0.97

SJT71212515P

size	2 1/2"x1 1/2"x2 1/2" orange
dimensions	7.48x2.87x5.18 "
weight	3.97 lb
packaging	-
d1	2.87
DN1	-
l1	3.74
z1	3.74
es1	0.97
d2	1.90
DN2	-
l2	3.74
z2	3.74
es2	0.91
d3	2.87
DN3	-
l3	3.74
z3	3.74
es3	0.97

SJT71212515G

size	2 1/2"x1 1/2"x2 1/2" galvanized
dimensions	7.48x2.87x5.18 "
weight	3.97 lb
packaging	-
d1	2.87
DN1	-
l1	3.74
z1	3.74
es1	0.97
d2	1.90
DN2	-
l2	3.74
z2	3.74
es2	0.97
d3	2.87
DN3	-
l3	3.74
z3	3.74
es3	0.97

SJT7121252P

size	2 1/2"x2"x2 1/2" orange
dimensions	7.48x2.87x5.18 "
weight	4.41 lb
packaging	-
d1	2.87
DN1	-
l1	3.74
z1	3.74
es1	0.97
d2	2.37
DN2	-
l2	3.74
z2	3.74
es2	0.97
d3	2.87
DN3	-
l3	3.74
z3	3.74
es3	0.97

SJT7121252G

size	2 1/2"x2"x2 1/2" galvanized
dimensions	7.48x2.87x5.18 "
weight	4.41 lb
packaging	-
d1	2.87
DN1	-
l1	3.74
z1	3.74
es1	0.97
d2	2.37
DN2	-
l2	3.74
z2	3.74
es2	0.97
d3	2.87
DN3	-
l3	3.74
z3	3.74
es3	0.97

SJT712131P

size	3"x1"x3" orange
dimensions	8.50x3.50x6.02 "
weight	5.45 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	1.33
DN2	-
l2	4.25
z2	4.25
es2	0.91
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT712131G

size	3"x1"x3" galvanized
dimensions	8.50x3.50x6.02 "
weight	5.45 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	1.33
DN2	-
l2	4.25
z2	4.25
es2	0.91
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT7121315P

size	3"x1 1/2"x3" orange
dimensions	8.50x3.50x6.02 "
weight	5.22 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	1.90
DN2	-
l2	4.25
z2	4.25
es2	0.91
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT7121315G

size	3"x1 1/2"x3" galvanized
dimensions	8.50x3.50x6.02 "
weight	5.22 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	1.90
DN2	-
l2	4.25
z2	4.25
es2	0.91
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT712132P

size	3"x2"x3" orange
dimensions	8.50x3.50x6.02 "
weight	6.17 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	2.37
DN2	-
l2	4.25
z2	4.25
es2	0.97
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT712132G

size	3"x2"x3" galvanized
dimensions	8.50x3.50x6.02 "
weight	6.17 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	2.37
DN2	-
l2	4.25
z2	4.25
es2	0.97
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT7121325P

size	3"x2 1/2"x3" orange
dimensions	8.50x3.50x6.02 "
weight	6.17 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	2.87
DN2	-
l2	4.25
z2	4.25
es2	0.97
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT7121325G

size	3"x2 1/2"x3" galvanized
dimensions	8.50x3.50x6.02 "
weight	6.17 lb
packaging	-
d1	3.50
DN1	-
l1	4.25
z1	4.25
es1	0.97
d2	2.87
DN2	-
l2	4.25
z2	4.25
es2	0.97
d3	3.50
DN3	-
l3	4.25
z3	4.25
es3	0.97

SJT712141P

size	4"x1"x4" orange
dimensions	10.00x4.50x7.28 "
weight	8.88 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	1.32
DN2	-
l2	5.00
z2	5.00
es2	0.91
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT712141G

size	4"x1"x4" galvanized
dimensions	10.00x4.50x7.28 "
weight	8.88 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	1.32
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT7121415P

size	4"x1 1/2"x4" orange
dimensions	10.00x4.50x7.28 "
weight	9.28 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	1.90
DN2	-
l2	5.00
z2	5.00
es2	0.91
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT712142P

size	4"x2"x4" orange
dimensions	10.00x4.50x7.28 "
weight	8.75 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	2.37
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT712142G

size	4"x2"x4" galvanized
dimensions	10.00x4.50x7.28 "
weight	8.75 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	2.37
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT7121425P

size	4"x2 1/2"x4" orange
dimensions	10.00x4.50x7.28 "
weight	9.48 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	2.87
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT7121425G

size	4"x2 1/2"x4" galvanized
dimensions	10.00x4.50x7.28 "
weight	9.48 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	2.87
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT712143P

size	4"x3"x4" orange
dimensions	10.00x4.50x7.28 "
weight	8.69 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	3.50
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT712143G

size	4"x3"x4" galvanized
dimensions	10.00x4.50x7.28 "
weight	8.69 lb
packaging	-
d1	4.50
DN1	-
l1	5.00
z1	5.00
es1	0.97
d2	3.50
DN2	-
l2	5.00
z2	5.00
es2	0.97
d3	4.50
DN3	-
l3	5.00
z3	5.00
es3	0.97

SJT712152P

size	5"x2"x5" orange
dimensions	11.02x5.56x8.29 "
weight	11.07 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	2.37
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT712152G

size	5"x2"x5" galvanized
dimensions	11.02x5.56x8.29 "
weight	11.07 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	2.37
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT7121525P

size	5"x2 1/2"x5" orange
dimensions	11.02x5.56x8.29 "
weight	11.33 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	2.87
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT7121525G

size	5"x2 1/2"x5" galvanized
dimensions	11.02x5.56x8.29 "
weight	11.33 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	2.87
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT712153P

size	5"x3"x5" orange
dimensions	11.02x5.56x8.29 "
weight	12.57 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	3.50
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT712153G

size	5"x3"x5" galvanized
dimensions	11.02x5.56x8.29 "
weight	12.57 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	3.50
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT712154P

size	5"x4"x5" orange
dimensions	11.02x5.56x8.29 "
weight	13.67 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	4.50
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT712154G

size	5"x4"x5" galvanized
dimensions	11.02x5.56x8.29 "
weight	13.67 lb
packaging	-
d1	5.56
DN1	-
l1	5.51
z1	5.51
es1	0.97
d2	4.50
DN2	-
l2	5.51
z2	5.51
es2	0.97
d3	5.56
DN3	-
l3	5.51
z3	5.51
es3	0.97

SJT712162P

size	6"x2"x6" orange
dimensions	12.99x6.63x9.84 "
weight	17.64 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	2.37
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712162G

size	6"x2"x6" galvanized
dimensions	12.99x6.63x9.84 "
weight	17.64 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	2.37
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT7121625P

size	6"x2 1/2"x6" orange
dimensions	12.99x6.63x9.84 "
weight	18.74 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	2.87
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT7121625G

size	6"x2 1/2"x6" galvanized
dimensions	12.99x6.63x9.84 "
weight	18.74 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	2.87
DN2	-
l2	6.50
z2	6.50
es2	1.22
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712163P

size	6"x3"x6" orange
dimensions	12.99x6.63x9.84 "
weight	20.28 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	3.50
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712163G

size	6"x3"x6" galvanized
dimensions	12.99x6.63x9.84 "
weight	20.28 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	3.50
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712164P

size	6"x4"x6" orange
dimensions	12.99x6.63x9.84 "
weight	19.4 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	4.50
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712164G

size	6"x4"x6" galvanized
dimensions	12.99x6.63x9.84 "
weight	19.4 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	4.50
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712165P

size	6"x5"x6" orange
dimensions	12.99x6.63x9.84 "
weight	18.43 lb
packaging	-
d1	6.63
DN1	-
l1	6.50
z1	6.50
es1	0.97
d2	5.56
DN2	-
l2	6.50
z2	6.50
es2	0.97
d3	6.63
DN3	-
l3	6.50
z3	6.50
es3	0.97

SJT712182P

size	8"x2"x8" orange
dimensions	15.51x8.63x12.09 "
weight	32.54 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	2.37
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712182G

size	8"x2"x8" galvanized
dimensions	15.51x8.63x12.09 "
weight	32.54 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	2.37
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT7121825P

size	8"x2 1/2"x8" orange
dimensions	15.51x8.63x12.09 "
weight	32.08 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	2.87
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712183P

size	8"x3"x8" orange
dimensions	15.51x8.63x12.09 "
weight	34.15 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	3.50
DN2	-
l2	7.76
z2	7.76
es2	1.22
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712183G

size	8"x3"x8" galvanized
dimensions	15.51x8.63x12.09 "
weight	34.15 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	3.50
DN2	-
l2	7.76
z2	7.76
es2	1.22
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712184P

size	8"x4"x8" orange
dimensions	15.51x8.63x12.09 "
weight	39.15 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	4.50
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712184G

size	8"x4"x8" galvanized
dimensions	15.51x8.63x12.09 "
weight	39.15 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	4.50
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712185P

size	8"x5"x8" orange, fab.
dimensions	15.51x8.63x12.09 "
weight	39.24 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	5.56
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712186P

size	8"x6"x8" orange
dimensions	15.51x8.63x12.09 "
weight	41.18 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	6.63
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT712186G

size	8"x6"x8" galvanized
dimensions	15.51x8.63x12.09 "
weight	41.18 lb
packaging	-
d1	8.63
DN1	-
l1	7.76
z1	7.76
es1	1.22
d2	6.63
DN2	-
l2	7.76
z2	7.76
es2	0.97
d3	8.63
DN3	-
l3	7.76
z3	7.76
es3	1.22

SJT7121104P

size	10"x4"x10" orange
dimensions	18.03x10.75x14.41 "
weight	62.83 lb
packaging	-
d1	10.75
DN1	-
l1	9.02
z1	9.02
es1	1.22
d2	4.50
DN2	-
l2	9.02
z2	9.02
es2	0.97
d3	10.75
DN3	-
l3	9.02
z3	9.02
es3	1.22

SJT7121106P

size	10"x6"x10" orange
dimensions	18.03x10.75x14.41 "
weight	66.14 lb
packaging	-
d1	10.75
DN1	-
l1	9.02
z1	9.02
es1	1.22
d2	6.63
DN2	-
l2	9.02
z2	9.02
es2	0.97
d3	10.75
DN3	-
l3	9.02
z3	9.02
es3	1.22

SJT7121106G

size	10"x6"x10" galvanized
dimensions	18.03x10.75x14.41 "
weight	66.14 lb
packaging	-
d1	10.75
DN1	-
l1	9.02
z1	9.02
es1	1.22
d2	6.63
DN2	-
l2	9.02
z2	9.02
es2	0.97
d3	10.75
DN3	-
l3	9.02
z3	9.02
es3	1.22

SJT7121108P

size	10"x8"x10" orange
dimensions	18.03x10.75x14.41 "
weight	69.45 lb
packaging	-
d1	10.75
DN1	-
l1	9.02
z1	9.02
es1	1.22
d2	8.63
DN2	-
l2	9.02
z2	9.02
es2	1.22
d3	10.75
DN3	-
l3	9.02
z3	9.02
es3	1.22

SJT7121108G

size	10"x8"x10" galvanized
dimensions	18.03x10.75x14.41 "
weight	69.45 lb
packaging	-
d1	10.75
DN1	-
l1	9.02
z1	9.02
es1	1.22
d2	8.63
DN2	-
l2	9.02
z2	9.02
es2	1.22
d3	10.75
DN3	-
l3	9.02
z3	9.02
es3	1.22

SJT7121124P

size	12"x4"x12" orange
dimensions	20.00x12.75x16.38 "
weight	90.39 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	4.50
DN2	-
l2	10.00
z2	10.00
es2	0.97
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

SJT7121126P

size	12"x6"x12" orange
dimensions	20.00x12.75x16.38 "
weight	83.78 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	6.63
DN2	-
l2	10.00
z2	10.00
es2	0.97
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

SJT7121126G

size	12"x6"x12" galvanized
dimensions	20.00x12.75x16.38 "
weight	83.78 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	6.63
DN2	-
l2	10.00
z2	10.00
es2	1.22
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

SJT7121128P

size	12"x8"x12" orange
dimensions	20.00x12.75x16.38 "
weight	83.78 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	8.63
DN2	-
l2	10.00
z2	10.00
es2	1.22
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

SJT7121128G

size	12"x8"x12" galvanized
dimensions	20.00x12.75x16.38 "
weight	83.78 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	8.63
DN2	-
l2	10.00
z2	10.00
es2	1.22
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

SJT71211210P

size	12"x10"x12" orange
dimensions	20.00x12.75x16.38 "
weight	88.18 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	10.75
DN2	-
l2	10.00
z2	10.00
es2	1.22
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

SJT71211210G

size	12"x10"x12" galvanized
dimensions	20.00x12.75x16.38 "
weight	88.18 lb
packaging	-
d1	12.75
DN1	-
l1	10.00
z1	10.00
es1	1.22
d2	10.75
DN2	-
l2	10.00
z2	10.00
es2	1.22
d3	12.75
DN3	-
l3	10.00
z3	10.00
es3	1.22

Specifications

article	VSH Shurjoint reducing tee (3 x groove)
article number with gtin	7121
manufacturer	Shurjoint
weight	88.18 lb
dimensions	20.00x12.75x16.38 "
color	orange, silver
materials	cast iron, steel (ASTM A536 65-45-12, ASTM A53 Grade B)
finishing	varnished, hot dip galvanized
shape	T-piece, reducer, 90º
connection type	groove (fitting)
product group	fittings (demountable)
ETIM class	EC003025 Fitting with 3 connections
country of origin	Taiwan
brand	VSH
series	Shurjoint
product type	7121
ETIM	{"etim-class":"EC003025 Fitting with 3 connections","Model":"T-piece","Angle":"90°","Reducing":"Yes","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","High tensile strength":"Yes","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With buffer stud":"No","Capped":"No","With connection indicator":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF

[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF

[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF

[Certificate] CRN Pipe Fittings Open PDF

[Certificate] EPD VSH Shurjoint Grooved Fittings Open PDF

[Certificate] FM Pipe Fittings Open PDF

[Certificate] LPCB Open PDF

[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF

[Certificate] UL Fittings, Grooved and Plain End Open PDF

[Certificate] ULc Fittings, Grooved and Plain End Open PDF

Links

Source product page API JSON for this product

Images

Raw

ID	7172
Code	7121
Categories	Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint
