Attributes
| Group Code | 7125 |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Approvals | FM, UL, ULc |
Description

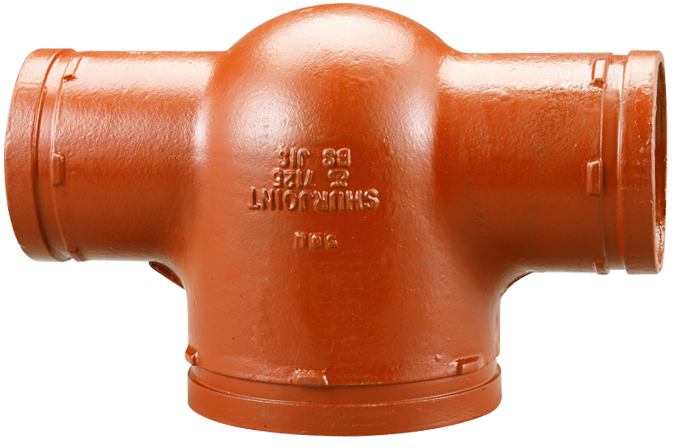

The VSH Shurjoint Model 7125 is a grooved-end bullhead tee, specially designed for use on fire protection systems. The 7725 allows you to directly split the flow into two reduced branch lines without the need for concentric reducers and multiple couplings.
Variations (7)
SJT71252225P
| size | 2"x2 1/2" orange |
|---|---|
| dimensions | 7.48x2.87x4.45 " |
| weight | 4.03 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 3.74 |
| d2 | 2.87 |
| DN2 | - |
| l2 | 3.27 |
| d3 | 2.37 |
| DN3 | - |
| l3 | 3.74 |
SJT7125223P
| size | 2"x3" orange |
|---|---|
| dimensions | 8.50x3.50x4.93 " |
| weight | 4.34 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 4.25 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 3.74 |
| d3 | 2.37 |
| DN3 | - |
| l3 | 4.25 |
SJT7125224P
| size | 2"x4" orange |
|---|---|
| dimensions | 10.00x4.50x5.20 " |
| weight | 7.05 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 5.00 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 4.02 |
| d3 | 2.37 |
| DN3 | - |
| l3 | 5.00 |
SJT712525253P
| size | 2 1/2"x3" orange |
|---|---|
| dimensions | 8.50x3.50x5.18 " |
| weight | 5.62 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 4.25 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 3.74 |
| d3 | 2.87 |
| DN3 | - |
| l3 | 4.25 |
SJT712525254P
| size | 2 1/2"x4" orange |
|---|---|
| dimensions | 10.00x4.50x5.45 " |
| weight | 7.32 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 5.00 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 4.02 |
| d3 | 2.87 |
| DN3 | - |
| l3 | 5.00 |
SJT7125334P
| size | 3"x4" orange |
|---|---|
| dimensions | 10.00x4.50x5.77 " |
| weight | 7.94 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 5.00 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 4.02 |
| d3 | 3.50 |
| DN3 | - |
| l3 | 5.00 |
SJT7125446P
| size | 4"x6" orange |
|---|---|
| dimensions | 12.99x6.63x7.25 " |
| weight | 14.99 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 6.50 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 5.00 |
| d3 | 4.50 |
| DN3 | - |
| l3 | 6.50 |
Specifications
| article | VSH Shurjoint bullhead tee (3 x groove) |
|---|---|
| article number with gtin | 7125 |
| manufacturer | Shurjoint |
| weight | 14.99 lb |
| dimensions | 12.99x6.63x7.25 " |
| color | orange |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| shape | 90º |
| connection type | groove (fitting) |
| product group | fittings (demountable) |
| ETIM class | EC003025 Fitting with 3 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 7125 |
| ETIM | {"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Surface protection connection 1":"Lacquered","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Surface protection connection 2":"Lacquered","Material connection 3":"Cast iron","Material quality connection 3":"ASTM A536 Grade 65-45-12","Surface protection connection 3":"Lacquered","Model":"T-piece","Angle":"90°","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","Main colour fitting":"Orange","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With buffer stud":"No","Capped":"No","With connection indicator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
