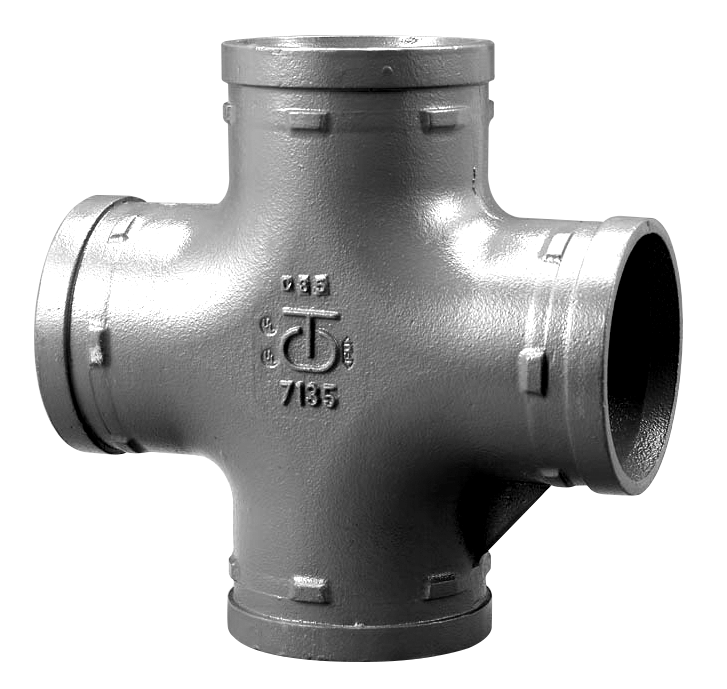

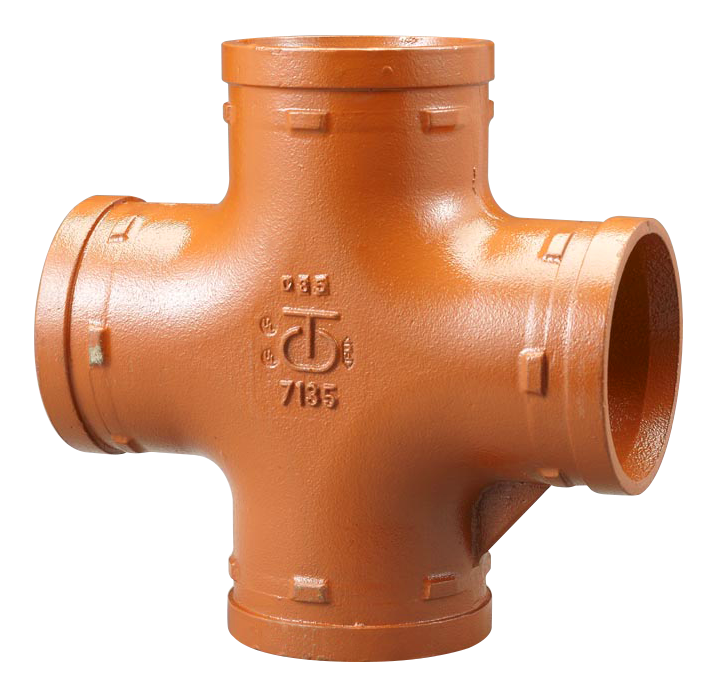

VSH Shurjoint cross (4 x groove)

Scraped SKU: 7135 2026-06-05 04:24:53

Attributes

Group Code7135
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, UL, ULc
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (14)

SJT71351P

size1" orange, fab.
dimensions4.49x1.31x4.49 "
weight1.32 lb
packaging-
d11.32
DN1-
l12.24
d21.32
DN2-
l22.24
d31.32
DN3-
l32.24
d41.32
DN4-
l42.24

SJT7135125P

size1 1/4" orange
dimensions5.51x1.69x5.51 "
weight1.65 lb
packaging-
d11.67
DN1-
l12.76
d21.67
DN2-
l22.76
d31.67
DN3-
l32.76
d41.67
DN4-
l42.76

SJT713515P

size1 1/2" orange
dimensions5.51x1.93x5.51 "
weight1.92 lb
packaging-
d11.90
DN1-
l12.76
d21.90
DN2-
l22.76
d31.90
DN3-
l32.76
d41.90
DN4-
l42.76

SJT71352P

size2" orange
dimensions6.54x2.40x6.54 "
weight2.65 lb
packaging-
d12.37
DN1-
l13.27
d22.37
DN2-
l23.27
d32.37
DN3-
l33.27
d42.37
DN4-
l43.27

SJT713525P

size2 1/2" orange
dimensions7.48x2.87x7.48 "
weight6.61 lb
packaging-
d12.87
DN1-
l13.74
d22.87
DN2-
l23.74
d32.87
DN3-
l33.74
d42.87
DN4-
l43.74

SJT71353P

size3" orange
dimensions8.50x3.50x8.50 "
weight6.83 lb
packaging-
d13.50
DN1-
l14.25
d23.50
DN2-
l24.25
d33.50
DN3-
l34.25
d43.50
DN4-
l44.25

SJT71353G

size3" galvanized
dimensions8.50x3.50x8.50 "
weight6.83 lb
packaging-
d13.50
DN1-
l14.25
d23.50
DN2-
l24.25
d33.50
DN3-
l34.25
d43.50
DN4-
l44.25

SJT71354P

size4" orange
dimensions10.00x4.53x10.00 "
weight11.46 lb
packaging-
d14.50
DN1-
l15.00
d24.50
DN2-
l25.00
d34.50
DN3-
l35.00
d44.50
DN4-
l45.00

SJT71355P

size5" orange
dimensions11.02x5.56x11.02 "
weight13.01 lb
packaging-
d15.56
DN1-
l15.51
d25.56
DN2-
l25.51
d35.56
DN3-
l35.51
d45.56
DN4-
l45.51

SJT71356P

size6" orange
dimensions12.99x6.65x12.99 "
weight31.97 lb
packagingBag (1 pce)
d16.63
DN1-
l16.50
d26.63
DN2-
l26.50
d36.63
DN3-
l36.50
d46.63
DN4-
l46.50

SJT71356G

size6" galvanized
dimensions12.99x6.63x12.99 "
weight31.97 lb
packaging-
d16.63
DN1-
l16.50
d26.63
DN2-
l26.50
d36.63
DN3-
l36.50
d46.63
DN4-
l46.50

SJT71358P

size8" orange
dimensions15.51x8.66x15.51 "
weight44.09 lb
packagingBag (1 pce)
d18.63
DN1-
l17.76
d28.63
DN2-
l27.76
d38.63
DN3-
l37.76
d48.63
DN4-
l47.76

SJT713510P

size10" orange
dimensions18.03x10.75x18.03 "
weight72.75 lb
packaging-
d110.75
DN1-
l19.02
d210.75
DN2-
l29.02
d310.75
DN3-
l39.02
d410.75
DN4-
l49.02

SJT713512P

size12" orange
dimensions20.00x12.75x20.00 "
weight97 lb
packaging-
d112.75
DN1-
l110.00
d212.75
DN2-
l210.00
d312.75
DN3-
l310.00
d412.75
DN4-
l410.00

Specifications

articleVSH Shurjoint cross (4 x groove)
article number with gtin7135
manufacturerShurjoint
weight97 lb
dimensions20.00x12.75x20.00 "
colororange, silver
materialssteel, cast iron (ASTM A53 Grade B, ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapeCross
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003026 Fitting with 4 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7135
ETIM
{"etim-class":"EC003026 Fitting with 4 connections","Model":"Cross piece 90°","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","Connection 4":"Groove","With thermal insulation":"No","With sealing rings/gaskets":"No","With buffer stud":"No","Capped":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
