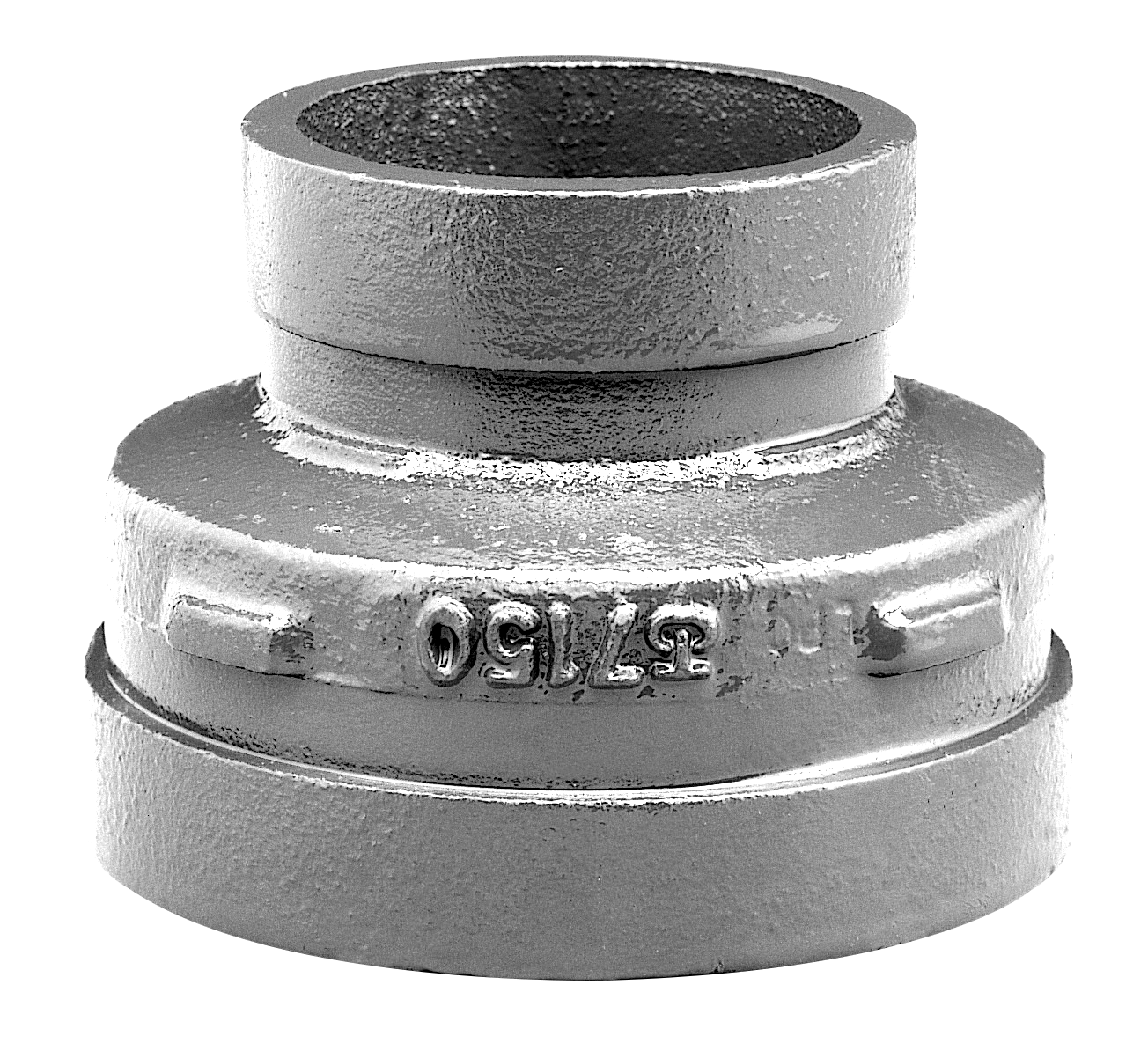

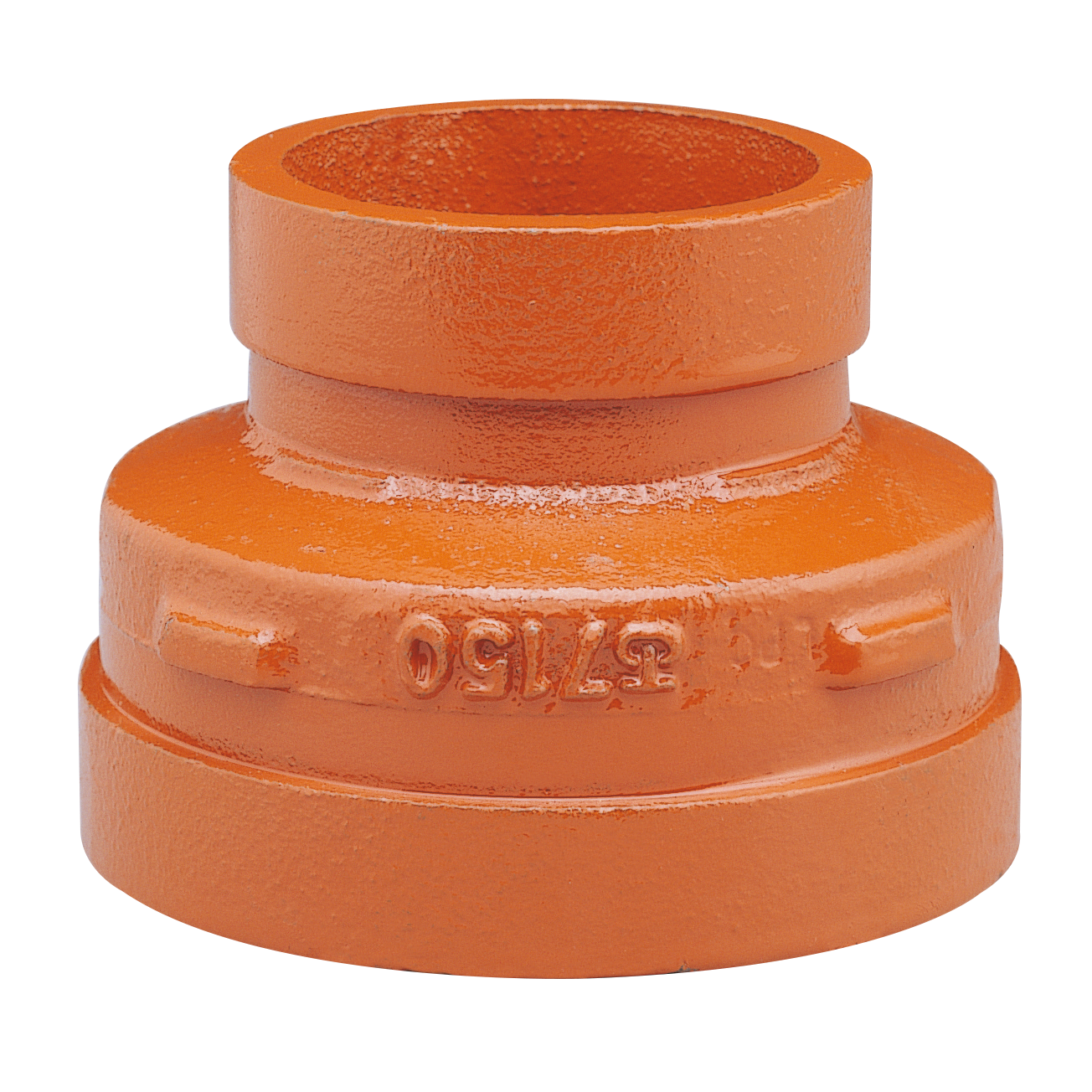

VSH Shurjoint concentric reducer (2 x groove)

Scraped SKU: 7150 2026-06-05 04:24:53

Attributes

Group Code	7150
Product Type	demontabel
Brand Series	vsh-shurjoint
Applications	heating, cooling, compressed air, sprinkler, dry fire main
Approvals	FM, LPCB, TSU, UL, ULc
Solutions	fire protection, utility, industry

Description

Shurjoint grooved-end reducers are made of ductile iron per ASTM A536 Gr. 65-45-12. dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (71)

SJT71501251P

size	1 1/4"x1" orange
dimensions	2.52x1.66x1.66 "
weight	0.42 lb
packaging	-
d1	1.66
DN1	-
l1	1.26
z1	1.26
d2	1.32
DN2	-
l2	1.26
z2	1.26

SJT71501251G

size	1 1/4"x1" galvanized
dimensions	2.52x1.66x1.66 "
weight	0.42 lb
packaging	-
d1	1.66
DN1	-
l1	1.26
z1	1.26
d2	1.32
DN2	-
l2	1.26
z2	1.26

SJT7150151P

size	1 1/2"x1" orange
dimensions	2.52x1.90x1.90 "
weight	0.51 lb
packaging	-
d1	1.90
DN1	-
l1	1.26
z1	1.26
d2	1.32
DN2	-
l2	1.26
z2	1.26

SJT715015125P

size	1 1/2"x1 1/4" orange
dimensions	2.52x1.90x1.90 "
weight	0.62 lb
packaging	-
d1	1.90
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT715015125G

size	1 1/2"x1 1/4" galvanized
dimensions	2.52x1.90x1.90 "
weight	0.62 lb
packaging	-
d1	1.90
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT715021P

size	2"x1" orange
dimensions	2.52x2.37x2.37 "
weight	0.82 lb
packaging	-
d1	2.37
DN1	-
l1	1.26
z1	1.26
d2	1.32
DN2	-
l2	1.26
z2	1.26

SJT71502125P

size	2"x1 1/4" orange
dimensions	2.52x2.37x2.37 "
weight	0.68 lb
packaging	-
d1	2.37
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT71502125G

size	2"x1 1/4" galvanized
dimensions	2.52x2.37x2.37 "
weight	0.68 lb
packaging	-
d1	2.37
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT7150215P

size	2"x1 1/2" orange
dimensions	2.52x2.37x2.37 "
weight	0.77 lb
packaging	-
d1	2.37
DN1	-
l1	1.26
z1	1.26
d2	1.90
DN2	-
l2	1.26
z2	1.26

SJT7150215G

size	2"x1 1/2" galvanized
dimensions	2.52x2.37x2.37 "
weight	0.77 lb
packaging	-
d1	2.37
DN1	-
l1	1.26
z1	1.26
d2	1.90
DN2	-
l2	1.26
z2	1.26

SJT7150251P

size	2 1/2"x1" orange
dimensions	2.52x2.87x2.87 "
weight	1.12 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	1.32
DN2	-
l2	1.26
z2	1.26

SJT715025125P

size	2 1/2"x1 1/4" orange
dimensions	2.52x2.87x2.87 "
weight	1.1 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT715025125G

size	2 1/2"x1 1/4" galvanized
dimensions	2.52x2.87x2.87 "
weight	1.1 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT71502515P

size	2 1/2"x1 1/2" orange
dimensions	2.52x2.87x2.87 "
weight	1.1 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	1.90
DN2	-
l2	1.26
z2	1.26

SJT71502515G

size	2 1/2"x1 1/2" galvanized
dimensions	2.52x2.87x2.87 "
weight	1.1 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	1.90
DN2	-
l2	1.26
z2	1.26

SJT7150252P

size	2 1/2"x2" orange
dimensions	2.52x2.87x2.87 "
weight	1.1 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	2.37
DN2	-
l2	1.26
z2	1.26

SJT7150252G

size	2 1/2"x2" galvanized
dimensions	2.52x2.87x2.87 "
weight	1.1 lb
packaging	-
d1	2.87
DN1	-
l1	1.26
z1	1.26
d2	2.37
DN2	-
l2	1.26
z2	1.26

SJT715031P

size	3"x1" orange
dimensions	2.52x3.50x3.50 "
weight	1.3 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	1.32
DN2	-
l2	1.26
z2	1.26

SJT71503125P

size	3"x1 1/4" orange
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT71503125G

size	3"x1 1/4" galvanized
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	1.66
DN2	-
l2	1.26
z2	1.26

SJT7150315P

size	3"x1 1/2" orange
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	1.90
DN2	-
l2	1.26
z2	1.26

SJT7150315G

size	3"x1 1/2" galvanized
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	1.90
DN2	-
l2	1.26
z2	1.26

SJT715032P

size	3"x2" orange
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	2.37
DN2	-
l2	1.26
z2	1.26

SJT715032G

size	3"x2" galvanized
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	2.37
DN2	-
l2	1.26
z2	1.26

SJT7150325P

size	3"x2 1/2" orange
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	2.87
DN2	-
l2	1.26
z2	1.26

SJT7150325G

size	3"x2 1/2" galvanized
dimensions	2.52x3.50x3.50 "
weight	1.32 lb
packaging	-
d1	3.50
DN1	-
l1	1.26
z1	1.26
d2	2.87
DN2	-
l2	1.26
z2	1.26

SJT715041P

size	4"x1" orange , fab.
dimensions	2.99x4.50x4.50 "
weight	2.47 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	1.32
DN2	-
l2	1.50
z2	1.26

SJT71504125P

size	4"x1 1/4" orange
dimensions	2.99x4.50x4.50 "
weight	2.01 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	1.66
DN2	-
l2	1.50
z2	1.50

SJT7150415P

size	4"x1 1/2" orange
dimensions	2.99x4.50x4.50 "
weight	2.2 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	1.90
DN2	-
l2	1.50
z2	1.50

SJT7150415G

size	4"x1 1/2" galvanized
dimensions	2.99x4.50x4.50 "
weight	2.2 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	1.90
DN2	-
l2	1.50
z2	1.50

SJT715042P

size	4"x2" orange
dimensions	2.99x4.50x4.50 "
weight	2.01 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	2.37
DN2	-
l2	1.50
z2	1.50

SJT715042G

size	4"x2" galvanized
dimensions	2.99x4.50x4.50 "
weight	2.01 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	2.37
DN2	-
l2	1.50
z2	1.50

SJT7150425P

size	4"x2 1/2" orange
dimensions	2.99x4.50x4.50 "
weight	2.16 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	2.87
DN2	-
l2	1.50
z2	1.50

SJT7150425G

size	4"x2 1/2" galvanized
dimensions	2.99x4.50x4.50 "
weight	2.16 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	2.87
DN2	-
l2	1.50
z2	1.50

SJT715043P

size	4"x3" orange
dimensions	2.99x4.50x4.50 "
weight	2.2 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	3.50
DN2	-
l2	1.50
z2	1.50

SJT715043G

size	4"x3" galvanized
dimensions	2.99x4.50x4.50 "
weight	2.2 lb
packaging	-
d1	4.50
DN1	-
l1	1.50
z1	1.50
d2	3.50
DN2	-
l2	1.50
z2	1.50

SJT715053P

size	5"x3" orange
dimensions	3.50x5.56x5.56 "
weight	3.31 lb
packaging	-
d1	5.56
DN1	-
l1	1.77
z1	1.50
d2	3.50
DN2	-
l2	1.77
z2	2.01

SJT715053G

size	5"x3" galvanized
dimensions	3.50x5.56x5.56 "
weight	3.31 lb
packaging	-
d1	5.56
DN1	-
l1	1.77
z1	1.50
d2	3.50
DN2	-
l2	1.77
z2	2.01

SJT715054P

size	5"x4" orange
dimensions	3.54x5.56x5.56 "
weight	3.55 lb
packaging	-
d1	5.56
DN1	-
l1	1.77
z1	1.50
d2	4.50
DN2	-
l2	1.77
z2	1.77

SJT715054G

size	5"x4" galvanized
dimensions	3.54x5.56x5.56 "
weight	3.55 lb
packaging	-
d1	5.56
DN1	-
l1	1.77
z1	1.50
d2	4.50
DN2	-
l2	1.77
z2	1.77

SJT715062P

size	6"x2" orange
dimensions	4.02x6.63x6.63 "
weight	4.19 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	2.37
DN2	-
l2	2.01
z2	2.01

SJT715062G

size	6"x2" galvanized
dimensions	4.02x6.63x6.63 "
weight	4.19 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	2.37
DN2	-
l2	2.01
z2	2.01

SJT7150625P

size	6"x2 1/2" orange
dimensions	4.02x6.63x6.63 "
weight	4.41 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	2.87
DN2	-
l2	2.01
z2	2.01

SJT7150625G

size	6"x2 1/2" galvanized
dimensions	4.02x6.63x6.63 "
weight	4.41 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	2.87
DN2	-
l2	2.01
z2	2.01

SJT715063P

size	6"x3" orange
dimensions	4.02x6.63x6.63 "
weight	4.41 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	3.50
DN2	-
l2	2.01
z2	2.01

SJT715063G

size	6"x3" galvanized
dimensions	4.02x6.63x6.63 "
weight	4.41 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	3.50
DN2	-
l2	2.01
z2	2.01

SJT715064P

size	6"x4" orange
dimensions	4.02x6.63x6.63 "
weight	4.63 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	4.50
DN2	-
l2	2.01
z2	2.01

SJT715064G

size	6"x4" galvanized
dimensions	4.02x6.63x6.63 "
weight	4.63 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	4.50
DN2	-
l2	2.01
z2	2.01

SJT715065P

size	6"x5" orange
dimensions	4.02x6.63x6.63 "
weight	5.51 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	5.56
DN2	-
l2	2.01
z2	2.01

SJT715065G

size	6"x5" galvanized
dimensions	4.02x6.63x6.63 "
weight	5.51 lb
packaging	-
d1	6.63
DN1	-
l1	2.01
z1	2.01
d2	5.56
DN2	-
l2	2.01
z2	2.01

SJT715082P

size	8"x2" orange, fab.
dimensions	4.02x8.63x8.63 "
weight	8.42 lb
packaging	-
d1	8.63
DN1	-
l1	2.01
z1	2.01
d2	2.37
DN2	-
l2	2.01
z2	2.52

SJT715083P

size	8"x3" orange
dimensions	4.02x8.63x8.63 "
weight	8.44 lb
packaging	-
d1	8.63
DN1	-
l1	2.01
z1	2.01
d2	3.50
DN2	-
l2	2.01
z2	2.52

SJT715083G

size	8"x3" galvanized
dimensions	4.02x8.63x8.63 "
weight	8.44 lb
packaging	-
d1	8.63
DN1	-
l1	2.01
z1	2.01
d2	3.50
DN2	-
l2	2.01
z2	2.52

SJT715084P

size	8"x4" orange
dimensions	5.00x8.63x8.63 "
weight	9.41 lb
packaging	-
d1	8.63
DN1	-
l1	2.50
z1	2.50
d2	4.50
DN2	-
l2	2.50
z2	2.52

SJT715084G

size	8"x4" galvanized
dimensions	5.00x8.63x8.63 "
weight	9.41 lb
packaging	-
d1	8.63
DN1	-
l1	2.50
z1	2.50
d2	4.50
DN2	-
l2	2.50
z2	2.52

SJT715085P

size	8"x5" orange
dimensions	5.00x8.63x8.63 "
weight	9.41 lb
packaging	-
d1	8.63
DN1	-
l1	2.50
z1	2.50
d2	5.56
DN2	-
l2	2.50
z2	2.52

SJT715085G

size	8"x5" galvanized
dimensions	5.00x8.63x8.63 "
weight	9.41 lb
packaging	-
d1	8.63
DN1	-
l1	2.50
z1	2.50
d2	5.56
DN2	-
l2	2.50
z2	2.52

SJT715086P

size	8"x6" orange
dimensions	5.00x8.63x8.63 "
weight	11.46 lb
packaging	-
d1	8.63
DN1	-
l1	2.50
z1	2.50
d2	6.63
DN2	-
l2	2.50
z2	2.52

SJT715086G

size	8"x6" galvanized
dimensions	5.00x8.63x8.63 "
weight	11.46 lb
packaging	-
d1	8.63
DN1	-
l1	2.50
z1	2.50
d2	6.63
DN2	-
l2	2.50
z2	2.52

SJT7150104P

size	10"x4" orange
dimensions	5.98x10.75x10.75 "
weight	18.65 lb
packaging	-
d1	10.75
DN1	-
l1	2.99
z1	2.99
d2	4.50
DN2	-
l2	2.99
z2	2.99

SJT7150104G

size	10"x4" galvanized
dimensions	5.98x10.75x10.75 "
weight	18.65 lb
packaging	-
d1	10.75
DN1	-
l1	2.99
z1	2.99
d2	4.50
DN2	-
l2	2.99
z2	2.99

SJT7150106P

size	10"x6" orange
dimensions	5.98x10.75x10.75 "
weight	19.84 lb
packaging	-
d1	10.75
DN1	-
l1	2.99
z1	2.99
d2	6.63
DN2	-
l2	2.99
z2	2.99

SJT7150106G

size	10"x6" galvanized
dimensions	5.98x10.75x10.75 "
weight	19.84 lb
packaging	-
d1	10.75
DN1	-
l1	2.99
z1	2.99
d2	6.63
DN2	-
l2	2.99
z2	2.99

SJT7150108P

size	10"x8" orange
dimensions	5.98x10.75x10.75 "
weight	19.71 lb
packaging	-
d1	10.75
DN1	-
l1	2.99
z1	2.99
d2	8.63
DN2	-
l2	2.99
z2	2.99

SJT7150108G

size	10"x8" galvanized
dimensions	5.98x10.75x10.75 "
weight	19.71 lb
packaging	-
d1	10.75
DN1	-
l1	2.99
z1	2.99
d2	8.63
DN2	-
l2	2.99
z2	2.99

SJT7150126P

size	12"x6" orange
dimensions	7.01x12.75x12.75 "
weight	30.86 lb
packaging	-
d1	12.75
DN1	-
l1	3.11
z1	3.11
d2	6.63
DN2	-
l2	3.11
z2	3.11

SJT7150126G

size	12"x6" galvanized
dimensions	7.01x12.75x12.75 "
weight	30.86 lb
packaging	-
d1	12.75
DN1	-
l1	3.11
z1	3.11
d2	6.63
DN2	-
l2	3.11
z2	3.11

SJT7150128P

size	12"x8" orange
dimensions	7.01x12.75x12.75 "
weight	30.86 lb
packaging	-
d1	12.75
DN1	-
l1	3.11
z1	3.11
d2	8.63
DN2	-
l2	3.11
z2	3.11

SJT7150128G

size	12"x8" galvanized
dimensions	7.01x12.75x12.75 "
weight	30.86 lb
packaging	-
d1	12.75
DN1	-
l1	3.11
z1	3.11
d2	8.63
DN2	-
l2	3.11
z2	3.11

SJT71501210P

size	12"x 10" orange
dimensions	7.01x12.75x12.75 "
weight	30.12 lb
packaging	-
d1	12.75
DN1	-
l1	3.11
z1	3.11
d2	10.75
DN2	-
l2	3.11
z2	3.11

SJT71501210G

size	12"x 10" galvanized
dimensions	7.01x12.75x12.75 "
weight	30.12 lb
packaging	-
d1	12.75
DN1	-
l1	3.11
z1	3.11
d2	10.75
DN2	-
l2	3.11
z2	3.11

Specifications

article	VSH Shurjoint concentric reducer (2 x groove)
article number with gtin	7150
manufacturer	Shurjoint
weight	30.12 lb
dimensions	7.01x12.75x12.75 "
color	silver, orange
materials	cast iron, steel (ASTM A536 65-45-12, ASTM A53 Grade B)
finishing	hot dip galvanized, varnished
shape	reducer
connection type	groove (fitting)
product group	fittings (demountable)
ETIM class	EC003024 Fitting with 2 connections
intrastat code	73071910
country of origin	Taiwan
brand	VSH
series	Shurjoint
product type	7150
ETIM	{"etim-class":"EC003024 Fitting with 2 connections","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF

[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF

[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF

[Certificate] EPD VSH Shurjoint Grooved Fittings Open PDF

[Certificate] FM Pipe Fittings Open PDF

[Certificate] LPCB Open PDF

[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF

[Certificate] TSU Grooved end fittings Open PDF

[Certificate] UL Fittings, Grooved and Plain End Open PDF

[Certificate] ULc Fittings, Grooved and Plain End Open PDF

[Certificate] VdS 7150 Open PDF

Links

Source product page API JSON for this product

Images

Raw

ID	7178
Code	7150
Categories	Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint · Vsh Shurjoint
