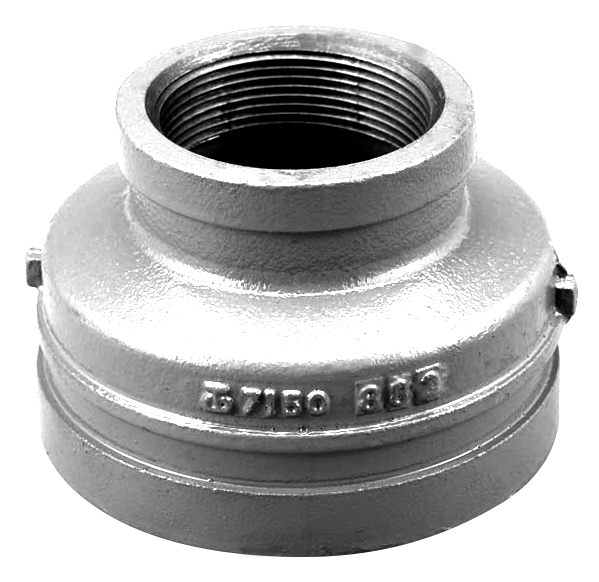

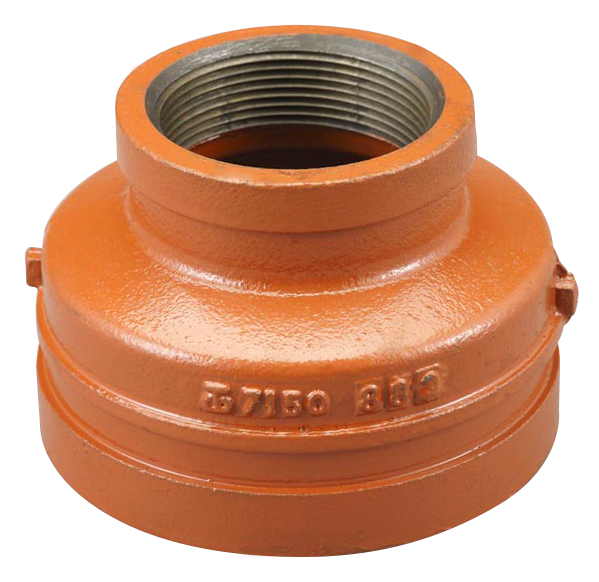

VSH Shurjoint reducing socket (groove x female thread)

Scraped SKU: 7150F 2026-06-05 04:24:53

Attributes

Group Code7150F
Product Typedemontabel
Brand Seriesvsh-shurjoint
ApprovalsFM, UL, ULc

Description

The Shurjoint Models 7150F & 7150M are designed for making direct reduction from a grooved system to female or male threaded system without the need for expensive swaged nipples.

Variations (20)

SJT7150F151P

size1 1/2"xFNPT1" orange
dimensions2.52x1.90x1.90 "
weight0.6 lb
packaging-

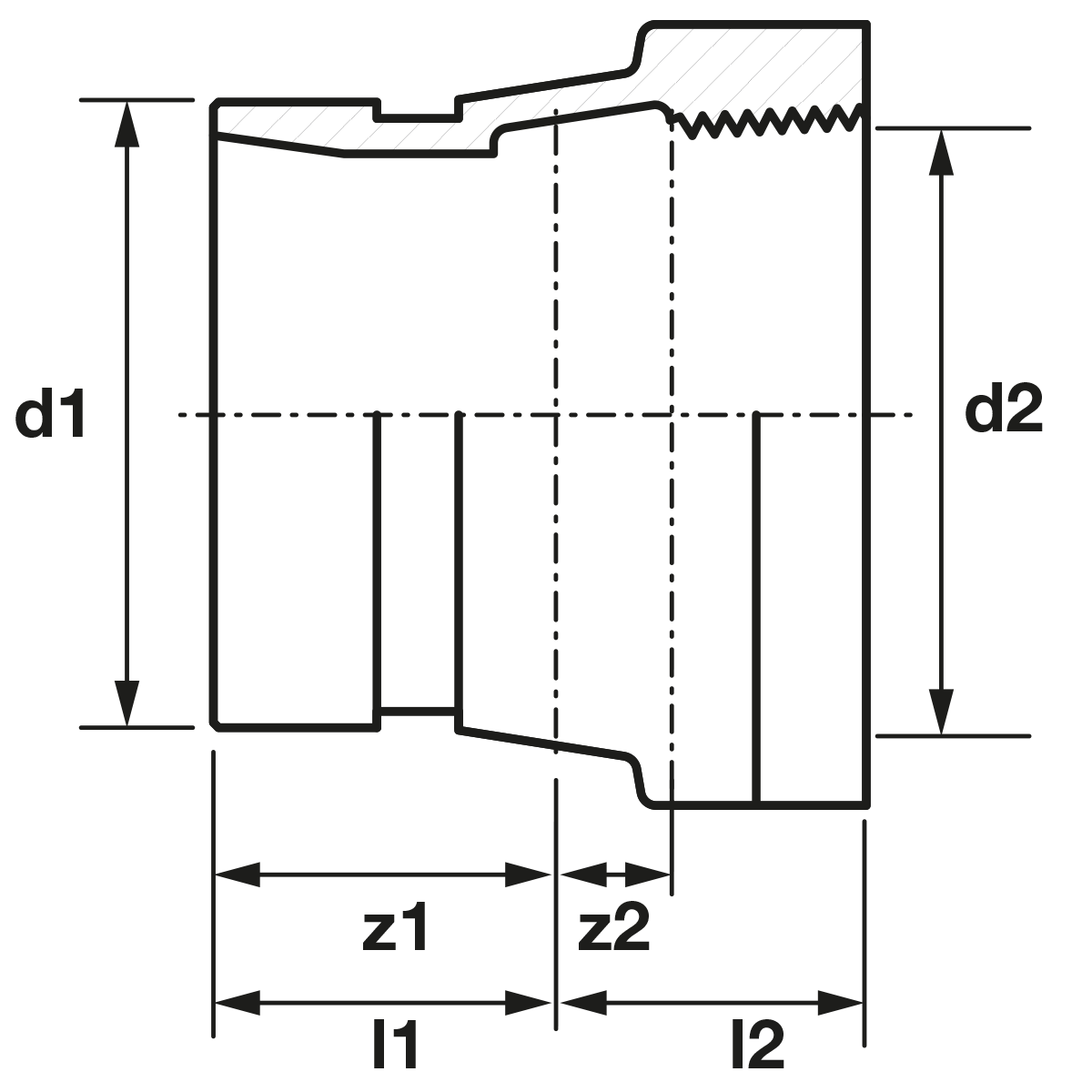

d11.90
DN1-
l11.26
d21.32
DN2-
l21.26
z20.67
z1-

SJT7150F21P

size2"xFNPT1" orange
dimensions2.52x2.37x2.37 "
weight0.93 lb
packaging-
d12.37
DN1-
l11.26
d21.32
DN2-
l21.26
z20.67
z1-

SJT7150F2125P

size2"xFNPT1 1/4" orange
dimensions2.52x2.37x2.37 "
weight0.82 lb
packaging-
d12.37
DN1-
l11.26
d21.66
DN2-
l21.26
z20.59
z1-

SJT7150F215P

size2"xFNPT1 1/2" orange
dimensions2.52x2.37x2.37 "
weight0.95 lb
packaging-
d12.37
DN1-
l11.26
d21.90
DN2-
l21.26
z20.55
z1-

SJT7150F251P

size2 1/2"xFNPT1" orange
dimensions2.52x2.87x2.87 "
weight1.21 lb
packaging-
d12.87
DN1-
l11.26
d21.32
DN2-
l21.26
z20.67
z1-

SJT7150F25125P

size2 1/2"xFNPT1 1/4" orange
dimensions2.52x2.87x2.87 "
weight1.17 lb
packaging-
d12.87
DN1-
l11.26
d21.66
DN2-
l21.26
z20.59
z1-

SJT7150F2515P

size2 1/2"xFNPT1 1/2" orange
dimensions2.52x2.87x2.87 "
weight1.08 lb
packaging-
d12.87
DN1-
l11.26
d21.90
DN2-
l21.26
z20.55
z1-

SJT7150F252P

size2 1/2"xFNPT2" orange
dimensions2.52x2.87x2.87 "
weight1.28 lb
packaging-
d12.87
DN1-
l11.26
d22.37
DN2-
l21.26
z20.47
z1-

SJT7150F31P

size3"xFNPT1" orange
dimensions2.52x3.50x3.50 "
weight1.92 lb
packaging-
d13.50
DN1-
l11.26
d21.32
DN2-
l21.26
z20.67
z1-

SJT7150F3125P

size3"xFNPT1 1/4" orange
dimensions2.52x3.50x3.50 "
weight1.5 lb
packaging-
d13.50
DN1-
l11.26
d21.66
DN2-
l21.26
z20.59
z1-

SJT7150F315P

size3"xFNPT1 1/2" orange
dimensions2.52x3.50x3.50 "
weight1.63 lb
packaging-
d13.50
DN1-
l11.26
d21.90
DN2-
l21.26
z20.55
z1-

SJT7150F32P

size3"xFNPT2" orange
dimensions2.52x3.50x3.50 "
weight1.57 lb
packaging-
d13.50
DN1-
l11.26
d22.37
DN2-
l21.26
z20.47
z1-

SJT7150F32G

size3"xFNPT2" galvanized
dimensions2.52x3.50x3.50 "
weight1.57 lb
packaging-
d13.50
DN1-
l11.26
d22.37
DN2-
l21.26
z20.47
z1-

SJT7150F325P

size3"xFNPT2 1/2" orange
dimensions2.52x3.50x3.50 "
weight1.65 lb
packaging-
d13.50
DN1-
l11.26
d22.87
DN2-
l21.26
z20.35
z11.26

SJT7150F415P

size4"xFNPT1 1/2" orange
dimensions2.99x4.50x4.50 "
weight2.05 lb
packaging-
d14.50
DN1-
l11.50
d21.90
DN2-
l21.50
z20.79
z1-

SJT7150F415G

size4"xFNPT1 1/2" galvanized
dimensions2.99x4.50x4.50 "
weight2.05 lb
packaging-
d14.50
DN1-
l11.50
d21.90
DN2-
l21.50
z20.79
z1-

SJT7150F42P

size4"xFNPT2" orange
dimensions2.99x4.50x4.50 "
weight2.27 lb
packaging-
d14.50
DN1-
l11.50
d22.37
DN2-
l21.50
z20.71
z1-

SJT7150F425P

size4"xFNPT2 1/2" orange
dimensions2.99x4.50x4.50 "
weight2.25 lb
packaging-
d14.50
DN1-
l11.50
d22.87
DN2-
l21.50
z20.59
z1-

SJT7150F615P

size6"xFNPT1 1/2" orange
dimensions4.02x6.63x6.63 "
weight4.76 lb
packaging-
d16.63
DN1-
l12.01
d21.90
DN2-
l22.01
z21.30
z1-

SJT7150F62P

size6"xFNPT2" orange
dimensions4.02x6.63x6.63 "
weight5.29 lb
packaging-
d16.63
DN1-
l12.01
d22.37
DN2-
l22.01
z21.22
z1-

Specifications

articleVSH Shurjoint reducing socket (groove x female thread)
article number with gtin7150F
manufacturerShurjoint
weight5.29 lb
dimensions4.02x6.63x6.63 "
colororange, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapereducer
connection typegroove (fitting), FPT - female thread conical (NPT)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7150F
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Internal thread conical (NPT)","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
