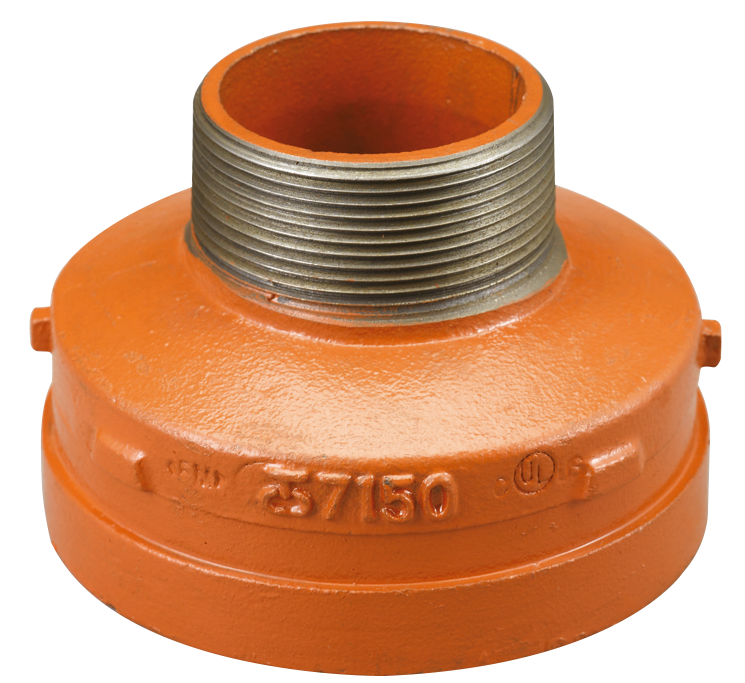

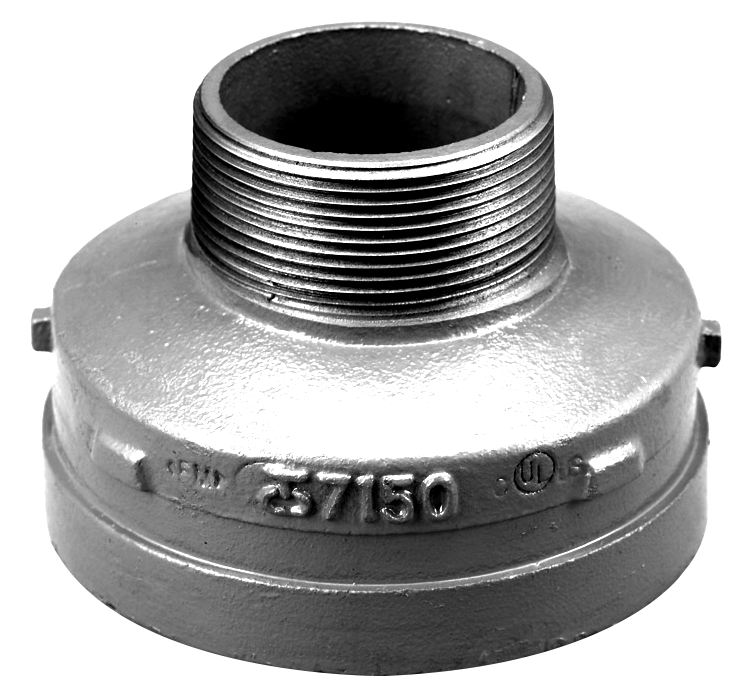

VSH Shurjoint reducing nipple (groove x male thread)

Scraped SKU: 7150M 2026-06-05 04:24:53

Attributes

Group Code7150M
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsFM, UL, ULc
Solutionsfire protection, utility, industry

Description

The Shurjoint Models 7150F & 7150M are designed for making direct reduction from a grooved system to female or male threaded system without the need for expensive swaged nipples.

Variations (32)

SJT7150M151P

size1 1/2"xMNPT1" orange
dimensions1.90x1.90x2.52 "
weight0.53 lb
packaging-
d11.90
DN1-
l11.26
z11.26
d21.32
DN2-
l21.26
z20.51

SJT7150M21P

size2"xMNPT1" orange
dimensions2.37x2.37x2.52 "
weight0.9 lb
packaging-
d12.37
DN1-
l11.26
z11.26
d21.32
DN2-
l21.26
z20.51

SJT7150M21G

size2"xMNPT1" galvanized
dimensions2.37x2.37x2.52 "
weight0.9 lb
packaging-
d12.37
DN1-
l11.26
z11.26
d21.32
DN2-
l21.26
z20.51

SJT7150M2125P

size2"xMNPT1 1/4" orange
dimensions2.37x2.37x2.52 "
weight0.71 lb
packaging-
d12.37
DN1-
l11.26
z11.26
d21.66
DN2-
l21.26
z20.39

SJT7150M2125G

size2"xMNPT1 1/4" galvanized
dimensions2.37x2.37x2.52 "
weight0.71 lb
packaging-
d12.37
DN1-
l11.26
z11.26
d21.66
DN2-
l21.26
z20.39

SJT7150M215P

size2"xMNPT1 1/2" orange
dimensions2.37x2.37x2.52 "
weight0.82 lb
packaging-
d12.37
DN1-
l11.26
z11.26
d21.90
DN2-
l21.26
z20.39

SJT7150M215G

size2"xMNPT1 1/2" galvanized
dimensions2.37x2.37x2.52 "
weight0.82 lb
packaging-
d12.37
DN1-
l11.26
z11.26
d21.90
DN2-
l21.26
z20.39

SJT7150M251P

size2 1/2"xMNPT1" orange
dimensions2.87x2.87x2.52 "
weight0.88 lb
packaging-
d12.87
DN1-
l11.26
z11.26
d21.32
DN2-
l21.26
z20.51

SJT7150M25125P

size2 1/2"xMNPT1 1/4" orange
dimensions2.87x2.87x2.52 "
weight1.17 lb
packaging-
d12.87
DN1-
l11.26
z11.26
d21.66
DN2-
l21.26
z20.39

SJT7150M2515G

size2 1/2"xMNPT1 1/2" orange
dimensions2.87x2.87x2.52 "
weight1.08 lb
packaging-
d12.87
DN1-
l11.26
z11.26
d21.90
DN2-
l21.26
z20.39

SJT7150M2515P

size2 1/2"xMNPT1 1/2" orange
dimensions2.87x2.87x2.52 "
weight1.08 lb
packaging-
d12.87
DN1-
l11.26
z11.26
d21.90
DN2-
l21.26
z20.39

SJT7150M252P

size2 1/2"xMNPT2" orange
dimensions2.87x2.87x2.52 "
weight0.93 lb
packaging-
d12.87
DN1-
l11.26
z11.26
d22.37
DN2-
l21.26
z2-

SJT7150M252G

size2 1/2"xMNPT2" galvanized
dimensions2.87x2.87x2.52 "
weight0.93 lb
packaging-
d12.87
DN1-
l11.26
z11.26
d22.37
DN2-
l21.26
z2-

SJT7150M31P

size3"xMNPT1" orange
dimensions3.50x3.50x2.52 "
weight1.26 lb
packaging-
d13.50
DN1-
l11.26
z11.26
d21.32
DN2-
l21.26
z2-

SJT7150M3125P

size3"xMNPT1 1/4" orange
dimensions3.50x3.50x2.52 "
weight1.68 lb
packaging-
d13.50
DN1-
l11.26
z11.26
d21.66
DN2-
l21.26
z2-

SJT7150M315P

size3"xMNPT1 1/2" orange
dimensions3.50x3.50x2.52 "
weight1.63 lb
packaging-
d13.50
DN1-
l11.26
z11.26
d21.90
DN2-
l21.26
z2-

SJT7150M32P

size3"xMNPT2" orange
dimensions3.50x3.50x2.52 "
weight1.32 lb
packaging-
d13.50
DN1-
l11.26
z11.26
d22.37
DN2-
l21.26
z2-

SJT7150M32G

size3"xMNPT2" galvanized
dimensions3.50x3.50x2.52 "
weight1.32 lb
packaging-
d13.50
DN1-
l11.26
z11.26
d22.37
DN2-
l21.26
z2-

SJT7150M325P

size3"xMNPT2 1/2" orange
dimensions3.50x3.50x2.52 "
weight2.2 lb
packaging-
d13.50
DN1-
l11.26
z11.26
d22.87
DN2-
l21.26
z2-

SJT7150M41P

size4"xMNPT1" orange
dimensions4.50x4.50x2.99 "
weight1.94 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d21.32
DN2-
l21.50
z2-

SJT7150M4125P

size4"xMNPT1 1/4" orange
dimensions4.50x4.50x2.99 "
weight2.2 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d21.66
DN2-
l21.50
z2-

SJT7150M415P

size4"xMNPT1 1/2" orange
dimensions4.50x4.50x2.99 "
weight2.05 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d21.90
DN2-
l21.50
z2-

SJT7150M42P

size4"xMNPT2" orange
dimensions4.50x4.50x2.99 "
weight2.2 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d22.37
DN2-
l21.50
z2-

SJT7150M42G

size4"xMNPT2" galvanized
dimensions4.50x4.50x2.99 "
weight2.2 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d22.37
DN2-
l21.50
z2-

SJT7150M425P

size4"xMNPT2 1/2" orange
dimensions4.50x4.50x2.99 "
weight2.05 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d22.87
DN2-
l21.50
z2-

SJT7150M43P

size4"xMNPT3" orange
dimensions4.50x4.50x2.99 "
weight2.2 lb
packaging-
d14.50
DN1-
l11.50
z11.50
d23.50
DN2-
l21.50
z2-

SJT7150M52P

size5"xMNPT2" orange , fab.
dimensions5.56x5.56x3.54 "
weight3.79 lb
packaging-
d15.56
DN1-
l11.77
z11.77
d22.37
DN2-
l21.77
z2-

SJT7150M62P

size6"xMNPT2" orange
dimensions6.63x6.63x4.02 "
weight4.92 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d22.37
DN2-
l22.01
z2-

SJT7150M625P

size6"xMNPT2 1/2" orange
dimensions6.63x6.63x4.02 "
weight4.98 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d22.87
DN2-
l22.01
z2-

SJT7150M63P

size6"xMNPT3" orange
dimensions6.63x6.63x4.02 "
weight5.09 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d23.50
DN2-
l22.01
z2-

SJT7150M64P

size6"xMNPT4" orange
dimensions6.63x6.63x4.02 "
weight4.63 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d24.50
DN2-
l22.01
z2-

SJT7150M82P

size8"xMNPT2" orange , fab.
dimensions8.63x8.63x5.00 "
weight10.74 lb
packaging-
d18.63
DN1-
l12.01
z12.01
d22.37
DN2-
l22.01
z2-

Specifications

articleVSH Shurjoint reducing nipple (groove x male thread)
article number with gtin7150M
manufacturerShurjoint
weight10.74 lb
dimensions8.63x8.63x5.00 "
colororange, silver
materialscast iron, steel (ASTM A536 65-45-12, ASTM A53 Grade B)
finishingvarnished, hot dip galvanized
shapereducer
connection typegroove (fitting), MPT - male thread conical (NPT)
max operating pressure liquid1001 psi
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7150M
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Shape":"Straight","Bend angle":"","Reducing":"Yes","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"External thread conical (NPT)","With buffer stud":"No","High tensile strength":"Yes","Max. operating pressure at 20 °C":"69bar","Max. operating pressure at 20 °C (imperial)":"1000.76psi","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
