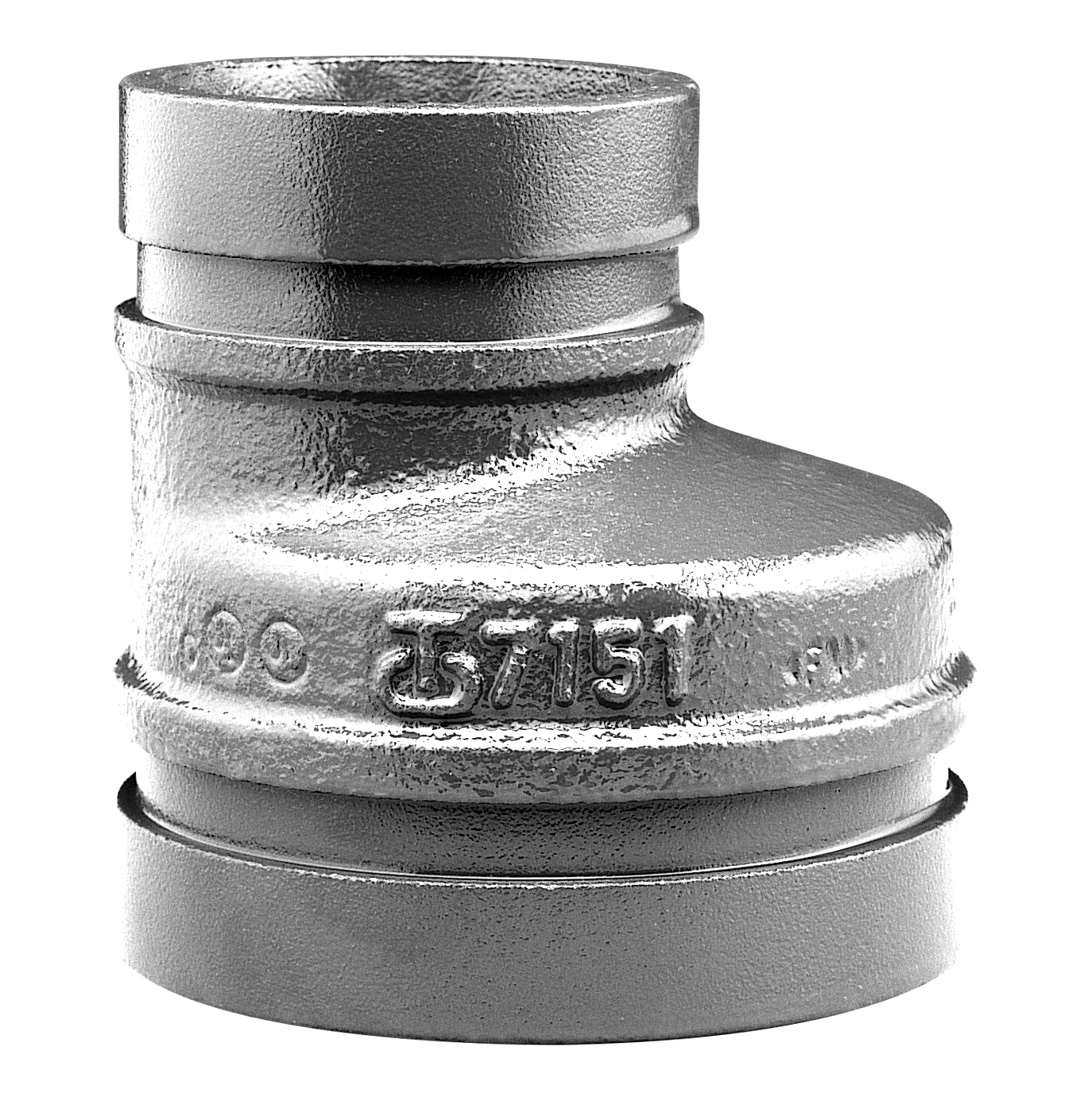

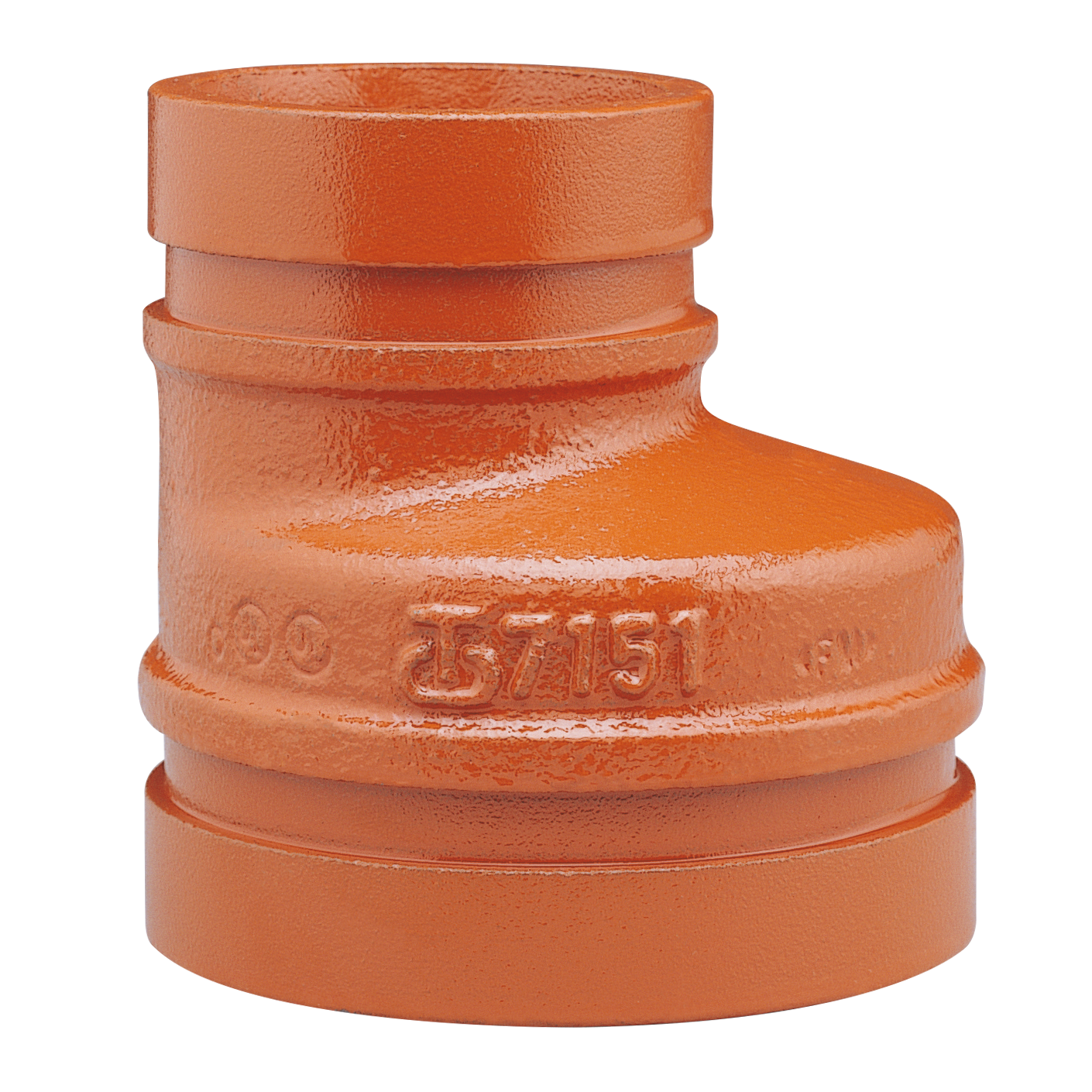

VSH Shurjoint eccentric reducer (2 x groove)

Scraped SKU: 7151 2026-06-05 04:24:53

Attributes

Group Code7151
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsFM, UL, ULc
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end reducers are made of ductile iron per ASTM A536 Gr. 65-45-12. dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (33)

SJT7151252P

size2 1/2"x2" orange
dimensions3.50x2.87x2.87 "
weight1.43 lb
packaging-
d12.87
DN1-
l11.75
z11.75
d22.37
DN2-
l21.75

SJT715132P

size3"x2" orange
dimensions3.50x3.50x3.50 "
weight2.2 lb
packaging-
d13.50
DN1-
l11.75
z11.75
d22.37
DN2-
l21.75

SJT715132G

size3"x2" galvanized
dimensions3.50x3.50x3.50 "
weight2.2 lb
packaging-
d13.50
DN1-
l11.75
z11.75
d22.37
DN2-
l21.75

SJT7151325P

size3"x2 1/2" orange
dimensions3.50x3.50x3.50 "
weight2.2 lb
packaging-
d13.50
DN1-
l11.75
z11.75
d22.87
DN2-
l21.75

SJT7151325G

size3"x2 1/2" galvanized
dimensions3.50x3.50x3.50 "
weight2.2 lb
packaging-
d13.50
DN1-
l11.75
z11.75
d22.87
DN2-
l21.75

SJT715142P

size4"x2" orange
dimensions4.02x4.50x4.50 "
weight2.84 lb
packaging-
d14.50
DN1-
l12.01
z12.01
d22.37
DN2-
l22.01

SJT715142G

size4"x2" galvanized
dimensions4.02x4.50x4.50 "
weight2.84 lb
packaging-
d14.50
DN1-
l12.01
z12.01
d22.37
DN2-
l22.01

SJT7151425P

size4"x2 1/2" orange
dimensions4.02x4.50x4.50 "
weight3.31 lb
packaging-
d14.50
DN1-
l12.01
z12.01
d22.87
DN2-
l22.01

SJT715143P

size4"x3" orange
dimensions4.02x4.50x4.50 "
weight2.87 lb
packaging-
d14.50
DN1-
l12.01
z12.01
d23.50
DN2-
l22.01

SJT715143G

size4"x3" galvanized
dimensions4.02x4.50x4.50 "
weight2.87 lb
packaging-
d14.50
DN1-
l12.01
z12.01
d23.50
DN2-
l22.01

SJT715153P

size5"x3" orange, fab.
dimensions4.02x5.56x5.56 "
weight5.2 lb
packaging-
d15.56
DN1-
l12.01
z12.01
d23.50
DN2-
l22.01

SJT715154P

size5"x4" orange
dimensions4.02x5.56x5.56 "
weight6.17 lb
packaging-
d15.56
DN1-
l12.01
z12.01
d24.50
DN2-
l22.01

SJT715154G

size5"x4" galvanized
dimensions4.02x5.56x5.56 "
weight6.17 lb
packaging-
d15.56
DN1-
l12.01
z12.01
d24.50
DN2-
l22.01

SJT715162P

size6"x2" orange
dimensions4.02x6.63x6.63 "
weight4.41 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d22.37
DN2-
l22.01

SJT715163P

size6"x3" orange
dimensions4.02x6.63x6.63 "
weight7.72 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d23.50
DN2-
l22.01

SJT715163G

size6"x3" galvanized
dimensions4.02x6.63x6.63 "
weight7.72 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d23.50
DN2-
l22.01

SJT715164P

size6"x4" orange
dimensions4.02x6.63x6.63 "
weight5.84 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d24.50
DN2-
l22.01

SJT715164G

size6"x4" galvanized
dimensions4.02x6.63x6.63 "
weight5.84 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d24.50
DN2-
l22.01

SJT715165P

size6"x5" orange
dimensions4.02x6.63x6.63 "
weight9.92 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d25.56
DN2-
l22.01

SJT715165G

size6"x5" galvanized
dimensions4.02x6.63x6.63 "
weight9.92 lb
packaging-
d16.63
DN1-
l12.01
z12.01
d25.56
DN2-
l22.01

SJT715184P

size8"x4" orange
dimensions5.00x8.63x8.63 "
weight14.55 lb
packaging-
d18.63
DN1-
l12.50
z12.50
d24.50
DN2-
l22.50

SJT715184G

size8"x4" galvanized
dimensions5.00x8.63x8.63 "
weight14.55 lb
packaging-
d18.63
DN1-
l12.50
z12.52
d24.50
DN2-
l22.50

SJT715186P

size8"x6" orange
dimensions5.00x8.63x8.63 "
weight10.76 lb
packaging-
d18.63
DN1-
l12.50
z12.50
d26.63
DN2-
l22.50

SJT715186G

size8"x6" galvanized
dimensions5.00x8.63x8.63 "
weight10.76 lb
packaging-
d18.63
DN1-
l12.50
z12.50
d26.63
DN2-
l22.50

SJT7151104P

size10"x4" orange
dimensions5.98x10.75x10.75 "
weight26.46 lb
packaging-
d110.75
DN1-
l12.99
z12.99
d24.50
DN2-
l22.99

SJT7151106P

size10"x6" orange
dimensions5.98x10.75x10.75 "
weight25.35 lb
packaging-
d110.75
DN1-
l12.99
z12.99
d26.63
DN2-
l22.99

SJT7151108P

size10"x8" orange
dimensions7.01x10.75x10.75 "
weight26.83 lb
packaging-
d110.75
DN1-
l13.50
z12.99
d28.63
DN2-
l23.50

SJT7151108G

size10"x8" galvanized
dimensions7.01x10.75x10.75 "
weight26.83 lb
packaging-
d110.75
DN1-
l13.50
z12.99
d28.63
DN2-
l23.50

SJT7151126P

size12"x6" orange
dimensions7.01x12.75x12.75 "
weight39.68 lb
packaging-
d112.75
DN1-
l13.50
z13.50
d26.63
DN2-
l23.50

SJT7151128P

size12"x8" orange
dimensions7.01x12.75x12.75 "
weight40.79 lb
packaging-
d112.75
DN1-
l13.50
z13.50
d28.63
DN2-
l23.50

SJT7151128G

size10"x8" galvanized
dimensions7.01x12.75x12.75 "
weight40.79 lb
packagingBag (1 pce)
d112.75
DN1-
l13.50
z13.50
d28.63
DN2-
l23.50

SJT71511210P

size12"x10" orange
dimensions7.01x12.75x12.75 "
weight44.09 lb
packagingBag (1 pce)
d112.75
DN1-
l13.50
z13.50
d210.75
DN2-
l23.50

SJT71511210G

size10"x10" galvanized
dimensions7.01x12.75x12.75 "
weight44.09 lb
packagingBag (1 pce)
d112.75
DN1-
l13.50
z13.50
d210.75
DN2-
l23.50

Specifications

articleVSH Shurjoint eccentric reducer (2 x groove)
article number with gtin7151
manufacturerShurjoint
weight44.09 lb
dimensions7.01x12.75x12.75 "
colororange, silver
materialscast iron, steel (ASTM A536 65-45-12, ASTM A53 Grade B)
finishingvarnished, hot dip galvanized
shapeExcentric, reducer
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7151
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"Yes","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
