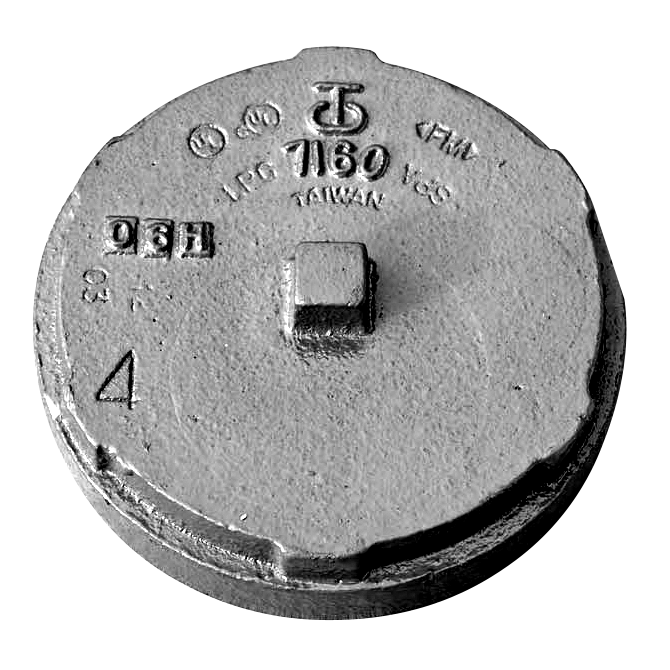

VSH Shurjoint end cap (1 x groove)

Scraped SKU: 7160 2026-06-05 04:24:53

Attributes

Group Code7160
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, LPCB, TSU, UL, ULc, VdS
Solutionsfire protection, utility, industry

Description

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. E-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (23)

SJT71601P

size1" orange
dimensions0.87x1.31x1.31 "
weight0.22 lb
packaging-
d11.32
DN1-
l10.87
z10.87

SJT7160125P

size1 1/4" orange
dimensions0.98x1.66x1.66 "
weight0.33 lb
packaging-
d11.66
DN1-
l10.98
z10.98

SJT7160125G

size1 1/4" galvanized
dimensions0.98x1.66x1.66 "
weight0.33 lb
packaging-
d11.66
DN1-
l10.98
z10.98

SJT716015P

size1 1/2" orange
dimensions0.98x1.90x1.90 "
weight0.44 lb
packaging-
d11.90
DN1-
l10.98
z10.98

SJT716015G

size1 1/2" galvanized
dimensions0.98x1.90x1.90 "
weight0.44 lb
packaging-
d11.90
DN1-
l10.98
z10.98

SJT71602P

size2" orange
dimensions0.98x2.37x2.37 "
weight0.66 lb
packaging-
d12.37
DN1-
l10.98
z10.98

SJT71602G

size2" galvanized
dimensions0.98x2.37x2.37 "
weight0.66 lb
packaging-
d12.37
DN1-
l10.98
z10.98

SJT716025P

size2 1/2" orange
dimensions0.98x2.87x2.87 "
weight0.88 lb
packaging-
d12.87
DN1-
l10.98
z10.98

SJT716025G

size2 1/2" galvanized
dimensions0.98x2.87x2.87 "
weight0.88 lb
packaging-
d12.87
DN1-
l10.98
z10.98

SJT71603P

size3" orange
dimensions0.98x3.50x3.50 "
weight1.54 lb
packaging-
d13.50
DN1-
l10.98
z10.98

SJT71603G

size3" galvanized
dimensions0.98x3.50x3.50 "
weight1.54 lb
packaging-
d13.50
DN1-
l10.98
z10.98

SJT71604P

size4" orange
dimensions0.98x4.50x4.50 "
weight2.2 lb
packaging-
d14.50
DN1-
l10.98
z10.98

SJT71604G

size4" galvanized
dimensions0.98x4.50x4.50 "
weight2.2 lb
packaging-
d14.50
DN1-
l10.98
z10.98

SJT71605P

size5" orange
dimensions0.98x5.56x5.56 "
weight3.75 lb
packaging-
d15.56
DN1-
l10.98
z10.98

SJT71605G

size5" galvanized
dimensions0.98x5.56x5.56 "
weight3.75 lb
packaging-
d15.56
DN1-
l10.98
z10.98

SJT71606P

size6" orange
dimensions0.98x6.63x6.63 "
weight5.95 lb
packaging-
d16.63
DN1-
l10.98
z10.98

SJT71606G

size6" galvanized
dimensions0.98x6.63x6.63 "
weight5.95 lb
packaging-
d16.63
DN1-
l10.98
z10.98

SJT71608P

size8" orange
dimensions1.18x8.63x8.63 "
weight10.14 lb
packaging-
d18.63
DN1-
l11.18
z11.18

SJT71608G

size8" galvanized
dimensions1.18x8.63x8.63 "
weight10.14 lb
packaging-
d18.63
DN1-
l11.18
z11.18

SJT716010P

size10" orange
dimensions1.18x10.75x10.75 "
weight15.43 lb
packaging-
d110.75
DN1-
l11.18
z11.18

SJT716010G

size10" galvanized
dimensions1.18x10.75x10.75 "
weight15.43 lb
packaging-
d110.75
DN1-
l11.18
z11.18

SJT716012P

size12" orange
dimensions1.26x12.75x12.75 "
weight22.05 lb
packaging-
d112.75
DN1-
l11.26
z11.26

SJT716012G

size12" galvanized
dimensions1.26x12.75x12.75 "
weight22.05 lb
packaging-
d112.75
DN1-
l11.26
z11.26

Specifications

articleVSH Shurjoint end cap (1 x groove)
article number with gtin7160
manufacturerShurjoint
weight22.05 lb
dimensions1.26x12.75x12.75 "
colororange, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapeEnd coupling
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003023 Fitting with 1 connection
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7160
ETIM
{"etim-class":"EC003023 Fitting with 1 connection","Material connection 1":"Cast iron","System specific":"No","Connection 1":"Groove","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","Capped":"No","With connection indicator":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF
[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF
[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF
[Certificate] CRN Pipe Fittings Open PDF
[Certificate] EPD VSH Shurjoint Grooved Fittings Open PDF
[Certificate] FM Pipe Fittings Open PDF
[Certificate] LPCB Open PDF
[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF
[Certificate] TSU Grooved end fittings Open PDF
[Certificate] UL Fittings, Grooved and Plain End Open PDF
[Certificate] ULc Fittings, Grooved and Plain End Open PDF
[Certificate] VdS 7110/7111/7120/7160 Open PDF
