VSH Shurjoint universal flange nipple (groove x flange)

Scraped SKU: 7180 2026-06-05 04:24:53

Attributes

Group Code7180
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsFM, QB (CSTBat), UL, ULc
Solutionsfire protection, utility, industry

Description

The Model 7180 Universal Flange Adapter provides all the benefits of our popular #7170 Flange Adapter with the added benefit of mating to a range of flange types including ANSI 125/150, PN10, PN16, JIS 10K, and BS-10E.

Shurjoint Model 7180 flange adapter pressure ratings conform to the working pressure rating of the coupling used to join grooved pipe to the grooved side of the adapter, or to the working pressure rating of the flange system connecting to the flange side of the adapter, whichever is lower.

Variations (14)

SJT71802P

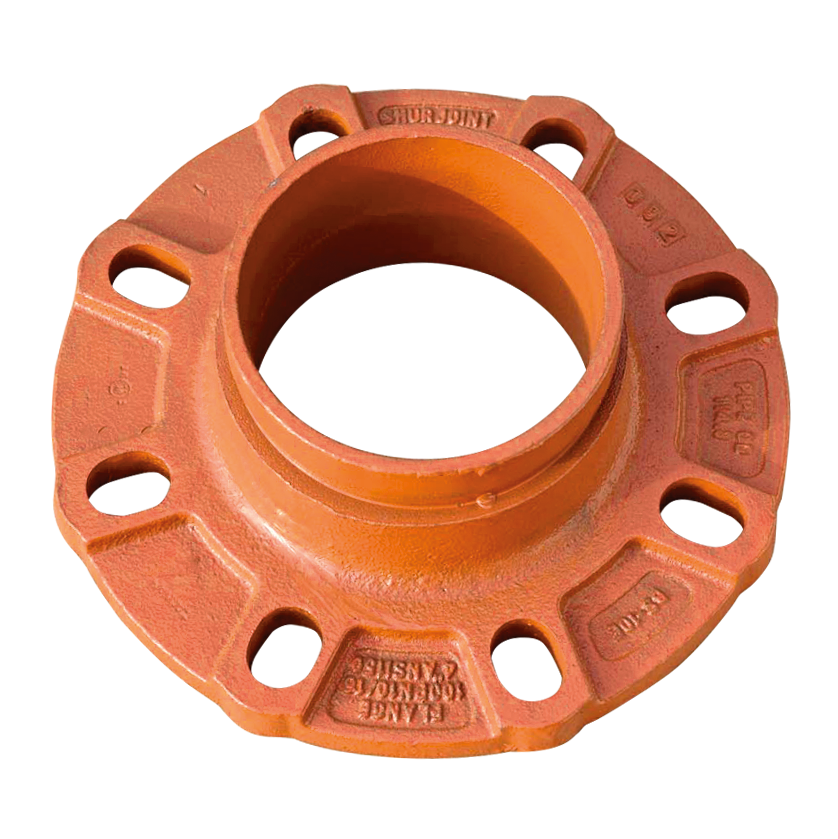

size2" orange
dimensions2.52x6.50x6.50 "
weight5.07 lb
packaging-
d12.37
DN1-
l11.89
d26.50
DN2-
l20.63
n2-
k24.92
d2-20.71
D26.5

SJT71802G

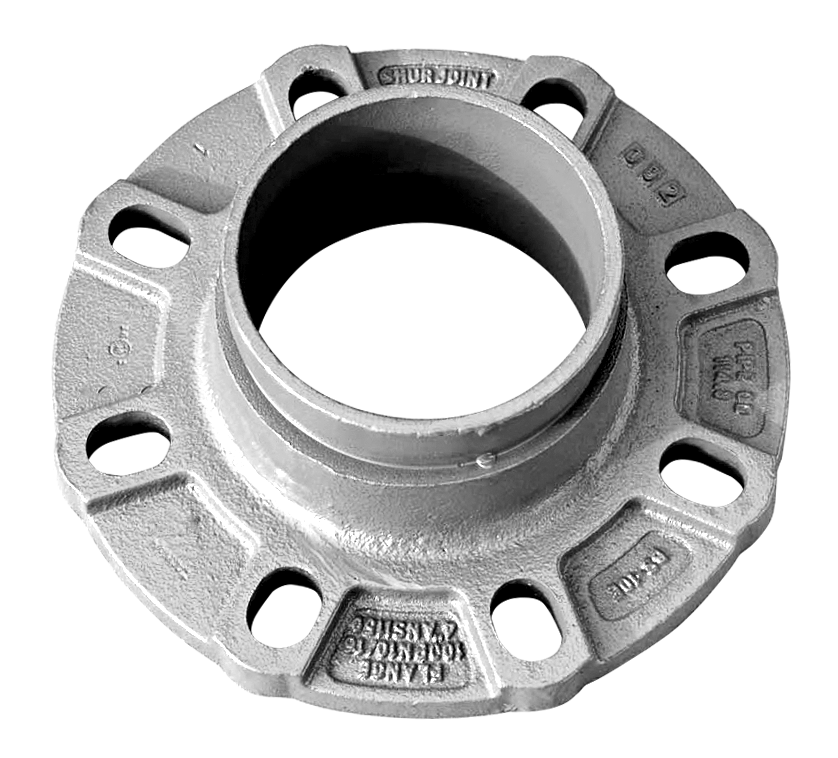

size2" galvanized
dimensions2.52x6.50x6.50 "
weight5.07 lb
packaging-
d12.37
DN1-
l11.89
d26.50
DN2-
l20.63
n2-
k24.92
d2-20.71
D26.5

SJT718025P

size2 1/2" orange
dimensions2.99x7.28x7.28 "
weight6.53 lb
packaging-
d12.87
DN1-
l12.36
d27.28
DN2-
l20.63
n2-
k25.71
d2-20.71
D27.28

SJT718025G

size2 1/2" galvanized
dimensions2.99x7.28x7.28 "
weight6.53 lb
packaging-
d12.87
DN1-
l12.36
d27.28
DN2-
l20.63
n2-
k25.71
d2-20.71
D27.28

SJT71803P

size3" orange
dimensions2.95x7.87x7.87 "
weight7.47 lb
packaging-
d13.50
DN1-
l12.32
d27.87
DN2-
l20.63
n2-
k26.3
d2-20.71
D27.87

SJT71803G

size3" galvanized
dimensions2.95x7.87x7.87 "
weight7.47 lb
packaging-
d13.50
DN1-
l12.32
d27.87
DN2-
l20.63
n2-
k26.3
d2-20.71
D27.87

SJT71804P

size4" orange
dimensions2.95x8.86x8.86 "
weight8.49 lb
packaging-
d14.50
DN1-
l12.32
d28.86
DN2-
l20.63
n2-
k27.09
d2-20.71
D28.66

SJT71804G

size4" galvanized
dimensions2.95x8.86x8.86 "
weight8.49 lb
packaging-
d14.50
DN1-
l12.32
d28.86
DN2-
l20.63
n2-
k27.09
d2-20.71
D28.66

SJT71805P

size5" orange
dimensions2.95x10.00x10.00 "
weight14.33 lb
packaging-
d15.56
DN1-
l12.09
d210.00
DN2-
l20.87
n2-
k28.27
d2-20.71
D29.84

SJT71805G

size5" galvanized
dimensions2.95x10.00x10.00 "
weight14.33 lb
packaging-
d15.56
DN1-
l12.09
d210.00
DN2-
l20.87
n2-
k28.27
d2-20.71
D29.84

SJT71806P

size6" orange
dimensions2.95x10.71x10.71 "
weight12.61 lb
packaging-
d16.63
DN1-
l12.32
d210.71
DN2-
l20.63
n2-
k29.45
d2-20.87
D211.22

SJT71806G

size6" galvanized
dimensions2.95x10.71x10.71 "
weight12.61 lb
packaging-
d16.63
DN1-
l12.32
d210.71
DN2-
l20.63
n2-
k29.45
d2-20.87
D211.22

SJT71808P

size8" orange
dimensions4.02x13.50x13.50 "
weight30.09 lb
packaging-
d18.63
DN1-
l13.15
d213.50
DN2-
l20.87
n2-
k211.61
d2-20.87
D213.39

SJT71808G

size8" galvanized
dimensions4.02x13.50x13.50 "
weight30.09 lb
packaging-
d18.63
DN1-
l13.15
d213.50
DN2-
l20.87
n2-
k211.61
d2-20.87
D213.39

Specifications

articleVSH Shurjoint universal flange nipple (groove x flange)
article number with gtin7180
manufacturerShurjoint
weight30.09 lb
dimensions4.02x13.50x13.50 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapestraight
connection typegroove (fitting), flange
pressure rating (PN)PN 16
max operating pressure liquid232 psi
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7180
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Flange","Flange compression class (PN)":"PN 16","With buffer stud":"No","Max. operating pressure at 20 °C":"16bar","Max. operating pressure at 20 °C (imperial)":"232.06psi","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF
[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF
[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF
[Certificate] EPD VSH Shurjoint Grooved Fittings Open PDF
[Certificate] FM Pipe Fittings Open PDF
[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF
[Certificate] UL Fittings, Grooved and Plain End Open PDF
[Certificate] ULc Fittings, Grooved and Plain End Open PDF
[Certificate] VSH Shurjoint CSTBat Open PDF
