Attributes
| Group Code | 7181 |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Approvals | FM, QB (CSTBat) |
Description

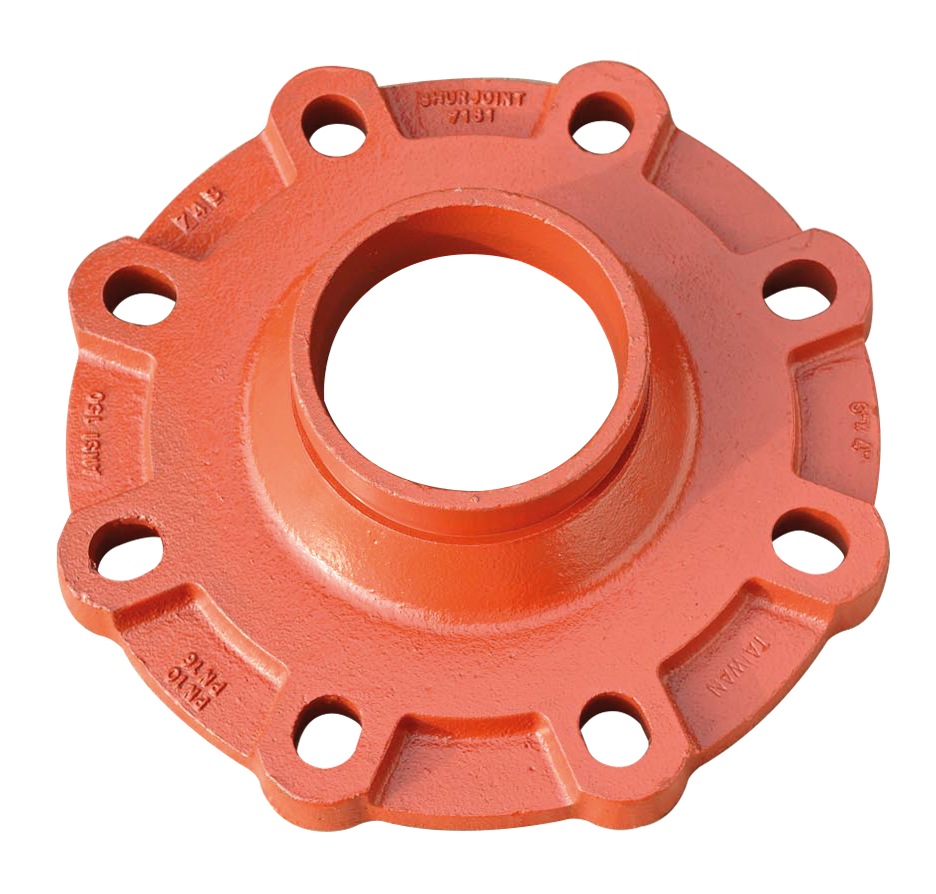

The VSH Shurjoint Model 7181 Universal Reducing Flange Adapter provides for a rigid transition between a flanged piping system and a one or two-size reduced grooved system without the use of a concentric reducer. The flange drilling can mate to ANSI 125/150, PN10/16, BS-10E and JIS 10K.
Variations (5)
SJT718132P
| size | 3"x2" orange |
|---|---|
| dimensions | 2.95x8.19x8.19 " |
| weight | 5.95 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 2.32 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 0.63 |
SJT718143P
| size | 4"x3" orange |
|---|---|
| dimensions | 2.95x8.90x8.90 " |
| weight | 7.61 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 2.32 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 0.63 |
SJT718143G

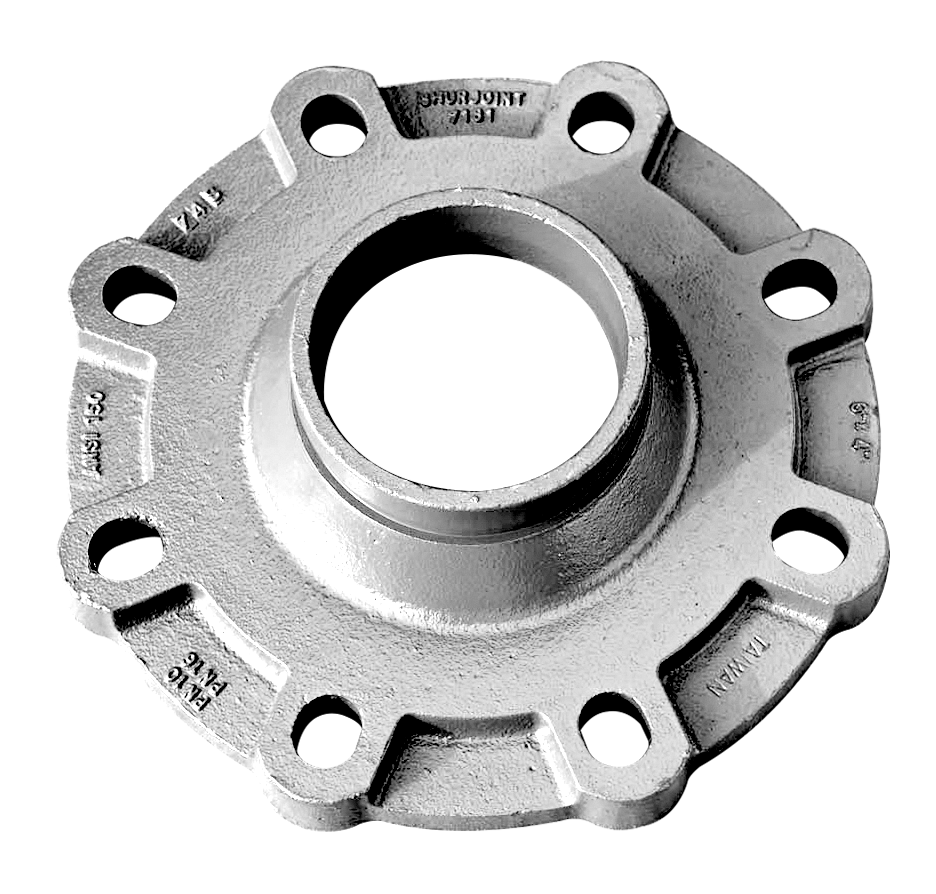

| size | 4"x3" Galvanized |
|---|---|
| dimensions | 2.95x8.90x8.90 " |
| weight | 7.61 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 2.32 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 0.63 |
SJT718164P
| size | 6"x4" orange |
|---|---|
| dimensions | 2.95x11.46x11.46 " |
| weight | 15.61 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 2.01 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 0.95 |
SJT718164G
| size | 6"x4" Galvanized |
|---|---|
| dimensions | 2.95x11.46x11.46 " |
| weight | 15.61 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 2.01 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 0.95 |
Specifications
| article | VSH Shurjoint universal reducing flange nipple (groove x flange) |
|---|---|
| article number with gtin | 7181 |
| manufacturer | Shurjoint |
| weight | 15.61 lb |
| dimensions | 2.95x11.46x11.46 " |
| color | orange, silver |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished, hot dip galvanized |
| shape | straight |
| connection type | groove (fitting), flange |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 7181 |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Flange","With buffer stud":"No","Length":"75mm","Length (imperial)":"2.95\"","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
