VSH Shurjoint saddle-let (female thread)

Scraped SKU: 723 2026-06-05 04:24:53

Attributes

Group Code723
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationssprinkler, dry fire main
ApprovalsCRN, FM, LPCB, QB (CSTBat), UL, ULc, VdS
Solutionsfire protection, utility, industry

Description

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
  • Hole saw size 30 mm (max. 32 mm)
  • Free surface area 89 mm

Variations (12)

SJT7231255B

size1 1/4"xFNPT1/2" black
dimensions2.20x3.50x3.94 "
weight0.82 lb
packaging-

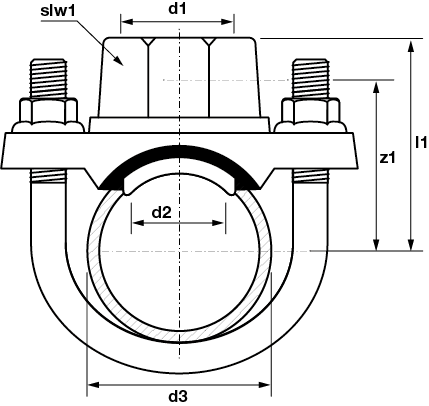

d10.84
DN1-
l11.97
z11.73
d21.18

SJT72312575B

size1 1/4"xFNPT3/4" black
dimensions2.20x3.50x3.94 "
weight0.84 lb
packaging-
d11.06
DN1-
l11.97
z11.73
d21.18

SJT7231251B

size1 1/4"xFNPT1" black
dimensions2.20x3.50x4.25 "
weight0.95 lb
packaging-
d11.32
DN1-
l12.13
z11.85
d21.18

SJT723155B

size1 1/2"xFNPT1/2" black
dimensions2.24x3.50x4.17 "
weight0.79 lb
packaging-
d10.84
DN1-
l12.09
z11.81
d21.18

SJT7231575B

size1 1/2"xFNPT3/4" black
dimensions2.24x3.50x4.17 "
weight0.82 lb
packaging-
d11.06
DN1-
l12.09
z11.81
d21.18

SJT723151B

size1 1/2"xFNPT1" black
dimensions2.24x3.50x4.57 "
weight0.93 lb
packaging-
d11.32
DN1-
l12.28
z11.93
d21.18

SJT72325B

size2"xFNPT1/2" black
dimensions2.24x3.82x4.72 "
weight0.77 lb
packaging-
d10.84
DN1-
l12.36
z12.09
d21.18

SJT723275B

size2"xFNPT3/4" black
dimensions2.24x3.82x4.72 "
weight0.84 lb
packaging-
d11.06
DN1-
l12.36
z12.09
d21.18

SJT72321B

size2"xFNPT1" black
dimensions2.24x3.82x5.04 "
weight0.93 lb
packaging-
d11.32
DN1-
l12.52
z12.21
d21.18

SJT723255B

size2 1/2"xFNPT1/2" black
dimensions2.24x3.82x5.20 "
weight0.84 lb
packaging-
d10.84
DN1-
l12.60
z12.28
d21.18

SJT7232575B

size2 1/2"xFNPT3/4" black
dimensions2.24x3.82x5.20 "
weight0.93 lb
packaging-
d11.06
DN1-
l12.60
z12.28
d21.18

SJT723251B

size2 1/2"xFNPT1" black
dimensions2.24x3.82x5.51 "
weight0.99 lb
packaging-
d11.32
DN1-
l12.76
z12.40
d21.18

Specifications

articleVSH Shurjoint saddle-let (female thread)
article number with gtin723
manufacturerShurjoint
weight0.99 lb
dimensions2.24x3.82x5.51 "
colorblack
materialscast iron (ASTM A536 65-45-12)
finishingvarnished
shapeTapping saddle
connection typeFPT - female thread conical (NPT), hole
pressure rating (PN)PN 20
sealingEPDM
max operating pressure liquid290 psi
min. medium temperature-29 °F
max medium temperature230 °F
product groupfittings (demountable)
ETIM classEC011014 Broaching saddle
country of originTaiwan
brandVSH
seriesShurjoint
product type723
ETIM
{"etim-class":"EC011014 Broaching saddle","Material":"Cast iron","Material inlay":"Ethylene-propylene diene monomer rubber (EPDM)","Surface protection":"Lacquered","Connection":"Internal thread conical (NPT)","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","Colour":"Black","VdS quality mark":"Yes","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"}
