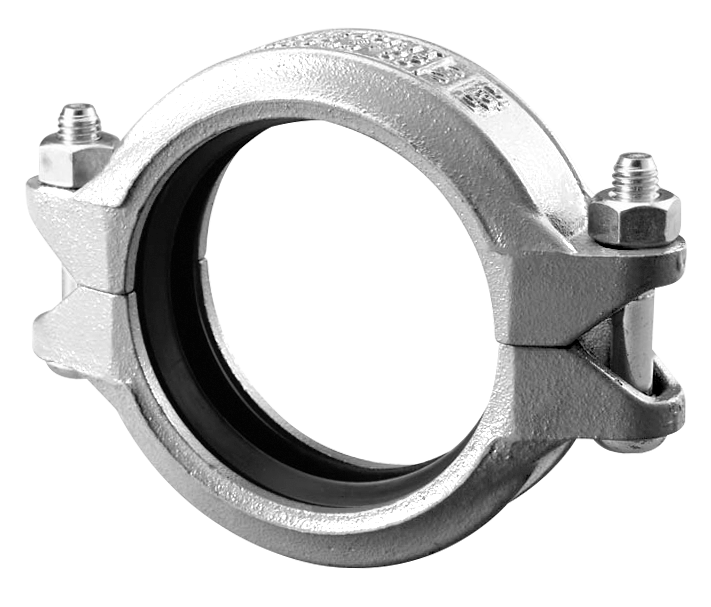

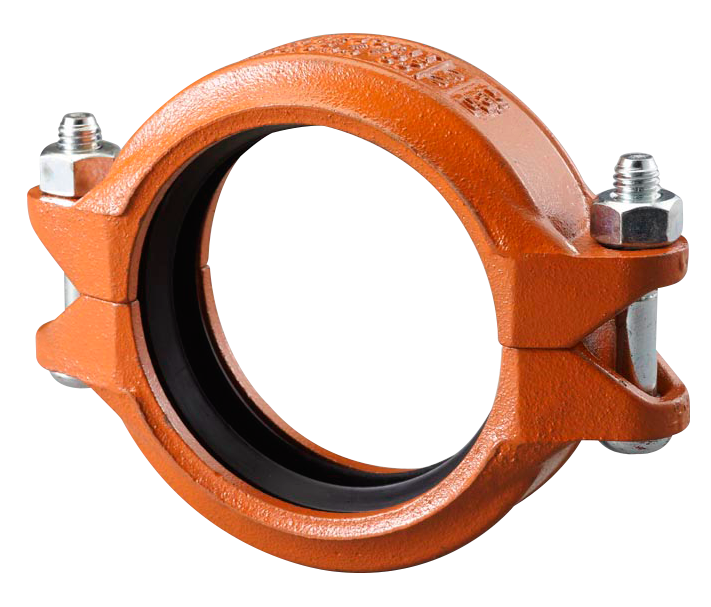

VSH Shurjoint flexible coupling (2 x groove), EPDM gasket

Scraped SKU: 7705E 2026-06-05 04:24:53

Attributes

Group Code7705E
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main, vacuum
ApprovalsCNBOP, CRN, FM, LPCB, QB (CSTBat), TSU, UL, ULc, VdS
Solutionsresidential, fire protection, datacenters, utility, industry

Description

7705E is the designation for model 7705 with a Grade E EPDM gasket. The VSH Shurjoint Model 7705 Standard Flexible Coupling is a standard flexible coupling for use in a variety of general piping applications of moderate pressure services. The model 7705 couplings features flexibility that can deal with misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. With the use of Model 7705 couplings you can even design a curved layout.Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.

Variations (25)

SJT77051PE

size1" orange
dimensions1.81x3.94x2.24 "
weight1.21 lb
packaging-
d11.32
DN1-
l10.91
z10.03
d21.32
DN2-
l20.91
z20.03

SJT77051GE

size1" galvanized
dimensions1.81x3.94x2.24 "
weight1.21 lb
packaging-
d11.32
DN1-
l10.91
z10.03
d21.32
DN2-
l20.91
z20.03

SJT7705125PE

size1 1/4" orange
dimensions1.81x4.06x2.60 "
weight1.54 lb
packaging-
d11.66
DN1-
l10.91
z10.03
d21.66
DN2-
l20.91
z20.03

SJT7705125GE

size1 1/4" galvanized
dimensions1.81x4.06x2.60 "
weight1.54 lb
packaging-
d11.66
DN1-
l10.91
z10.03
d21.66
DN2-
l20.91
z20.03

SJT770515PE

size1 1/2" orange
dimensions1.81x4.25x2.83 "
weight1.61 lb
packaging-
d11.90
DN1-
l10.91
z10.03
d21.90
DN2-
l20.91
z20.03

SJT770515GE

size1 1/2" galvanized
dimensions1.81x4.25x2.83 "
weight1.61 lb
packaging-
d11.90
DN1-
l10.91
z10.03
d21.90
DN2-
l20.91
z20.03

SJT77052PE

size2" orange
dimensions1.85x5.08x3.31 "
weight1.76 lb
packaging-
d12.37
DN1-
l10.93
z10.03
d22.37
DN2-
l20.93
z20.03

SJT77052GE

size2" galvanized
dimensions1.85x5.08x3.31 "
weight1.76 lb
packaging-
d12.37
DN1-
l10.93
z10.03
d22.37
DN2-
l20.93
z20.03

SJT770525PE

size2 1/2" orange
dimensions1.85x5.59x3.90 "
weight1.98 lb
packaging-
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJT770525GE

size2 1/2" galvanized
dimensions1.85x5.59x3.90 "
weight1.98 lb
packaging-
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJT77053PE

size3" orange
dimensions1.85x6.46x4.57 "
weight2.87 lb
packaging-
d13.50
DN1-
l10.93
z10.03
d23.50
DN2-
l20.93
z20.03

SJT77053GE

size3" galvanized
dimensions1.85x6.46x4.57 "
weight2.87 lb
packaging-
d13.50
DN1-
l10.93
z10.03
d23.50
DN2-
l20.93
z20.03

SJT770535PE

size101.6 orange
dimensions1.85x7.24x5.08 "
weight3.62 lb
packaging-
d14.00
DN1-
l10.93
z10.03
d24.00
DN2-
l20.93
z20.03

SJT77054PE

size4" orange
dimensions2.05x7.76x5.71 "
weight4.19 lb
packaging-
d14.50
DN1-
l11.02
z10.06
d24.50
DN2-
l21.02
z20.06

SJT77054GE

size4" galvanized
dimensions2.05x7.76x5.71 "
weight4.19 lb
packaging-
d14.50
DN1-
l11.02
z10.06
d24.50
DN2-
l21.02
z20.06

SJT77055PE

size5" orange
dimensions2.05x9.17x6.77 "
weight5.91 lb
packaging-
d15.56
DN1-
l11.02
z10.06
d25.56
DN2-
l21.02
z20.06

SJT77055GE

size5" galvanized
dimensions2.05x9.17x6.77 "
weight5.91 lb
packaging-
d15.56
DN1-
l11.02
z10.06
d25.56
DN2-
l21.02
z20.06

SJT77056PE

size6" orange
dimensions2.09x10.55x7.87 "
weight7.05 lb
packaging-
d16.63
DN1-
l11.04
z10.06
d26.63
DN2-
l21.04
z20.06

SJT77056GE

size6" galvanized
dimensions2.09x10.55x7.87 "
weight7.05 lb
packaging-
d16.63
DN1-
l11.04
z10.06
d26.63
DN2-
l21.04
z20.06

SJT77058PE

size8" orange
dimensions2.44x13.27x10.24 "
weight12.79 lb
packaging-
d18.63
DN1-
l11.22
z10.06
d28.63
DN2-
l21.22
z20.06

SJT77058GE

size8" galvanized
dimensions2.44x13.27x10.24 "
weight12.79 lb
packaging-
d18.63
DN1-
l11.22
z10.06
d28.63
DN2-
l21.22
z20.06

SJT770510PE

size10" orange
dimensions2.56x13.78x13.50 "
weight18.08 lb
packaging-
d110.75
DN1-
l11.28
z10.06
d210.75
DN2-
l21.28
z20.06

SJT770510GE

size10" galvanized
dimensions2.56x13.78x13.50 "
weight18.08 lb
packaging-
d110.75
DN1-
l11.28
z10.06
d210.75
DN2-
l21.28
z20.06

SJT770512PE

size12" orange
dimensions2.56x15.75x15.35 "
weight23.81 lb
packagingBag (1 pce)
d112.75
DN1-
l11.28
z10.06
d212.75
DN2-
l21.28
z20.06

SJT770512GE

size12" galvanized
dimensions2.56x15.75x15.35 "
weight23.81 lb
packaging-
d112.75
DN1-
l11.28
z10.06
d212.75
DN2-
l21.28
z20.06

Specifications

articleVSH Shurjoint flexible coupling (2 x groove), EPDM gasket
article number with gtin7705E
manufacturerShurjoint
weight23.81 lb
dimensions2.56x15.75x15.35 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapestraight
connection typegroove (coupling)
sealingEPDM
min. medium temperature-29 °F
max medium temperature230 °F
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7705E
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"2-part","Bend angle":"","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
