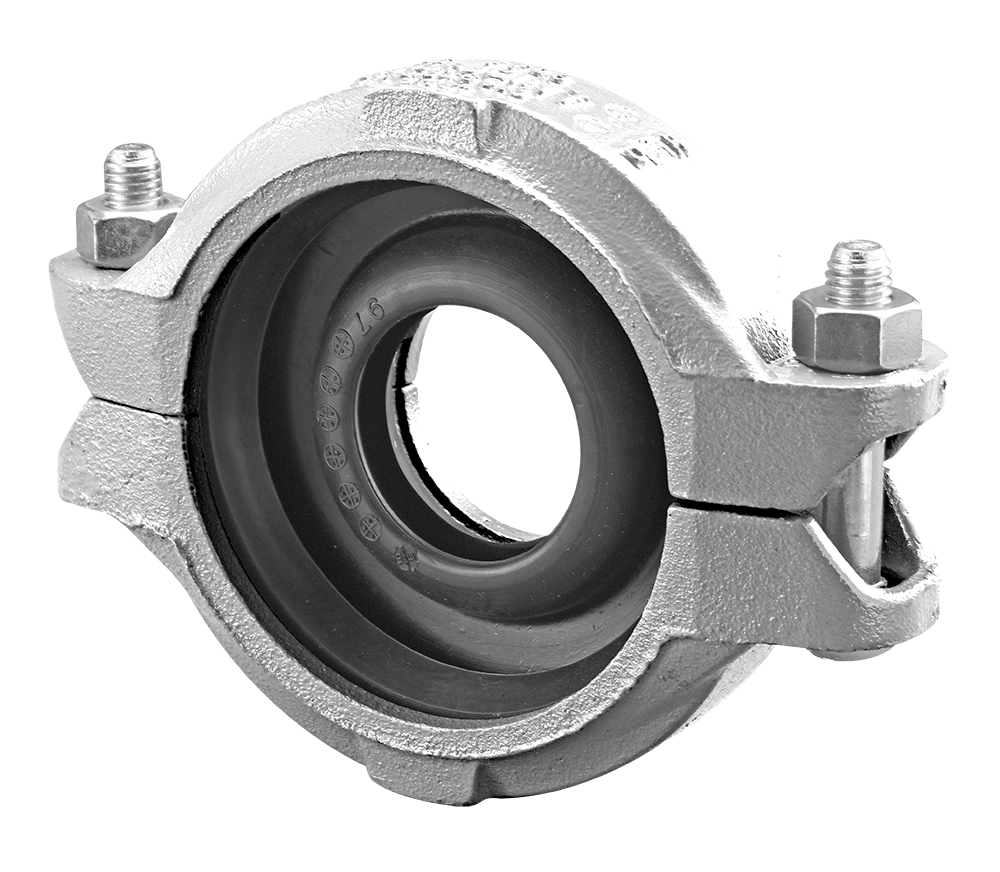

VSH Shurjoint reducing coupling (2 x groove), EPDM gasket

Scraped SKU: 7706E 2026-06-05 04:24:53

Attributes

Group Code7706E
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, sprinkler, dry fire main
ApprovalsCRN, FM, LPCB, QB (CSTBat), TSU, UL, ULc, VdS
Solutionsresidential, fire protection, datacenters, utility, industry

Description

7706E is the designation for model 7706 with a Grade E EPDM gasket. The VSH Shurjoint Model 7706 Reducing Coupling allows direct reduc­tion on a piping run and eliminates the need for a concentric reducer and couplings. The specially de­signed rubber gasket prevents the smaller pipe from telescoping into the larger pipe during vertical installa­tion. All 7706 couplings are comprised of two identical hous­ing segments, EPDM rubber gasket and plated track bolts and nuts. Housing segments are supplied with our standard painted finishes, i.e. orange or red.

Variations (24)

SJT770615125PE

size1 1/2"x1 1/4" orange
dimensions1.81x4.65x2.83 "
weight1.81 lb
packaging-

SJT770615125GE

size1 1/2"x1 1/4" galvanized
dimensions1.81x4.65x2.83 "
weight1.81 lb
packaging-

SJT7706215PE

size2"x1 1/2" orange
dimensions1.89x4.80x3.35 "
weight1.98 lb
packaging-

SJT7706215GE

size2"x1 1/2" galvanized
dimensions1.89x4.80x3.35 "
weight1.98 lb
packaging-

SJT7706252PE

size2 1/2"x2" orange
dimensions1.89x5.67x3.78 "
weight2.65 lb
packaging-

SJT7706252GE

size2 1/2"x2" galvanized
dimensions1.89x5.67x3.78 "
weight2.65 lb
packaging-

SJT770632PE

size3"x2" orange
dimensions1.89x6.61x4.57 "
weight3.31 lb
packaging-

SJT770632GE

size3"x2" galvanized
dimensions1.89x6.61x4.57 "
weight3.31 lb
packaging-

SJT7706325PE

size3"x2 1/2" orange
dimensions1.89x6.61x4.57 "
weight3.75 lb
packaging-

SJT7706325GE

size3"x2 1/2" galvanized
dimensions1.89x6.61x4.57 "
weight3.75 lb
packaging-

SJT770642PE

size4"x2" orange
dimensions7.80x1.93x5.75 "
weight5.29 lb
packaging-

SJT770642GE

size4"x2" galvanized
dimensions7.80x1.93x5.75 "
weight5.29 lb
packaging-

SJT7706425PE

size4"x2 1/2" orange
dimensions1.93x7.80x5.75 "
weight5.73 lb
packaging-

SJT7706425GE

size4"x2 1/2" galvanized
dimensions1.93x7.80x5.75 "
weight5.73 lb
packaging-

SJT770643PE

size4"x3" orange
dimensions2.01x7.80x5.75 "
weight4.92 lb
packaging-

SJT770643GE

size4"x3" galvanized
dimensions2.01x7.80x5.75 "
weight4.92 lb
packaging-

SJT770654PE

size5"x4" orange
dimensions2.01x9.45x6.30 "
weight7.87 lb
packaging-

SJT770654GE

size5"x4" galvanized
dimensions2.01x9.45x6.30 "
weight7.87 lb
packaging-

SJT770663PE

size6"x3" orange
dimensions2.05x10.63x8.19 "
weight10.14 lb
packaging-

SJT770663GE

size6"x3" galvanized
dimensions2.05x10.63x8.19 "
weight10.14 lb
packaging-

SJT770664PE

size6"x4" orange
dimensions2.05x10.63x8.19 "
weight9.92 lb
packaging-

SJT770664GE

size6"x4" galvanized
dimensions2.05x10.63x8.19 "
weight9.92 lb
packaging-

SJT770686PE

size8"x6" orange
dimensions2.09x13.11x10.24 "
weight14.33 lb
packaging-

SJT770686GE

size8"x6" galvanized
dimensions2.09x13.11x10.24 "
weight14.33 lb
packaging-

Specifications

articleVSH Shurjoint reducing coupling (2 x groove), EPDM gasket
article number with gtin7706E
manufacturerShurjoint
weight14.33 lb
dimensions2.09x13.11x10.24 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapestraight, reducer
connection typegroove (coupling)
sealingEPDM
min. medium temperature-29 °F
max medium temperature230 °F
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product type7706E
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"1-part","Reducing":"Yes","Eccentric":"No","System specific":"Yes","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"Yes","High tensile strength":"Yes","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","ULC quality mark":"Yes","UL quality mark":"Yes","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
