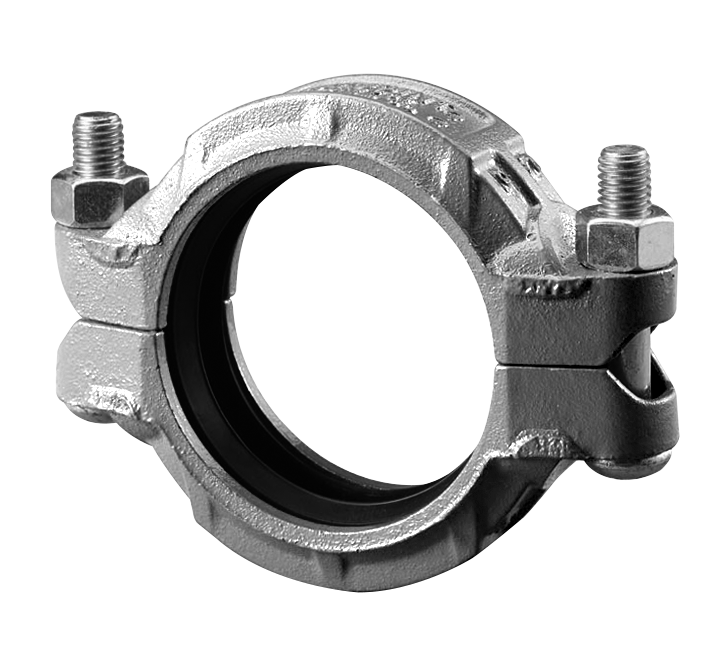

VSH Shurjoint heavy duty flexible coupling (2 x groove), EPDM gasket

Scraped SKU: 7707E 2026-06-05 04:24:53

Attributes

Group Code7707E
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main, vacuum
ApprovalsCRN, FM, QB (CSTBat), UL, ULc
Solutionsresidential, fire protection, datacenters, utility, industry

Description

7707E is the designation for model 7707 with a Grade E EPDM gasket. The VSH Shurjoint Model 7707 Flexible Coupling is designed for use in a variety of general piping applications of moderate or high pressure services. Working pressure is usually dictated by the wall thickness and rating of the pipe being used. The Model 7707 couplings feature flexibility that can accommodate misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. The utilization of Model 7707 couplings can accommodate a curved layout.

Variations (24)

SJT770775PE

size3/4" orange
dimensions1.81x3.74x2.13 "
weight1.32 lb
packaging-
d11.05
DN1-
l10.91
z10.03
d21.05
DN2-
l20.91
z20.03

SJT770775GE

size3/4" galvanized
dimensions1.81x3.74x2.13 "
weight1.32 lb
packaging-
d11.05
DN1-
l10.91
z10.03
d21.05
DN2-
l20.91
z20.03

SJT77071PE

size1" orange
dimensions1.81x4.02x2.40 "
weight1.65 lb
packaging-
d11.32
DN1-
l10.91
z10.03
d21.32
DN2-
l20.91
z20.03

SJT7707125PE

size1 1/4" orange
dimensions1.81x4.45x2.76 "
weight2.12 lb
packaging-
d11.66
DN1-
l10.91
z10.03
d21.66
DN2-
l20.91
z20.03

SJT770715PE

size1 1/2" orange
dimensions1.81x4.57x2.99 "
weight2.09 lb
packaging-
d11.90
DN1-
l10.91
z10.03
d21.90
DN2-
l20.91
z20.03

SJT77072PE

size2" orange
dimensions1.81x5.35x3.54 "
weight2.65 lb
packaging-
d12.37
DN1-
l10.91
z10.03
d22.37
DN2-
l20.91
z20.03

SJT77072GE

size2" galvanized
dimensions1.81x5.35x3.54 "
weight2.65 lb
packaging-
d12.37
DN1-
l10.91
z10.03
d22.37
DN2-
l20.91
z20.03

SJT770725PE

size2 1/2" orange
dimensions1.85x5.98x4.02 "
weight2.87 lb
packaging-
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJT770725GE

size2 1/2" galvanized
dimensions1.85x5.98x4.02 "
weight2.87 lb
packaging-
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJT77073PE

size3" orange
dimensions1.85x6.34x4.88 "
weight3.31 lb
packaging-
d13.50
DN1-
l10.93
z10.03
d23.50
DN2-
l20.93
z20.03

SJT77073GE

size3" galvanized
dimensions1.85x6.34x4.88 "
weight3.31 lb
packaging-
d13.50
DN1-
l10.93
z10.03
d23.50
DN2-
l20.93
z20.03

SJT77074PE

size4" orange
dimensions2.05x8.03x6.18 "
weight5.29 lb
packaging-
d14.50
DN1-
l11.02
z10.06
d24.50
DN2-
l21.02
z20.06

SJT77074GE

size4" galvanized
dimensions2.05x8.03x6.18 "
weight5.29 lb
packaging-
d14.50
DN1-
l11.02
z10.06
d24.50
DN2-
l21.02
z20.06

SJT77075PE

size5" orange
dimensions2.09x9.65x7.32 "
weight7.28 lb
packaging-
d15.56
DN1-
l11.04
z10.06
d25.56
DN2-
l21.04
z20.06

SJT77075GE

size5" galvanized
dimensions2.09x9.65x7.32 "
weight7.28 lb
packaging-
d15.56
DN1-
l11.04
z10.06
d25.56
DN2-
l21.04
z20.06

SJT77076PE

size6" orange
dimensions2.09x10.79x8.43 "
weight8.16 lb
packaging-
d16.63
DN1-
l11.04
z10.06
d26.63
DN2-
l21.04
z20.06

SJT77076GE

size6" galvanized
dimensions2.09x10.79x8.43 "
weight8.16 lb
packaging-
d16.63
DN1-
l11.04
z10.06
d26.63
DN2-
l21.04
z20.06

SJT77078PE

size8" orange
dimensions2.44x13.23x10.87 "
weight14.55 lb
packaging-
d18.63
DN1-
l11.22
z10.06
d28.63
DN2-
l21.22
z20.06

SJT77078GE

size8" galvanized
dimensions2.44x13.23x10.87 "
weight14.55 lb
packaging-
d18.63
DN1-
l11.22
z10.06
d28.63
DN2-
l21.22
z20.06

SJT770710PE

size10" orange
dimensions2.56x16.10x13.50 "
weight23.37 lb
packaging-
d110.75
DN1-
l11.28
z10.06
d210.75
DN2-
l21.28
z20.06

SJT770710GE

size10" galvanized
dimensions2.56x16.10x13.50 "
weight23.37 lb
packaging-
d110.75
DN1-
l11.28
z10.06
d210.75
DN2-
l21.28
z20.06

SJT770712PE

size12" orange
dimensions2.60x18.50x15.35 "
weight26.46 lb
packaging-
d112.75
DN1-
l11.30
z10.06
d212.75
DN2-
l21.30
z20.06

SJT770712GE

size12" galvanized
dimensions2.60x18.50x15.35 "
weight26.46 lb
packaging-
d112.75
DN1-
l11.30
z10.06
d212.75
DN2-
l21.30
z20.06

SJT770722PE

size22" orange
dimensions3.11x30.16x24.46 "
weight62.83 lb
packaging-
d122.00
DN1-
l11.56
z10.06
d222.00
DN2-
l21.56
z20.06

Specifications

articleVSH Shurjoint heavy duty flexible coupling (2 x groove), EPDM gasket
article number with gtin7707E
manufacturerShurjoint
weight62.83 lb
dimensions3.11x30.16x24.46 "
colororange, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapestraight
connection typegroove (coupling)
sealingEPDM
min. medium temperature-29 °F
max medium temperature230 °F
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type7707E
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Bend angle":"","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
