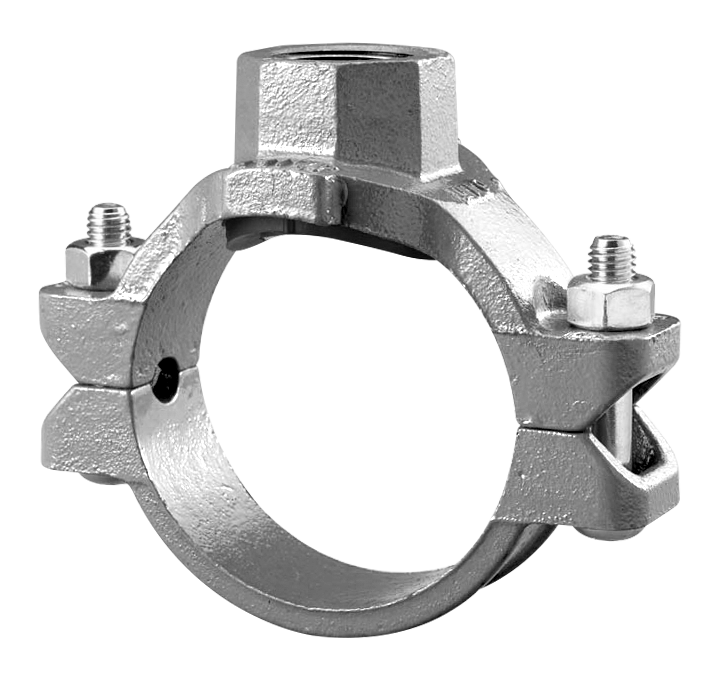

VSH Shurjoint mechanical tee (1 x female thread), EPDM gasket

Scraped SKU: 7721E 2026-06-05 04:24:53

Attributes

Group Code7721E
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCNBOP, CRN, FM, LPCB, QB (CSTBat), TSU, UL, ULc, VdS
Solutionsfire protection, utility, industry

Description

7721E is the designation for model 7721 with a Grade E EPDM gasket. The VSH Shurjoint Model 7721 Mechanical Tee when mounted on hole cut pipe provides a fast and easy mid-pipe threaded branch outlet. By utilizing the Model 7721 you eliminate the need for welding or the use of multiple fittings. The Mechanical Tee is com­prised of upper and lower ductile iron housing segments, a grade “E” EPDM rubber molded gasket and plated track bolts and nuts. Mechanical tees are supplied with our standard painted finishes, i.e. orange or red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coatings are also available.

Variations (64)

SJT772125PE

size2"xFNPT1/2" orange
dimensions2.87x5.04x4.09 "
weight2.43 lb
packaging-

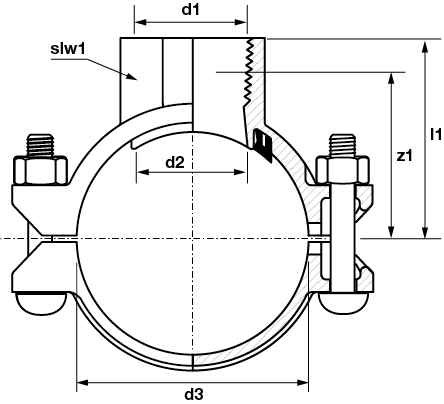

d10.84
DN1-
l12.52
z11.97

SJT772125GE

size2"xFNPT1/2" galvanized
dimensions2.87x5.04x4.09 "
weight2.43 lb
packaging-
d10.84
DN1-
l12.52
z11.97

SJT7721275PE

size2"xFNPT3/4" orange
dimensions2.87x5.04x4.09 "
weight2.43 lb
packaging-
d11.05
DN1-
l12.52
z11.97

SJT7721275GE

size2"xFNPT3/4" galvanized
dimensions2.87x5.04x4.09 "
weight2.43 lb
packaging-
d11.05
DN1-
l12.52
z11.97

SJT772121PE

size2"xFNPT1 orange
dimensions2.87x5.04x4.09 "
weight2.65 lb
packaging-
d11.32
DN1-
l12.68
z12.01

SJT772121GE

size2"xFNPT1" galvanized
dimensions2.87x5.04x4.09 "
weight2.65 lb
packaging-
d11.32
DN1-
l12.68
z12.01

SJT77212125GE

size2"xFNPT1 1/4" galvanized
dimensions3.23x5.04x4.37 "
weight2.76 lb
packaging-
d11.66
DN1-
l12.80
z12.09

SJT7721215PE

size2"xFNPT1 1/2" orange
dimensions3.23x5.04x4.37 "
weight2.87 lb
packaging-
d11.90
DN1-
l12.80
z12.09

SJT7721215GE

size2"xFNPT1 1/2" galvanized
dimensions3.23x5.04x4.37 "
weight2.87 lb
packaging-
d11.90
DN1-
l12.80
z12.09

SJT7721255PE

size2 1/2"/2 1/2"xFNPT1/2" orange
dimensions2.87x5.75x4.69 "
weight4.01 lb
packaging-
d10.84
DN1-
l12.80
z12.24

SJT7721255GE

size2 1/2"/2 1/2"xFNPT1/2" galvanized
dimensions2.87x5.75x4.69 "
weight4.01 lb
packaging-
d10.84
DN1-
l12.80
z12.24

SJT77212575PE

size2 1/2"/2 1/2"xFNPT3/4" orange
dimensions2.87x5.75x4.76 "
weight3.9 lb
packaging-
d11.05
DN1-
l12.87
z12.32

SJT77212575GE

size2 1/2"/2 1/2"xFNPT3/4" galvanized
dimensions2.87x5.75x4.76 "
weight3.9 lb
packaging-
d11.05
DN1-
l12.87
z12.32

SJT7721251PE

size2 1/2"/2 1/2"xFNPT1 orange
dimensions2.87x5.75x4.84 "
weight3.9 lb
packaging-
d11.32
DN1-
l12.95
z12.28

SJT7721251GE

size2 1/2"/2 1/2"xFNPT1" galvanized
dimensions2.87x5.75x4.84 "
weight3.9 lb
packaging-
d11.32
DN1-
l12.95
z12.28

SJT772125125PE

size2 1/2"/2 1/2"xFNPT1 1/4" orange
dimensions3.23x5.75x5.00 "
weight4.3 lb
packaging-
d11.66
DN1-
l13.11
z12.40

SJT772125125GE

size2 1/2"/2 1/2"xFNPT1 1/4" galvanized
dimensions3.23x5.75x5.00 "
weight4.3 lb
packaging-
d11.66
DN1-
l13.11
z12.40

SJT77212515PE

size2 1/2"/2 1/2"xFNPT1 1/2" orange
dimensions3.23x5.75x5.00 "
weight4.37 lb
packaging-
d11.90
DN1-
l13.11
z12.40

SJT77212515GE

size2 1/2"/2 1/2"xFNPT1 1/2" galvanized
dimensions3.23x5.75x5.00 "
weight4.37 lb
packaging-
d11.90
DN1-
l13.11
z12.40

SJT772135PE

size3"xFNPT1/2" orange
dimensions2.64x6.30x5.39 "
weight3.53 lb
packaging-
d10.84
DN1-
l13.19
z12.48

SJT772135GE

size3"xFNPT1/2" galvanized
dimensions2.64x6.30x5.39 "
weight3.53 lb
packaging-
d10.84
DN1-
l13.19
z12.48

SJT772131PE

size3"xFNPT1" orange
dimensions2.64x6.30x5.39 "
weight3.75 lb
packaging-
d11.32
DN1-
l13.19
z12.52

SJT772131GE

size3"xFNPT1" galvanized
dimensions2.64x6.30x5.39 "
weight3.75 lb
packaging-
d11.32
DN1-
l13.19
z12.52

SJT77213125PE

size3"xFNPT1 1/4" orange
dimensions3.46x6.30x5.71 "
weight4.19 lb
packaging-
d11.66
DN1-
l13.50
z12.80

SJT77213125GE

size3"xFNPT1 1/4" galvanized
dimensions3.46x6.30x5.71 "
weight4.19 lb
packaging-
d11.66
DN1-
l13.50
z12.80

SJT7721315PE

size3"xFNPT1 1/2" orange
dimensions3.46x6.30x5.71 "
weight4.41 lb
packaging-
d11.90
DN1-
l13.50
z12.80

SJT7721315GE

size3"xFNPT1 1/2" galvanized
dimensions3.46x6.30x5.71 "
weight4.41 lb
packaging-
d11.90
DN1-
l13.50
z12.80

SJT772132GE

size3"xFNPT2" galvanized
dimensions3.98x6.30x5.79 "
weight5.07 lb
packaging-
d12.37
DN1-
l13.58
z12.84

SJT772145PE

size4"xFNPT1/2" orange
dimensions2.64x6.30x6.54 "
weight4.19 lb
packaging-
d10.84
DN1-
l13.70
z12.99

SJT772145GE

size4"xFNPT1/2" galvanized
dimensions2.64x6.30x6.54 "
weight4.19 lb
packaging-
d10.84
DN1-
l13.70
z12.99

SJT7721475PE

size4"xFNPT3/4" orange
dimensions2.64x7.48x6.54 "
weight4.19 lb
packaging-
d11.05
DN1-
l13.70
z12.95

SJT7721475GE

size4"xFNPT3/4" galvanized
dimensions2.64x7.48x6.54 "
weight4.19 lb
packaging-
d11.05
DN1-
l13.70
z12.95

SJT772141PE

size4"xFNPT1" orange
dimensions2.64x7.48x6.54 "
weight4.56 lb
packaging-
d11.32
DN1-
l13.70
z13.03

SJT772141GE

size4"xFNPT1" galvanized
dimensions2.64x7.48x6.54 "
weight4.56 lb
packaging-
d11.32
DN1-
l13.70
z13.03

SJT77214125PE

size4"xFNPT1 1/4" orange
dimensions3.35x7.48x6.73 "
weight4.85 lb
packaging-
d11.66
DN1-
l13.90
z13.19

SJT77214125GE

size4"xFNPT1 1/4" galvanized
dimensions3.35x7.48x6.73 "
weight4.85 lb
packaging-
d11.66
DN1-
l13.90
z13.19

SJT7721415PE

size4"xFNPT1 1/2" orange
dimensions3.35x7.48x6.73 "
weight5.07 lb
packaging-
d11.90
DN1-
l13.90
z13.19

SJT7721415GE

size4"xFNPT1 1/2" galvanized
dimensions3.35x7.48x6.73 "
weight5.07 lb
packaging-
d11.90
DN1-
l13.90
z13.19

SJT772142PE

size4"xFNPT2" orange
dimensions3.98x7.48x6.97 "
weight5.95 lb
packaging-
d12.37
DN1-
l14.13
z13.39

SJT772142GE

size4"xFNPT2" galvanized
dimensions3.98x7.48x6.97 "
weight5.95 lb
packaging-
d12.37
DN1-
l14.13
z13.39

SJT7721425PE

size4"xFNPT2 1/2" orange
dimensions4.41x7.48x7.20 "
weight6.61 lb
packaging-
d13.00
DN1-
l14.37
z13.23

SJT7721425GE

size4"xFNPT2 1/2" galvanized
dimensions4.41x7.48x7.20 "
weight6.61 lb
packaging-
d13.00
DN1-
l14.37
z13.23

SJT772143PE

size4"xFNPT3" orange
dimensions5.35x7.48x7.24 "
weight12.35 lb
packaging-
d13.50
DN1-
l14.41
z13.23

SJT772143GE

size4"xFNPT3" galvanized
dimensions5.35x7.48x7.24 "
weight12.35 lb
packaging-
d13.50
DN1-
l14.41
z13.23

SJT772152PE

size5"xFNPT2" orange
dimensions4.02x9.29x8.27 "
weight9.26 lb
packaging-
d12.37
DN1-
l14.88
z14.13

SJT772152GE

size5"xFNPT2" galvanized
dimensions4.02x9.29x8.27 "
weight9.26 lb
packaging-
d12.37
DN1-
l14.88
z14.13

SJT7721525PE

size5"xFNPT2 1/2" orange
dimensions4.65x9.29x8.39 "
weight9.92 lb
packaging-
d13.00
DN1-
l15.00
z13.90

SJT77216125GE

size6"xFNPT1 1/4" galvanized
dimensions3.66x10.08x8.86 "
weight9.7 lb
packaging-
d11.66
DN1-
l15.00
z14.29

SJT7721615PE

size6"xFNPT1 1/2" orange
dimensions3.66x10.08x8.86 "
weight9.7 lb
packaging-
d11.90
DN1-
l15.00
z14.29

SJT7721615GE

size6"xFNPT1 1/2" galvanized
dimensions3.66x10.08x8.86 "
weight9.7 lb
packaging-
d11.90
DN1-
l15.00
z14.29

SJT772162PE

size6"xFNPT2" orange
dimensions3.98x10.08x9.06 "
weight10.58 lb
packaging-
d12.37
DN1-
l15.20
z14.45

SJT772162GE

size6"xFNPT2" galvanized
dimensions3.98x10.08x9.06 "
weight10.58 lb
packaging-
d12.37
DN1-
l15.20
z14.45

SJT7721625PE

size6"xFNPT2 1/2" orange
dimensions4.65x10.08x9.37 "
weight11.9 lb
packaging-
d13.00
DN1-
l15.51
z14.37

SJT7721625GE

size6"xFNPT2 1/2" galvanized
dimensions4.65x10.08x9.37 "
weight11.9 lb
packaging-
d13.00
DN1-
l15.51
z14.37

SJT772163PE

size6"xFNPT3" orange
dimensions5.39x10.08x9.37 "
weight13.23 lb
packaging-
d13.50
DN1-
l15.51
z14.33

SJT772163GE

size6"xFNPT3" galvanized
dimensions5.39x10.08x9.37 "
weight13.23 lb
packaging-
d13.50
DN1-
l15.51
z14.33

SJT772164PE

size6"xFNPT4" orange
dimensions6.46x10.08x9.37 "
weight14.55 lb
packaging-
d14.50
DN1-
l15.51
z14.21

SJT772182PE

size8"xFNPT2" orange
dimensions3.98x12.87x11.26 "
weight13.67 lb
packaging-
d12.37
DN1-
l16.54
z15.32

SJT772182GE

size8"xFNPT2" galvanized
dimensions3.98x12.87x11.26 "
weight13.67 lb
packaging-
d12.37
DN1-
l16.54
z15.32

SJT7721825PE

size8"xFNPT2 1/2" orange
dimensions4.09x12.87x11.26 "
weight13.67 lb
packaging-
d13.00
DN1-
l16.54
z15.39

SJT7721825GE

size8"xFNPT2 1/2" galvanized
dimensions4.09x12.87x11.26 "
weight13.67 lb
packaging-
d13.00
DN1-
l16.54
z15.39

SJT772183PE

size8"xFNPT3" orange
dimensions5.04x12.87x11.26 "
weight15.65 lb
packaging-
d13.50
DN1-
l16.54
z15.35

SJT772183GE

size8"xFNPT3" galvanized
dimensions5.04x12.87x11.26 "
weight15.65 lb
packaging-
d13.50
DN1-
l16.54
z15.35

SJT772184PE

size8"xFNPT4" orange
dimensions6.46x12.87x11.26 "
weight17.64 lb
packaging-
d14.50
DN1-
l16.54
z15.24

Specifications

articleVSH Shurjoint mechanical tee (1 x female thread), EPDM gasket
article number with gtin7721E
manufacturerShurjoint
weight17.64 lb
dimensions6.46x12.87x11.26 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeTapping saddle
connection typeFPT - female thread conical (NPT), hole
pressure rating (PN)PN 20
sealingEPDM
max operating pressure liquid290 psi
min. medium temperature-29 °F
max medium temperature230 °F
product groupfittings (demountable)
ETIM classEC011014 Broaching saddle
country of originTaiwan
brandVSH
seriesShurjoint
product type7721E
ETIM
{"etim-class":"EC011014 Broaching saddle","Material":"Cast iron","Material inlay":"Ethylene-propylene diene monomer rubber (EPDM)","Connection":"Internal thread conical (NPT)","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"}
