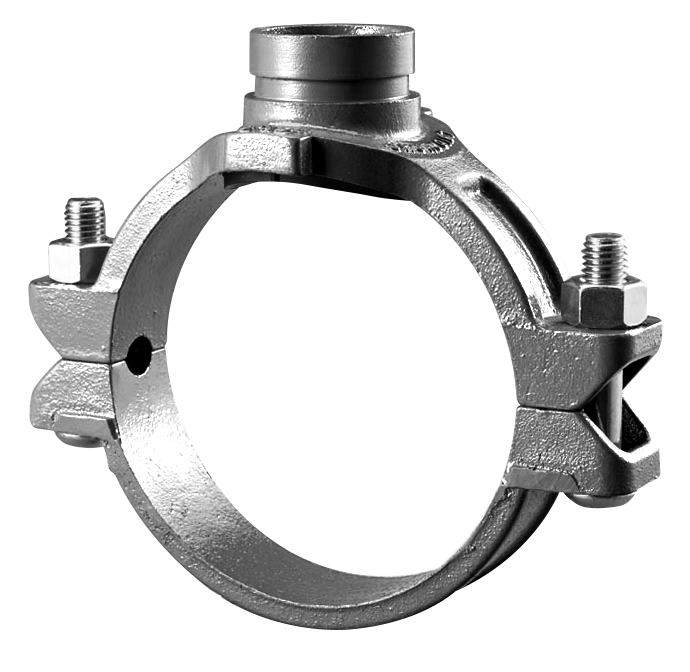

VSH Shurjoint mechanical tee (1 x groove), EPDM gasket

Scraped SKU: 7722E 2026-06-05 04:24:53

Attributes

Group Code	7722E
Product Type	demontabel
Brand Series	vsh-shurjoint
Applications	heating, cooling, compressed air, sprinkler, dry fire main
Approvals	CNBOP, CRN, FM, LPCB, QB (CSTBat), TSU, UL, ULc, VdS
Solutions	fire protection, utility, industry

Description

7722E is the designation for model 7722 with a Grade E EPDM gasket. The VSH Shurjoint Model 7722 Mechanical Tee when mounted on the hole cut pipe provides a fast and easy mid-pipe grooved-end branch outlet. By utilizing the Model 7722 you eliminate the need for welding or the use of multiple fittings. The mechanical Tee is comprised of upper and lower ductile iron housing segments, a grade “E” EPDM rubber molded gasket and plated track bolts and nuts. Mechanical tees are supplied with our standard painted finishes, i.e. orange or red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coating are also available.

Variations (48)

SJT77222125PE

size	2"x1 1/4" orange
dimensions	3.23x5.04x4.37 "
weight	2.95 lb
packaging	-
d1	1.67
DN1	-
l1	2.80
z1	2.80

SJT77222125GE

size	2"x1 1/4" galvanized
dimensions	3.23x5.04x4.37 "
weight	2.95 lb
packaging	-
d1	1.67
DN1	-
l1	2.80
z1	2.80

SJT7722215PE

size	2"x1 1/2" orange
dimensions	3.23x5.04x4.37 "
weight	2.87 lb
packaging	-
d1	1.90
DN1	-
l1	2.80
z1	2.80

SJT7722215GE

size	2"x1 1/2" galvanized
dimensions	3.23x5.04x4.37 "
weight	2.87 lb
packaging	-
d1	1.90
DN1	-
l1	2.80
z1	2.80

SJT772225125PE

size	2 1/2"x1 1/4" orange
dimensions	3.23x5.75x5.00 "
weight	4.08 lb
packaging	-
d1	1.67
DN1	-
l1	3.11
z1	3.11

SJT772225125GE

size	2 1/2"x1 1/4" galvanized
dimensions	3.23x5.75x5.00 "
weight	4.08 lb
packaging	-
d1	1.67
DN1	-
l1	3.11
z1	3.11

SJT77222515PE

size	2 1/2"x1 1/2" orange
dimensions	3.23x5.75x5.00 "
weight	4.19 lb
packaging	-
d1	1.90
DN1	-
l1	3.11
z1	3.11

SJT77222515GE

size	2 1/2"x1 1/2" galvanized
dimensions	3.23x5.75x5.00 "
weight	4.19 lb
packaging	-
d1	1.90
DN1	-
l1	3.11
z1	3.11

SJT77223125PE

size	3"x1 1/4" orange
dimensions	3.46x6.30x5.71 "
weight	3.97 lb
packaging	-
d1	1.67
DN1	-
l1	3.50
z1	3.50

SJT77223125GE

size	3"x1 1/4" galvanized
dimensions	3.46x6.30x5.71 "
weight	3.97 lb
packaging	-
d1	1.67
DN1	-
l1	3.50
z1	3.50

SJT7722315PE

size	3"x1 1/2" orange
dimensions	3.46x6.30x5.71 "
weight	4.19 lb
packaging	-
d1	1.90
DN1	-
l1	3.50
z1	3.50

SJT7722315GE

size	3"x1 1/2" galvanized
dimensions	3.46x6.30x5.71 "
weight	4.19 lb
packaging	-
d1	1.90
DN1	-
l1	3.50
z1	3.50

SJT772232PE

size	3"x2" orange
dimensions	3.98x6.30x5.79 "
weight	4.85 lb
packaging	-
d1	2.37
DN1	-
l1	3.58
z1	3.58

SJT772232GE

size	3"x2" galvanized
dimensions	3.98x6.30x5.79 "
weight	4.85 lb
packaging	-
d1	2.37
DN1	-
l1	3.58
z1	3.58

SJT77224125PE

size	4"x1 1/4" orange
dimensions	3.35x7.48x6.73 "
weight	4.63 lb
packaging	-
d1	1.67
DN1	-
l1	3.90
z1	3.90

SJT77224125GE

size	4"x1 1/4" galvanized
dimensions	3.35x7.48x6.73 "
weight	4.63 lb
packaging	-
d1	1.67
DN1	-
l1	3.90
z1	3.90

SJT7722415PE

size	4"x1 1/2" orange
dimensions	3.35x7.48x6.73 "
weight	4.85 lb
packaging	-
d1	1.90
DN1	-
l1	3.90
z1	3.90

SJT7722415GE

size	4"x1 1/2" galvanized
dimensions	3.35x7.48x6.73 "
weight	4.85 lb
packaging	-
d1	1.90
DN1	-
l1	3.90
z1	3.90

SJT772242PE

size	4"x2" orange
dimensions	3.98x7.48x6.97 "
weight	5.51 lb
packaging	-
d1	2.37
DN1	-
l1	4.13
z1	4.13

SJT772242GE

size	4"x2" galvanized
dimensions	3.98x7.48x6.97 "
weight	5.51 lb
packaging	-
d1	2.37
DN1	-
l1	4.13
z1	4.13

SJT7722425PE

size	4"x2 1/2" orange
dimensions	4.41x7.48x7.20 "
weight	5.95 lb
packaging	-
d1	2.87
DN1	-
l1	4.37
z1	4.37

SJT7722425GE

size	4"x2 1/2" galvanized
dimensions	4.41x7.48x7.20 "
weight	5.95 lb
packaging	-
d1	2.87
DN1	-
l1	4.37
z1	4.37

SJT772243PE

size	4"x3" orange
dimensions	5.35x7.48x7.24 "
weight	11.46 lb
packaging	-
d1	3.50
DN1	-
l1	4.41
z1	4.41

SJT772243GE

size	4"x3" galvanized
dimensions	5.35x7.48x7.24 "
weight	11.46 lb
packaging	-
d1	3.50
DN1	-
l1	4.41
z1	4.41

SJT772252PE

size	5"x2" orange
dimensions	4.02x9.29x8.27 "
weight	9.26 lb
packaging	-
d1	2.37
DN1	-
l1	4.88
z1	4.88

SJT772252GE

size	5"x2" galvanized
dimensions	4.02x9.29x8.27 "
weight	9.26 lb
packaging	-
d1	2.37
DN1	-
l1	4.88
z1	4.88

SJT7722525PE

size	5"x2 1/2" orange
dimensions	4.65x9.29x8.39 "
weight	9.48 lb
packaging	-
d1	2.87
DN1	-
l1	5.00
z1	5.00

SJT7722525GE

size	5"x2 1/2" galvanized
dimensions	4.65x9.29x8.39 "
weight	9.48 lb
packaging	-
d1	2.87
DN1	-
l1	5.00
z1	5.00

SJT77226125PE

size	6"x1 1/4" orange
dimensions	3.66x10.08x8.86 "
weight	9.26 lb
packaging	-
d1	1.67
DN1	-
l1	5.00
z1	5.00

SJT77226125GE

size	6"x1 1/4" galvanized
dimensions	3.66x10.08x8.86 "
weight	9.26 lb
packaging	-
d1	1.67
DN1	-
l1	5.00
z1	5.00

SJT7722615GE

size	6"x1 1/2" galvanized
dimensions	3.66x10.08x8.86 "
weight	9.48 lb
packaging	-
d1	1.90
DN1	-
l1	5.00
z1	5.00

SJT772262PE

size	6"x2" orange
dimensions	3.98x10.08x9.06 "
weight	10.58 lb
packaging	-
d1	2.37
DN1	-
l1	5.20
z1	5.20

SJT772262GE

size	6"x2" galvanized
dimensions	3.98x10.08x9.06 "
weight	10.58 lb
packaging	-
d1	2.37
DN1	-
l1	5.20
z1	5.20

SJT7722625PE

size	6"x2 1/2" orange
dimensions	3.98x10.08x9.06 "
weight	10.96 lb
packaging	-
d1	2.87
DN1	-
l1	5.51
z1	5.51

SJT7722625GE

size	6"x2 1/2" galvanized
dimensions	3.98x10.08x9.06 "
weight	10.96 lb
packaging	-
d1	2.87
DN1	-
l1	5.51
z1	5.51

SJT772263PE

size	6"x3" orange
dimensions	5.39x10.08x9.37 "
weight	12.35 lb
packaging	-
d1	3.50
DN1	-
l1	5.51
z1	5.51

SJT772263GE

size	6"x3" galvanized
dimensions	5.39x10.08x9.37 "
weight	12.35 lb
packaging	-
d1	3.50
DN1	-
l1	5.51
z1	5.51

SJT772264PE

size	6"x4" orange
dimensions	6.46x10.08x9.37 "
weight	13.71 lb
packaging	-
d1	4.50
DN1	-
l1	5.51
z1	5.51

SJT772264GE

size	6"x4" galvanized
dimensions	6.46x10.08x9.37 "
weight	13.71 lb
packaging	-
d1	4.50
DN1	-
l1	5.51
z1	5.51

SJT772264GT

size	6"x4" galvanized
dimensions	6.46x10.08x9.37 "
weight	13.71 lb
packaging	-
d1	4.50
DN1	-
l1	5.51
z1	5.51

SJT772282PE

size	8"x2" orange
dimensions	4.09x12.87x11.26 "
weight	12.79 lb
packaging	-
d1	2.37
DN1	-
l1	6.54
z1	6.54

SJT772282GE

size	8"x2" galvanized
dimensions	4.09x12.87x11.26 "
weight	12.79 lb
packaging	-
d1	2.37
DN1	-
l1	6.54
z1	6.54

SJT7722825PE

size	8"x2 1/2" orange
dimensions	4.09x12.87x11.26 "
weight	13.23 lb
packaging	-
d1	2.87
DN1	-
l1	6.54
z1	6.54

SJT7722825GE

size	8"x2 1/2" galvanized
dimensions	4.09x12.87x11.26 "
weight	13.23 lb
packaging	-
d1	2.87
DN1	-
l1	6.54
z1	6.54

SJT772283PE

size	8"x3" orange
dimensions	5.04x12.87x11.26 "
weight	14.4 lb
packaging	-
d1	3.50
DN1	-
l1	6.54
z1	6.54

SJT772283GE

size	8"x3" galvanized
dimensions	5.04x12.87x11.26 "
weight	14.4 lb
packaging	-
d1	3.50
DN1	-
l1	6.54
z1	6.54

SJT772284PE

size	8"x4" orange
dimensions	6.46x12.87x11.26 "
weight	16.53 lb
packaging	-
d1	4.50
DN1	-
l1	6.54
z1	6.54

SJT772284GE

size	8"x4" galvanized
dimensions	6.46x12.87x11.26 "
weight	16.53 lb
packaging	-
d1	4.50
DN1	-
l1	6.54
z1	6.54

Specifications

article	VSH Shurjoint mechanical tee (1 x groove), EPDM gasket
article number with gtin	7722E
manufacturer	Shurjoint
weight	16.53 lb
dimensions	6.46x12.87x11.26 "
color	orange, silver
materials	cast iron (ASTM A536 65-45-12)
finishing	varnished, hot dip galvanized
shape	Tapping saddle
connection type	groove (fitting), hole
pressure rating (PN)	PN 20
sealing	EPDM
max operating pressure liquid	290 psi
min. medium temperature	-29 °F
max medium temperature	230 °F
product group	fittings (demountable)
ETIM class	EC011014 Broaching saddle
country of origin	Taiwan
brand	VSH
series	Shurjoint
product type	7722E
ETIM	{"etim-class":"EC011014 Broaching saddle","Material":"Cast iron","Material inlay":"Ethylene-propylene diene monomer rubber (EPDM)","Connection":"Groove","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"}
