Attributes
| Group Code | 7722T |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | utility, industry |
Description
7722T is the designation for model 7722 with a Grade T NBR gasket. The VSH Shurjoint Model 7722 Mechanical Tee when mounted on the hole cut pipe provides a fast and easy mid-pipe grooved-end branch outlet. By utilizing the Model 7722 you eliminate the need for welding or the use of multiple fittings. The mechanical Tee is comprised of upper and lower ductile iron housing segments, a grade “E” EPDM rubber molded gasket and plated track bolts and nuts. Mechanical tees are supplied with our standard painted finishes, i.e. orange or red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coating are also available.
Variations (1)
SJT772263PT
| size | 6"x3" orange |
|---|---|
| dimensions | 5.39x10.08x9.37 " |
| weight | 12.35 lb |
| packaging | - |

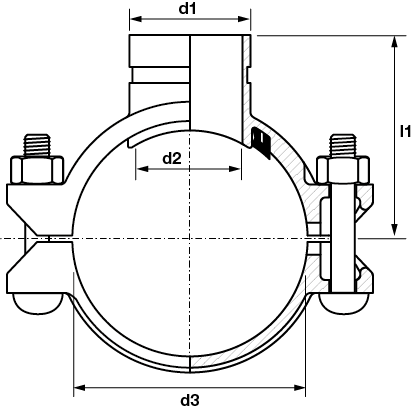

| d1 | 3.50 |
| DN1 | - |
| l1 | 5.51 |
| z1 | 5.51 |
Specifications
| article | VSH Shurjoint mechanical tee (1 x groove), NBR gasket |
|---|---|
| article number with gtin | 7722T |
| manufacturer | Shurjoint |
| size | 6"x3" orange |
| weight | 12.35 lb |
| dimensions | 5.39x10.08x9.37 " |
| color | orange |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| shape | Tapping saddle |
| connection type | groove (fitting), hole |
| pressure rating (PN) | PN 20 |
| sealing | NBR (Nitrile) |
| max operating pressure liquid | 290 psi |
| min. medium temperature | -20 °F |
| max medium temperature | 180 °F |
| product group | fittings (demountable) |
| ETIM class | EC011014 Broaching saddle |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 7722T |
| ETIM | {"etim-class":"EC011014 Broaching saddle","Material":"Cast iron","Material inlay":"NBR (nitrile rubber)","Surface protection":"Lacquered","Suitable for pipe diameter":"DN 150","Nominal diameter":"DN 80","Outer pipe diameter":"88.9mm","Outer pipe diameter (imperial)":"3.5\"","Connection":"Groove","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","Medium temperature (continuous)":"-29°C - 82°C","Medium temperature (continuous) (imperial)":"-20.2°F - 179.6°F","Width":"137mm","Width (imperial)":"5.39\"","Length of connection 1":"140mm","Length of connection 1 (imperial)":"5.51\"","Working length connection 1":"140mm","Working length connection 1 (imperial)":"5.51\"","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"} |
