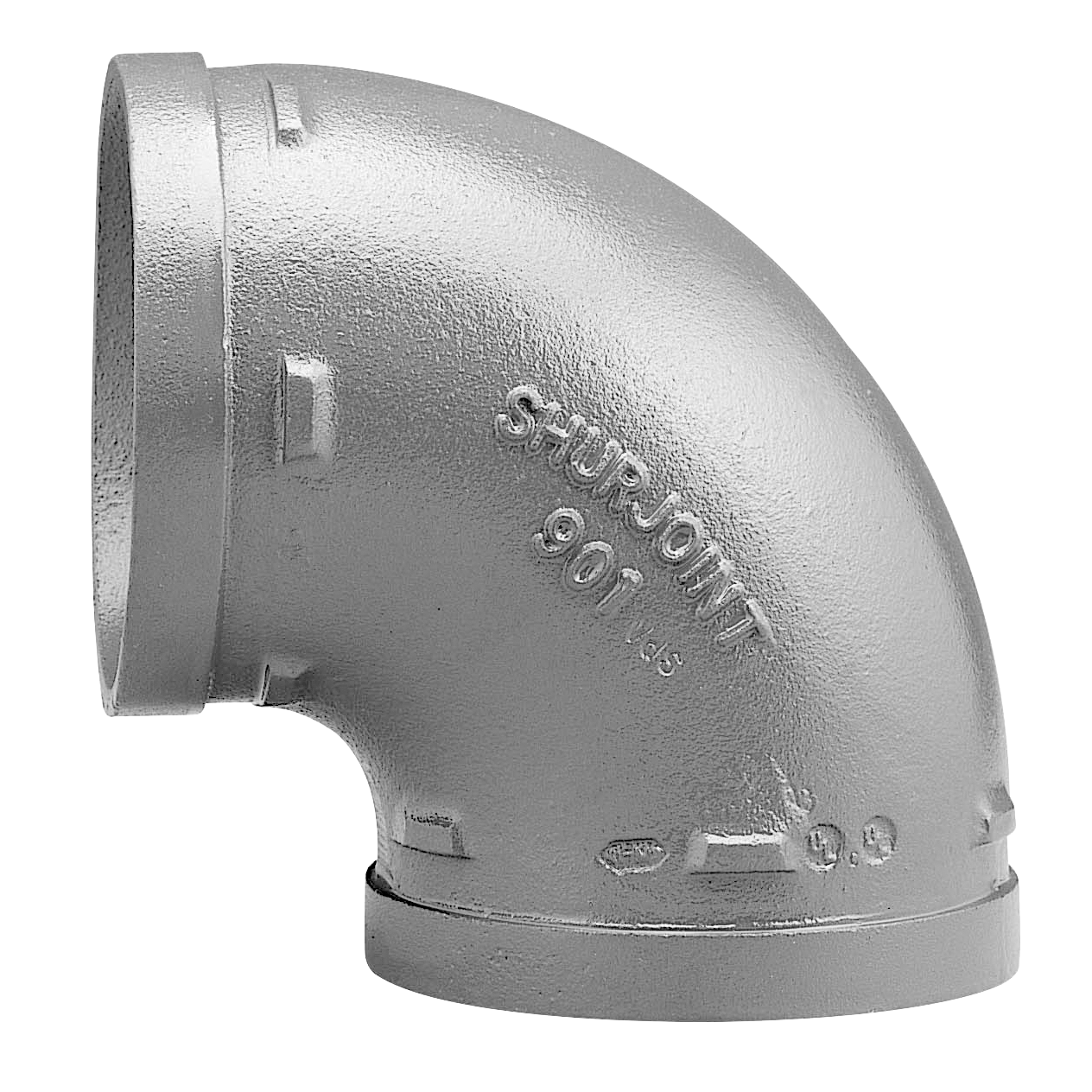

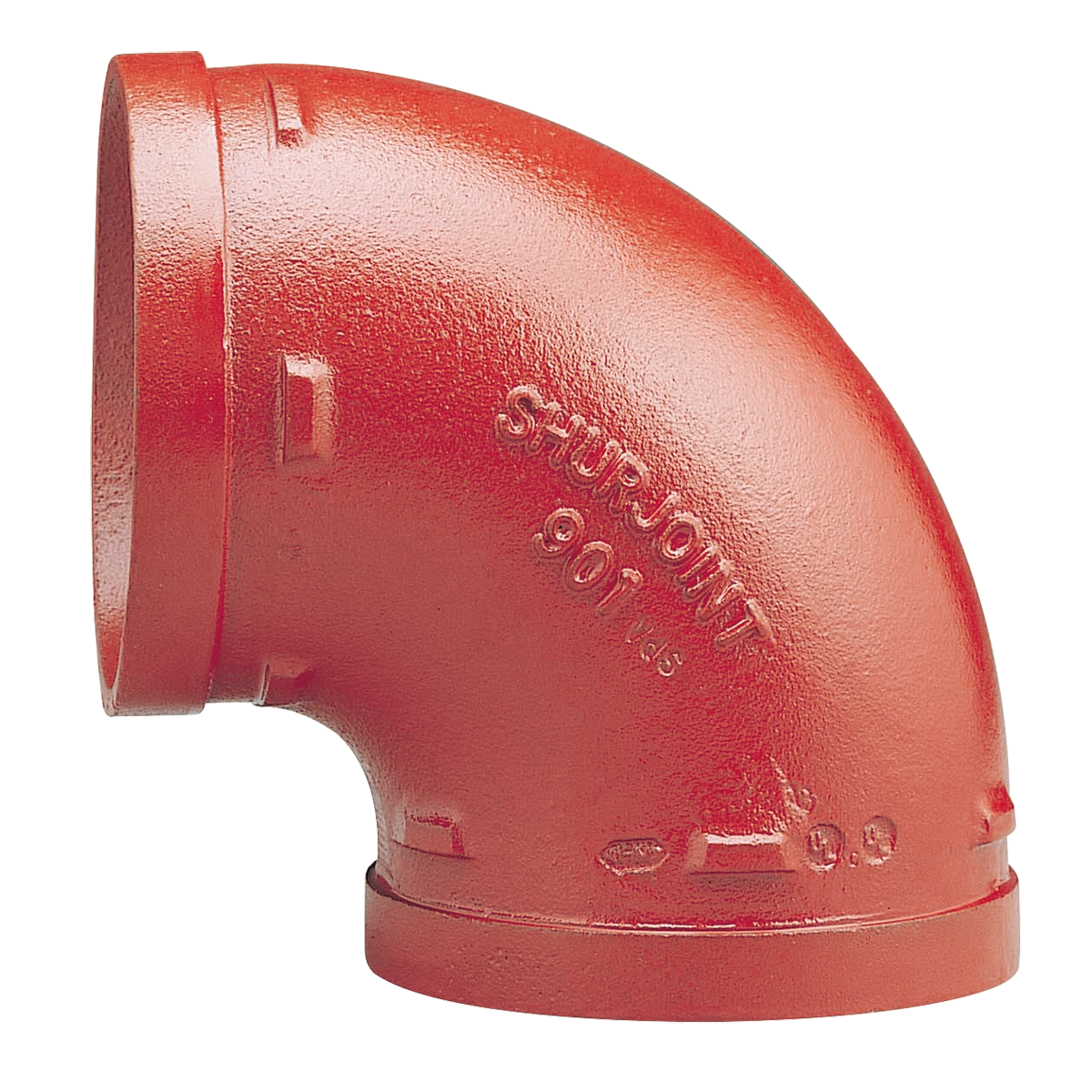

VSH Shurjoint short radius 90° elbow (2 x groove)

Scraped SKU: 901 2026-06-05 04:24:53

Attributes

Group Code901
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationssprinkler, dry fire main
ApprovalsCRN, FM, LPCB, TSU, UL, ULc, VdS
Solutionsfire protection

Description

Shurjoint short radius fittings, while primarily designed for fire protection applications, can also be used for general service requirements. The Model K-9 and Z05 rigid couplings can be used with short radius fittings without the worry of bolt pad interference.

Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

Variations (14)

SJT9012P

size2" orange
dimensions3.94x2.37x3.94 "
weight1.54 lb
packaging-
d12.37
DN1-
l12.76
z12.76
es10.97
d22.37
DN2-
l22.76
z22.76
es20.97
radius2.37
angle-

SJT9012G

size2" galvanized
dimensions3.98x2.37x3.98 "
weight1.54 lb
packaging-
d12.37
DN1-
l12.76
z12.76
es10.97
d22.37
DN2-
l22.76
z22.76
es20.97
radius2.37
angle-

SJT90125P

size2 1/2" orange
dimensions4.43x2.87x4.43 "
weight2.07 lb
packaging-
d12.87
DN1-
l12.99
z12.99
es10.97
d22.87
DN2-
l22.99
z22.99
es20.97
radius2.87
angle-

SJT90125G

size2 1/2" galvanized
dimensions4.43x2.87x4.43 "
weight2.07 lb
packaging-
d12.87
DN1-
l12.99
z12.99
es10.97
d22.87
DN2-
l22.99
z22.99
es20.97
radius2.87
angle-

SJT9013P

size3" orange
dimensions5.14x3.50x5.14 "
weight3.09 lb
packaging-
d13.50
DN1-
l13.39
z13.39
es10.97
d23.50
DN2-
l23.39
z23.39
es20.97
radius3.50
angle-

SJT9013G

size3" galvanized
dimensions5.16x3.50x5.16 "
weight3.09 lb
packaging-
d13.50
DN1-
l13.39
z13.39
es10.97
d23.50
DN2-
l23.39
z23.39
es20.97
radius3.50
angle-

SJT9014P

size4" orange
dimensions6.27x4.50x6.27 "
weight4.76 lb
packaging-
d14.50
DN1-
l14.02
z14.02
es10.97
d24.50
DN2-
l24.02
z24.02
es20.97
radius4.50
angle-

SJT9014G

size4" galvanized
dimensions6.30x4.50x6.30 "
weight4.76 lb
packaging-
d14.50
DN1-
l14.02
z14.02
es10.97
d24.50
DN2-
l24.02
z24.02
es20.97
radius4.50
angle-

SJT9015P

size5" orange
dimensions7.66x5.56x7.66 "
weight7.94 lb
packaging-
d15.56
DN1-
l14.88
z14.88
es10.97
d25.56
DN2-
l24.88
z24.88
es20.97
radius5.56
angle-

SJT9015G

size5" galvanized
dimensions7.66x5.56x7.66 "
weight7.98 lb
packaging-
d15.56
DN1-
l14.88
z14.88
es10.97
d25.56
DN2-
l24.88
z24.88
es20.97
radius5.56
angle-

SJT9016P

size6" orange
dimensions8.82x6.63x8.82 "
weight12.94 lb
packaging-
d16.63
DN1-
l15.51
z15.51
es10.97
d26.63
DN2-
l25.51
z25.51
es20.97
radius6.63
angle-

SJT9016G

size6" galvanized
dimensions8.86x6.63x8.86 "
weight12.94 lb
packaging-
d16.63
DN1-
l15.51
z15.51
es10.97
d26.63
DN2-
l25.51
z25.51
es20.97
radius6.63
angle-

SJT9018P

size8" orange
dimensions11.24x8.63x11.24 "
weight23.37 lb
packaging-
d18.63
DN1-
l16.93
z16.93
es11.22
d28.63
DN2-
l26.93
z26.93
es21.22
radius8.63
angle-

SJT9018G

size8" galvanized
dimensions11.26x8.63x11.26 "
weight23.37 lb
packaging-
d18.63
DN1-
l16.93
z16.93
es11.22
d28.63
DN2-
l26.93
z26.93
es21.22
radius8.63
angle-

Specifications

articleVSH Shurjoint short radius 90° elbow (2 x groove)
article number with gtin901
manufacturerShurjoint
weight23.37 lb
dimensions11.26x8.63x11.26 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapeElbow, 90º
connection typegroove (fitting)
pressure rating (PN)PN 20
max operating pressure liquid292 psi
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product type901
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Bend","Bend angle":"90°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","With buffer stud":"No","Max. operating pressure at 20 °C":"20.1bar","Max. operating pressure at 20 °C (imperial)":"291.53psi","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","ULC quality mark":"Yes","UL quality mark":"Yes","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
