Attributes
| Group Code | 903 |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | sprinkler, dry fire main |
| Approvals | CRN, FM, LPCB, TSU, UL, ULc, VdS |
| Solutions | fire protection |
Description
Shurjoint short radius fittings, while primarily designed for fire protection applications, can also be used for general service requirements. The Model K-9 and Z05 rigid couplings can be used with short radius fittings without the worry of bolt pad interference.Shurjoint grooved-end fittings are made of ductile iron per ASTM A536 Gr. 65-45-12. C-E dimensions are manufacturer’s standard. Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.
Variations (13)
SJT9032P
| size | 2" orange |
|---|---|
| dimensions | 5.51x2.37x3.98 " |
| weight | 2.2 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 2.76 |
| z1 | 2.76 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 2.76 |
| z2 | 2.76 |
| d3 | 2.37 |
| DN3 | - |
| l3 | 2.76 |
| z3 | 2.76 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9032G
| size | 2" galvanized |
|---|---|
| dimensions | 5.51x2.37x3.98 " |
| weight | 2.2 lb |
| packaging | - |
| d1 | 2.37 |
| DN1 | - |
| l1 | 2.76 |
| z1 | 2.76 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 2.76 |
| z2 | 2.76 |
| d3 | 2.37 |
| DN3 | - |
| l3 | 2.76 |
| z3 | 2.76 |
| es1 | 0.97 |
| es2 | 0.97 |
| es3 | 0.97 |
SJT90325P
| size | 2 1/2" orange |
|---|---|
| dimensions | 5.98x2.87x4.43 " |
| weight | 2.87 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 2.99 |
| z1 | 2.99 |
| d2 | 2.87 |
| DN2 | - |
| l2 | 2.99 |
| z2 | 2.99 |
| d3 | 2.87 |
| DN3 | - |
| l3 | 2.99 |
| z3 | 2.99 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT90325G
| size | 2 1/2" galvanized |
|---|---|
| dimensions | 5.98x2.87x4.43 " |
| weight | 2.87 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 2.99 |
| z1 | 2.99 |
| d2 | 2.87 |
| DN2 | - |
| l2 | 2.99 |
| z2 | 2.99 |
| d3 | 2.87 |
| DN3 | - |
| l3 | 2.99 |
| z3 | 2.99 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9033P
| size | 3" orange |
|---|---|
| dimensions | 6.77x3.50x5.16 " |
| weight | 4.41 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 3.39 |
| z1 | 3.39 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 3.39 |
| z2 | 3.39 |
| d3 | 3.50 |
| DN3 | - |
| l3 | 3.39 |
| z3 | 3.39 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9033G
| size | 3" galvanized |
|---|---|
| dimensions | 6.77x3.50x5.16 " |
| weight | 4.41 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 3.39 |
| z1 | 3.39 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 3.39 |
| z2 | 3.39 |
| d3 | 3.50 |
| DN3 | - |
| l3 | 3.39 |
| z3 | 3.39 |
| es1 | 0.97 |
| es2 | 0.97 |
| es3 | 0.97 |
SJT9034P
| size | 4" orange |
|---|---|
| dimensions | 8.03x4.50x6.30 " |
| weight | 7.94 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 4.02 |
| z1 | 4.02 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 4.02 |
| z2 | 4.02 |
| d3 | 4.50 |
| DN3 | - |
| l3 | 4.02 |
| z3 | 4.02 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9034G
| size | 4" galvanized |
|---|---|
| dimensions | 8.03x4.50x6.30 " |
| weight | 7.94 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 4.02 |
| z1 | 4.02 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 4.02 |
| z2 | 4.02 |
| d3 | 4.50 |
| DN3 | - |
| l3 | 4.02 |
| z3 | 4.02 |
| es1 | 0.97 |
| es2 | 0.97 |
| es3 | 0.97 |
SJT9035G
| size | 5" galvanized |
|---|---|
| dimensions | 9.76x5.56x7.66 " |
| weight | 11.13 lb |
| packaging | - |
| d1 | 5.56 |
| DN1 | - |
| l1 | 4.88 |
| z1 | 4.88 |
| d2 | 5.56 |
| DN2 | - |
| l2 | 4.88 |
| z2 | 4.88 |
| d3 | 5.56 |
| DN3 | - |
| l3 | 4.88 |
| z3 | 4.88 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9036P
| size | 6" orange |
|---|---|
| dimensions | 11.02x6.63x8.86 " |
| weight | 17.17 lb |
| packaging | - |
| d1 | 6.63 |
| DN1 | - |
| l1 | 5.51 |
| z1 | 5.51 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 5.51 |
| z2 | 5.51 |
| d3 | 6.63 |
| DN3 | - |
| l3 | 5.51 |
| z3 | 5.51 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9036G
| size | 6" galvanized |
|---|---|
| dimensions | 11.02x6.63x8.86 " |
| weight | 17.17 lb |
| packaging | - |
| d1 | 6.63 |
| DN1 | - |
| l1 | 5.51 |
| z1 | 5.51 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 5.51 |
| z2 | 5.51 |
| d3 | 6.63 |
| DN3 | - |
| l3 | 5.51 |
| z3 | 5.51 |
| es1 | 0.97 |
| es2 | 0.97 |
| es3 | 0.97 |
SJT9038P
| size | 8" orange |
|---|---|
| dimensions | 13.86x8.63x11.26 " |
| weight | 33.07 lb |
| packaging | - |
| d1 | 8.63 |
| DN1 | - |
| l1 | 6.93 |
| z1 | 6.93 |
| d2 | 8.63 |
| DN2 | - |
| l2 | 6.93 |
| z2 | 6.93 |
| d3 | 8.63 |
| DN3 | - |
| l3 | 6.93 |
| z3 | 6.93 |
| es1 | - |
| es2 | - |
| es3 | - |
SJT9038G
| size | 8" galvanized |
|---|---|
| dimensions | 13.86x8.63x11.26 " |
| weight | 33.07 lb |
| packaging | - |
| d1 | 8.63 |
| DN1 | - |
| l1 | 6.93 |
| z1 | 6.93 |
| d2 | 8.63 |
| DN2 | - |
| l2 | 6.93 |
| z2 | 6.93 |
| d3 | 8.63 |
| DN3 | - |
| l3 | 6.93 |
| z3 | 6.93 |
| es1 | 1.22 |
| es2 | 1.22 |
| es3 | 1.22 |
Specifications

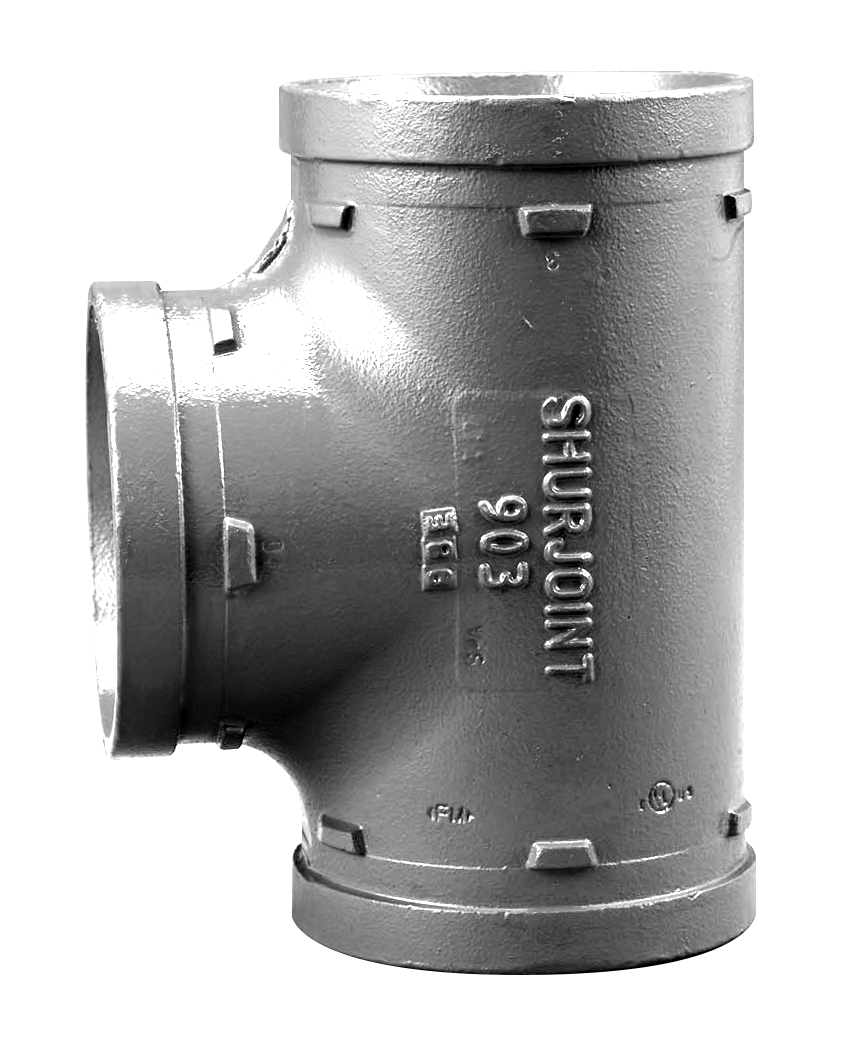

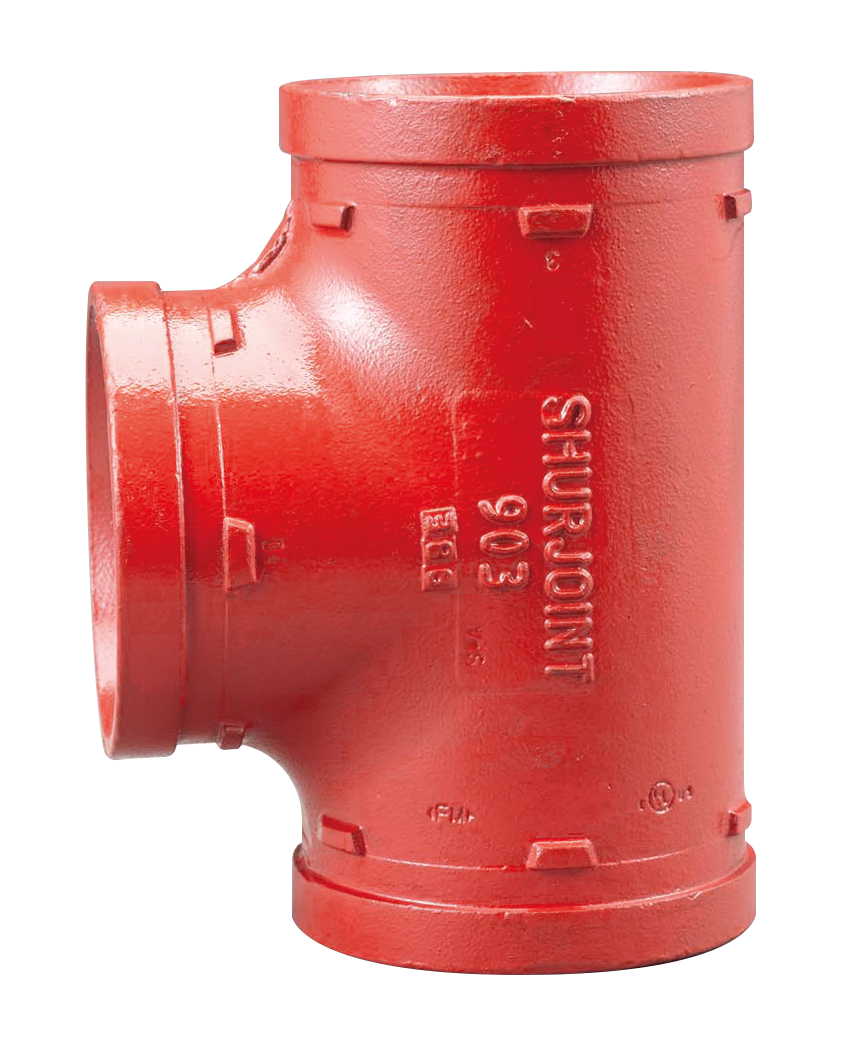

| article | VSH Shurjoint short radius tee (3 x groove) |
|---|---|
| article number with gtin | 903 |
| manufacturer | Shurjoint |
| weight | 33.07 lb |
| dimensions | 13.86x8.63x11.26 " |
| color | silver, orange |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | hot dip galvanized, varnished |
| shape | T-piece, 90º |
| connection type | groove (fitting) |
| product group | fittings (demountable) |
| ETIM class | EC003025 Fitting with 3 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | 903 |
| ETIM | {"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Material connection 3":"Cast iron","Material quality connection 3":"ASTM A536 Grade 65-45-12","Model":"T-piece","Angle":"90°","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","High tensile strength":"Yes","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With buffer stud":"No","Capped":"No","With connection indicator":"No","FM quality mark":"Yes","ULC quality mark":"Yes","UL quality mark":"Yes","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
