VSH Shurjoint outlet coupling, EPDM gasket

Scraped SKU: C7E 2026-06-05 04:24:53

Attributes

Group CodeC7E
Product Typedemontabel
Brand Seriesvsh-shurjoint
ApprovalsCRN, FM, UL, ULc
Solutionsresidential, datacenters, utility, industry

Description

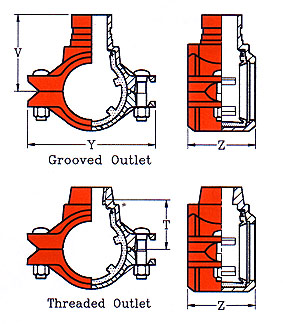

C7E is the designation for model C7 with a Grade E EPDM gasket. VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality. The Model C-7 Outlet Coupling combines the features of a coupling and a reducing outlet. The C-7 is a joining device with an integral reducing outlet, eliminating the need for a mechanical tee or a reducing tee and couplings. The C-7 is available with grooved, male threaded or female threaded outlets. The C-7 coupling is recommended for fire sprinkler services and other applications up to 300 psi (20 Bar) depending on the size and schedule of pipe being used. The C-7 can be used for dry pipe systems or vacuum services up to -10 inHg or 254 mmHg which may occur when the system is drained. All Model C-7 couplings are comprised of an upper and lower ductile iron housings segment, EPDM rubber gasket and plated track bolts & nuts. Housings segments are supplied with our standard painted finishes, i.e. orange or RAL3000 red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coatings are available.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"

    • Variations (30)

    SJTC7155FPE

    size1 1/2"xFNPT1/2"x1 1/2" orange
    dimensions2.76x4.50x4.61 "
    weight2.65 lb
    packaging-
    d11.90
    DN1-
    l11.38
    d20.84
    DN2-
    l22.58
    d31.90
    DN3-
    l31.38

    SJTC71575FPE

    size1 1/2"xFNPT3/4"x1 1/2" orange
    dimensions2.76x4.50x4.61 "
    weight2.65 lb
    packaging-
    d11.90
    DN1-
    l11.38
    d21.05
    DN2-
    l22.58
    d31.90
    DN3-
    l31.38

    SJTC7151FPE

    size1 1/2"xFNPT1"x1 1/2" orange
    dimensions2.76x4.50x4.61 "
    weight2.87 lb
    packaging-
    d11.90
    DN1-
    l11.38
    d21.32
    DN2-
    l22.58
    d31.90
    DN3-
    l31.38

    SJTC7275FPE

    size2"xFNPT3/4"x2" orange
    dimensions2.76x5.00x5.12 "
    weight3.09 lb
    packaging-
    d12.37
    DN1-
    l11.38
    d21.05
    DN2-
    l22.86
    d32.37
    DN3-
    l31.38

    SJTC721FPE

    size2"xFNPT1"x2" orange
    dimensions2.76x5.00x5.12 "
    weight3.31 lb
    packaging-
    d12.37
    DN1-
    l11.38
    d21.32
    DN2-
    l22.86
    d32.37
    DN3-
    l31.38

    SJTC721MPE

    size2"xMNPT1"x2" orange
    dimensions2.76x5.00x5.12 "
    weight3.31 lb
    packaging-
    d12.37
    DN1-
    l11.38
    d21.32
    DN2-
    l23.45
    d32.37
    DN3-
    l31.38

    SJTC7255FPE

    size2 1/2"xFNPT1/2"x2 1/2" orange
    dimensions3.27x6.34x5.61 "
    weight4.85 lb
    packaging-
    d12.87
    DN1-
    l11.63
    d20.84
    DN2-
    l23.11
    d32.87
    DN3-
    l31.63

    SJTC72575FPE

    size2 1/2"xFNPT3/4"x2 1/2" orange
    dimensions3.27x6.34x5.61 "
    weight4.63 lb
    packaging-
    d12.87
    DN1-
    l11.63
    d21.05
    DN2-
    l23.11
    d32.87
    DN3-
    l31.63

    SJTC7251FPE

    size2 1/2"xFNPT1x2" 1/2" orange
    dimensions3.27x6.34x5.61 "
    weight4.41 lb
    packaging-
    d12.87
    DN1-
    l11.63
    d21.32
    DN2-
    l23.11
    d32.87
    DN3-
    l31.63

    SJTC725125MPE

    size2 1/2"xMNPT1 1/4"x2 1/2" orange
    dimensions3.27x6.34x5.61 "
    weight5.07 lb
    packaging-
    d12.87
    DN1-
    l11.63
    d21.66
    DN2-
    l23.70
    d32.87
    DN3-
    l31.63

    SJTC7375FPE

    size3"xFNPT3/4"x3" orange
    dimensions3.27x6.89x6.30 "
    weight5.95 lb
    packaging-
    d13.50
    DN1-
    l11.63
    d21.05
    DN2-
    l23.43
    d33.50
    DN3-
    l31.63

    SJTC731FPE

    size3"xFNPT1"x3" orange
    dimensions3.27x6.89x6.30 "
    weight5.95 lb
    packaging-
    d13.50
    DN1-
    l11.63
    d21.32
    DN2-
    l23.43
    d33.50
    DN3-
    l31.63

    SJTC731MPE

    size3"xMNPT1"x3" orange
    dimensions3.27x6.89x6.30 "
    weight6.17 lb
    packaging-
    d13.50
    DN1-
    l11.63
    d21.32
    DN2-
    l24.02
    d33.50
    DN3-
    l31.63

    SJTC7315FPE

    size3"xFNPT1 1/2"x3" orange
    dimensions3.27x6.89x6.30 "
    weight6.39 lb
    packaging-
    d13.50
    DN1-
    l11.63
    d21.90
    DN2-
    l23.43
    d33.50
    DN3-
    l31.63

    SJTC7315MPE

    size3"xMNPT1 1/2"x3" orange
    dimensions3.27x6.89x6.30 "
    weight6.39 lb
    packaging-
    d13.50
    DN1-
    l11.63
    d21.90
    DN2-
    l24.02
    d33.50
    DN3-
    l31.63

    SJTC7315GPE

    size3"x1 1/2"x3" orange
    dimensions3.27x6.89x6.30 "
    weight6.39 lb
    packaging-
    d13.50
    DN1-
    l11.63
    d21.90
    DN2-
    l24.02
    d33.50
    DN3-
    l31.63

    SJTC7475FPE

    size4"xFNPT3/4"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.25 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d21.05
    DN2-
    l24.29
    d34.50
    DN3-
    l31.83

    SJTC741FPE

    size4"xFNPT1"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.25 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d21.32
    DN2-
    l24.29
    d34.50
    DN3-
    l31.83

    SJTC7415FPE

    size4"xFNPT1 1/2"x4" orange
    dimensions3.66x8.31x7.88 "
    weight9.48 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d21.90
    DN2-
    l24.29
    d34.50
    DN3-
    l31.83

    SJTC7415MPE

    size4"xMNPT1 1/2"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.47 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d21.90
    DN2-
    l24.88
    d34.50
    DN3-
    l31.83

    SJTC7415GPE

    size4"x1 1/2"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.47 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d21.90
    DN2-
    l24.88
    d34.50
    DN3-
    l31.83

    SJTC742FPE

    size4"xFNPT2"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.36 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d22.37
    DN2-
    l24.29
    d34.50
    DN3-
    l31.83

    SJTC742MPE

    size4"xMNPT2"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.69 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d22.37
    DN2-
    l24.88
    d34.50
    DN3-
    l31.83

    SJTC742GPE

    size4"x2"x4" orange
    dimensions3.66x8.31x7.88 "
    weight10.69 lb
    packaging-
    d14.50
    DN1-
    l11.83
    d22.37
    DN2-
    l24.88
    d34.50
    DN3-
    l31.83

    SJTC761FPE

    size6"xFNPT1"x6" orange
    dimensions3.70x10.87x10.09 "
    weight13.23 lb
    packaging-
    d16.63
    DN1-
    l11.85
    d21.32
    DN2-
    l25.18
    d36.63
    DN3-
    l31.85

    SJTC7615FPE

    size6"xFNPT1 1/2"x6" orange
    dimensions3.70x10.87x10.09 "
    weight13.67 lb
    packaging-
    d16.63
    DN1-
    l11.85
    d21.90
    DN2-
    l25.18
    d36.63
    DN3-
    l31.85

    SJTC7615MPE

    size6"xMNPT1 1/2"x6" orange
    dimensions3.70x10.87x10.09 "
    weight13.89 lb
    packaging-
    d16.63
    DN1-
    l11.85
    d21.90
    DN2-
    l26.06
    d36.63
    DN3-
    l31.85

    SJTC7615GPE

    size6"x1 1/2"x6" orange
    dimensions3.70x10.87x10.09 "
    weight13.89 lb
    packaging-
    d16.63
    DN1-
    l11.85
    d21.90
    DN2-
    l26.06
    d36.63
    DN3-
    l31.85

    SJTC762FPE

    size6"xFNPT2"x6" orange
    dimensions3.70x10.87x10.09 "
    weight14.33 lb
    packaging-
    d16.63
    DN1-
    l11.85
    d22.37
    DN2-
    l25.18
    d36.63
    DN3-
    l31.85

    SJTC762MPE

    size6"xMNPT2"x6" orange
    dimensions3.70x10.87x10.09 "
    weight14.33 lb
    packaging-
    d16.63
    DN1-
    l11.85
    d22.37
    DN2-
    l26.06
    d36.63
    DN3-
    l31.85

    Specifications

    articleVSH Shurjoint outlet coupling, EPDM gasket
    article number with gtinC7E
    manufacturerShurjoint
    weight14.33 lb
    dimensions3.70x10.87x10.09 "
    colororange
    materialscast iron (ASTM A536 65-45-12)
    finishingvarnished
    connection typegroove (coupling)
    sealingEPDM
    min. medium temperature-29 °F
    max medium temperature230 °F
    product groupfittings (demountable)
    ETIM classEC011014 Broaching saddle
    country of originTaiwan
    brandVSH
    seriesShurjoint
    product typeC7E
    ETIM
    {"etim-class":"EC011014 Broaching saddle","Material":"Cast iron","Material inlay":"Ethylene-propylene diene monomer rubber (EPDM)","Surface protection":"Lacquered","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"}
