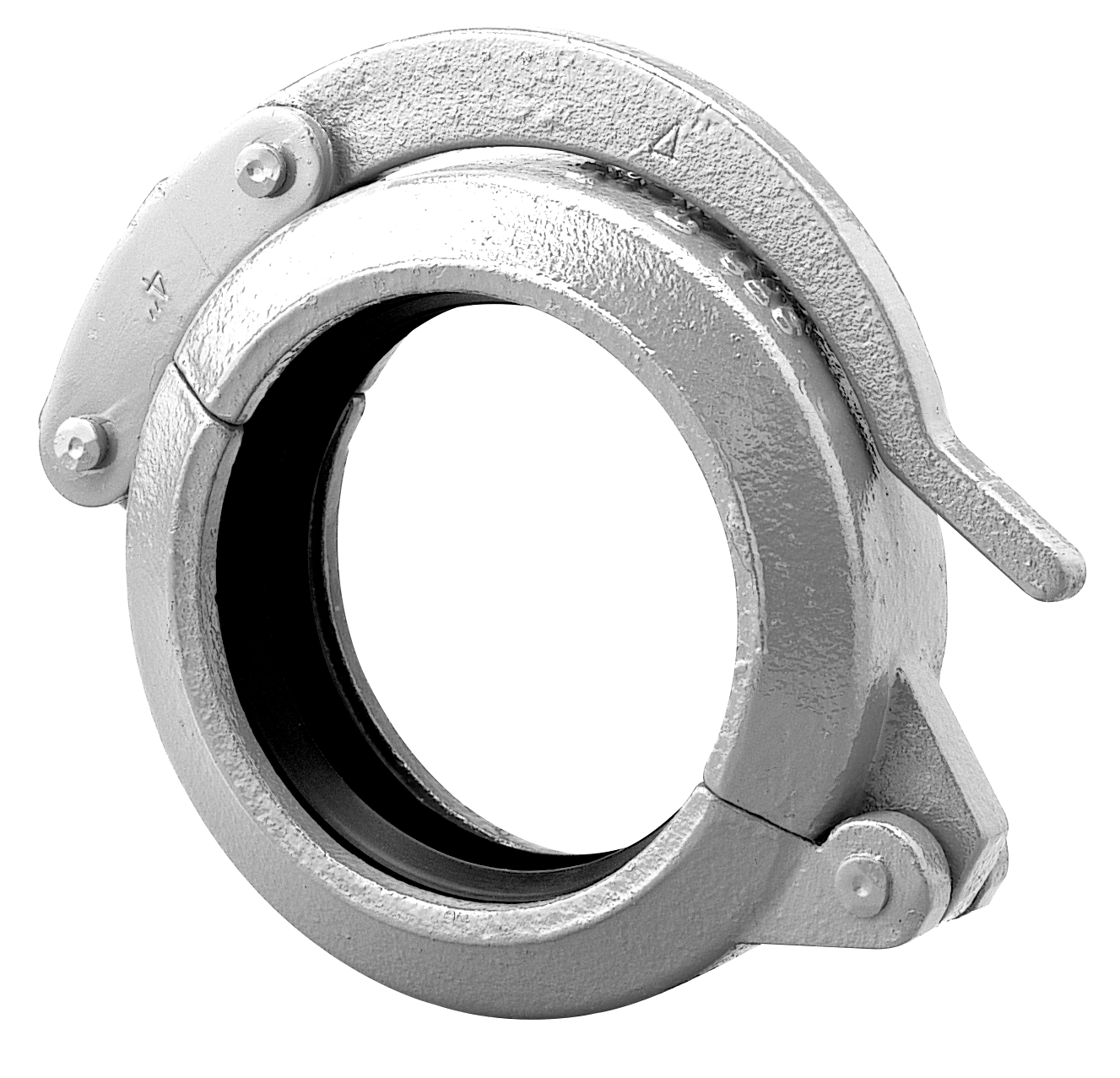

VSH Shurjoint hinged lever coupling (2 x groove), EPDM gasket

Scraped SKU: G28E 2026-06-05 04:24:53

Attributes

Group CodeG28E
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, vacuum
ApprovalsCRN, QB (CSTBat)
Solutionsdatacenters, utility, industry

Description

G28E is the designation for model G28 with a Grade E EPDM gasket. The VSH Shurjoint Model G28 Hinged Grooved Coupling is designed for quick connect and disconnect services. The housing segments are hinged with a lever handle for easy assembly. The use of the split pin can secure and prevent the accidental opening of the coupling. The Model G28 can be used in a wide variety of applications with standard rolled or cut grooved pipe. Housings 1½”- 4” (DN40-DN100) feature a smooth outer surface, housings 5” - 10” (DN125–DN250) feature a cross-ribbed design for added strength.Standard gasket: Grade “E” EPDM or Grade “T” Nitrile. Standard surface finish: Black electro-deposition coated.

Variations (15)

SJTG2815GE

size1 1/2" galvanized
dimensions1.85x4.65x2.95 "
weight2.23 lb
packagingCarton (1 pce)
d11.90
DN1-
l10.93
z10.03
d21.90
DN2-
l20.93
z20.03

SJTG2815PBE

size1 1/2" black
dimensions1.85x4.65x2.95 "
weight2.23 lb
packagingCarton (1 pce)
d11.90
DN1-
l10.95
z10.03
d21.90
DN2-
l20.95
z20.03

SJTG282GE

size2" galvanized
dimensions1.85x5.08x3.43 "
weight2.49 lb
packagingCarton (1 pce)
d12.37
DN1-
l10.93
z10.03
d22.37
DN2-
l20.93
z20.03

SJTG282PBE

size2" black
dimensions1.85x5.08x3.43 "
weight2.49 lb
packagingCarton (1 pce)
d12.37
DN1-
l10.93
z10.03
d22.37
DN2-
l20.93
z20.03

SJTG2825PBE

size2 1/2" black
dimensions1.85x5.63x3.94 "
weight3 lb
packagingCarton (1 pce)
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJTG283GE

size3" galvanized
dimensions1.85x6.46x4.69 "
weight3.73 lb
packagingCarton (1 pce)
d13.50
DN1-
l10.93
z10.03
d23.50
DN2-
l20.93
z20.03

SJTG283PBE

size3" black
dimensions1.85x6.46x4.69 "
weight3.73 lb
packagingCarton (1 pce)
d13.50
DN1-
l10.93
z10.03
d23.50
DN2-
l20.93
z20.03

SJTG284GE

size4" galvanized
dimensions2.05x7.95x5.98 "
weight5.86 lb
packagingBag (1 pce)
d14.50
DN1-
l11.02
z10.06
d24.50
DN2-
l21.02
z20.06

SJTG284PBE

size4" black
dimensions2.05x7.95x5.98 "
weight5.86 lb
packagingBag (1 pce)
d14.50
DN1-
l11.02
z10.06
d24.50
DN2-
l21.02
z20.06

SJTG285PBE

size5" black
dimensions2.05x10.00x7.05 "
weight10.74 lb
packagingBag (1 pce)
d15.56
DN1-
l11.02
z10.06
d25.56
DN2-
l21.02
z20.06

SJTG286GE

size6" galvanized
dimensions2.05x11.02x8.11 "
weight13.18 lb
packagingCarton (1 pce)
d16.63
DN1-
l11.02
z10.06
d26.63
DN2-
l21.02
z20.06

SJTG286PBE

size6" black
dimensions2.05x11.02x8.11 "
weight13.18 lb
packagingCarton (1 pce)
d16.63
DN1-
l11.02
z10.06
d26.63
DN2-
l21.02
z20.06

SJTG288GE

size8" galvanized
dimensions2.44x13.58x10.08 "
weight15.1 lb
packagingBag (1 pce)
d18.63
DN1-
l11.22
z10.06
d28.63
DN2-
l21.22
z20.06

SJTG288PBE

size8" black
dimensions2.44x13.58x10.08 "
weight15.1 lb
packagingBag (1 pce)
d18.63
DN1-
l11.22
z10.06
d28.63
DN2-
l21.22
z20.06

SJTG2810PBE

size10" black
dimensions2.60x17.48x12.68 "
weight36.09 lb
packagingBag (1 pce)
d110.75
DN1-
l11.30
z10.06
d210.75
DN2-
l21.30
z20.06

Specifications

articleVSH Shurjoint hinged lever coupling (2 x groove), EPDM gasket
article number with gtinG28E
manufacturerShurjoint
weight36.09 lb
dimensions2.60x17.48x12.68 "
colorblack, silver
materialscast iron (ASTM A536 65-45-12)
finishingvarnished, hot dip galvanized
shapestraight
connection typegroove (coupling)
sealingEPDM
min. medium temperature-29 °F
max medium temperature230 °F
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product typeG28E
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","High tensile strength":"Yes","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF
[Certificate] CRN Pipe Fittings Open PDF
[Certificate] VSH Shurjoint CSTBat Open PDF
[Datasheet] Datasheet Open PDF
[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF
