VSH Shurjoint quick install rigid coupling (2 x groove), EHM gasket

Scraped SKU: M07EHM 2026-06-05 04:24:53

Attributes

Group CodeM07EHM
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, vacuum
ApprovalsCRN, NSF
Solutionsresidential, datacenters, utility, industry, building installations

Description

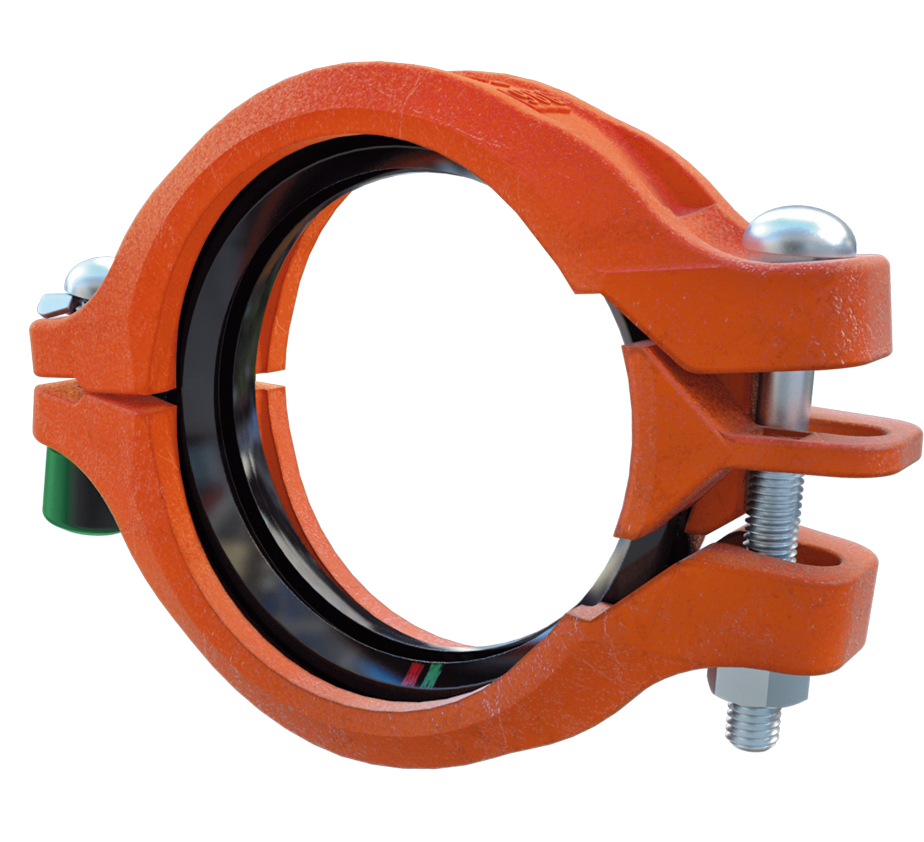

The VSH Shurjoint Model M07 is a ready to install rigid coupling for general piping applications where rigidity is required. The M07 includes two identical housing segments and a fully constrained wedge. Proper installation requires the tightening of only one bolt/nut. As this bolt/nut is tightened, the wedge applies uniform compression to the gasket. The hinge bolt/nut is factory pre-set and requires no adjustment.
  • 1-bolt design: super fast installation
  • patent pending wedge design
  • applications include valve connections, mechanical rooms, risers and long straight runs.

    • Variations (12)

    SJTM072PEHM

    size2" orange
    dimensions1.89x5.59x3.35 "
    weight2.87 lb
    packaging-

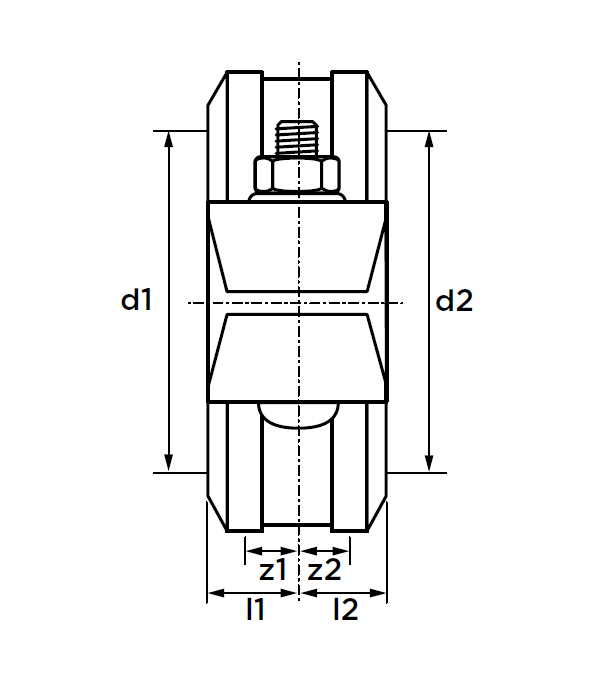

    d12.37
    DN1-
    l10.95
    z10.06
    d22.37
    DN2-
    l20.95
    z20.06

    SJTM072GEHM

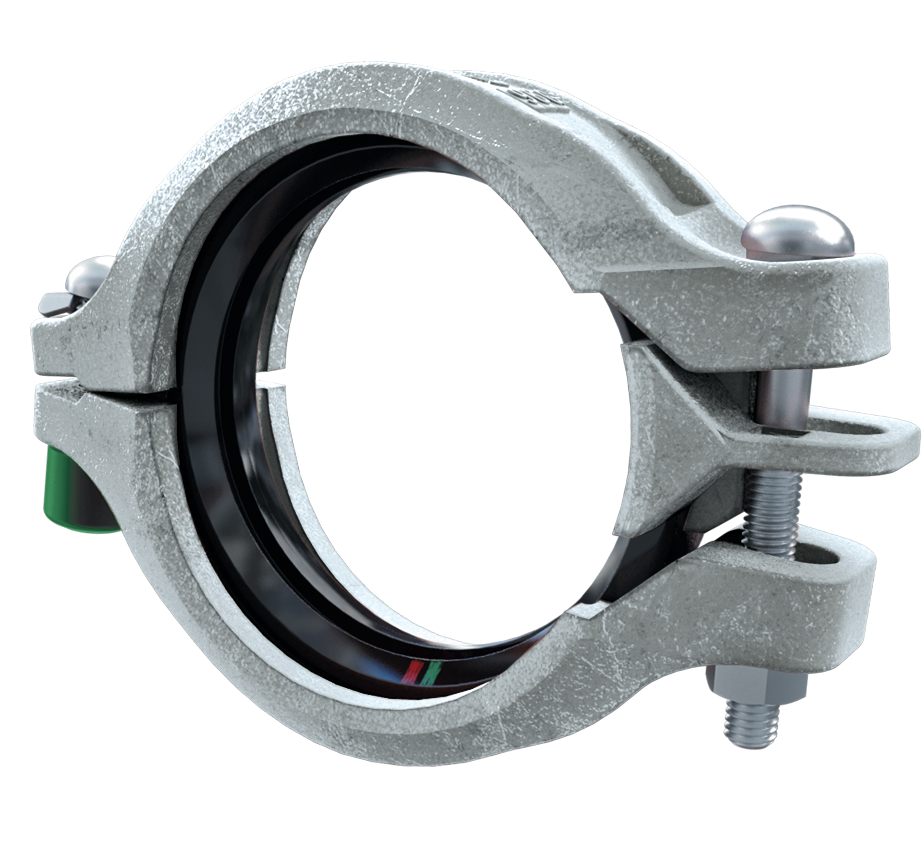

    size2" galvanized
    dimensions1.89x5.59x3.35 "
    weight2.87 lb
    packaging-
    d12.37
    DN1-
    l10.95
    z10.06
    d22.37
    DN2-
    l20.95
    z20.06

    SJTM0725PEHM

    size2 1/2" orange
    dimensions1.89x6.30x3.82 "
    weight3.31 lb
    packaging-
    d12.87
    DN1-
    l10.95
    z10.08
    d22.87
    DN2-
    l20.95
    z20.08

    SJTM0725GEHM

    size2 1/2" galvanized
    dimensions1.89x6.30x3.82 "
    weight3.31 lb
    packaging-
    d12.87
    DN1-
    l10.95
    z10.08
    d22.87
    DN2-
    l20.95
    z20.08

    SJTM073PEHM

    size3" orange
    dimensions1.89x7.09x4.41 "
    weight3.75 lb
    packaging-
    d13.50
    DN1-
    l10.95
    z10.08
    d23.50
    DN2-
    l20.95
    z20.08

    SJTM073GEHM

    size3" galvanized
    dimensions1.89x7.09x4.41 "
    weight3.75 lb
    packaging-
    d13.50
    DN1-
    l10.95
    z10.08
    d23.50
    DN2-
    l20.95
    z20.08

    SJTM074PEHM

    size4" orange
    dimensions2.13x8.35x5.44 "
    weight5.07 lb
    packaging-
    d14.50
    DN1-
    l11.06
    z10.08
    d24.50
    DN2-
    l21.06
    z20.08

    SJTM074GEHM

    size4" galvanized
    dimensions2.13x8.35x5.44 "
    weight5.07 lb
    packaging-
    d14.50
    DN1-
    l11.06
    z10.08
    d24.50
    DN2-
    l21.06
    z20.08

    SJTM075PEHM

    size5" orange
    dimensions2.13x9.84x6.73 "
    weight7.72 lb
    packaging-
    d15.56
    DN1-
    l11.06
    z10.06
    d25.56
    DN2-
    l21.06
    z20.06

    SJTM076PEHM

    size6" orange
    dimensions2.13x10.90x7.77 "
    weight8.38 lb
    packaging-
    d16.63
    DN1-
    l11.06
    z10.08
    d26.63
    DN2-
    l21.06
    z20.08

    SJTM076GEHM

    size6" galvanized
    dimensions2.13x10.90x7.77 "
    weight8.38 lb
    packaging-
    d16.63
    DN1-
    l11.06
    z10.08
    d26.63
    DN2-
    l21.06
    z20.08

    SJTM078GEHM

    size-
    dimensions-
    weight17.64 lb
    packaging-
    d1-
    DN1-
    l1-
    z1-
    d2-
    DN2-
    l2-
    z2-

    Specifications

    articleVSH Shurjoint quick install rigid coupling (2 x groove), EHM gasket
    article number with gtinM07EHM
    manufacturerShurjoint
    weight17.64 lb
    colorsilver, orange
    materialscast iron (ASTM A536 65-45-12)
    finishinghot dip galvanized, varnished
    shapestraight
    sealingEPDM
    product groupfittings (demountable)
    country of originTaiwan
    brandVSH
    seriesShurjoint
    product typeM07EHM

    PDF Documents

    [Certificate] CRN Pipe Fittings Open PDF
    [Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF
    [Certificate] UL Drinking Water System Components Open PDF
    [Manual] VSH Shurjoint M07 installation manual (Europe) Open PDF
    [Datasheet] Datasheet Open PDF
