Attributes
| Group Code | RCV |
|---|---|
| Product Type | check-valve |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | utility, industry |
Description
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
- VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
- the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"

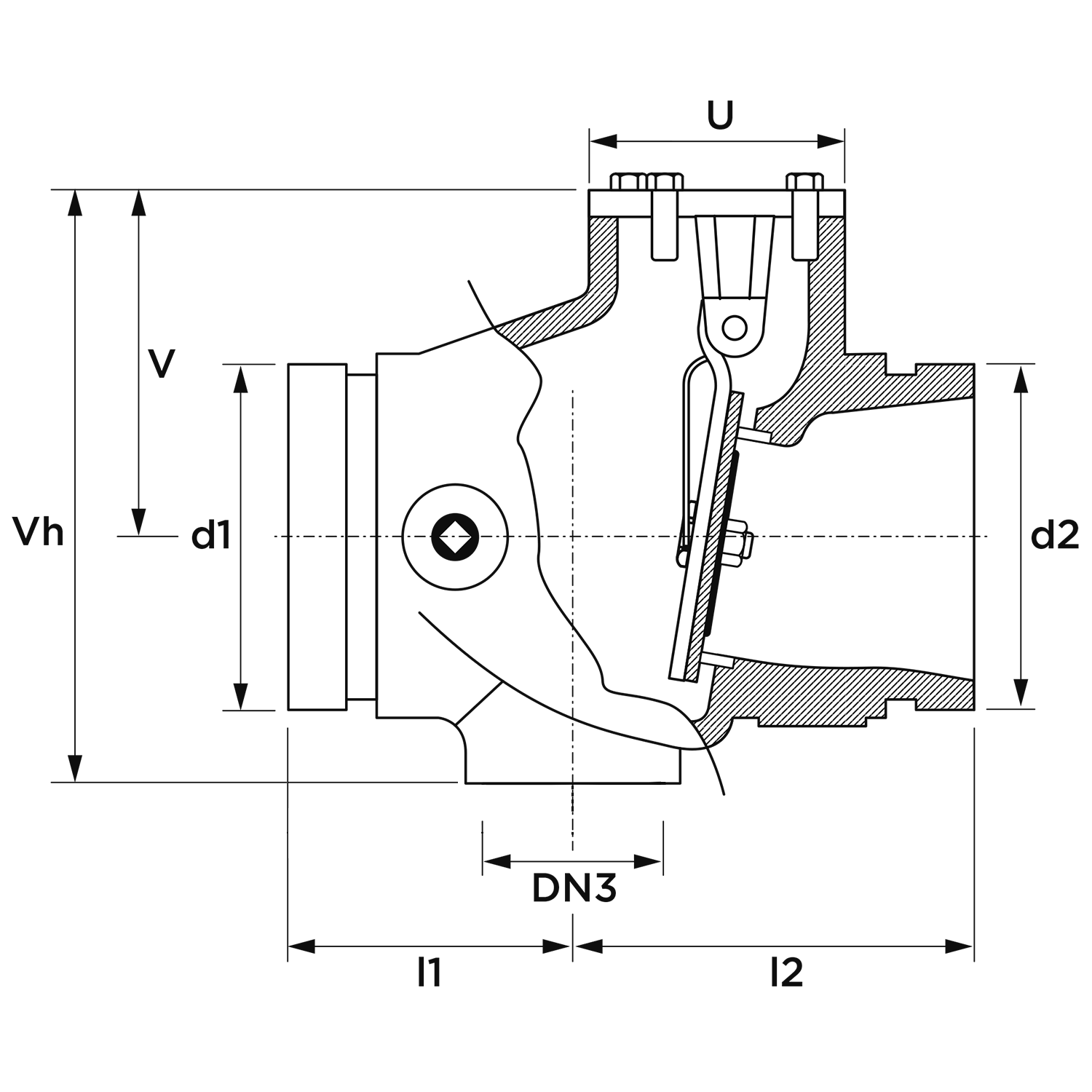

Variations (7)
SJTRCV25
| size | 2 1/2" orange |
|---|---|
| dimensions | 4.49x7.48x6.26 " |
| weight | 10.71 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 3.47 |
| d2 | 2.87 |
| DN2 | - |
| l2 | 4.02 |
| V | 3.74 |
| U | 2.87 |
SJTRCV3
| size | 3" orange |
|---|---|
| dimensions | 4.49x7.01x6.26 " |
| weight | 10.74 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 2.99 |
| d2 | 3.50 |
| DN2 | - |
| l2 | 4.02 |
| V | 3.74 |
| U | 2.87 |
SJTRCV4
| size | 4" orange |
|---|---|
| dimensions | 5.75x8.50x7.36 " |
| weight | 18.72 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 3.50 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 5.00 |
| V | 4.61 |
| U | 3.15 |
SJTRCV6
| size | 6" orange |
|---|---|
| dimensions | 8.27x12.01x11.50 " |
| weight | 50.93 lb |
| packaging | - |
| d1 | 6.63 |
| DN1 | - |
| l1 | 5.00 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 7.01 |
| V | 7.01 |
| U | 4.49 |
SJTRCV8
| size | 8" orange |
|---|---|
| dimensions | 10.47x14.37x14.06 " |
| weight | 100.53 lb |
| packaging | - |
| d1 | 8.63 |
| DN1 | - |
| l1 | 4.37 |
| d2 | 8.63 |
| DN2 | - |
| l2 | 10.00 |
| V | 8.54 |
| U | 5.94 |
SJTRCV10
| size | 10" orange |
|---|---|
| dimensions | 14.37x20.00x17.99 " |
| weight | 208.54 lb |
| packaging | - |
| d1 | 10.75 |
| DN1 | - |
| l1 | 10.00 |
| d2 | 10.75 |
| DN2 | - |
| l2 | 10.00 |
| V | 10.75 |
| U | 10.71 |
SJTRCV12
| size | 12" orange |
|---|---|
| dimensions | 15.51x24.02x21.42 " |
| weight | 342.82 lb |
| packaging | - |
| d1 | 12.75 |
| DN1 | - |
| l1 | 12.01 |
| d2 | 12.75 |
| DN2 | - |
| l2 | 12.01 |
| V | 12.87 |
| U | 12.28 |
Specifications
| article | VSH Shurjoint riser check valve (2 x groove) |
|---|---|
| article number with gtin | RCV |
| manufacturer | Shurjoint |
| weight | 342.82 lb |
| dimensions | 15.51x24.02x21.42 " |
| color | orange |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| shape | straight |
| connection type | groove (fitting) |
| sealing | EPDM |
| max operating pressure liquid | 290 psi |
| min. medium temperature | -29 °F |
| max medium temperature | 230 °F |
| product group | valves (check valves) |
| ETIM class | EC011469 Check valve |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | RCV |
| ETIM | {"etim-class":"EC011469 Check valve","Surface protection":"Coated","Connections":"Groove","Sealing":"Ethylene-propylene diene monomer rubber (EPDM)","Backflow safeguard according to EN 1717":"EB","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Suitable for central heating water":"Yes","Certified according to SVGW for water":"No","Certified according to SVGW for gas":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
