Attributes
| Group Code | W110LR |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | utility, industry |
Description
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
- VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
- the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
Variations (5)
SJTW110LR14P
| size | 14" orange |
|---|---|
| dimensions | 27.99x27.99x14.02 " |
| weight | 141.1 lb |
| packaging | - |

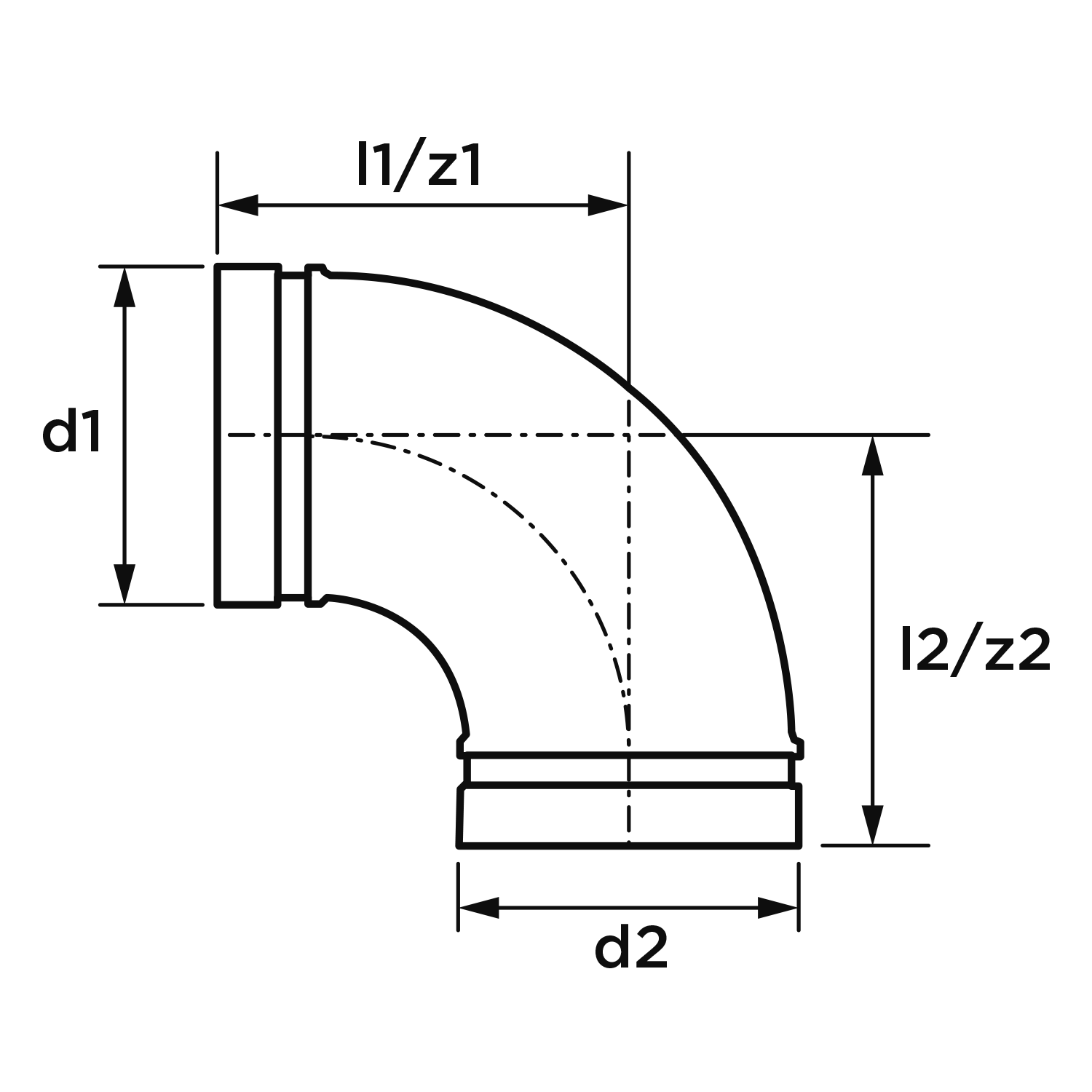

| d1 | 14.00 |
| DN1 | - |
| l1 | 21.00 |
| d2 | 14.00 |
| DN2 | - |
| l2 | 21.00 |
| angle | - |
SJTW110LR16P
| size | 16" orange |
|---|---|
| dimensions | 32.05x32.05x16.02 " |
| weight | 196.21 lb |
| packaging | - |
| d1 | 16.00 |
| DN1 | - |
| l1 | 24.00 |
| d2 | 16.00 |
| DN2 | - |
| l2 | 24.00 |
| angle | - |
SJTW110LR18P
| size | 18" orange |
|---|---|
| dimensions | 36.01x36.01x18.00 " |
| weight | 252.43 lb |
| packaging | - |
| d1 | 18.00 |
| DN1 | - |
| l1 | 27.00 |
| d2 | 18.00 |
| DN2 | - |
| l2 | 27.00 |
| angle | - |
SJTW110LR20P
| size | 20" orange |
|---|---|
| dimensions | 40.00x40.00x20.00 " |
| weight | 295.42 lb |
| packaging | - |
| d1 | 20.00 |
| DN1 | - |
| l1 | 30.00 |
| d2 | 20.00 |
| DN2 | - |
| l2 | 30.00 |
| angle | - |
SJTW110LR24P
| size | 24" orange |
|---|---|
| dimensions | 47.98x47.98x24.00 " |
| weight | 482.81 lb |
| packaging | - |
| d1 | 24.00 |
| DN1 | - |
| l1 | 36.00 |
| d2 | 24.00 |
| DN2 | - |
| l2 | 36.00 |
| angle | - |
Specifications

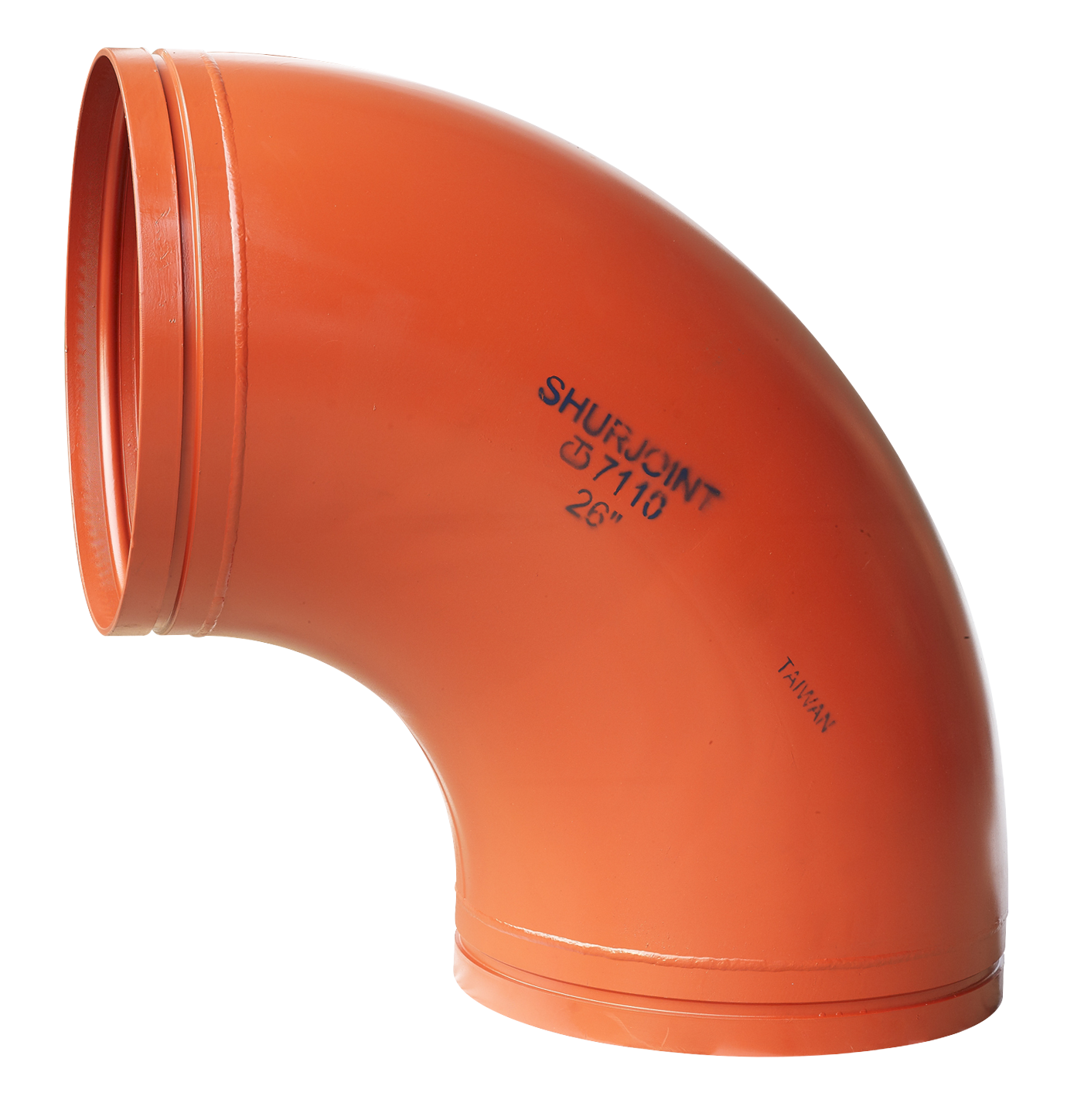

| article | VSH Shurjoint wrought long radius 90° elbow (2 x groove) |
|---|---|
| article number with gtin | W110LR |
| manufacturer | Shurjoint |
| weight | 482.81 lb |
| dimensions | 47.98x47.98x24.00 " |
| color | orange |
| materials | steel (ASTM A53 Grade B) |
| finishing | varnished |
| shape | Elbow, 90º |
| connection type | groove (fitting) |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | W110LR |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"Other","Surface protection connection 1":"Lacquered","Surface treatment connection 1":"Other","Material connection 2":"Steel","Material quality connection 2":"Other","Surface protection connection 2":"Lacquered","Surface treatment connection 2":"Other","Shape":"Bend","Model":"1-part","Bend angle":"90°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Main colour fitting":"Orange","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
