Attributes
| Group Code | W111LR |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | utility, industry |
Description
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
- VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
- the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
Variations (5)
SJTW111LR14P
| size | 14" orange |
|---|---|
| dimensions | 19.88x14.02x18.15 " |
| weight | 70.55 lb |
| packaging | - |

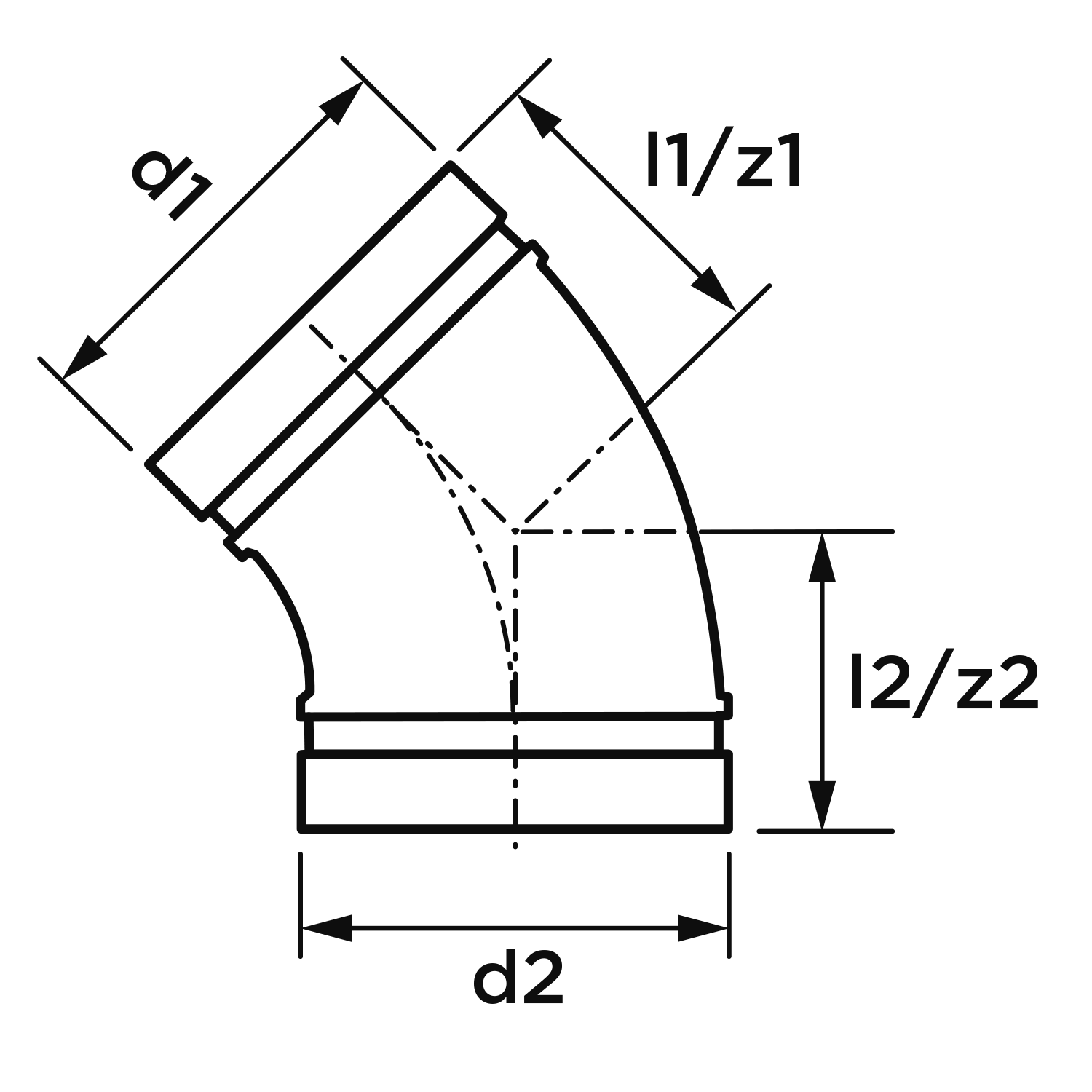

| d1 | 14.00 |
| DN1 | - |
| l1 | 8.75 |
| z1 | 8.75 |
| d2 | 14.00 |
| DN2 | - |
| l2 | 8.75 |
| z2 | 8.75 |
| angle | - |
SJTW111LR16P
| size | 16" orange |
|---|---|
| dimensions | 22.76x16.02x20.75 " |
| weight | 99.21 lb |
| packaging | - |
| d1 | 16.00 |
| DN1 | - |
| l1 | 10.00 |
| z1 | 10.00 |
| d2 | 16.00 |
| DN2 | - |
| l2 | 10.00 |
| z2 | 10.00 |
| angle | - |
SJTW111LR18P
| size | 18" orange |
|---|---|
| dimensions | 25.52x18.00x23.30 " |
| weight | 124.56 lb |
| packaging | - |
| d1 | 18.00 |
| DN1 | - |
| l1 | 11.24 |
| z1 | 11.24 |
| d2 | 18.00 |
| DN2 | - |
| l2 | 11.24 |
| z2 | 11.24 |
| angle | - |
SJTW111LR20P
| size | 20" orange |
|---|---|
| dimensions | 28.44x20.00x25.92 " |
| weight | 167.55 lb |
| packaging | - |
| d1 | 20.00 |
| DN1 | - |
| l1 | 12.50 |
| z1 | 12.50 |
| d2 | 20.00 |
| DN2 | - |
| l2 | 12.50 |
| z2 | 12.50 |
| angle | - |
SJTW111LR24P
| size | 24" orange |
|---|---|
| dimensions | 34.09x24.00x31.09 " |
| weight | 222.67 lb |
| packaging | - |
| d1 | 24.00 |
| DN1 | - |
| l1 | 15.00 |
| z1 | 15.00 |
| d2 | 24.00 |
| DN2 | - |
| l2 | 15.00 |
| z2 | 15.00 |
| angle | - |
Specifications
| article | VSH Shurjoint wrought long radius 45° elbow (2 x groove) |
|---|---|
| article number with gtin | W111LR |
| manufacturer | Shurjoint |
| weight | 222.67 lb |
| dimensions | 34.09x24.00x31.09 " |
| color | orange |
| materials | steel (ASTM A53 Grade B) |
| finishing | varnished |
| shape | Elbow, 45º |
| connection type | groove (fitting) |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | W111LR |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"Other","Surface protection connection 1":"Lacquered","Surface treatment connection 1":"Other","Material connection 2":"Steel","Material quality connection 2":"Other","Surface protection connection 2":"Lacquered","Surface treatment connection 2":"Other","Shape":"Bend","Bend angle":"45°","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Main colour fitting":"Orange","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
