Attributes
| Group Code | W120 |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air |
| Solutions | utility, industry |
Description
VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
- VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
- the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
Variations (4)
SJTW12016P
| size | 16" orange |
|---|---|
| dimensions | 24.02x16.02x20.04 " |
| weight | 132.28 lb |
| packaging | Unpacked or unpackaged (1 pce) |
| d1 | 16.00 |
| DN1 | - |
| l1 | 12.00 |
| d2 | 16.00 |
| DN2 | - |
| l2 | 12.00 |
| d3 | 16.00 |
| DN3 | - |
| l3 | 12.00 |
SJTW12018P
| size | 18" orange |
|---|---|
| dimensions | 27.01x18.00x22.51 " |
| weight | 169.76 lb |
| packaging | - |
| d1 | 18.00 |
| DN1 | - |
| l1 | 13.50 |
| d2 | 18.00 |
| DN2 | - |
| l2 | 13.50 |
| d3 | 18.00 |
| DN3 | - |
| l3 | 13.50 |
SJTW12020P
| size | 20" orange |
|---|---|
| dimensions | 30.00x20.00x25.00 " |
| weight | 209.44 lb |
| packaging | - |
| d1 | 20.00 |
| DN1 | - |
| l1 | 15.00 |
| d2 | 20.00 |
| DN2 | - |
| l2 | 15.00 |
| d3 | 20.00 |
| DN3 | - |
| l3 | 15.00 |
SJTW12024P
| size | 24" orange |
|---|---|
| dimensions | 34.02x24.00x29.01 " |
| weight | 267.86 lb |
| packaging | - |
| d1 | 24.00 |
| DN1 | - |
| l1 | 17.00 |
| d2 | 24.00 |
| DN2 | - |
| l2 | 17.00 |
| d3 | 24.00 |
| DN3 | - |
| l3 | 17.00 |
Specifications

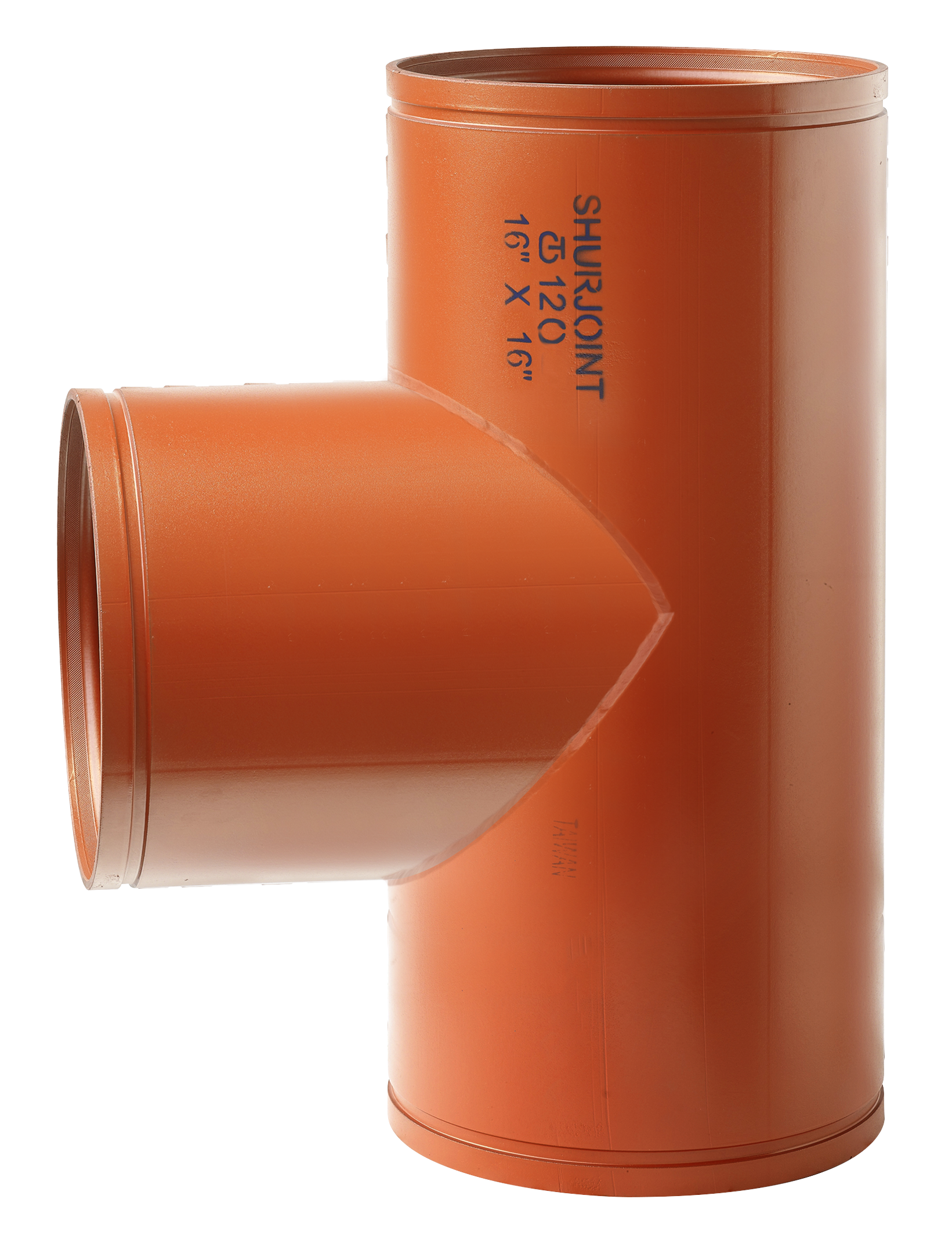

| article | VSH Shurjoint wrought tee (3 x groove) |
|---|---|
| article number with gtin | W120 |
| manufacturer | Shurjoint |
| weight | 267.86 lb |
| dimensions | 34.02x24.00x29.01 " |
| color | orange |
| materials | steel (ASTM A53 Grade B) |
| finishing | varnished |
| connection type | groove (fitting) |
| product group | fittings (demountable) |
| ETIM class | EC003025 Fitting with 3 connections |
| intrastat code | 73071910 |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | W120 |
| ETIM | {"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Steel","Surface protection connection 1":"Lacquered","Material connection 2":"Steel","Surface protection connection 2":"Lacquered","Material connection 3":"Steel","Surface protection connection 3":"Lacquered","Model":"T-piece","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","Main colour fitting":"Orange","High tensile strength":"Yes","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With buffer stud":"No","Capped":"No","With connection indicator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
