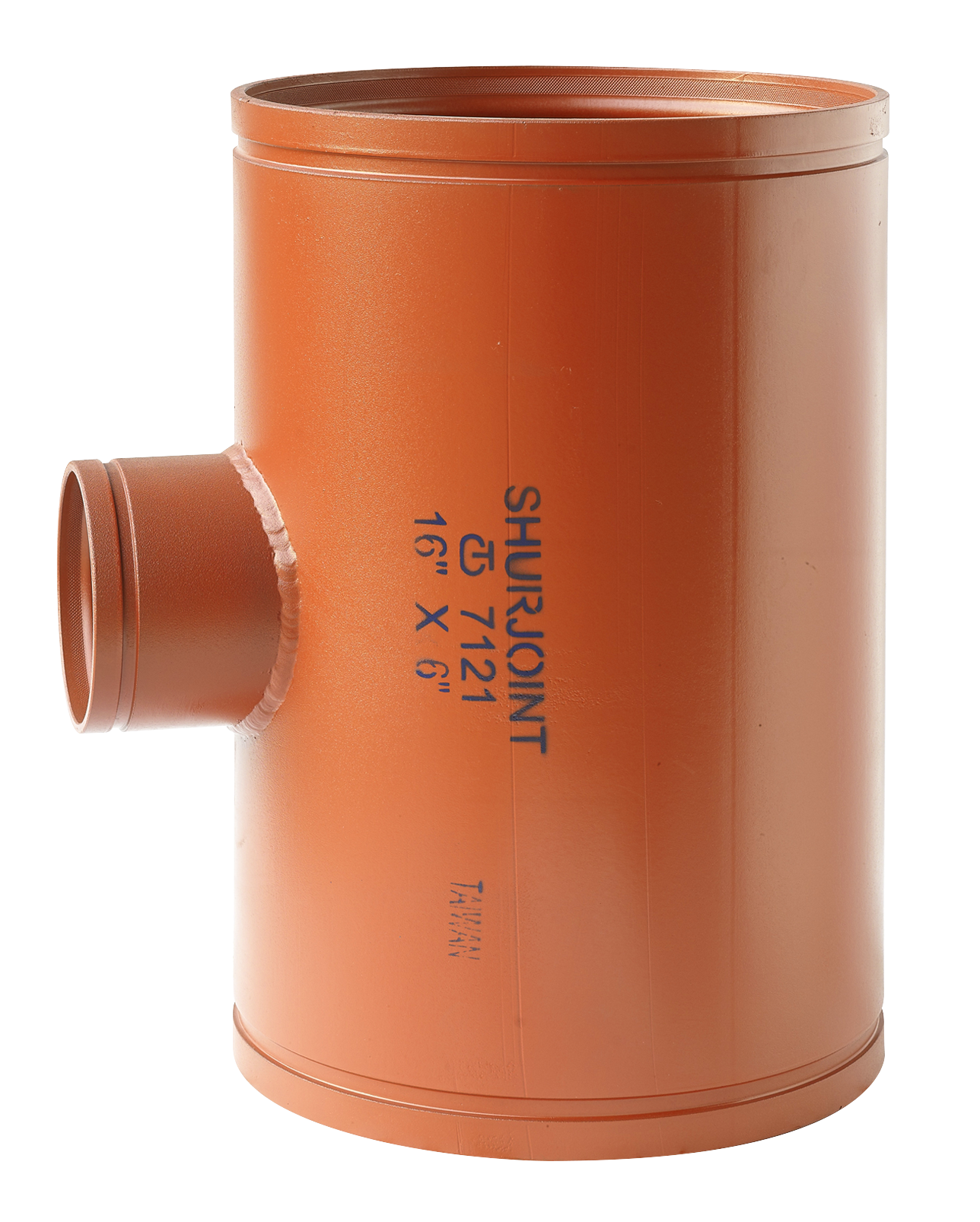

VSH Shurjoint wrought reducing tee (3 x groove)

Scraped SKU: W121 2026-06-05 04:24:53

Attributes

Group Code	W121
Product Type	demontabel
Brand Series	vsh-shurjoint
Applications	heating, cooling, compressed air
Solutions	utility, industry

Description

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"

Variations (21)

SJTW121148P

size	14"x14"x8" orange
dimensions	14.02x21.97x16.77 "
weight	90.39 lb
packaging	Unpacked or unpackaged (1 pce)
d1	14.00
DN1	-
l1	10.98
z1	10.98
d2	8.63
DN2	-
l2	9.76
z2	9.76
d3	14.00
DN3	-
l3	10.98
z3	10.98

SJTW1211410P

size	14"x14"x10" orange
dimensions	14.02x21.97x17.13 "
weight	99.21 lb
packaging	Unpacked or unpackaged (1 pce)
d1	14.00
DN1	-
l1	10.98
z1	10.98
d2	10.75
DN2	-
l2	10.12
z2	10.12
d3	14.00
DN3	-
l3	10.98
z3	10.98

SJTW1211412P

size	14"x14"x12" orange
dimensions	14.02x21.97x17.64 "
weight	103.62 lb
packaging	-
d1	14.00
DN1	-
l1	10.98
z1	10.98
d2	12.75
DN2	-
l2	10.63
z2	10.63
d3	14.00
DN3	-
l3	10.98
z3	10.98

SJTW121168P

size	16"x16"x8" orange
dimensions	16.02x24.02x18.78 "
weight	127.43 lb
packaging	Unpacked or unpackaged (1 pce)
d1	16.00
DN1	-
l1	12.01
z1	12.01
d2	8.63
DN2	-
l2	10.75
z2	10.75
d3	16.00
DN3	-
l3	12.01
z3	12.01

SJTW1211610P

size	16"x16"x10" orange
dimensions	16.02x24.02x19.17 "
weight	120.15 lb
packaging	Unpacked or unpackaged (1 pce)
d1	16.00
DN1	-
l1	12.01
z1	12.01
d2	10.75
DN2	-
l2	12.13
z2	12.13
d3	16.00
DN3	-
l3	12.01
z3	12.01

SJTW1211612P

size	16"x16"x12" orange
dimensions	16.02x24.02x18.46 "
weight	128.9 lb
packaging	-
d1	16.00
DN1	-
l1	12.01
z1	12.01
d2	12.75
DN2	-
l2	11.61
z2	11.61
d3	16.00
DN3	-
l3	12.01
z3	12.01

SJTW1211614P

size	16"x16"x14" orange
dimensions	16.02x24.02x20.04 "
weight	131.18 lb
packaging	-
d1	16.00
DN1	-
l1	12.01
z1	12.01
d2	14.00
DN2	-
l2	12.01
z2	12.01
d3	16.00
DN3	-
l3	12.01
z3	12.01

SJTW1211810P

size	18"x18"x10" orange
dimensions	18.00x27.01x21.13 "
weight	160.94 lb
packaging	-
d1	18.00
DN1	-
l1	13.50
z1	13.50
d2	10.75
DN2	-
l2	11.14
z2	11.14
d3	18.00
DN3	-
l3	13.50
z3	13.50

SJTW1211812P

size	18"x18"x12" orange
dimensions	18.00x27.01x21.64 "
weight	163.14 lb
packaging	-
d1	18.00
DN1	-
l1	13.50
z1	13.50
d2	12.75
DN2	-
l2	12.64
z2	12.64
d3	18.00
DN3	-
l3	13.50
z3	13.50

SJTW1211814P

size	18"x18"x14" orange
dimensions	18.00x27.01x21.99 "
weight	162.3 lb
packaging	-
d1	18.00
DN1	-
l1	13.50
z1	13.50
d2	14.00
DN2	-
l2	12.99
z2	12.99
d3	18.00
DN3	-
l3	13.50
z3	13.50

SJTW1211816P

size	18"x18"x16" orange
dimensions	18.00x27.01x21.99 "
weight	158.73 lb
packaging	-
d1	18.00
DN1	-
l1	13.50
z1	13.50
d2	16.00
DN2	-
l2	12.99
z2	12.99
d3	18.00
DN3	-
l3	13.50
z3	13.50

SJTW1212012P

size	20"x20"x12" orange
dimensions	20.00x30.00x23.62 "
weight	196.21 lb
packaging	-
d1	20.00
DN1	-
l1	15.00
z1	15.00
d2	12.75
DN2	-
l2	13.62
z2	13.62
d3	20.00
DN3	-
l3	15.00
z3	15.00

SJTW1212014P

size	20"x20"x14" orange
dimensions	20.00x30.00x24.02 "
weight	264.55 lb
packaging	-
d1	20.00
DN1	-
l1	15.00
z1	15.00
d2	14.00
DN2	-
l2	14.02
z2	14.02
d3	20.00
DN3	-
l3	15.00
z3	15.00

SJTW1212016P

size	20"x20"x16" orange
dimensions	20.00x30.00x24.02 "
weight	200.4 lb
packaging	-
d1	20.00
DN1	-
l1	15.00
z1	15.00
d2	16.00
DN2	-
l2	14.02
z2	14.02
d3	20.00
DN3	-
l3	15.00
z3	15.00

SJTW1212018P

size	20"x20"x18" orange
dimensions	20.00x30.00x24.49 "
weight	196.21 lb
packaging	-
d1	20.00
DN1	-
l1	15.00
z1	15.00
d2	18.00
DN2	-
l2	14.49
z2	14.49
d3	20.00
DN3	-
l3	15.00
z3	15.00

SJTW121248P

size	24"x24"x8" orange
dimensions	24.00x34.02x26.76 "
weight	253.53 lb
packaging	-
d1	24.00
DN1	-
l1	17.01
z1	17.01
d2	8.63
DN2	-
l2	14.76
z2	14.76
d3	24.00
DN3	-
l3	17.01
z3	17.01

SJTW1212410P

size	24"x24"x10" orange
dimensions	24.00x34.02x27.12 "
weight	252.43 lb
packaging	-
d1	24.00
DN1	-
l1	17.01
z1	17.01
d2	10.75
DN2	-
l2	15.12
z2	15.12
d3	24.00
DN3	-
l3	17.01
z3	17.01

SJTW1212412P

size	24"x24"x12" orange
dimensions	24.00x34.02x27.63 "
weight	271.17 lb
packaging	-
d1	24.00
DN1	-
l1	17.01
z1	17.01
d2	12.75
DN2	-
l2	15.63
z2	15.63
d3	24.00
DN3	-
l3	17.01
z3	17.01

SJTW1212414P

size	24"x24"x14" orange
dimensions	24.00x34.02x27.98 "
weight	264.55 lb
packaging	-
d1	24.00
DN1	-
l1	17.01
z1	17.01
d2	14.00
DN2	-
l2	15.98
z2	15.98
d3	24.00
DN3	-
l3	17.01
z3	17.01

SJTW1212416P

size	24"x24"x16" orange
dimensions	24.00x34.02x27.98 "
weight	278.88 lb
packaging	-
d1	24.00
DN1	-
l1	17.01
z1	17.01
d2	16.00
DN2	-
l2	15.98
z2	15.98
d3	24.00
DN3	-
l3	17.01
z3	17.01

SJTW1212418P

size	24"x24"x18" orange
dimensions	24.00x34.02x28.50 "
weight	264.55 lb
packaging	-
d1	24.00
DN1	-
l1	17.01
z1	17.01
d2	18.00
DN2	-
l2	16.50
z2	16.50
d3	24.00
DN3	-
l3	17.01
z3	17.01

Specifications

article	VSH Shurjoint wrought reducing tee (3 x groove)
article number with gtin	W121
manufacturer	Shurjoint
weight	264.55 lb
dimensions	24.00x34.02x28.50 "
color	orange
materials	steel (ASTM A53 Grade B)
finishing	varnished
connection type	groove (fitting)
product group	fittings (demountable)
ETIM class	EC003025 Fitting with 3 connections
intrastat code	73071910
country of origin	Taiwan
brand	VSH
series	Shurjoint
product type	W121
ETIM	{"etim-class":"EC003025 Fitting with 3 connections","Material connection 1":"Steel","Surface protection connection 1":"Lacquered","Material connection 2":"Steel","Surface protection connection 2":"Lacquered","Material connection 3":"Steel","Surface protection connection 3":"Lacquered","Model":"T-piece","Reducing":"No","Multi-part":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Connection 3":"Groove","Main colour fitting":"Orange","High tensile strength":"Yes","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","With buffer stud":"No","Capped":"No","With connection indicator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF

[Installation- & Maintenance Document] VSH Shurjoint installation instructions Open PDF

[Link To Sheet] MSDS_Shurjoint_Orange_paint Open PDF
