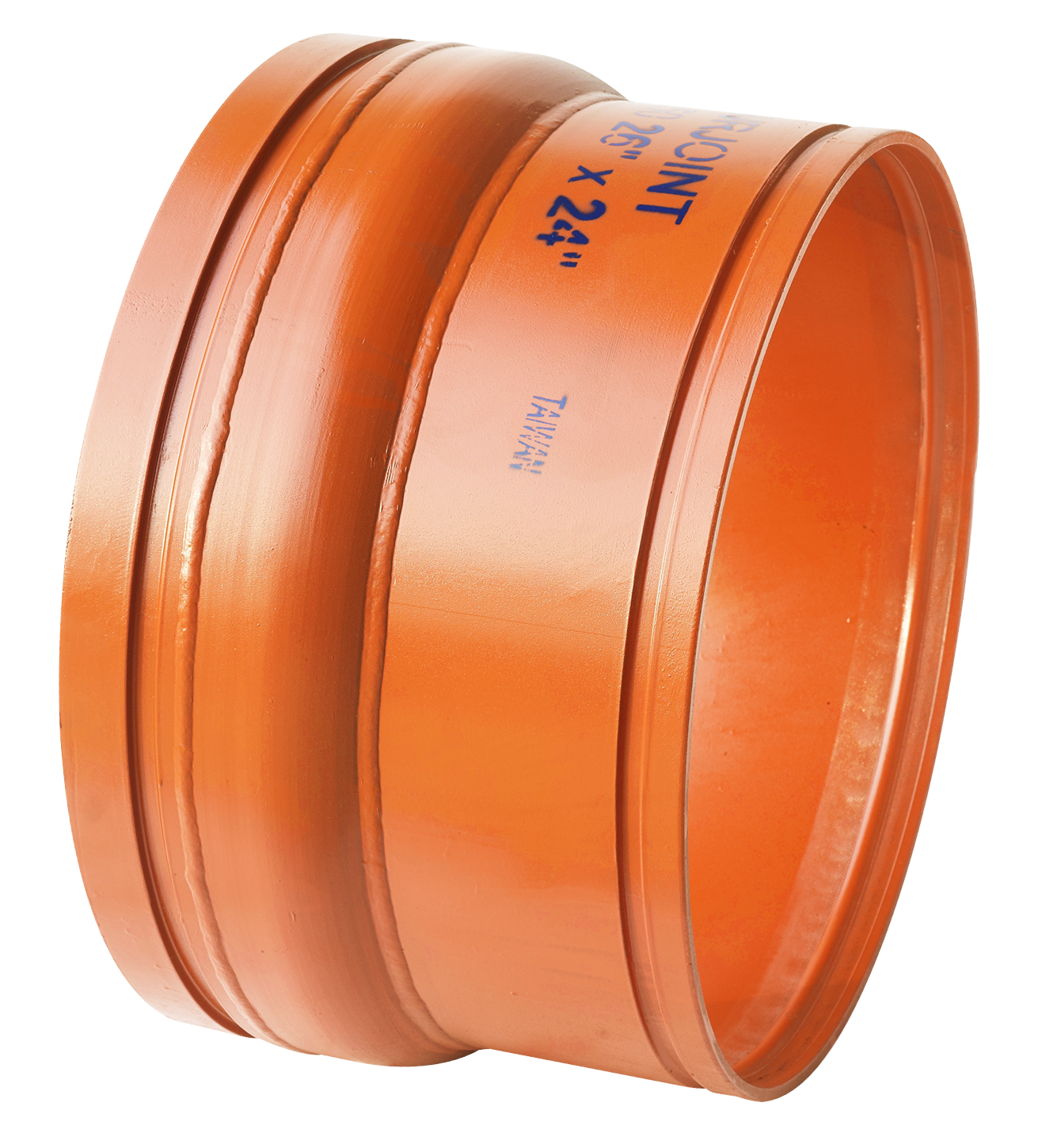

VSH Shurjoint wrought concentric reducer (2 x groove)

Scraped SKU: W150 2026-06-05 04:24:53

Attributes

Group CodeW150
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air
Solutionsutility, industry

Description

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"

Variations (22)

SJTW150146P

size14"x6" orange
dimensions14.02x14.02x12.99 "
weight40.23 lb
packaging-
d114.00
DN1-
l16.50
z16.50
d26.63
DN2-
l26.50
z26.50

SJTW150148P

size14"x8" orange
dimensions14.02x14.02x12.99 "
weight43.45 lb
packaging-
d114.00
DN1-
l16.50
z16.50
d28.63
DN2-
l26.50
z26.50

SJTW1501410P

size14"x10" orange
dimensions14.02x14.02x12.99 "
weight50.04 lb
packagingUnpacked or unpackaged (1 pce)
d114.00
DN1-
l16.50
z16.50
d210.75
DN2-
l26.50
z26.50

SJTW1501412P

size14"x12" orange
dimensions14.02x14.02x12.99 "
weight52.98 lb
packagingUnpacked or unpackaged (1 pce)
d114.00
DN1-
l16.50
z16.50
d212.75
DN2-
l26.50
z26.50

SJTW150168P

size16"x8" orange
dimensions16.02x16.02x14.02 "
weight55.98 lb
packaging-
d116.00
DN1-
l17.01
z17.01
d28.63
DN2-
l27.01
z27.01

SJTW1501610P

size16"x10" orange
dimensions16.02x16.02x14.02 "
weight60.63 lb
packaging-
d116.00
DN1-
l17.01
z17.01
d210.75
DN2-
l27.01
z27.01

SJTW1501612P

size16"x12" orange
dimensions16.02x16.02x14.02 "
weight63.89 lb
packaging-
d116.00
DN1-
l17.01
z17.01
d212.75
DN2-
l27.01
z27.01

SJTW1501614P

size16"x14" orange
dimensions16.02x16.02x14.02 "
weight67.62 lb
packagingUnpacked or unpackaged (1 pce)
d116.00
DN1-
l17.01
z17.01
d214.00
DN2-
l27.01
z27.01

SJTW1501810P

size18"x10" orange
dimensions18.00x18.00x15.04 "
weight70.57 lb
packaging-
d118.00
DN1-
l17.50
z17.50
d210.75
DN2-
l27.50
z27.50

SJTW1501812P

size18"x12" orange
dimensions18.00x18.00x15.12 "
weight76.26 lb
packaging-
d118.00
DN1-
l17.50
z17.50
d212.75
DN2-
l27.50
z27.50

SJTW1501814P

size18"x14" orange
dimensions18.00x18.00x15.20 "
weight76.08 lb
packaging-
d118.00
DN1-
l17.50
z17.50
d214.00
DN2-
l27.50
z27.50

SJTW1501816P

size18"x16" orange
dimensions18.00x18.00x15.28 "
weight79.37 lb
packaging-
d118.00
DN1-
l17.50
z17.50
d216.00
DN2-
l27.50
z27.50

SJTW1502010P

size20"x10" orange
dimensions20.00x20.00x20.00 "
weight97.73 lb
packaging-
d120.00
DN1-
l110.00
z110.00
d210.75
DN2-
l210.00
z210.00

SJTW1502012P

size20"x12" orange
dimensions20.00x20.00x20.00 "
weight105.05 lb
packaging-
d120.00
DN1-
l110.00
z110.00
d212.75
DN2-
l210.00
z210.00

SJTW1502014P

size20"x14" orange
dimensions20.00x20.00x20.00 "
weight108.03 lb
packaging-
d120.00
DN1-
l110.00
z110.00
d214.00
DN2-
l210.00
z210.00

SJTW1502016P

size20"x16" orange
dimensions20.00x20.00x20.00 "
weight112.92 lb
packaging-
d120.00
DN1-
l110.00
z110.00
d216.00
DN2-
l210.00
z210.00

SJTW1502018P

size20"x18" orange
dimensions20.00x20.00x20.00 "
weight112.44 lb
packaging-
d120.00
DN1-
l110.00
z110.00
d218.00
DN2-
l210.00
z210.00

SJTW1502412P

size24"x12" orange
dimensions24.00x24.00x20.00 "
weight129.96 lb
packaging-
d124.00
DN1-
l110.00
z110.00
d212.75
DN2-
l210.00
z210.00

SJTW1502414P

size24"x14" orange
dimensions24.00x24.00x20.00 "
weight131.48 lb
packaging-
d124.00
DN1-
l110.00
z110.00
d214.00
DN2-
l210.00
z210.00

SJTW1502416P

size24"x16" orange
dimensions24.00x24.00x20.00 "
weight135.14 lb
packaging-
d124.00
DN1-
l110.00
z110.00
d216.00
DN2-
l210.00
z210.00

SJTW1502418P

size24"x18" orange
dimensions24.00x24.00x20.00 "
weight139.71 lb
packaging-
d124.00
DN1-
l110.00
z110.00
d218.00
DN2-
l210.00
z210.00

SJTW1502420P

size24"x20" orange
dimensions24.00x24.00x20.00 "
weight140.63 lb
packaging-
d124.00
DN1-
l110.00
z110.00
d220.00
DN2-
l210.00
z210.00

Specifications

articleVSH Shurjoint wrought concentric reducer (2 x groove)
article number with gtinW150
manufacturerShurjoint
weight140.63 lb
dimensions24.00x24.00x20.00 "
colororange
materialssteel (ASTM A53 Grade B)
finishingvarnished
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
intrastat code73071910
country of originTaiwan
brandVSH
seriesShurjoint
product typeW150
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Steel","Material quality connection 1":"Other","Surface protection connection 1":"Lacquered","Surface treatment connection 1":"Other","Material connection 2":"Steel","Material quality connection 2":"Other","Surface protection connection 2":"Lacquered","Surface treatment connection 2":"Other","Shape":"Straight","Model":"1-part","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Groove","Connection 2":"Groove","Main colour fitting":"Orange","With buffer stud":"No","High tensile strength":"Yes","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
