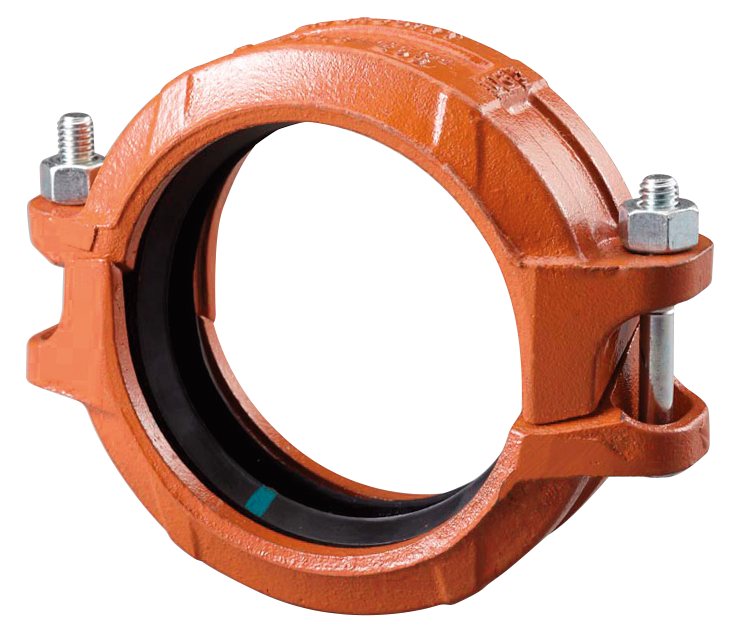

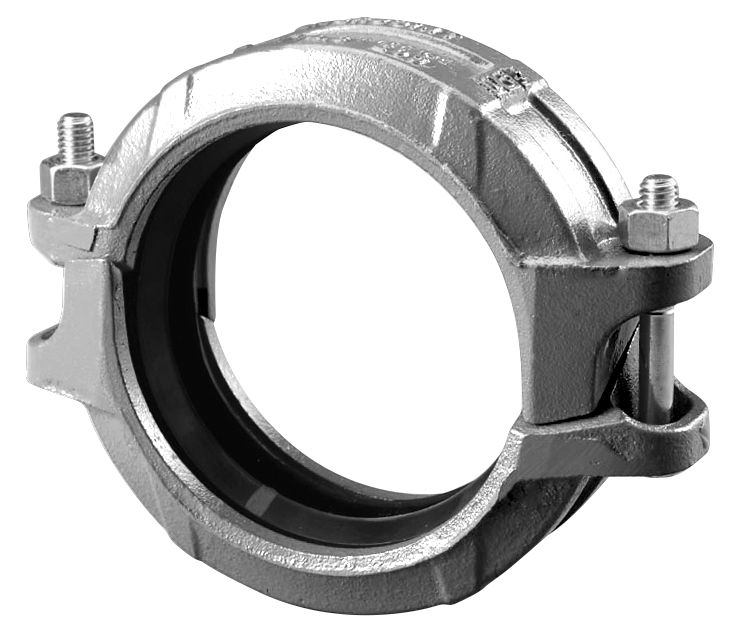

VSH Shurjoint rigid coupling (2 x groove), EPDM pre-lube gasket

Scraped SKU: Z05E-A 2026-06-05 04:24:53

Attributes

Group CodeZ05E-A
Product Typedemontabel
Brand Seriesvsh-shurjoint
Applicationsheating, cooling, compressed air, sprinkler, dry fire main, vacuum
ApprovalsCRN, FM, LPCB, UL, ULc, VdS
Solutionsresidential, fire protection, datacenters, utility, industry

Description

Z05E-A is the designation for model Z05 with a Grade E-A EPDM gasket. The VSH Shurjoint Model Z05 is an angle-pad design rigid coupling for moderate pressure piping services including fire mains, long straight runs and valve connections. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint which resists so called ‘snaking’ of a long straight run. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. With the removal of only one bolt you can make a fast and easy "swing-over” installation.

Variations (18)

SJTZ05125PEA

size1 1/4" orange
dimensions1.81x4.02x2.60 "
weight1.41 lb
packaging-
d11.67
DN1-
l10.91
z10.02
d21.67
DN2-
l20.91
z20.02

SJTZ05125GEA

size1 1/4" galvanized
dimensions1.81x4.02x2.60 "
weight1.41 lb
packaging-
d11.67
DN1-
l10.91
z10.02
d21.67
DN2-
l20.91
z20.02

SJTZ0515PEA

size1 1/2" orange
dimensions1.81x4.29x2.83 "
weight1.46 lb
packaging-
d11.90
DN1-
l10.91
z10.02
d21.90
DN2-
l20.91
z20.02

SJTZ0515GEA

size1 1/2" galvanized
dimensions1.81x4.29x2.83 "
weight1.46 lb
packaging-
d11.90
DN1-
l10.91
z10.02
d21.90
DN2-
l20.91
z20.02

SJTZ052PEA

size2" orange
dimensions1.85x4.61x3.35 "
weight1.74 lb
packaging-
d12.37
DN1-
l10.93
z10.03
d22.37
DN2-
l20.93
z20.03

SJTZ052GEA

size2" galvanized
dimensions1.85x4.61x3.35 "
weight1.74 lb
packaging-
d12.37
DN1-
l10.93
z10.03
d22.37
DN2-
l20.93
z20.03

SJTZ0525PEA

size2 1/2" orange
dimensions1.85x5.24x3.86 "
weight2.05 lb
packaging-
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJTZ0525GEA

size2 1/2" galvanized
dimensions1.85x5.24x3.86 "
weight2.05 lb
packaging-
d12.87
DN1-
l10.93
z10.03
d22.87
DN2-
l20.93
z20.03

SJTZ053PEA

size3" orange
dimensions1.89x5.91x4.45 "
weight2.65 lb
packaging-
d13.50
DN1-
l10.95
z10.03
d23.50
DN2-
l20.95
z20.03

SJTZ053GEA

size3" galvanized
dimensions1.89x5.91x4.45 "
weight2.65 lb
packaging-
d13.50
DN1-
l10.95
z10.03
d23.50
DN2-
l20.95
z20.03

SJTZ054PEA

size4" orange
dimensions2.13x7.20x5.75 "
weight4.12 lb
packaging-
d14.50
DN1-
l11.06
z10.08
d24.50
DN2-
l21.06
z20.08

SJTZ054GEA

size4" galvanized
dimensions2.13x7.20x5.75 "
weight4.12 lb
packaging-
d14.50
DN1-
l11.06
z10.08
d24.50
DN2-
l21.06
z20.08

SJTZ055PEA

size5" orange
dimensions2.13x9.06x6.89 "
weight5.69 lb
packaging-
d15.56
DN1-
l11.06
z10.08
d25.56
DN2-
l21.06
z20.08

SJTZ055GEA

size5" galvanized
dimensions2.13x9.06x6.89 "
weight5.69 lb
packaging-
d15.56
DN1-
l11.06
z10.08
d25.56
DN2-
l21.06
z20.08

SJTZ056PEA

size6" orange
dimensions2.09x10.00x7.99 "
weight6.77 lb
packaging-
d16.63
DN1-
l11.04
z10.08
d26.63
DN2-
l21.04
z20.08

SJTZ056GEA

size6" galvanized
dimensions2.09x10.00x7.99 "
weight6.77 lb
packaging-
d16.63
DN1-
l11.04
z10.08
d26.63
DN2-
l21.04
z20.08

SJTZ058PEA

size8" orange
dimensions2.52x12.68x10.39 "
weight13.38 lb
packaging-
d18.63
DN1-
l11.26
z10.09
d28.63
DN2-
l21.26
z20.09

SJTZ058GEA

size8" galvanized
dimensions2.52x12.68x10.39 "
weight13.38 lb
packaging-
d18.63
DN1-
l11.26
z10.09
d28.63
DN2-
l21.26
z20.09

Specifications

articleVSH Shurjoint rigid coupling (2 x groove), EPDM pre-lube gasket
article number with gtinZ05E-A
manufacturerShurjoint
weight13.38 lb
dimensions2.52x12.68x10.39 "
colorsilver, orange
materialscast iron (ASTM A536 65-45-12)
finishinghot dip galvanized, varnished
shapestraight
connection typegroove (coupling)
sealingEPDM
max medium temperature100 °F
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint
product typeZ05E-A
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Shape":"Straight","Model":"2-part","Bend angle":"","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Medium temperature (continuous)":"38°C","Medium temperature (continuous) (imperial)":"100.4°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","ULC quality mark":"Yes","UL quality mark":"Yes","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
