Attributes
| Group Code | Z07Epw_GS |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air, vacuum |
| Approvals | CRN, NSF |
| Solutions | residential, datacenters, utility, industry |
Description

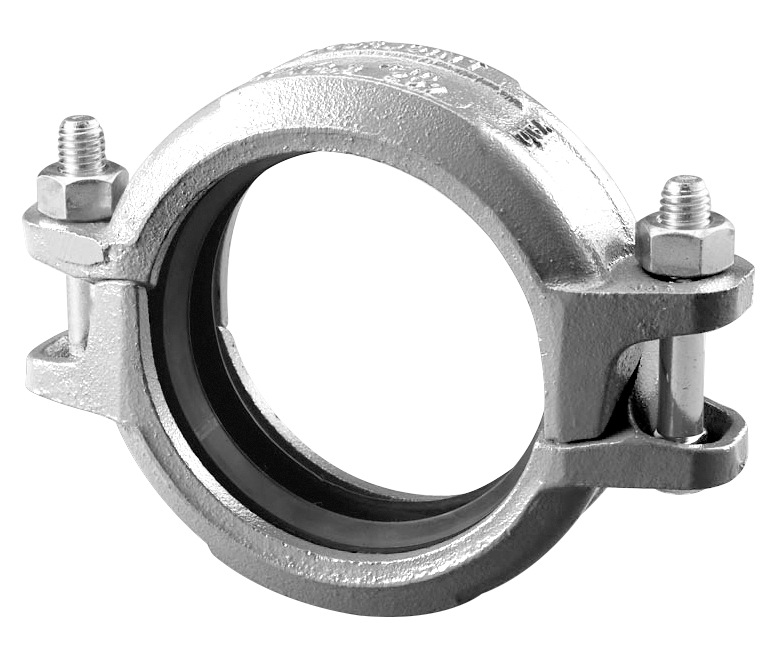

Z07Epw_GS is the designation for model Z07 with a GapSeal Grade E-pw EPDM gasket. The VSH Shurjoint Model Z07 is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
Variations (2)
SJTZ0710GGSE
| size | 10" galvanized |
|---|---|
| dimensions | 2.56x15.59x12.87 " |
| weight | 22.86 lb |
| packaging | - |
| d1 | 10.75 |
| DN1 | - |
| l1 | 1.28 |
| z1 | 0.06 |
| d2 | 10.75 |
| DN2 | - |
| l2 | 1.28 |
| z2 | 0.06 |
SJTZ0712GGSE
| size | 12" galvanized |
|---|---|
| dimensions | 2.56x17.80x14.84 " |
| weight | 26.01 lb |
| packaging | - |
| d1 | 12.75 |
| DN1 | - |
| l1 | 1.28 |
| z1 | 0.06 |
| d2 | 12.75 |
| DN2 | - |
| l2 | 1.28 |
| z2 | 0.06 |
Specifications
| article | VSH Shurjoint heavy duty rigid coupling (2 x groove), EPDM NSF61, GapSeal gasket |
|---|---|
| article number with gtin | Z07Epw_GS |
| manufacturer | Shurjoint |
| weight | 26.01 lb |
| dimensions | 2.56x17.80x14.84 " |
| color | silver |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | hot dip galvanized |
| shape | straight |
| connection type | groove (coupling) |
| sealing | EPDM |
| min. medium temperature | -29 °F |
| max medium temperature | 230 °F |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | Z07Epw_GS |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Surface protection connection 1":"Hot-dip galvanised","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Surface protection connection 2":"Hot-dip galvanised","Shape":"Straight","Bend angle":"","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Main colour fitting":"Grey","Material sealing":"Ethylene-propylene diene monomer rubber (EPDM)","With buffer stud":"No","Length":"65mm","Length (imperial)":"2.56\"","Length of connection 1":"32.5mm","Length of connection 1 (imperial)":"1.28\"","Working length connection 1":"1.6mm","Working length connection 1 (imperial)":"0.06\"","Length of connection 2":"32.5mm","Length of connection 2 (imperial)":"1.28\"","Working length connection 2":"1.6mm","Working length connection 2 (imperial)":"0.06\"","Medium temperature (continuous)":"-34°C - 110°C","Medium temperature (continuous) (imperial)":"-29.2°F - 230°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
