Attributes
| Group Code | Z07O |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint |
| Applications | heating, cooling, compressed air, vacuum |
| Solutions | residential, datacenters, utility, industry |
Description

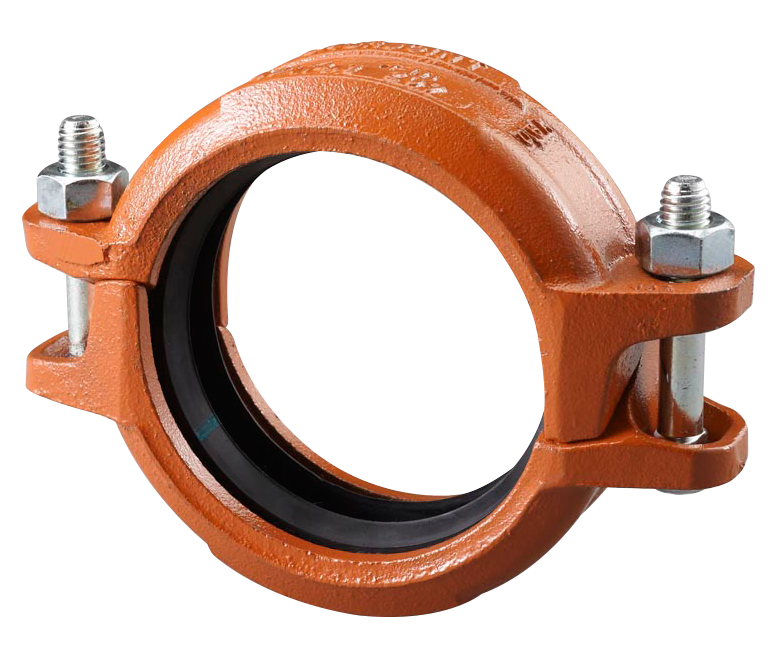

Z07O is the designation for model Z07 with a Grade O fluoro-elastomer gasket. The VSH Shurjoint Model Z07 is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13.
Variations (3)
SJTZ074PO
| size | 4" orange |
|---|---|
| dimensions | 2.13x8.11x5.79 " |
| weight | 4.41 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 1.06 |
| z1 | 0.08 |
| d2 | 4.50 |
| DN2 | - |
| l2 | 1.06 |
| z2 | 0.08 |
SJTZ076PO
| size | 6" orange |
|---|---|
| dimensions | 2.09x10.67x7.99 " |
| weight | 7.63 lb |
| packaging | - |
| d1 | 6.63 |
| DN1 | - |
| l1 | 1.04 |
| z1 | 0.08 |
| d2 | 6.63 |
| DN2 | - |
| l2 | 1.04 |
| z2 | 0.08 |
SJTZ078PO
| size | 8" orange |
|---|---|
| dimensions | 2.52x13.46x10.55 " |
| weight | 15.7 lb |
| packaging | - |
| d1 | 8.63 |
| DN1 | - |
| l1 | 1.26 |
| z1 | 0.09 |
| d2 | 8.63 |
| DN2 | - |
| l2 | 1.26 |
| z2 | 0.09 |
Specifications
| article | VSH Shurjoint heavy duty rigid coupling (2 x groove), Fluoro-elastomer gasket |
|---|---|
| article number with gtin | Z07O |
| manufacturer | Shurjoint |
| weight | 15.7 lb |
| dimensions | 2.52x13.46x10.55 " |
| color | orange |
| materials | cast iron (ASTM A536 65-45-12) |
| finishing | varnished |
| shape | straight |
| connection type | groove (coupling) |
| sealing | FKM |
| min. medium temperature | 19 °F |
| max medium temperature | 300 °F |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint |
| product type | Z07O |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Cast iron","Material quality connection 1":"ASTM A536 Grade 65-45-12","Surface protection connection 1":"Lacquered","Surface treatment connection 1":"Other","Material connection 2":"Cast iron","Material quality connection 2":"ASTM A536 Grade 65-45-12","Surface protection connection 2":"Lacquered","Surface treatment connection 2":"Other","Shape":"Straight","Model":"2-part","Bend angle":"","Reducing":"No","Eccentric":"No","System specific":"No","Connection 1":"Ribbing groove (groove coupling)","Connection 2":"Ribbing groove (groove coupling)","Main colour fitting":"Orange","Material sealing":"Fluorelastomer rubber (FPM/FKM)","With buffer stud":"No","Medium temperature (continuous)":"-7°C - 149°C","Medium temperature (continuous) (imperial)":"19.4°F - 300.2°F","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"No","LPCB quality mark":"No","ULC quality mark":"No","UL quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
