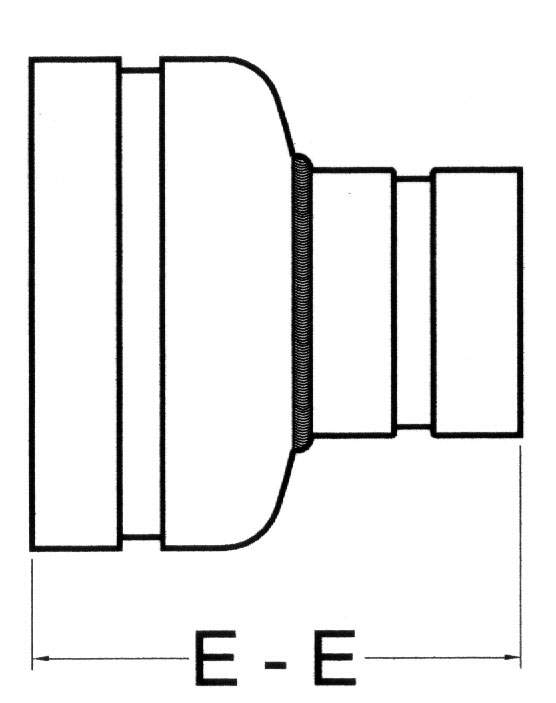

VSH Shurjoint stainless steel concentric reducer (2 x groove)

Scraped SKU: SS-50 2026-06-05 04:25:21

Attributes

Group CodeSS-50
Product Typedemontabel
Brand Seriesvsh-shurjoint-stainless-steel
Applicationspotable water, heating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, NSF, UL, ULc
Solutionsfire protection, utility, industry

Description

The Shurjoint Model SS-50 stainless steel fittings are investment cast in sizes to 8” and sand cast or wrought in 10" – 24”. Materials are in compliance with NSF/ANSI 372 for potable water service applications. For wrought sizes 10” and higher, please refer to datasheets for models WS-21 or contact Shurjoint Customer Service.

Variations (48)

SJTSS5012514

size1 1/4"x1" 304
dimensions2.52x1.66x1.66 "
weight0.49 lb
packaging-
d11.66
DN1-
l11.26
d21.33
DN2-
l21.26

SJTSS5012516

size1 1/4"x1" 316
dimensions2.52x1.66x1.66 "
weight0.49 lb
packaging-
d11.66
DN1-
l11.26
d21.33
DN2-
l21.26

SJTSS501514

size1 1/2"x1" 304
dimensions2.52x1.90x1.90 "
weight0.57 lb
packaging-
d11.90
DN1-
l11.26
d21.33
DN2-
l21.26

SJTSS501516

size1 1/2"x1" 316
dimensions2.52x1.90x1.90 "
weight0.57 lb
packaging-
d11.90
DN1-
l11.26
d21.33
DN2-
l21.26

SJTSS50151254

size1 1/2"x1 1/4" 304
dimensions2.52x1.90x1.90 "
weight0.6 lb
packaging-
d11.90
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS50151256

size1 1/2"x1 1/4" 316
dimensions2.52x1.90x1.90 "
weight0.6 lb
packaging-
d11.90
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS50214

size2"x1" 304
dimensions2.52x2.37x2.37 "
weight0.68 lb
packaging-
d12.37
DN1-
l11.26
d21.32
DN2-
l21.26

SJTSS50214W

size2"x1" 316
dimensions2.52x2.37x2.37 "
weight0.68 lb
packaging-
d12.37
DN1-
l11.26
d21.32
DN2-
l21.26

SJTSS5021254

size2"x1 1/4" 304
dimensions2.52x2.37x2.37 "
weight0.73 lb
packaging-
d12.37
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS5021256

size2"x1 1/4" 316
dimensions2.52x2.37x2.37 "
weight0.73 lb
packaging-
d12.37
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS502154

size2"x1 1/2" 304
dimensions2.52x2.37x2.37 "
weight0.9 lb
packaging-
d12.37
DN1-
l11.26
d21.90
DN2-
l21.26

SJTSS502156

size2"x1 1/2" 316
dimensions2.52x2.37x2.37 "
weight0.73 lb
packaging-
d12.37
DN1-
l11.26
d21.90
DN2-
l21.26

SJTSS502514

size2 1/2"x1" 304
dimensions2.52x2.87x2.87 "
weight0.88 lb
packaging-
d12.87
DN1-
l11.26
d21.33
DN2-
l21.26

SJTSS50251254

size2 1/2"x1 1/4" 304
dimensions2.52x2.87x2.87 "
weight1.04 lb
packaging-
d12.87
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS5025154

size2 1/2"x1 1/2" 304
dimensions2.52x2.87x2.87 "
weight1.06 lb
packaging-
d12.87
DN1-
l11.26
d21.90
DN2-
l21.26

SJTSS502524

size2 1/2"x2" 304
dimensions2.52x2.87x2.87 "
weight1.01 lb
packaging-
d12.87
DN1-
l11.26
d22.37
DN2-
l21.26

SJTSS502526

size2 1/2"x2" 316
dimensions2.52x2.87x2.87 "
weight1.01 lb
packaging-
d12.87
DN1-
l11.26
d22.37
DN2-
l21.26

SJTSS5031254

size3"x1 1/4" 304
dimensions2.52x3.50x3.50 "
weight1.17 lb
packaging-
d13.50
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS5031256

size3"x1 1/4" 316
dimensions2.52x3.50x3.50 "
weight1.17 lb
packaging-
d13.50
DN1-
l11.26
d21.66
DN2-
l21.26

SJTSS503154

size3"x1 1/2" 304
dimensions2.52x3.50x3.50 "
weight1.21 lb
packaging-
d13.50
DN1-
l11.26
d21.90
DN2-
l21.26

SJTSS503156

size3"x1 1/2" 316
dimensions2.52x3.50x3.50 "
weight1.21 lb
packaging-
d13.50
DN1-
l11.26
d21.90
DN2-
l21.26

SJTSS50324

size3"x2" 304
dimensions2.52x3.50x3.50 "
weight1.32 lb
packaging-
d13.50
DN1-
l11.26
d22.37
DN2-
l21.26

SJTSS50326

size3"x2" 316
dimensions2.52x3.50x3.50 "
weight1.32 lb
packaging-
d13.50
DN1-
l11.26
d22.37
DN2-
l21.26

SJTSS503254

size3"x2 1/2" 304
dimensions2.52x3.50x3.50 "
weight2.09 lb
packaging-
d13.50
DN1-
l11.75
d22.87
DN2-
l21.75

SJTSS503256

size3"x2 1/2" 316
dimensions2.52x3.50x3.50 "
weight2.09 lb
packaging-
d13.50
DN1-
l11.75
d22.87
DN2-
l21.75

SJTSS50424

size4"x2" 304
dimensions4.02x4.50x4.50 "
weight2.09 lb
packaging-
d14.50
DN1-
l11.50
d22.37
DN2-
l21.50

SJTSS50426

size4"x2" 316
dimensions4.02x4.50x4.50 "
weight2.09 lb
packaging-
d14.50
DN1-
l11.50
d22.37
DN2-
l21.50

SJTSS504254

size4"x2 1/2" 304
dimensions4.02x4.50x4.50 "
weight3.09 lb
packaging-
d14.50
DN1-
l12.01
d22.87
DN2-
l22.01

SJTSS504256

size4"x2 1/2" 316
dimensions4.02x4.50x4.50 "
weight3.09 lb
packaging-
d14.50
DN1-
l12.01
d22.87
DN2-
l22.01

SJTSS50434

size4"x3" 304
dimensions4.02x4.50x4.50 "
weight2.03 lb
packaging-
d14.50
DN1-
l11.50
d23.50
DN2-
l21.50

SJTSS50436

size4"x3" 316
dimensions4.02x4.50x4.50 "
weight2.03 lb
packaging-
d14.50
DN1-
l11.50
d23.50
DN2-
l21.50

SJTSS50544

size5"x4" 304
dimensions3.50x5.56x5.56 "
weight3.55 lb
packaging-
d15.56
DN1-
l11.75
d24.50
DN2-
l21.75

SJTSS50634

size6"x3" 304
dimensions4.02x6.63x6.63 "
weight5.16 lb
packaging-
d16.63
DN1-
l12.01
d23.50
DN2-
l22.01

SJTSS50636

size6"x3" 316
dimensions4.02x6.63x6.63 "
weight5.16 lb
packaging-
d16.63
DN1-
l12.01
d23.50
DN2-
l22.01

SJTSS50644

size6"x4" 304
dimensions4.02x6.63x6.63 "
weight5.07 lb
packaging-
d16.63
DN1-
l12.01
d24.50
DN2-
l22.01

SJTSS50646

size6"x4" 316
dimensions4.02x6.63x6.63 "
weight5.07 lb
packaging-
d16.63
DN1-
l12.01
d24.50
DN2-
l22.01

SJTSS50654

size6"x5" 304
dimensions4.02x6.63x6.63 "
weight5.71 lb
packaging-
d16.63
DN1-
l12.01
d25.56
DN2-
l22.01

SJTSS50844

size8"x4" 304
dimensions5.00x8.63x8.63 "
weight9.52 lb
packaging-
d18.63
DN1-
l12.50
d24.50
DN2-
l22.50

SJTSS50846

size8"x4" 316
dimensions5.00x8.63x8.63 "
weight9.52 lb
packaging-
d18.63
DN1-
l12.50
d24.50
DN2-
l22.50

SJTSS50854

size8"x5" 304
dimensions5.00x8.63x8.63 "
weight11.97 lb
packaging-
d18.63
DN1-
l12.50
d25.56
DN2-
l22.50

SJTSS50864

size8"x6" 304
dimensions5.00x8.63x8.63 "
weight9.39 lb
packaging-
d18.63
DN1-
l12.50
d26.63
DN2-
l22.50

SJTSS50866

size8"x6" 316
dimensions5.00x8.63x8.63 "
weight9.39 lb
packaging-
d18.63
DN1-
l12.50
d26.63
DN2-
l22.50

SJTSS501064

size10"x6" 304
dimensions5.98x10.75x10.75 "
weight18.36 lb
packaging-
d110.75
DN1-
l12.99
d26.63
DN2-
l22.99

SJTSS501084

size10"x8" 304
dimensions5.98x10.75x10.75 "
weight19.18 lb
packaging-
d110.75
DN1-
l12.99
d28.63
DN2-
l22.99

SJTSS501086

size10"x8" 316
dimensions5.98x10.75x10.75 "
weight19.18 lb
packaging-
d110.75
DN1-
l12.99
d28.63
DN2-
l22.99

SJTSS501284

size12"x8" 304
dimensions7.01x12.75x12.75 "
weight25.46 lb
packaging-
d112.75
DN1-
l13.50
d28.63
DN2-
l23.50

SJTSS501286

size12"x8" 316
dimensions7.01x12.75x12.75 "
weight25.46 lb
packaging-
d112.75
DN1-
l13.50
d28.63
DN2-
l23.50

SJTSS5012104

size12"x10" 304
dimensions7.01x12.75x12.75 "
weight25 lb
packaging-
d112.75
DN1-
l13.50
d210.75
DN2-
l23.50

Specifications

articleVSH Shurjoint stainless steel concentric reducer (2 x groove)
article number with gtinSS-50
manufacturerShurjoint
weight25 lb
dimensions7.01x12.75x12.75 "
colorsilver
materialsstainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))
finishingnone
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003024 Fitting with 2 connections
country of originTaiwan
brandVSH
seriesShurjoint Stainless Steel
product typeSS-50
ETIM
{"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Stainless steel","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Stainless steel","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Reducing":"No","Eccentric":"No","System specific":"Yes","Connection 1":"Groove","Connection 2":"Groove","Main colour fitting":"Grey","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}

PDF Documents

[Datasheet] Datasheet Open PDF
[Installation- & Maintenance Document] VSH Shurjoint Installation Handbook Open PDF
[Certificate] CRN Pipe Fittings Open PDF
[Certificate] FM Pipe Fittings Open PDF
[Certificate] UL Drinking Water System Components Open PDF
[Certificate] UL Fittings, Grooved and Plain End Open PDF
[Certificate] ULc Fittings, Grooved and Plain End Open PDF
