Attributes
| Group Code | SS-50F |
|---|---|
| Product Type | demontabel |
| Brand Series | vsh-shurjoint-stainless-steel |
| Applications | potable water, heating, cooling, compressed air, sprinkler, dry fire main |
| Approvals | CRN, FM, NSF, UL, ULc |
| Solutions | fire protection, utility, industry |
Description
The Shurjoint Model SS-50F stainless steel fittings are investment cast in sizes to 8” and sand cast or wrought in 10" – 24”. Materials are in compliance with NSF/ANSI 372 for potable water service applications. For wrought sizes 10” and higher, please refer to datasheets for models WS-21 or contact Shurjoint Customer Service.
Variations (3)
SJTSS50F2524
| size | 2 1/2"x2" FNPT 304 |
|---|---|
| dimensions | 3.50x2.87x2.87 " |
| weight | 2.09 lb |
| packaging | - |
| d1 | 2.87 |
| DN1 | - |
| l1 | 1.75 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 1.75 |
| z2 | 0.98 |
SJTSS50F324
| size | 3"x2" FNPT 304 |
|---|---|
| dimensions | 3.50x3.50x3.50 " |
| weight | 2.03 lb |
| packaging | - |
| d1 | 3.50 |
| DN1 | - |
| l1 | 1.75 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 1.75 |
| z2 | 0.98 |
SJTSS50F424
| size | 4"x2" FNPT 304 |
|---|---|
| dimensions | 4.02x4.50x4.50 " |
| weight | 3.88 lb |
| packaging | - |
| d1 | 4.50 |
| DN1 | - |
| l1 | 2.01 |
| d2 | 2.37 |
| DN2 | - |
| l2 | 2.01 |
| z2 | 1.22 |
Specifications

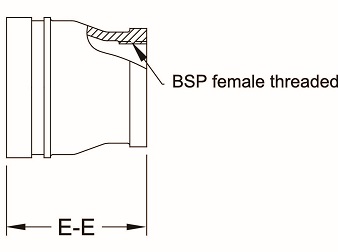

| article | VSH Shurjoint stainless steel reducing socket (groove x female thread) |
|---|---|
| article number with gtin | SS-50F |
| manufacturer | Shurjoint |
| weight | 3.88 lb |
| dimensions | 4.02x4.50x4.50 " |
| color | silver |
| materials | stainless steel (Stainless steel 304 (1.4301)) |
| finishing | none |
| connection type | groove (fitting), FPT - female thread conical (NPT) |
| product group | fittings (demountable) |
| ETIM class | EC003024 Fitting with 2 connections |
| country of origin | Taiwan |
| brand | VSH |
| series | Shurjoint Stainless Steel |
| product type | SS-50F |
| ETIM | {"etim-class":"EC003024 Fitting with 2 connections","Material connection 1":"Stainless steel","Material quality connection 1":"Stainless steel 304 (1.4301)","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","Material connection 2":"Stainless steel","Material quality connection 2":"Stainless steel 304 (1.4301)","Surface protection connection 2":"Untreated","Surface treatment connection 2":"Untreated","Shape":"Straight","Reducing":"No","Eccentric":"No","System specific":"Yes","Connection 1":"Groove","Nominal diameter connection 2":"DN 50","Outer pipe diameter connection 2":"60.3mm","Outer pipe diameter connection 2 (imperial)":"2.37\"","Connection 2":"Internal thread conical (NPT)","Main colour fitting":"Grey","With buffer stud":"No","With sealing rings/gaskets":"No","Capped":"No","With connection indicator":"No","With drain valve":"No","With de-aerator":"No","FM quality mark":"Yes","LPCB quality mark":"No","ULC quality mark":"Yes","UL quality mark":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","Certified according to NF 545":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"} |
