VSH Shurjoint stainless steel end cap (1 x groove)

Scraped SKU: SS-60 2026-06-05 04:25:21

Attributes

Group CodeSS-60
Product Typedemontabel
Brand Seriesvsh-shurjoint-stainless-steel
Applicationspotable water, heating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, NSF, UL, ULc
Solutionsfire protection, utility, industry

Description

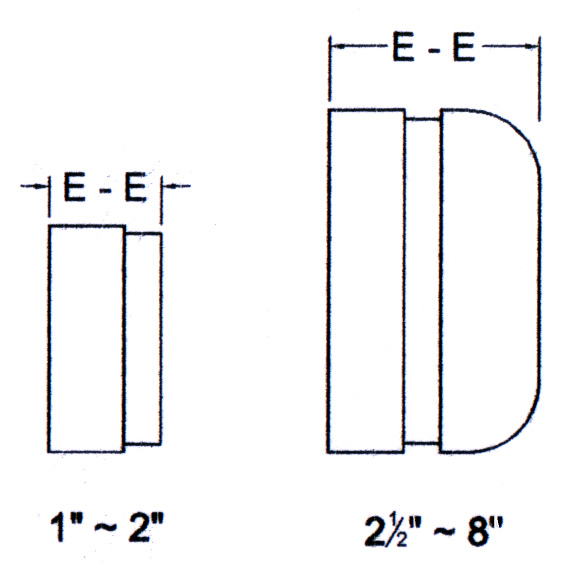

The Shurjoint Model SS-60 are investment cast in sizes 1”-12”. These fittings are supplied in ASTM A351 or A743 austenitic grades CF8 (304) and CF8M (316). Materials are in compliance with NSF/ANSI 372 for potable water service applications. In addition, fittings are also available on request in CF3M (316L), 316Ti, 2205 Duplex, 2507 Super Duplex and ASTM CK-3MCuN (UNS J93245) the cast equivalent to 254SMO* to meet your specific service requirements. All cast fittings feature full flow characteristics and are designed to the same C - E dimensions of standard ductile iron grooved fittings.


*254SMO is a registered trademark of Avesta Polarit AB.

Variations (24)

SJTSS6014

size1" 304
dimensions0.94x1.31x1.31 "
weight0.18 lb
packaging-
d11.32
DN1-
l10.95

SJTSS6016

size1" 316
dimensions0.94x1.31x1.31 "
weight0.18 lb
packaging-
d11.32
DN1-
l10.95

SJTSS601254

size1 1/4" 304
dimensions0.94x1.66x1.66 "
weight0.29 lb
packaging-
d11.66
DN1-
l10.95

SJTSS601256

size1 1/4" 316
dimensions0.94x1.66x1.66 "
weight0.29 lb
packaging-
d11.66
DN1-
l10.95

SJTSS60154

size1 1/2" 304
dimensions0.94x1.90x1.90 "
weight0.33 lb
packaging-
d11.90
DN1-
l10.95

SJTSS60156

size1 1/2" 316
dimensions0.94x1.90x1.90 "
weight0.33 lb
packaging-
d11.90
DN1-
l10.95

SJTSS6024

size2" 304
dimensions0.94x2.37x2.37 "
weight0.46 lb
packaging-
d12.37
DN1-
l10.95

SJTSS6026

size2" 316
dimensions0.94x2.37x2.37 "
weight0.46 lb
packaging-
d12.37
DN1-
l10.95

SJTSS60254

size2 1/2" 304
dimensions1.77x2.87x2.87 "
weight0.86 lb
packaging-
d12.87
DN1-
l11.77

SJTSS60256

size2 1/2" 316
dimensions1.77x2.87x2.87 "
weight0.86 lb
packaging-
d12.87
DN1-
l11.77

SJTSS6034

size3" 304
dimensions2.01x3.50x3.50 "
weight1.43 lb
packaging-
d13.50
DN1-
l12.01

SJTSS6036

size3" 316
dimensions2.01x3.50x3.50 "
weight1.43 lb
packaging-
d13.50
DN1-
l12.01

SJTSS6044

size4" 304
dimensions2.01x4.50x4.50 "
weight1.98 lb
packaging-
d14.50
DN1-
l12.01

SJTSS6046

size4" 316
dimensions2.01x4.50x4.50 "
weight1.98 lb
packaging-
d14.50
DN1-
l12.01

SJTSS6054

size5" 304
dimensions2.36x5.56x5.56 "
weight3.33 lb
packaging-
d15.56
DN1-
l12.36

SJTSS6056

size5" 316
dimensions2.36x5.56x5.56 "
weight3.33 lb
packaging-
d15.56
DN1-
l12.36

SJTSS6064

size6" 304
dimensions2.99x6.63x6.63 "
weight5.29 lb
packaging-
d16.63
DN1-
l12.99

SJTSS6066

size6" 316
dimensions2.99x6.63x6.63 "
weight5.29 lb
packaging-
d16.63
DN1-
l12.99

SJTSS6084

size8" 304
dimensions3.54x8.63x8.63 "
weight11.42 lb
packaging-
d18.63
DN1-
l13.54

SJTSS6086

size8" 316
dimensions3.54x8.63x8.63 "
weight11.42 lb
packaging-
d18.63
DN1-
l13.54

SJTSS60104

size10" 304
dimensions5.00x10.75x10.75 "
weight22.38 lb
packaging-
d110.75
DN1-
l15.00

SJTSS60106

size10" 316
dimensions5.00x10.75x10.75 "
weight22.38 lb
packaging-
d110.75
DN1-
l15.00

SJTSS60124

size12" 304
dimensions5.71x12.75x12.75 "
weight32.36 lb
packaging-
d112.75
DN1-
l15.71

SJTSS60126

size12" 316
dimensions5.71x12.75x12.75 "
weight32.36 lb
packaging-
d112.75
DN1-
l15.71

Specifications

articleVSH Shurjoint stainless steel end cap (1 x groove)
article number with gtinSS-60
manufacturerShurjoint
weight32.36 lb
dimensions5.71x12.75x12.75 "
colorsilver
materialsstainless steel (Stainless steel 304 (1.4301), Stainless steel 316 (1.4401))
finishingnone
connection typegroove (fitting)
product groupfittings (demountable)
ETIM classEC003023 Fitting with 1 connection
country of originTaiwan
brandVSH
seriesShurjoint Stainless Steel
product typeSS-60
ETIM
{"etim-class":"EC003023 Fitting with 1 connection","Material connection 1":"Stainless steel","Surface protection connection 1":"Untreated","Surface treatment connection 1":"Untreated","System specific":"Yes","Connection 1":"Groove","Main colour fitting":"Grey","With sealing rings/gaskets":"No","With drain valve":"No","With de-aerator":"No","Capped":"No","With connection indicator":"No","FM quality mark":"Yes","LPCB quality mark":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No","Gastec QA mark":"No","KOMO certified":"No","Gastec QA - AR 214 (H2)":"No"}
